Improving flexural strength of UHPC with sustainably synthesized graphene oxide

2.1 Green synthesis and characterization of GO

The solution of GO was produced with a two-step EC method [41], which is a safer, greener, and lower in cost compared to Hummer’s method or improved Hummer’s method [21,42,43]. Commercially available flexible graphite paper (FGP) was used as raw material. First, the FGP was subjected to EC intercalation in the concentrated H₂SO₄ to form graphite intercalation compound paper which was then employed as the anode for the EC reaction in the diluted H₂SO₄ to achieve oxidation of the carbon lattice in the FGP to produce graphite oxide. After being vacuum filtrated and washed, filter cake was exfoliated in water by the sonication to form GO dispersion.

The SEM images of the GO sheets were obtained by means of a field emission electron gun FEI Nova Nano SEM 430, which was operated at 10.0 kV. The SEM samples were fabricated by dipping a silicon wafer (1 cm × 1 cm) into the GO solution with a concentration of 0.01 wt% and gradually withdrawing them from the solution allowing the GO sheets to stay on the surface of the silicon wafer slice. Then, the wafer sample was spray dried with N₂ gas. Atomic force microscope (AFM) images of the GO were obtained by means of a Bruker Dimension FastScan with ScanAsyst^TM, which was operated in the tapping mode. The compositions of the GO were evaluated on the freeze dried GO powder by means of an Elementar vario MICRO cube combustion elemental analyzer (EA).

2.2 Materials of UHPC

Ordinary Portland cement grade 42.5 (OPC 42.5) in accordance with GB/T 175-2007 [44], Class F fly ash (FA), ground granulated blast furnace slag (GGBFS), and silica fume (SF) were employed as binder materials for all mixtures of the UHPCs. Table 1 lists their chemical compositions and properties [39].

Quartz powder (QP) with an average diameter of 0.044 mm was employed for UHPC mixtures with high cement contents only. Quartz sand (QS) consisted of three grades QS1, QS2, and QS3. The corresponding diameter ranged from 0.212 to 0.425 mm, 0.425 to 0.85 mm, and 0.85 to 2.00 mm, respectively. The content of SiO₂ for both the QP and QS was greater than 99%. Straight MSF coated with copper and with a tensile strength of 2,800 MPa, length of 12–16 mm, and diameter of 0.18–0.25 mm was used. A polycarboxylate-based superplasticizer (PCs) was used and its water-reducing capacity was greater than 38%.

2.3 Mix proportions and preparation of UHPC specimens

The UHPC mixtures contained MSFs in the range of 0.5, 1.0, and 1.5% by volume of concrete. For each level of MSF addition, the dosage of GO added were from 0.00 to 0.03% by mass of cement. Table 2 lists the mix proportions of the UHPCs, based on the earlier study [45]. These mixtures had a w/b of 0.18 and a sand-to-binder volume ratio of 1.1. Water components consisted of the mixing water and GO water dispersion. The dosage of PCE was 0.3% by mass of binder materials.

For the mixing procedure, the GO water dispersion was diluted with potable water in a vessel and stirred at a speed of 2,000 rpm for few minutes. In parallel, the dried QS was mixed in a separate vessel for 1 min, followed by the addition of cementitious materials and PCE powder and mixed at a speed of 60 rpm for one more minute. The diluted GO dispersion was then added for mixing for 2 min. The MSF was stably added in over 1 min and mixed at a speed of 60 rpm. Finally, the mixing continued at a speed of 60 rpm for more than 3 min. Part of this mixture was sampled for the testing of flowability. The remaining mixture was cast into the molds that were pre-oiled. This was followed by being compacted on a vibration table which was electrically powered. After being covered with polyethylene sheets, these samples were cured in the laboratory environment for 24 h.

The specimens, with dimensions of 40 mm × 40 mm × 40 mm, were prepared for compressive strength tests, while specimens with dimensions of 40 mm × 40 mm × 160 mm were prepared for flexural strength tests. As shown in Figure 1, dog-bone-shaped specimens for single fiber pullout test were prepared and the embedment depth of a 30 mm long steel fiber was 15 ± 2 mm. The dog-bone-shaped specimens were also employed to prepare samples for observation on the steel fiber-to-matrix interface by means of an SEM.

Figure 1

Specimens for single fiber pullout test.

Two curing regimes were employed. After demolding, half of the specimens were cured at a temperature of 21 ± 2°C and a relative humidity greater than 95% until the age of testing, designated “standard curing.” The remaining samples were moved into a steam box and cured with its temperature elevated to 90°C at a rate of 10°C per hour. It was held at 90°C for 24 h and then cooled to the room temperature at a rate of 10°C per hour, which was followed by further standard curing until the testing age, designated “steam curing.”

2.4 Experimental procedure

2.4.3 Single fiber pullout tests

Fiber pullout tests were performed by using testing equipment as illustrated in Figure 2 according to Chinese standard CECS13:2009 [48]. A displacement controlling method was applied for the test and the loading rates were 3 mm/min. The maximum pullout forces were recorded and the bond strength between steel fiber and the bulk matrix was calculated according to the maximum pullout force and the surface area of the embedded fiber. Each bond strength value listed was the average of six test results.

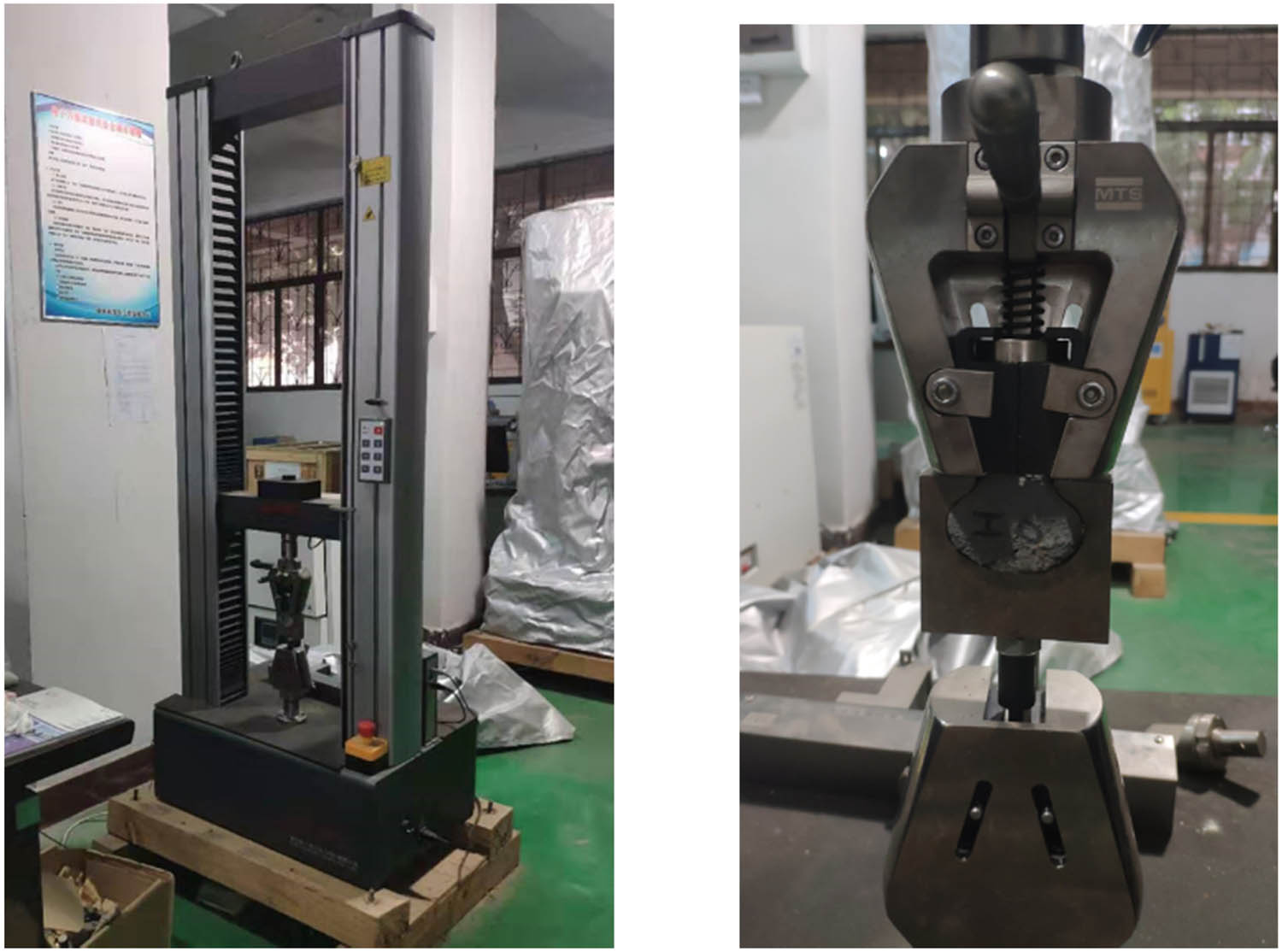

Figure 2

Setup of single fiber pullout test.

3.1 Characteristic of GO

The GO was characterized by means of the AFM and the SEM. The GO monolayer showed a thickness of ∼1.0 nm. Statistical analysis of the AFM images confirmed that the thickness distribution of GO was predominantly as monolayers (∼91%), and all the GO were less than 3 layers, as illustrated in Figure 3a and b. The results obtained from the AFM and SEM measurements indicated that the lateral size of GO is mainly in the range of 0.5‒3 μm (∼80.3%), with ∼2.7% larger than 3 μm and ∼17 % smaller than 0.5 μm as shown in Figure 3c and d. The compositions of the GO were analyzed by means of the EA and the results showed that the GO had a mean C/O atomic ratio of ∼1.67, suggesting a higher oxidation degree of GO. The GO compositions and dimensions are summarized in Table 3.

Figure 3

Characterization of GO. (a) typical AFM image of GO, (b) statistics of the thickness distribution of GO, (c) typical SEM image of GO, and (d) statistics of the lateral size distribution of GO.

Prior to the present study, Hummer’s method or the improved Hummer’s method [21,42,43] had been most widely employed to synthesize GO for enhancing the properties of cement paste, mortar, and concrete [21]. However, this has resulted in significant concerns with regard to safety, negative environmental impact, and high cost because highly concentrated H₂SO₄ and KMnO₄ are used to ensure that the graphite is oxidized as completely as possible. Their reaction product, Mn₂O₇, is highly active and can explode at elevated temperature greater than 95°C. Moreover, a serious environmental pollution risk is associated with the high volume of wastewater containing mixed acids and metal ions when removing the H₂SO₄ and KMnO₄ following the oxidation reaction. In addition, it can take an extended time for the oxidation to complete, even when applying the strong oxidant K₂FeO₄ and concentrated H₂SO₄, further adding to the pollution risk. Clearly, it is not appropriate to employ Hummer’s method or improved Hummer’s method to synthesize GO for large volume production as required by the construction industry. The EC method [41] for synthesizing exhibits a number of advantages, with H₂SO₄ being used principally as a fully recyclable control agent and without other oxidants which could otherwise contribute to explosion risks and the release of metal ion contamination. In addition, the oxidation rate of EC is relatively faster. Moreover, the cleaning of the produced graphite oxide needs less water. It is therefore apparent that the EC method to synthesize GO is potentially safer, greener, and of lower cost and should be suitable for fabricating GO for all cement-based composites such as cement paste, mortar, normal concrete, and high-performance concrete especially UHPC.

3.2 Fresh properties of UHPC with GO

Figure 4 shows the effect of MSF and GO on the flowability of the mixture. It can be seen that the combined effects of both GO and MSF have resulted in the reduction in the flowability of the mixture. When the content of GO is added from 0.0 to 0.03%, the flowability with an MSF of 0.5% is decreased from 221 to 186 mm, while with a 1% of MSF, the flowability is reduced from 197 to 176 mm. Similar trend is also observed on the UHPC with a 1.5% of MSF, where the flowability is reduced from 178 to 156 mm.

Figure 4

Flowability of fresh mixtures.

Previously it was reported that the decrease in concrete flowability due to GO might be attributed to its high specific surface area, causing the less availability of water to adequately wet the mixture [21]. It was also suggested that the flowability reduction in UHPC mixtures incorporating MSF may be associated with the increased specific surface area and random distribution of MSF [5]. It is therefore assumed that such combined factors have caused further decrease in flowability.

3.3 Compressive strength of UHPC influenced by GO

The compressive strength tested at 7, 28, and 56 days under standard curing is shown in Figure 5. For a given MSF content and a given age, it can be seen that the compressive strength is improved as the content of GO is increased compared to the reference specimens. It is also observed that for a given MSF content and a given age with additions of GO from 0 to 0.03%, the compressive strength of UHPC is first increased up to 0.02% but then stabilizes, indicating an optimal dosage of GO of around 0.02%. With this dosage, the corresponding values of UHPC with the MSF content of 0.5, 1.0, and 1.5% at 56 days are 119, 128, and 139 MPa, respectively, which represent an increase of 13.8, 4.0, and 2.0%. It also suggests that the compressive strength is enhanced with the increase in MSF content for a given age and GO dosage.

Figure 5

Compressive strength of UHPC under standard curing.

The compressive strength tested at 7, 28, and 56 days under steam curing is shown in Figure 6. It is clear that the compressive strength is generally greater than that of the reference specimen for a given MSF content. It can also be seen that the compressive strength is enhanced as the content of GO is increased from 0.0 to 0.02% and then reduced as the content of GO ranged from 0.02 to 0.03% at all tested ages, again supporting an optimal dosage of GO of around 0.02%. The compressive strength of the specimen with a 0.02% of GO and incorporating 0.5, 1.0, and 1.5% of MSF at 56 days is 137, 149, and 158 MPa, respectively, which represents an increase of 2.2, 6.4, and 3.0%, indicating that the compressive strength is enhanced with the increase in MSF content for a given age and GO dosage.

Figure 6

Compressive strength of UHPC under steam curing.

Generally, the results gained from both the curing processes have confirmed that the incorporation of GO can marginally improve the compressive strength of UHPC for a given MSF content. It is also notable that its optimal dosage under both curing regimes is around 0.02%, while the compressive strength is enhanced with the increase in MSF content for a given age and GO dosage. The improvement in compressive strength may be associated with the incorporation of both GO and MSF. The former may promote cement hydration, refine pore structure, encourage compact microstructure, and improve interfacial bond with the matrix [49]. Increase in the MSF content should decrease the space between MSF and provide more MSF to transmit load, thereby improving the compressive strength [5].

3.4 Flexural strength of UHPC influenced by GO

The flexural strength tested at 7, 28, and 56 days under standard curing is shown in Figure 7. It is observed that for a given MSF content and age, the flexural strength is significantly improved following the incorporation of GO. The trend of flexural strength at 7 and 28 days varies, but for all specimens it becomes similar at 56 days with the flexural strength enhanced as the content of GO is increased from 0.0 to 0.02% and then decreases from 0.02 to 0.03%, indicating an optimal dosage under standard curing is in the order 0.02%. The flexural strength of UHPC with 0.5% of MSF and incorporating 0.01, 0.02, and 0.03% of GO at 56 days is 26.1, 34.9, and 26.4 MPa, an increase of 2.4, 37.7, and 4.2%, respectively, while the flexural strength of UHPC with 1.0% of MSF and containing the same GO at 56 days is 32.4, 43.3, and 40.3 MPa, an increase of 9.6, 47.0, and 36.8%, respectively, compared to the reference specimen. For the specimen with a 1.5% of MSF, the flexural strength of UHPC incorporating a 0.01, 0.02, and 0.03% of GO at 56 days is 44.7, 48.6, and 46.2 MPa, an increase of 21.9, 32.4, and 25.8%, respectively. It is therefore demonstrated that the flexural strength of UHPC is significantly improved by incorporating GO under standard curing.

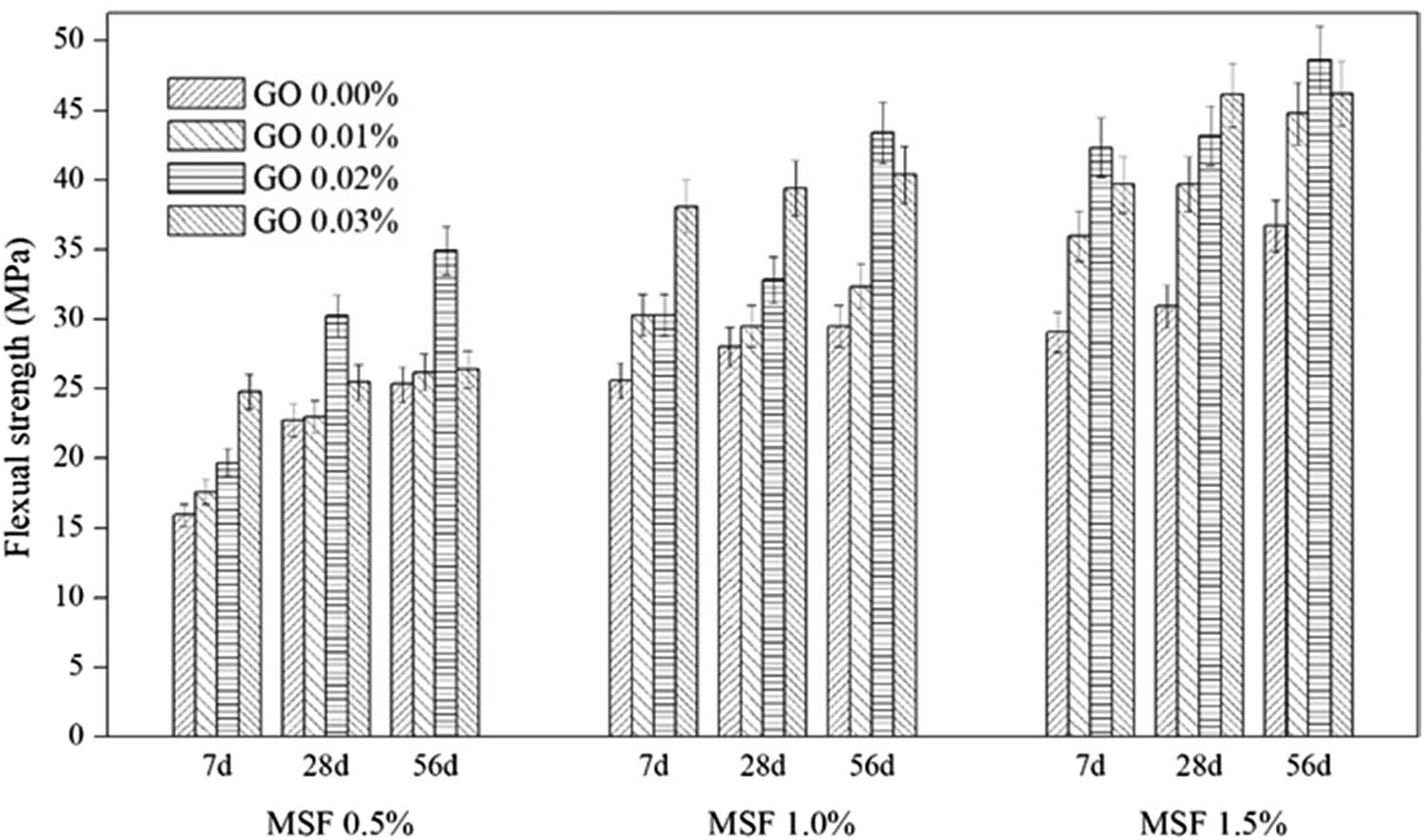

Figure 7

Flexural strength of UHPC under standard curing.

The flexural strength of UHPC tested at ages of 7, 28, and 56 days under steam curing is shown in Figure 8. It is apparent that for a given MSF and age, the flexural strength of UHPC with GO is greatly enhanced when the content of GO is added from 0.0 to 0.02% and then decreased from 0.02 to 0.03%, suggesting the optimal dosage of GO is in the order of 0.02%. At 56 days, the flexural strength of UHPC with 0.5% of MSF and containing 0.01, 0.02, and 0.03% of GO is 30.5, 33.5, and 31.6 MPa, respectively, representing an increase of 2.7, 12.6, and 6.37%, while the flexural strength for UHPC with 1.0% of MSF and corresponding GO is 42.0, 45.9, and 42.7 MPa, respectively, representing an increase of 5.5, 15.3, and 7.4% compared to the control concrete. It is also observed at 56 days that the flexural strength of UHPC with 1.5% of MSF and 0.01, 0.02, and 0.03% of GO is 51.1, 62.5, and 53.5 MPa, respectively, representing an increase of 24.9, 52.4, and 30.5%. It is therefore evident that the flexural strength of UHPC with the addition of GO is significantly improved under such curing.

Figure 8

Flexural strength of UHPC under steam curing.

The results gained from both the standard curing and steam curing have confirmed that the flexural strength has been significantly improved. As previously discussed, this might be associated with the promotion of cement hydration, a more refined pore structure and compacted microstructure, and interfacial bond with the matrix as a result of the addition of GO [49]. It could also be attributed to the incorporation of MSF with its increase in content reducing the space between the MSFs and providing more MSF to sustain load, leading to the enhancement of flexural strength [5]; however, further discussion in present study will be carried out on the basis of the results obtained from the fiber pull-out test.

As referred previously, as the dosage of GO is added from 0.02 to 0.03% the compressive strength under steam curing and flexural strength under both standard curing and steam curing increase up to 0.02% of additions before dropping but remains greater than that of the reference specimen. This decrease in trend could be due to the higher dosage of GO failing to be uniformly dispersed [50].

Table 4 summarizes the improvement in the compressive and flexural strengths of UHPC obtained from previous studies and present work. It is observed that all the compressive strengths of UHPC is enhanced slightly, while flexural strength is improved significantly. It is also apparent that the increase in flexural strength of UHPC containing GO ranges from 39.7 to 65.0%, which supports the addition of GO as one possible measure to improve the flexural strength of UHPC.

3.5 Bond strength between single steel fiber and the bulk matrix of UHPC

Bond strength between a single steel fiber and the bulk matrix of UHPC at 7 days is shown in Figure 9. It can be seen that the incorporation of GO improves the bond strength under both standard curing and steam curing. For specimens containing the GO content of 0.0, 0.01, 0.02, and 0.03% under standard curing, the corresponding bond strength is 1.2, 2.0, 2.5, and 3.7 MPa, respectively. For specimens with GO additions of 0.01, 0.02, and 0.03% under steam curing, the bond strength is increased by 1.0, 4, and 31%, respectively, compared to the one without containing GO. It is also apparent that the bond strength of the specimen incorporating similar dosage of GO under steam curing is much greater than that of the specimens under standard curing. This is associated with the effect of the steam curing in promoting the pozzolanic reactivity [16].

Figure 9

Bond strength between a single fiber and the bulk matrix of UHPC at 7 days.

3.6 Discussion on the effects of GO on microstructure and mechanical performances of UHPC

As presented in Sections 3.3 and 3.4, the addition of GO has a slight enhancement on the compressive strength of the UHPC. It is important to be noted that its flexural strength is improved significantly by containing GO. As illustrated in Figure10, the microstructure of the matrix of the UHPC containing GO shows no significant difference from that without GO. This may be the reason why the compressive strength of UHPC with GO was not enhanced to a notable extent. In comparison, the bond strength between fiber and the UHPC matrix usually plays a greater role in the improvement of flexural strength than that on compressive strength. As described in the Section 3.5, the bond strength between fiber and the UHPC matrix is increased as the content of GO ranges from 0.01 to 0.03%, thereby leading to a higher flexural strength than that without GO.

Figure 10

BSE image of interface between a fiber and the bulk matrix at 7 days: (a) referenced specimen without GO; (b) specimen with 0.02% of GO under standard curing; and (c) specimen with 0.2% of GO under steam curing.

A recent study on the effect of GO on single fiber bond behavior within mortar also indicated that the addition of GO can improve the bond between fiber and mortar matrix, where it was suggested that the enhanced compressive strength of mortar helps create better interface bonds [52]. Elsewhere, it was attributed to the higher friction increase and mechanical interlock at the interface between the steel fiber and the bulk matrix, thanks to the addition of GO [38]. In the present study, the microstructure of the interface between fiber and the matrix was characterized by means of SEM examination. As illustrated in Figure 10, it is observed that the microstructure of the interface between the fiber and the matrix of the UHPC with GO shows no significant difference from that without GO, indicating that the enhancement of bond strength by GO not only may be due to the improvement in interfacial microstructure, but also can be contributed to the higher friction increase and mechanical interlock as aforementioned, which is subjected to be further investigated.
