Crystal structure of (E)-3-((4-(tert-butyl)phenyl)thio)-4-hydroxypent-3-en-2-one, C15H20O2S

  • Le Dong , Ya-Fei Guo ORCID logo EMAIL logo , Jun-Ying Ma EMAIL logo , Jun-Ling Wang ORCID logo , Shu-Xiao Feng and Hui-Kang Huo
Published/Copyright: November 18, 2021
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 237 Issue 1

Abstract

C15H20O2S, monoclinic, P21/c (No. 14), a = 12.8520(8) Å, b = 10.5864(8) Å, c = 11.2202(7) Å, β = 104.375(7)°, V = 1478.78(18) Å3, Z = 4, R gt (F) = 0.0655, wR ref (F 2) = 0.1781, T = 293 K.

CCDC no.: 2108461

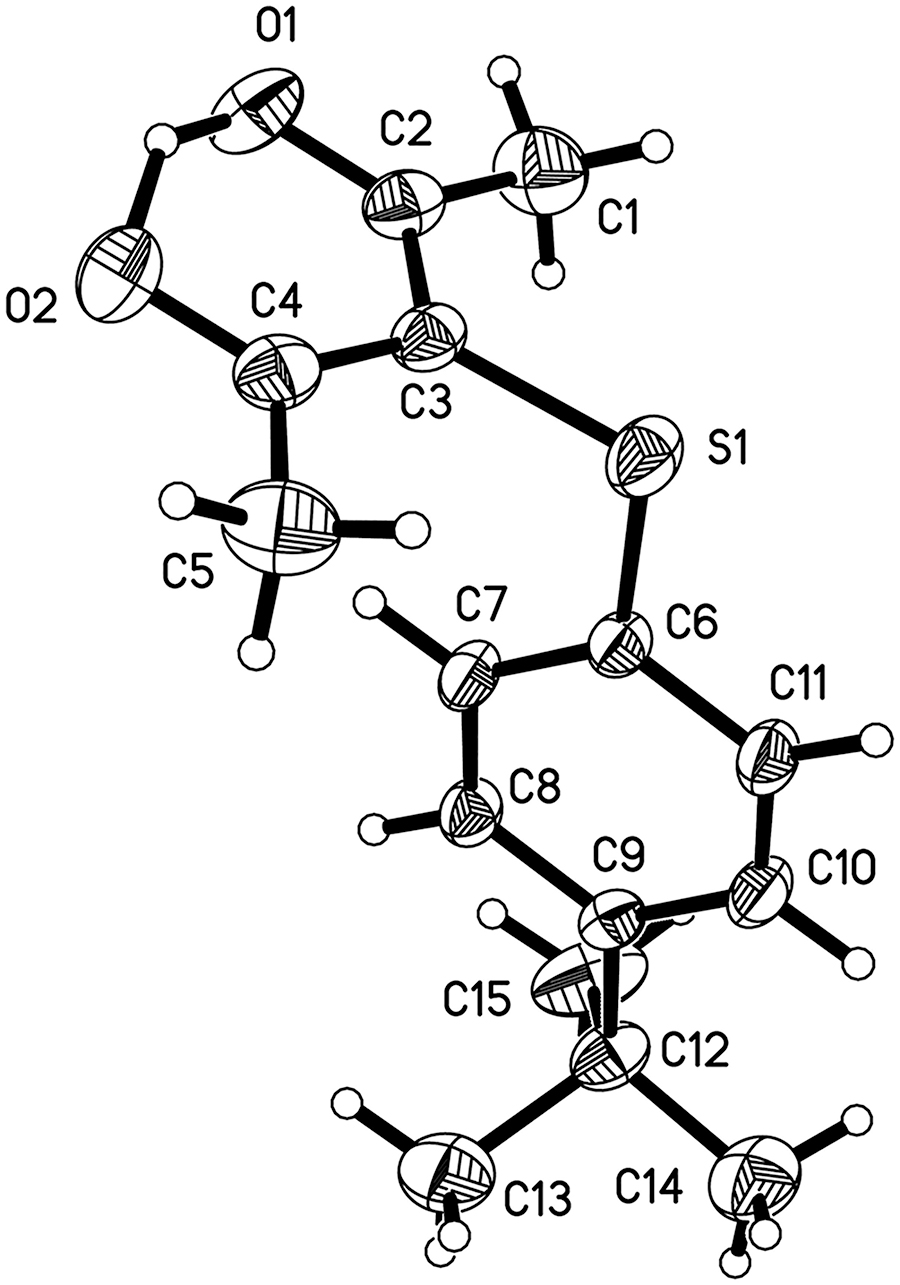

The crystal structure is shown in the figure (for the disordered part only one component list shown). Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Block, colourless
Size: 0.27 × 0.25 × 0.24 mm
Wavelength: Mo Kα radiation (0.71073 Å)
μ: 0.21 mm−1
Diffractometer, scan mode: SuperNova, ω-scans
θ max, completeness: 28.4°, >99%
N(hkl)measured, N(hkl)unique, R int: 11,385, 3265, 0.033
Criterion for I obs, N(hkl)gt: I obs > 2 σ(I obs), 2549
N(param)refined: 181
Programs: CrysAlisPRO [1], OLEX2 [2], SHELX [3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z U iso*/U eq
S1 0.63034 (5) 0.80321 (7) 0.49264 (6) 0.0609 (3)
O1 0.38156 (15) 0.8078 (2) 0.6385 (2) 0.0758 (6)
H1 0.4125 0.9026 0.6875 0.114*
O2 0.50260 (16) 0.97776 (19) 0.73228 (18) 0.0731 (6)
C1 0.4173 (3) 0.6610 (3) 0.4957 (3) 0.0778 (8)
H1A 0.4651 0.5925 0.5277 0.117*
H1B 0.4224 0.6808 0.4138 0.117*
H1C 0.3449 0.6369 0.4939 0.117*
C2 0.44780 (18) 0.7745 (2) 0.5763 (2) 0.0541 (6)
C3 0.54415 (17) 0.8414 (2) 0.5865 (2) 0.0462 (5)
C4 0.56855 (19) 0.9438 (2) 0.6692 (2) 0.0536 (6)
C5 0.6696 (2) 1.0182 (3) 0.6908 (3) 0.0818 (9)
H5A 0.6597 1.0980 0.7272 0.123*
H5B 0.6878 1.0322 0.6139 0.123*
H5C 0.7265 0.9724 0.7453 0.123*
C6 0.71536 (16) 0.6827 (2) 0.57366 (19) 0.0416 (5)
C7 0.70896 (17) 0.6326 (2) 0.68557 (19) 0.0457 (5)
H7 0.6580 0.6631 0.7245 0.055*
C8 0.77863 (17) 0.5368 (2) 0.73980 (19) 0.0452 (5)
H8 0.7739 0.5053 0.8156 0.054*
C9 0.85475 (15) 0.4867 (2) 0.68514 (19) 0.0415 (5)
C10 0.85970 (18) 0.5392 (2) 0.5729 (2) 0.0519 (6)
H10 0.9104 0.5087 0.5337 0.062*
C11 0.79198 (18) 0.6349 (2) 0.5182 (2) 0.0508 (6)
H11 0.7977 0.6677 0.4432 0.061*
C12 0.92933 (19) 0.3783 (2) 0.7442 (2) 0.0554 (6)
C13a 0.9882 (5) 0.4224 (6) 0.8811 (5) 0.0864 (13)
H13Aa 0.9353 0.4431 0.9251 0.130*
H13Ba 1.0317 0.4953 0.8773 0.130*
H13Ca 1.0329 0.3551 0.9227 0.130*
C14a 1.0205 (5) 0.3530 (6) 0.6856 (6) 0.0844 (13)
H14Aa 1.0590 0.4300 0.6820 0.127*
H14Ba 0.9925 0.3211 0.6038 0.127*
H14Ca 1.0681 0.2917 0.7335 0.127*
C15a 0.8667 (4) 0.2628 (5) 0.7556 (7) 0.0921 (19)
H15Aa 0.9145 0.1981 0.7971 0.138*
H15Ba 0.8299 0.2336 0.6751 0.138*
H15Ca 0.8151 0.2820 0.8019 0.138*
C15Ab 0.8965 (6) 0.3143 (7) 0.8474 (9) 0.0921 (19)
H15Db 0.8241 0.2842 0.8192 0.138*
H15Eb 0.9008 0.3731 0.9136 0.138*
H15Fb 0.9436 0.2443 0.8758 0.138*
C13Ab 1.0427 (5) 0.4211 (8) 0.7740 (8) 0.0864 (13)
H13Db 1.0543 0.4817 0.8395 0.130*
H13Eb 1.0579 0.4592 0.7026 0.130*
H13Fb 1.0893 0.3499 0.7991 0.130*
C14Ab 0.9188 (6) 0.2733 (7) 0.6380 (7) 0.0844 (13)
H14Db 0.9707 0.2077 0.6660 0.127*
H14Eb 0.9316 0.3118 0.5655 0.127*
H14Fb 0.8479 0.2378 0.6192 0.127*

  1. aOccupancy: 0.567(3), bOccupancy: 0.433(3).

Source of material

To a solution of acetylacetone (0.400 g, 4 mmol) and 4-tert-butylbenzenethiol (0.166 g, 1 mmol) in dimethyl sulfoxide (DMSO) (1 mL) was added Na2CO3 (130 mg, 1 mmol). The mixture was stirred at 40 °C under oxygen atmosphere for 17 h. The mixture was then added to water (5 mL). The resulting mixture was extracted with ethylether (10 mL) for three times. The combined organic layers were washed with water and brine, dried over anhydrous Na2SO4 and concentrated under reduced pressure. After removal of the solvent, the residue was then purified by flash column chromatography on silica gel with petroleum ether/ethyl acetate (45:1) to give the desired (238 mg, 90%) as a white solid. Crystals were obtained by crystallization of the title compound from ethyl acetate. Melting point: 104–106 °C. 1H NMR (400 MHz, CDCl3, 298 K) δ 17.26 (s, 1H), 7.31 (d, J = 8.4 Hz, 2H), 7.03 (d, J = 8.4 Hz, 2H), 2.35 (s, 6H), 1.30 (s, 9H). 13C{1H} NMR (101 MHz, CDCl3) δ 198.3, 148.4, 134.2, 126,2 124.6, 102.0, 34.4, 31.4, 24.5.

Experimental details

Hydrogen atoms were placed in their geometrically idealized positions and constrained to ride on their parent atoms.

Discussion

Acetylacetone derivatives are extensively employed in organic synthetic intermediates, analytical reagents, and other essential raw ingredients [4], [5], [6], which have been demonstrated to possess a wide range of biological and pharmaceutical activities such as sulfa-drugs [7], antipyretics [8], diabetes drugs [9], antiviral [10], pesticides [11], spectrofluorimetric method [12]. Besides, acetylacetone and its derivatives were frequently used as chelating ligands [13]. Examples for their coordination behavior were found for main group elements such as iron [14], aluminum [15], and palladium [16]. Up to date, a great number of acetylacetone derivatives have been reported. However, there are relatively few reports about a convenient and efficient protocol for the synthesis of α-sulfenylated carbonyl compounds based acetylacetone derivatives.

In this paper we report the synthesis and crystal structure of a novel sulfenylated carbonyl compound. The asymmetric unit contains one molecule of the title compound, which is constructed by the acetylacetone and the 4-tert-butylbenzenethiol moiety (see the Figure). The acetylacetone together with sulfur atom is almost in a strict plane, whereby the largest deviation for the S1 atom from the acetylacetone plane is 0.078 Å. The dihedral angle between the acetylacetone group and 4-tert-butylbenzenethiol were found to be 85°. The C(6)–S(1)–C(3)–C(2) and C(6)–S(1)–C(3)–C(4) torsion angles are −87.6(2)° and 95.2(2)°. The C(3)–S(1)–C(6) bond angle is 104.97(10)°. The thioether bond distances are 1.755(2) Å for C(3)–S(1) and 1.766(2) Å for C(6)–S(1), respectively, which are typical C–S bond distances. Within the acetylacetone unit, the dimensions and planarity are consistent with their adoption of a localized enol form. The bond lengths of C(3)–C(4), C(3)–C(2) are 1.410(3) and 1.407(3) Å respectively. The only intramolecular O(1)–H(1)⋯O(2) hydrogen bond is observed. The O(1)–H(1) and O(2)–H(1) bond lengths are 1.392 and 1.167 Å. The O(1)⋯O(2) separation is 2.440(3) Å. The structure of the molecule is similar to the stereo-configuration of the compound reported in the references. The bond lengths and angles are all in the expected ranges [17], [18], [19]. And no unusual intermolecular contacts, were observed in this crystal.

Corresponding authors: Ya-Fei Guo and Jun-Ying Ma, School of Chemical Engineering and Pharmaceutics, Henan University of Science and Technology, Luoyang, Henan 471003, P. R. China, E-mail: (Y.-F. Guo), (J.-Y. Ma)

Funding source: Programs for Science and Technology Development of Henan Province

Award Identifier / Grant number: 212102210650

Funding source: Key Research Project for Colleges and Universities of Henan Province

Award Identifier / Grant number: 21B530002

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: This work was supported by the Programs for Science and Technology Development of Henan Province, China (No. 212102210650) and the Key Research Project for Colleges and Universities of Henan Province, China (No. 21B530002).

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Oxford Diffraction, CrysAlisPRO (version 1.171.33.42); Oxford Diffraction Ltd.: Oxford, UK, 2009.Search in Google Scholar

2. Dolomanov, O. V., Bourhis, L. J., Gildea, R. J., Howard, J. A. K., Puschmann, H. OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 2009, 42, 339–341; https://doi.org/10.1107/s0021889808042726.Search in Google Scholar

3. Sheldrick, G. M. A short history of SHELX. Acta Crystallogr. 2008, A64, 112–122; https://doi.org/10.1107/s0108767307043930.Search in Google Scholar

4. Al-Adiwish, W. M., Tahir, M. I., Siti-Noor-Adnalizawati, A., Hashi, S. F., Ibrahim, N., Yaacob, W. A. Synthesis, antibacterial activity and cytotoxicity of new fused pyrazolo[1,5-a]pyrimidine and pyrazolo[5,1-c][1,2,4]triazine derivatives from new 5-aminopyrazoles. Eur. J. Med. Chem. 2013, 64, 464–476; https://doi.org/10.1016/j.ejmech.2013.04.029.Search in Google Scholar

5. Svistunova, I. V., Sharutin, V. V., Tretyakova, G. O., Puzyrkov, Z. N. Synthesis and structure of boron difluoride binuclear β-diketonates. Inorg. Chim. Acta. 2020, 501, 119230–119236; https://doi.org/10.1016/j.ica.2019.119230.Search in Google Scholar

6. Gupta, V. K., Goyal, R. N., Bachheti, N., Singh, L. P., Agarwal, S. A copper-selective electrode based on bis(acetylacetone)propylenediimine. Talanta 2005, 68, 193–197; https://doi.org/10.1016/j.talanta.2005.06.050.Search in Google Scholar

7. Darwish, E., Fattah, A., Attaby, F., Al-Shayea, O. Synthesis and antimicrobial evaluation of some novel thiazole, pyridone, pyrazole, chromene, hydrazone derivatives bearing a biologically active sulfonamide moiety. Int. J. Mol. Sci. 2014, 15, 1237–1254; https://doi.org/10.3390/ijms15011237.Search in Google Scholar

8. Glukhachev, V. S., Il’yasov, S. G., Kazantsev, I. V., Shestakova, E. O., Il’yasov, D. S., Eltsov, I. V., Nefedov, A. A., Gatilov, Y. V. New reaction products of acetylacetone with semicarbazide derivatives. ACS Omega 2021, 6, 8637–8645; https://doi.org/10.1021/acsomega.1c00518.Search in Google Scholar

9. Sanna, D., Ugone, V., Serra, M., Garribba, E. Speciation of potential anti-diabetic vanadium complexes in real serum samples. J. Inorg. Biochem. 2017, 173, 52–65; https://doi.org/10.1016/j.jinorgbio.2017.04.023.Search in Google Scholar

10. Krohn, K., Vukics, K. First chemical synthesis of the antiviral agents S2502 and S2507. Synthesis 2007, 2007, 2894–2900; https://doi.org/10.1055/s-2007-983873.Search in Google Scholar

11. Abunada, N. M., Hassaneen, H. M., Kandile, N. G., Miqdad, O. A. Synthesis and antimicrobial activity of some new pyrazole, fused pyrazolo[3,4-d]-pyrimidine and pyrazolo[4,3-e][1,2,4]-triazolo[1,5-c]pyrimidine derivatives. Med. Sci. 2008, 13, 1501–1517; https://doi.org/10.3390/molecules13071501.Search in Google Scholar

12. Omar, M. A., Derayea, S. M., Mostafa, I. M. Development and validation of a stability-indicating spectrofluorimetric method for the determination of H1N1 antiviral drug (oseltamivir phosphate) in human plasma through the Hantzsch reaction. RSC Adv. 2015, 5, 27735–27742; https://doi.org/10.1039/c4ra16650g.Search in Google Scholar

13. Kremer, M., Englert, U. N Donor substituted acetylacetones – versatile ditopic ligands. Z. Kristallogr. - Cryst. Mater. 2018, 233, 437–452; https://doi.org/10.1515/zkri-2017-2131.Search in Google Scholar

14. Hu, X., Mao, J., Sun, Y., Chen, H., Li, H. Acetylacetone-Fe catalyst modified by imidazol ionic compound and its application in aerobic oxidation of β-isophorone. Catal. Commun. 2009, 10, 1908–1912; https://doi.org/10.1016/j.catcom.2009.06.024.Search in Google Scholar

15. Pang, X., Chen, X., Du, H., Wang, X., Jing, X. Enolic Schiff-base aluminum complexes and their application in lactide polymerization. J. Organomet. Chem. 2007, 692, 5605–5613; https://doi.org/10.1016/j.jorganchem.2007.09.014.Search in Google Scholar

16. Khranenko, S. P., Bykova, E. A., Gromilov, S. A., Gallyamov, M. R., Kozlova, S. G., Moroz, N. K., Korenev, S. V. Novel mixed-ligand palladium complexes [Pd2(acac)3NO3] and [Pd(acac)NO3]n involving O,O- and γ-C-bonded acetylacetonate linkers. Polyhedron 2012, 31, 272–277; https://doi.org/10.1016/j.poly.2011.09.026.Search in Google Scholar

17. Olivier, J. H., Haefele, A., Retailleau, P., Ziessel, R. Borondipyrromethene dyes with pentane-2,4-dione anchors. Org. Lett. 2010, 12, 408–411; https://doi.org/10.1021/ol902386u.Search in Google Scholar

18. Jing, N., Jian-Hua, W., Zhong-Hai, N. Synthesis, crystal structure and optical property of 1,6-bis(p-tolylthio)pyrene, C30H22S2. Z. Kristallogr. N. Cryst. Struct. 2021, 236, 21–23; https://doi.org/10.1515/ncrs-2020-0466.Search in Google Scholar

19. Rashid, M. A., Rasool, N., Adeel, M., Reinke, H., Fischer, C., Langer, P. Synthesis of functionalized diaryl sulfides based on regioselective one-pot cyclizations of 1,3-bis(trimethylsilyloxy)-1,3-butadienes. Tetrahedron 2008, 64, 3782–3793; https://doi.org/10.1016/j.tet.2008.02.010.Search in Google Scholar
Received: 2021-09-19
Accepted: 2021-10-29
Published Online: 2021-11-18
Published in Print: 2022-02-23

© 2021 Le Dong et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 International License.
