Vibration-damping characterization of the basalt/epoxy composite laminates containing graphene nanopellets

2.1 Materials

Basalt fibers with plain weaving architecture were supplied from Zhejiang GBF Basalt Fiber Co. Ltd. The basal fibers had an areal weight of 200 g/m² and thickness of 0.28 (±5%) mm. Chemical products like epoxy (MOMENTİVE-MGS L285) and hardener (MOMENTİVE –MGS H285) were supplied by Dost Chemical Products Company, Istanbul, Turkey. Epoxy resin exhibits a density of 1.18 g/m³, tensile strength of 70–80 MPa and elastic modulus of 3.0–3.3 GPa. The volume fraction for basalt fibers was measured as 63%. Graphene nanofiller was supplied from Grafnano Teknolojik Malzemeler Co. Ltd. (Kahramanmaraş, Turkey). The powder has a black and grey color and a purity of 99.5%, bulk density of ~0.05 g/cm³, 5 μm diameter, thickness of 5–8 nm and a specific surface area of 150 m²/g. The Raman spectra ID/IG Ratio of 0.08 and XRD 2-θ of 26° peak.

2.2 Manufacturing of composites

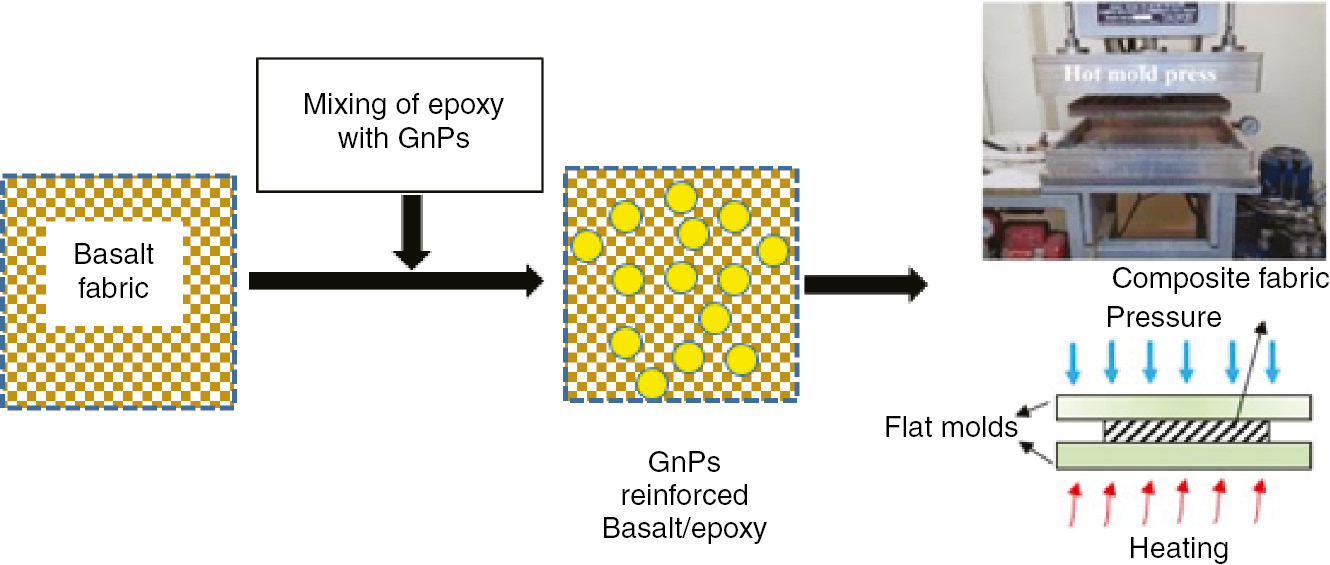

The epoxy system was prepared by mixing the epoxy with hardener in the weight ratio of 100:40. Then, the GnPs filler was mixed and stirred in the epoxy at a certain amount. In order to reach a homogenous dispersion of GnPs particles, the stirring process was performed for about 20 min. Then, the GnPs/epoxy mixture was applied by following the hand lay-up procedures for the impregnation of basalt fibers. The fabrics were wetted layer by layer to reach 10 layers of basalt laminates using a roller before the curing process. A hot mold press with flat molds was used for curing the impregnated nano-composites, subjecting the samples to 0.4 MPa pressure for 1 h curing time with 80°C temperature. The nominal thickness of samples was measured as 1.9±0.2 mm. Figure 1 illustrates the production process for GnPs/basalt nano composites and their tensile properties are provided in Table 1.

Figure 1:

The production process for the composite samples.

2.3 Characterization and tensile properties

The morphology of the GnPs/basalt fiber/epoxy was screened by using scanning electron microscopy SEM (JEOL JSM-6390 lv, Gaziantep University). The SEM images were taken over the edge surfaces of the test samples before the vibration tests. The vibration characteristics associated with GnPs dispersion in the epoxy resin were also explained by the SEM images.

2.4 Vibration tests

An accelerometer (PCB 352C03 ceramic shear ICP^®, PCB Piezotronics, Inc., Depew, NY, USA) for output signal, an impact hummer (PCB 086C03, PCB Piezotronics, Inc., Depew, NY, USA) for the excitation of the sample and a signal acquisition data card (NI 9234, National Instruments Corporation, Austin, TX, USA) with LABVIEW software were used. The manufactured test samples were excited by impact hammer to release the dynamic characteristics in terms of acceleration and frequency response. The free decaying curves of the samples were obtained with the excitation of the samples using the impact hammer. During the vibration tests, the frequency response curves of the samples were recorded as a function of amplitude and frequency (Hz) by using the Fast Fourier Transforms (FFTs), which can be used to determine the natural frequencies and damping factors. The distribution of natural frequency values was measured within the constant frequency range from 0 to 500 Hz. Figure 2 shows the experimental set-up to measure the vibration properties of the test samples, also indicating the location of the accelerometer and the test samples for the vibration tests.

Figure 2:

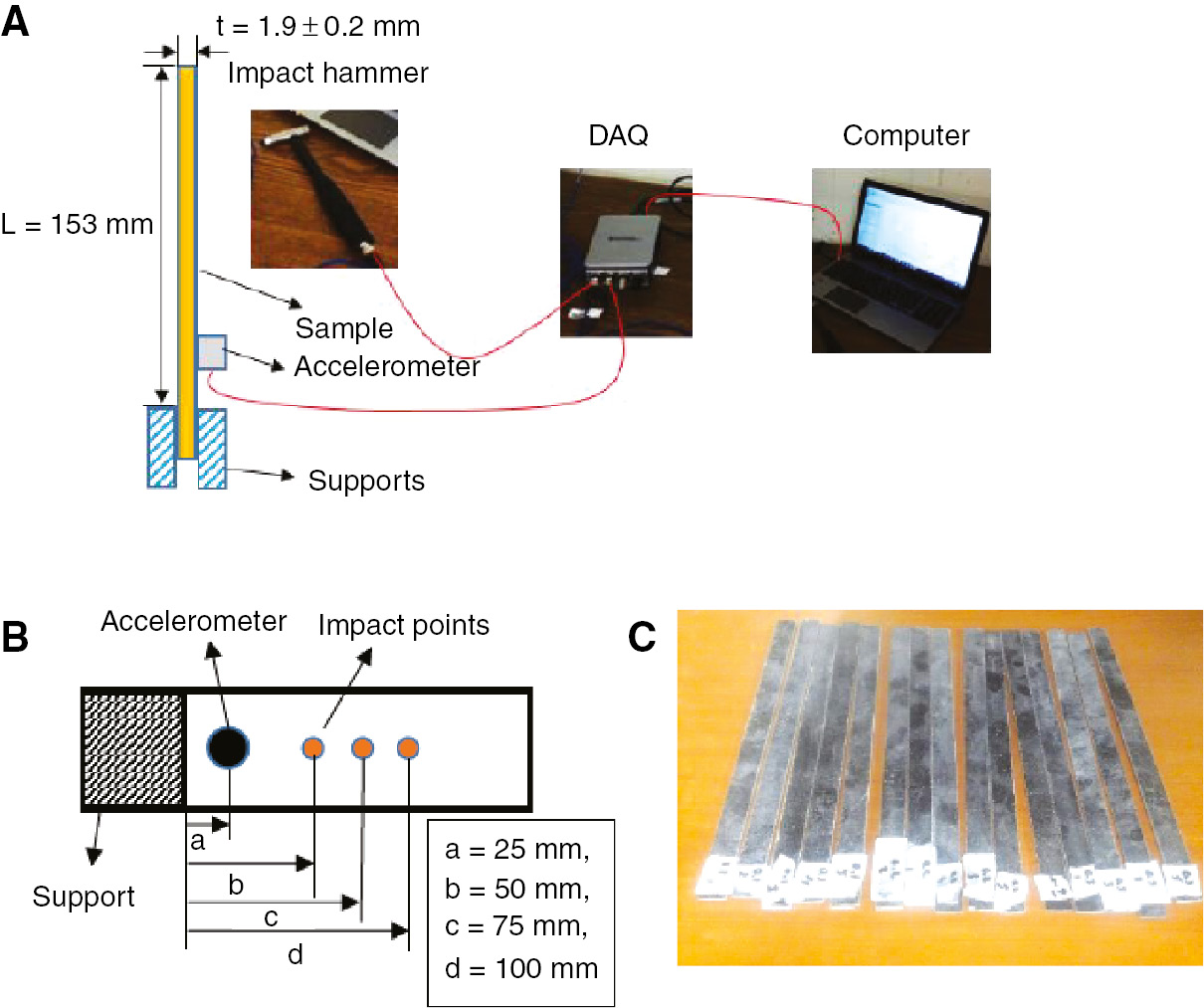

The vibration test mechanism. (A) Set-up for the vibration measurements, (B) the location of acceleration and impact points, (C) the test samples for the vibration measurement.

The loss factor in every mode of vibration implies the proportion of energy dissipated by the structure, thus limiting the amplitudes of vibration resonance. The storage modulus represents the ability of energy storage in the material, thus denoting the elastic modulus of the material by means of dynamic modulus. The loss and storage modulus were calculated from log decrement method only for the first mode of natural frequencies.

One of the methods for the measurement of damping properties for an under-damped system is to perform the log decrement method. In this system, the vibration amplitude exponentially decays over time and the natural log of amplitudes of any two successive peaks is defined as logarithmic decrement or log decrement. The logarithmic decrement [31] can be evaluated by using Equation 1

where δ is the log decrement, A₀ is the maximum amplitude of first cycle and A is the maximum amplitude of nth cycle. The damping ratio (ξ) can be calculated from Equation 2 by substituting Equation 1 into Equation 2.

In addition, the storage modulus of the samples (E′) can be calculated from the Euler-Bernoulli beam theory as follows:

where ω₁ is the natural frequency of the first mode, L is the free length of the beam, ρ is the density of the beam, E′ is the storage modulus, I is the moment of inertia for the given cross-section of beam and A is the cross-section of beam. Similarly, the loss modulus (E″) of the beam can be found using the storage modulus. The relationship between loss and storage modulus is given in Equation 4 below.

3.1 Tensile properties

The tensile properties of the test samples are given in Table 1 and their SEM figures are illustrated in Figure 3 according to the GnPs content. As can be clearly seen, the composite samples with GnPs content of 0.1 wt% has shown the highest tensile strength and modulus compared with the other samples, indicating that the incorporation of the GnPs particles in the basalt/epoxy results in the improvement of tensile strength and modulus by 13% and 21%, respectively. However, further increasing GnPs content after 0.1 wt% revealed the decreasing tensile strength and modulus with larger strains compared with the control samples. This can be explained by the agglomeration of particles, resulting in poor interfacial bonding between the particle-fiber-epoxy interactions. As can be seen in Figure 3C, the well distribution of the epoxy resin was observed with fine bonding at the interface of the epoxy and fibers. The epoxy-filled regions in the composites exhibit the homogenous distributed GnPs fillers in order to increase particle-fiber interactions for the improvement of load transfer. Due to the improved particle-fiber interactions at GnPs loading of 0.1wt%, it is possible to increase the mechanical properties while decreasing the deformation and strain, thus implying brittle characteristics. Further, the inclusion of GnPs particles resulted in decreased mechanical properties with increased deformation/strain properties, thus showing the enhancement of ductile characteristics in the material.

Figure 3:

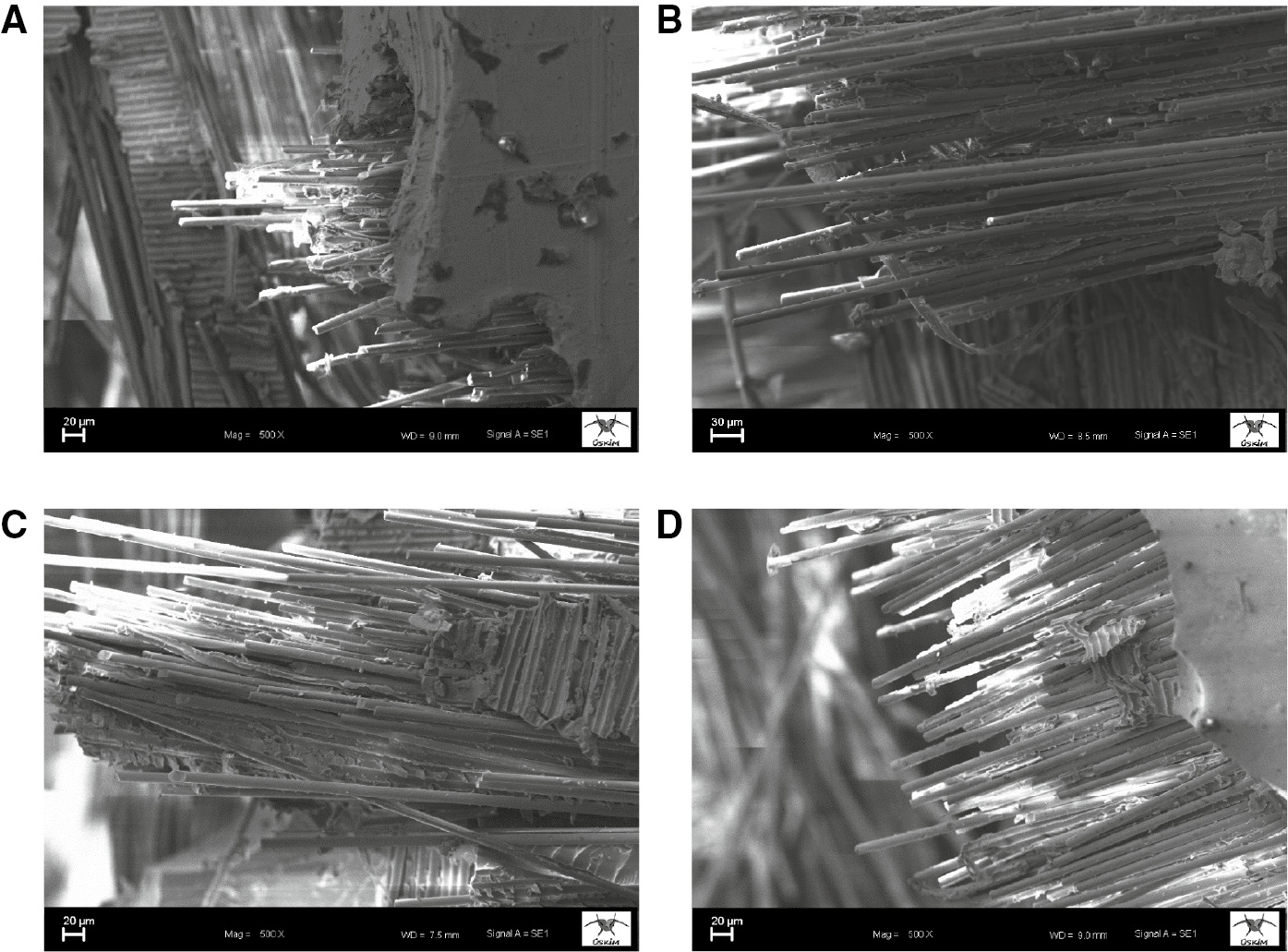

The SEM images of the composite samples. (A) Basalt/epoxy, control, (B) 0.1 wt%, (C) 0.2 wt%, (D) 0.3 wt%.

3.2 Damping and vibration properties

Figure 4 shows the response of the vibration curves of the samples with respect to the GnPs content. The frequency values are presented in Table 2. As shown in the results, the incorporation of the GnPs filler in the epoxy resin slightly increased the natural frequency at the GnPs content of 0.1 wt% with improvements of 20.7% and 14.2% for the first and second mode of natural frequencies, respectively. These results suggest that high stiffness due to the high compatibility of the GnPs particles with basalt fiber/epoxy increased the natural frequency of the composite samples.

Figure 4:

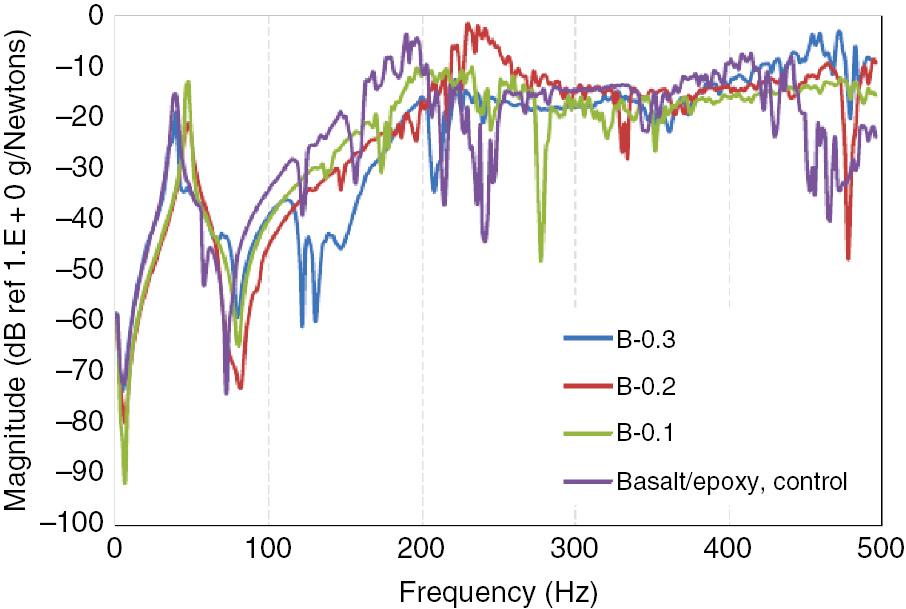

The frequency response curves of the samples.

The modulus is directly to the natural frequency of the material. Thus, increasing the stiffness increases the natural frequency while decreasing the damping ratio. After the critical value of the stiffness at 0.1 wt% of the GnPs content, the decreasing trend was observed for stiffness and natural frequency while increasing damping property up to the GnPs content of 0.2 wt%. After the GnPs content of 0.2 wt%, both the damping and natural frequency properties were decreased when GnPs content was 0.3 wt%. These findings suggest that agglomeration has been formed after the GnPs content of 0.1 wt% resulting in increased energy dissipation, with the faster rate leading to increased damping capacity [32], [33]. The low damping property is explained by the reduction in slippage effect between the particle and matrix, showing low energy absorption capacity for a composite system.

Figure 5 illustrates the variation of the log decrement curves according to the GnPs content for the comparison of damping properties. As can be seen, the inclusion of GnPs in the composites resulted in faster decaying to reach stable condition within the shorter time compared the control samples, thus implying the improvement of damping properties. Moreover, the damping ratio showed the highest value at the GnPs content of 0.2 wt%, thus indicating that samples decay quickly and reach stability in a short time. Notably, both the natural frequency and damping properties had the highest values at the GnPs content of 0.2 wt%, suggesting an increase in the stiffness and energy dissipation capacity of the samples. However, the further addition of GnPs particles after 0.2 wt% in the epoxy resin caused a reverse effect with the reduction of damping and natural frequency. This can be attributed to the agglomeration of the GnPs particles. Similarly, Farrash et al. [34] investigated the influence of CNT addition on the damping and vibration characteristics of the hybrid and non-hybrid composites, and they reported that the interfacial adhesion between the fibers and matrix had a major effect on the stiffness and damping properties of the composites. In addition this, incorporation of CNTs into the epoxy resin caused an increase in the fundamental frequency of both glass/epoxy and carbon/epoxy plates for the flexural mode.

Figure 5:

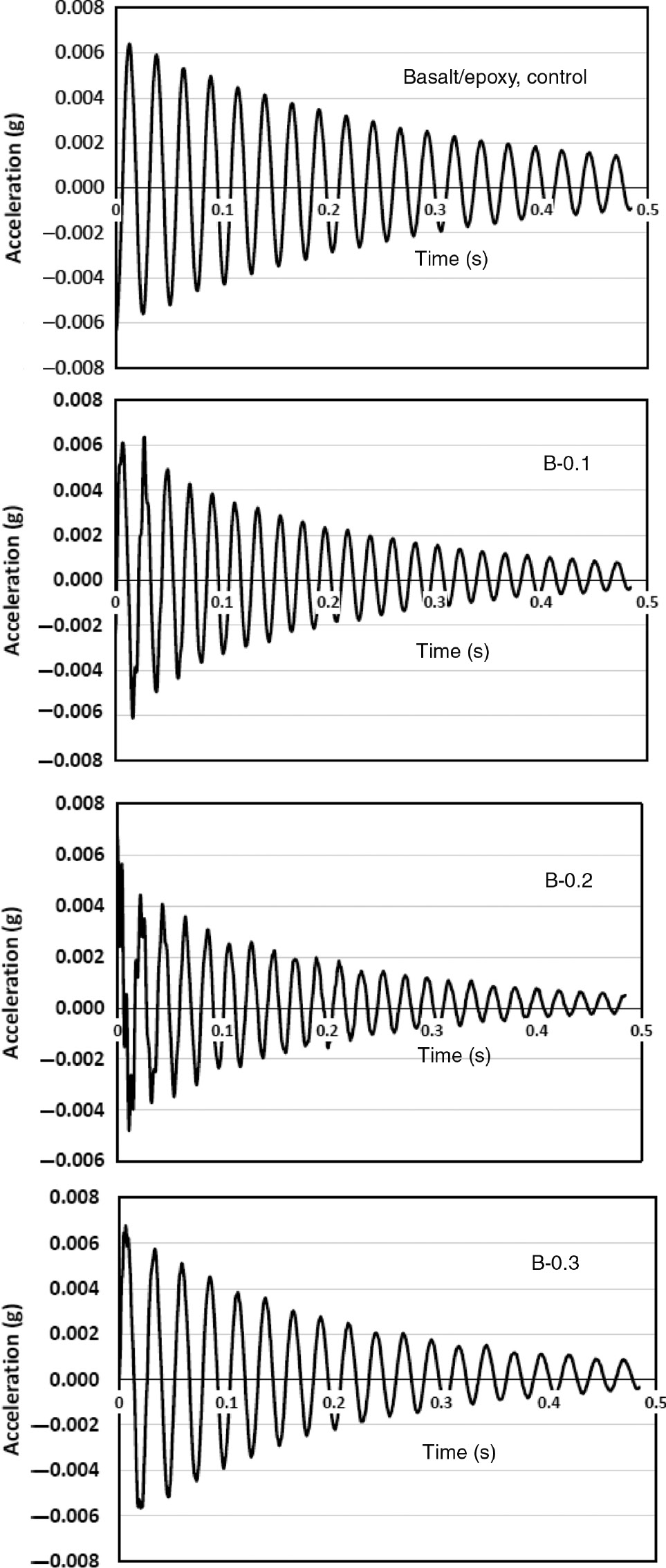

The free decay curves of the test samples with different GnPs loadings.

3.3 Dynamic mechanical properties

The dynamic mechanical properties of test samples were characterized in terms of loss and storage modulus at the room temperature of 25°C. The loss modulus refers to the damping characteristics of samples showing the ability of energy dissipation; hence, the controlling of loss modulus has been explored by the inclusion of the GnPs particles in the unmodified basalt/epoxy composites. It this way, it is possible to conclude that the interfacial bonding strength between the GnPs particle-fiber-epoxy interactions plays an important role in the dissipation of vibrational energy in the composite samples. Figure 6 shows the results of loss and storage values. Notably, the maximum improvement in loss modulus was recorded at the GnPs content of 0.2 wt%, whereas the storage modulus showed the highest value at the GnPs content of 0.1 wt%. Thus, the sample of B-0.1 exhibited the highest natural frequency as a result of elastic modulus as well as the further dissipation of vibration energy per cycle of damping than other samples. A decreasing trend in terms of storage modulus was observed as the GnPs content in the epoxy resin increased at the GnPs content of 0.1 wt%. This was attributed to the decreased interfacial bonding of the GnPs particle-fiber-epoxy interfaces due to particle agglomeration.

Figure 6:

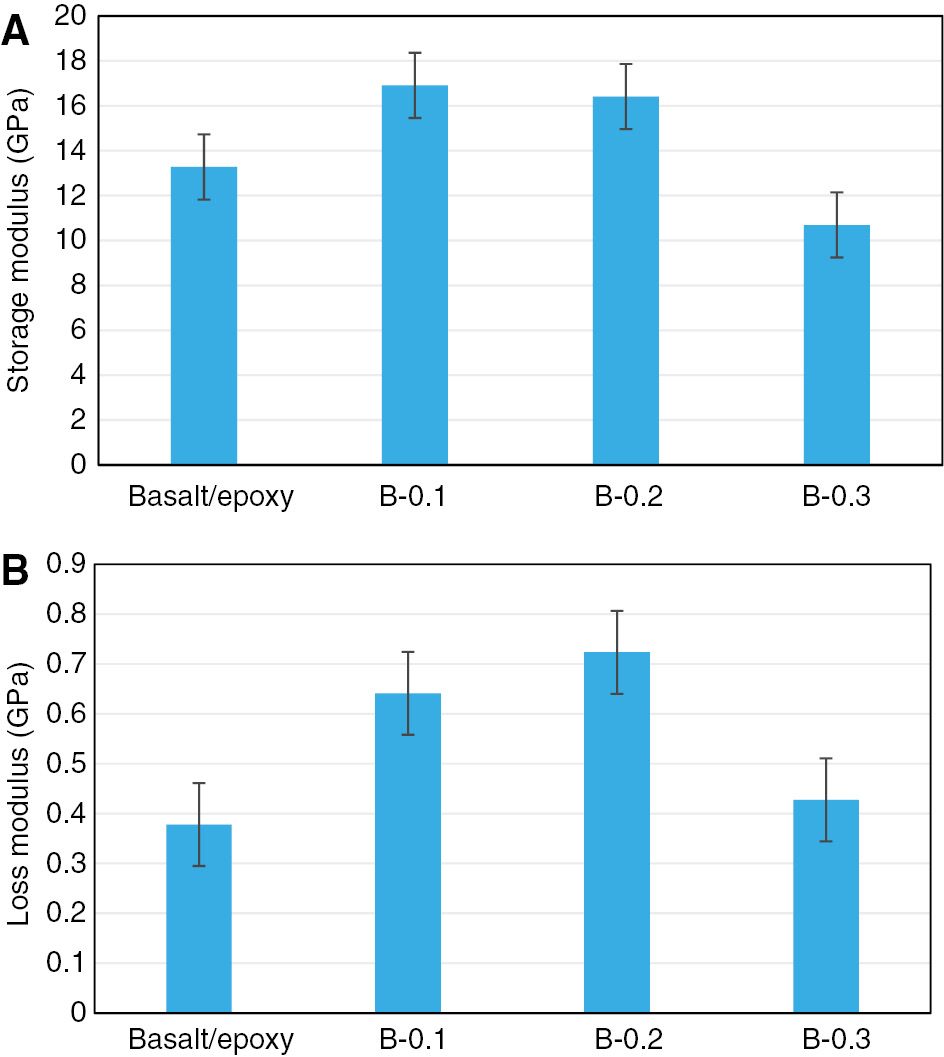

The dynamic mechanical properties of the test samples at different GnPs loadings.
