The crystal structure of 1,2-bis(2,4-dinitrophenyl) hydrazine, C12H8N6O8

  • Yunlu Li ORCID logo EMAIL logo , Mei Xue and Xinzhong Wang
Published/Copyright: November 3, 2023
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 239 Issue 1

Abstract

C12H8N6O8, orthorhombic, Pbcn (no. 60), a = 11.9333(5) Å, b = 9.2524(4) Å, c = 12.8675(7) Å, V = 1420.72(12) Å3, Z = 8, R gt (F) = 0.0468, wR ref (F2) = 0.1159, T = 170 K.

CCDC no.: 2303783

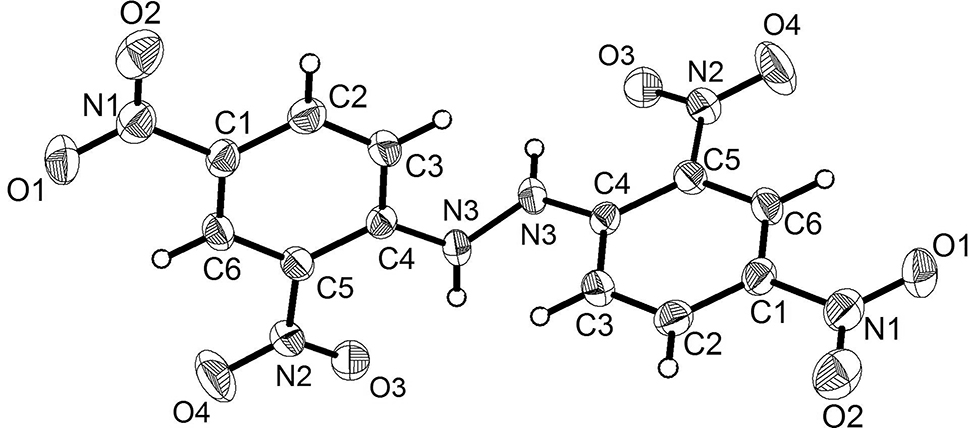

The molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Yellow block
Size: 0.19 × 0.15 × 0.11 mm
Wavelength:

μ:		 Mo Kα radiation (0.71073 Å)

0.15 mm−1
Diffractometer, scan mode:

θmax, completeness:		 D8 VENTURE, φ and ω

26.4°, >99 %
N(hkl)measured, N(hkl)unique, Rint: 9122, 1447, 0.063
Criterion for Iobs, N(hkl)gt: Iobs > 2 σ(Iobs), 1059
N(param)refined: 118
Programs: Bruker [1], Olex2 [2], SHELX [3, 4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z Uiso*/Ueq
C1 0.29715 (18) 0.2884 (2) 0.61255 (17) 0.0304 (5)
C2 0.18472 (18) 0.2660 (2) 0.59053 (17) 0.0317 (5)
H2 0.162967 0.198093 0.538948 0.038*
C3 0.10582 (18) 0.3425 (2) 0.64375 (16) 0.0306 (5)
H3A 0.028833 0.326896 0.628683 0.037*
C4 0.13538 (17) 0.4442 (2) 0.72054 (16) 0.0263 (5)
C5 0.25063 (17) 0.4585 (2) 0.74341 (16) 0.0276 (5)
C6 0.33110 (17) 0.3831 (2) 0.68820 (17) 0.0307 (5)
H6 0.408495 0.396618 0.702460 0.037*
N1 0.38210 (17) 0.2101 (2) 0.55410 (15) 0.0383 (5)
N2 0.29160 (15) 0.5562 (2) 0.82333 (15) 0.0341 (5)
N3 0.05447 (13) 0.5232 (2) 0.76880 (14) 0.0318 (5)
H3 0.071376 0.574629 0.824172 0.038*
O1 0.48168 (14) 0.2355 (2) 0.57332 (14) 0.0492 (5)
O2 0.35144 (15) 0.12157 (19) 0.48924 (14) 0.0479 (5)
O3 0.22502 (13) 0.63891 (18) 0.86549 (12) 0.0402 (4)
O4 0.39136 (14) 0.5542 (2) 0.84564 (16) 0.0628 (6)

1 Source of materials

Using methanol as solvent, 2,4-dichloro-1,3,5-trinitrobenzene (0.70 g, 2.5 mmol) was mixed with 80 % hydrazine hydrate (0.75 mL, 18.8 mmol) at low temperature and continued to react at room temperature for 2 days. The reaction mixture was filtered, and the resulting filtrate was distilled under vacuum to obtain a yellow solid. The obtained solid was purified by silica gel column chromatography with ethyl acetate/petroleum ether mixture as eluent, and the yellow title compound crystals were obtained by slowly evaporating at room temperature.

2 Experimental details

The hydrogen atoms were placed in geometrically idealized positions riding on attached atoms. Their Uiso(H) values were constrained to 1.2Ueq.

3 Comment

Nitrophenylhydrazine compounds are important fine organic chemical raw materials and intermediates, which can be used in dyes, medicine and the preparation of benzidine, azobenzene compounds, etc. [5], [6], [7], [8], [9] The title compound (cf. the figure) presents a centrosymmetric structure with the center point of the N–N bond as the center of symmetry. Its molecular structure contains two benzene rings, four nitro groups, and one hydrazine group. Each nitro group is in the same plane as their attached benzene rings for their dihedral angles to the attached benzene ring are 2.78° (O2, N1, C1) and 8.09° (O3, N2, C5), respectively. The hydrazine group and benzene ring are also approximately coplanar (dihedral Angle 11.73°), while the dihedral angle of the two benzene rings is 86.49°. All bond angles and lengths are within the normal range. And the structural characteristics of the title compound are similar to those of (2,4-dinitrophenyl)hydrazine [10], 1,2-diphenylhydrazine [11] and 1,2-diethyl-1,2-bis(2-nitrophenyl)hydrazine [12].

Corresponding author: Yunlu Li, Department of Electronic Communication and Technology, Shenzhen Institute of Information Technology, 518172 No. 2188, Longxiang Avenue, Longgang District, Shenzhen, P.R. China, E-mail:

Funding source: National Natural Science Foundation of China

Acknowledgments

We are grateful for the support of the Shanghai Institute of Materia Medica, Chinese Academy of Sciences.

  1. Author contribution: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Competing interests: The authors declare no conflicts of interest regarding this article.

  3. Research funding: Shanghai Institute of Materia Medica, Chinese Academy of Sciences and National Natural Science Foundation of China (no. 22105023).

References

1. Bruker. APEX3, SAINT and SADABS; Bruker AXS Inc.: Madison, Wisconsin, USA, 2016.Search in Google Scholar

2. Dolomanov, O. V., Bourhis, L. J., Gildea, R. J., Howard, J. A. K., Puschmann, H. OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Cryst. 2009, 42, 339–341; https://doi.org/10.1107/s0021889808042726.Search in Google Scholar

3. Sheldrick, G. M. SHELXTL – integrated space-group and crystal-structure determination. Acta Crystallogr. 2015, A71, 3–8; https://doi.org/10.1107/s2053273314026370.Search in Google Scholar PubMed PubMed Central

4. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Search in Google Scholar PubMed PubMed Central

5. Jin, C., Chen, Q., Cao, S. Synthesis method of non symmetrical hydroazobenzene. CN1785964 A, 2006-06-14.Search in Google Scholar

6. Jin, C., Chen, Y., Wang, Y. A novel and efficient method for the synthesis of hydrazobenzenes. Henan Shifan Daxue Xuebao. Ziran Kexueban 2006, 34, 87–90.Search in Google Scholar

7. Chen, Y., Jin, C., Wang, Y., Wang, J. Dehydrogenation of unsymmetric hydrazo compounds in ionic liquid. Novel green synthesis of azo compounds. J. Chin. Chem. Soc. 2006, 53, 677–681; https://doi.org/10.1002/jccs.200600089.Search in Google Scholar

8. Jin, C., Yan, Z., Zhang, X. Synthesis of azobenzene compound. CN1810771 A, 2006–08–02.Search in Google Scholar

9. Liu, G., Hu, Y. D., Wang, Y. H. Crystal structure of (E)-1-[1-(3-chloro-4-fluorophenyl)ethylidene]-2-(2,4-dinitrophenyl) hydrazine, C28H20Cl2F2N8O8. Z. Kristallogr. N. Cryst. Struct. 2017, 232, 627–629; https://doi.org/10.1515/ncrs-2016-0381.Search in Google Scholar

10. Amimoto, K., Nishiguchi, H. A polymorph of 2,4-dinitrophenylhydrazine. Acta Crystallogr. 2013, E69, o425; https://doi.org/10.1107/s1600536813004571.Search in Google Scholar PubMed PubMed Central

11. Chorghade, S. L. Crystallographic studies on hydrazobenzene-C6H5·NH·NH·C6H5. Indian J. Phys. 1967, 41, 336–340.Search in Google Scholar

12. Liu, W., Ma, Y., Wang, R.-J., Yin, Y.-W., Zhao, Y.-F. N,N′-Diethyl-4,4′-dinitro-hydrazobenzene. Acta Crystallogr. 2005, E61, o3069–o3070; https://doi.org/10.1107/s1600536805026863.Search in Google Scholar
Received: 2023-09-29
Accepted: 2023-10-26
Published Online: 2023-11-03
Published in Print: 2024-02-26
