The crystal structure of aqua-bis(6-chloropicolinato-κ2N,O)copper(II), C12H8Cl2N2O5Cu

  • Zhongyu Zhang ORCID logo EMAIL logo , Mingqiong Tong and Yanling Liu
Published/Copyright: June 21, 2021
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 236 Issue 5

Abstract

C12H8Cl2N2O5Cu, triclinic, P 1 ‾ (no. 2), a = 6.800(2) Å, b = 9.086(3) Å, c = 11.363(4) Å, α = 86.701(6)°, β = 84.830(5)°, γ = 77.353(5)°, V = 681.7(4) Å3, Z = 2, R gt (F) = 0.0250, wRref(F2) = 0.0655, T = 296(2) K.

CCDC no.: 1571062

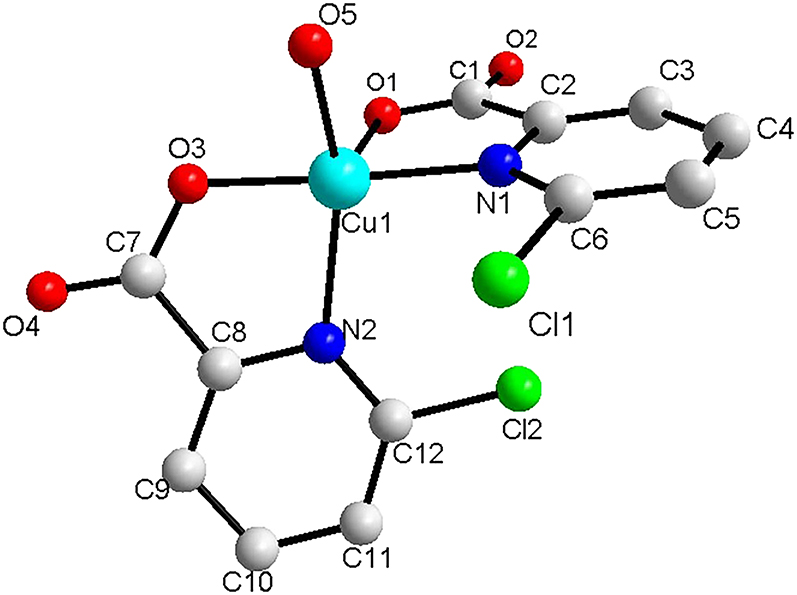

The molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Green block
Size: 0.20 × 0.20 × 0.20 mm
Wavelength: Mo Kα radiation (0.71073 Å)
μ: 2.02 mm−1
Diffractometer, scan mode: Bruker Smart APEX-II, φ and ω
θmax, completeness: 27.1°, >99%
N(hkl)measured, N(hkl)unique, Rint: 4692, 2998, 0.013
Criterion for Iobs, N(hkl)gt: Iobs > 2 σ(Iobs), 2704
N(param)refined: 205
Programs: Bruker [1], SHELX [2]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z Uiso*/Ueq
Cu1 0.63033 (4) 0.79121 (3) 0.65841 (2) 0.02320 (8)
Cl1 0.33740 (9) 0.64066 (7) 0.85624 (5) 0.03863 (14)
Cl2 0.89300 (9) 0.47344 (7) 0.83728 (5) 0.03834 (14)
O1 0.8697 (2) 0.89883 (18) 0.67337 (13) 0.0331 (3)
O2 1.0344 (2) 0.97638 (18) 0.81051 (14) 0.0334 (3)
O3 0.6288 (2) 0.79805 (16) 0.48969 (12) 0.0312 (3)
O4 0.6447 (3) 0.6574 (2) 0.33334 (13) 0.0406 (4)
O5 0.3755 (3) 0.9528 (2) 0.66144 (16) 0.0488 (5)
H5A 0.2761 (12) 0.9273 (13) 0.6955 (15) 0.073*
H5B 0.366 (2) 1.0096 (15) 0.6026 (9) 0.073*
N1 0.6219 (2) 0.79432 (18) 0.83367 (14) 0.0220 (3)
N2 0.7572 (2) 0.56074 (18) 0.62878 (14) 0.0219 (3)
C1 0.9011 (3) 0.9177 (2) 0.77804 (17) 0.0243 (4)
C2 0.7600 (3) 0.8614 (2) 0.87388 (17) 0.0236 (4)
C3 0.7757 (4) 0.8727 (3) 0.99272 (19) 0.0335 (5)
H3 0.8731 0.9182 1.0185 0.040*
C4 0.6434 (4) 0.8150 (3) 1.07373 (19) 0.0388 (5)
H4 0.6506 0.8220 1.1545 0.047*
C5 0.5017 (4) 0.7473 (3) 1.03286 (19) 0.0347 (5)
H5 0.4105 0.7088 1.0852 0.042*
C6 0.4981 (3) 0.7379 (2) 0.91258 (18) 0.0260 (4)
C7 0.6623 (3) 0.6715 (2) 0.43735 (17) 0.0264 (4)
C8 0.7335 (3) 0.5332 (2) 0.51564 (17) 0.0236 (4)
C9 0.7806 (3) 0.3904 (3) 0.4715 (2) 0.0314 (5)
H9 0.7644 0.3764 0.3928 0.038*
C10 0.8525 (3) 0.2682 (3) 0.5461 (2) 0.0358 (5)
H10 0.8798 0.1704 0.5194 0.043*
C11 0.8824 (3) 0.2942 (2) 0.6601 (2) 0.0337 (5)
H11 0.9329 0.2146 0.7118 0.040*
C12 0.8358 (3) 0.4417 (2) 0.69683 (18) 0.0256 (4)

Source of material

To a solution of 6-chloropyridine-2-carboxylic acid (2 mmol) in anhydrous methanol (30 mL) was successively added copper acetate (1 mmol), and then maintained for 4 h at 55 °C with stirring, and then filtered at 55 °C. The filtrate was left to slowly evaporate at room temperature for 15 days, and then the precipitated green rod crystals of the title compound were filtered off. Yield: 31.5%. Anal. Calcd. for C12H8Cl2N2O5Cu: C, 36.52; H, 2.04; N, 7.10; found: C, 36.61; H, 2.03; N, 7.06.

Experimental details

A suitable crystal was selected and mounted on a Bruker Smart APEX-II CCD. Hydrogen atoms were placed in their geometrically idealized positions and constrained to ride on their parent atoms.

Comment

In the past Cisplatin, a representative of platinum metal complexes, played an important role in clinical chemotherapy for various cancers [3], [4], [5]. Nevertheless, these drugs have severe toxicity and drug resistance, which makes it urgent to design and synthesize new antitumor drugs with potential biological activity, high efficiency and low toxicity [6], [7], [8]. In the recent study, the chemical structures of thiophene and pyridine with heterocyclic compounds have antibacterial, anticancer and anti-inflammatory effects. Pyridine ring drugs have the ability to enhance the binding of drugs to biomacromolecules and resist cancer [8].

Single crystal X-ray diffraction analysis demonstrates that the asymmetric unit of the title structure contains one copper(II) cation, two 6-chloropyridine-2-carboxylate ligands and one H2O ligand. The bond distances of Cu–N are 1.9887(17) and 2.1167(17) Å, bond lengths of Cu–O are 1.9154(16) to 2.0980(16) Å, respectively, which are similar with reference []. In the title complex, the bond angles of O(3)-Cu(1)-N(1), O(5)-Cu(1)-N(2), O(3)-Cu(1)-O(1), N(1)-Cu(1)-O(1), O(5)-Cu(1)-O(1) and O(1)-Cu(1)-N(2) are 177.06(6)°, 145.02(8)°, 99.31(6)°, 80.70(6)°, 107.00(8)° and 107.53(7)°, respectively, which suggests a distorted square-pyramidal geometry [12].

Corresponding author: Zhongyu Zhang, Shandong Provincial Engineering Laboratory of Novel Pharmaceutical Excipients, Sustained and Controlled Release Preparations, College of Medicine and Nursing, Dezhou University, Dezhou, 253000, Shandong, China, E-mail:

Funding source: Talent Introduction Program of Dezhou University

Award Identifier / Grant number: 2016kjrc17

Funding source: Bidding subject of Dezhou University

Award Identifier / Grant number: 3010040205

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: This study was supported by the Talent Introduction Program of Dezhou University (No. 2016kjrc17) and the Bidding subject of Dezhou University (No. 3010040205).

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Bruker. APEX2, SAINT and SADABS; Bruker AXS Inc.: Madison, Wisconsin, USA, 2004.Search in Google Scholar

2. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Search in Google Scholar PubMed PubMed Central

3. Yarnell, A., Oh, S., Reinberg, D., Lippard, S. Interaction of FACT, SSRP1, and the high mobility group (HMG) domain of SSRP1 with DNA damaged by the anticancer drug cisplatin. J. Biol. Chem. 2001, 276, 25736–25741; https://doi.org/10.1074/jbc.m101208200.Search in Google Scholar PubMed

4. Hou, X., Zhang, X., Wei, K., Ji, C., Dou, S., Wang, W., Li, M., Wang, P. Cisplatin induces loop structures and condensation of single DNA molecules. Nucleic Acids Res. 2009, 37, 1400–1410; https://doi.org/10.1093/nar/gkn933.Search in Google Scholar PubMed PubMed Central

5. Patrick, S., Turchi, J. Replication protein A (RPA) binding to duplex cisplatin-damaged DNA is mediated through the generation of single-stranded DNA. J. Biol. Chem. 1999, 274, 14972–149728; https://doi.org/10.1074/jbc.274.21.14972.Search in Google Scholar PubMed

6. Schmitt, N., Rubel, E. Osteopontin does not mitigate Cisplatin ototoxicity or nephrotoxicity in adult mice. Otolaryngol. Head Neck Surg. 2013, 149, 614–620; https://doi.org/10.1177/0194599813498218.Search in Google Scholar PubMed

7. Sandeep, S., Debashree, M., Rybak, L., Vickram, R. Mechanisms of cisplatin- induced ototoxicity and otoprotection. Front. Cell. Neurosci. 2017, 11, 338–350.10.3389/fncel.2017.00338Search in Google Scholar PubMed PubMed Central

8. Wei, M., Peng, X., Xing, L., Dai, Y., Huang, R., Geng, M., Zhang, A., Ai, J., Song, Z. Design, synthesis and biological evaluation of a series of novel 2-benzamide-4-(6-oxy-n-methyl-1-naphthamide)-pyridine derivatives as potent fibroblast growth factor receptor (fgfr) inhibitors. Eur. J. Med. Chem. 2018, 154, 9–28; https://doi.org/10.1016/j.ejmech.2018.05.005.Search in Google Scholar PubMed

9. Takasaki, S., Takamizawa, S. Reversible crystal deformation of a single-crystal host of copper(II) 1-naphthoate-pyrazine through crystal phase transition induced by methanol vapor sorption. Chem. Commun. 2015, 51, 5024–5027; https://doi.org/10.1039/c4cc09948f.Search in Google Scholar PubMed

10. Kukovec, B.-M., Popovic, Z., Kozlevcar, B., Jaglicic, Z. 3D supramolecular architectures of copper(II) complexes with 6-methylpicolinic and 6-bromopicolinic acid: synthesis, spectroscopic, thermal and magnetic properties. Polyhedron 2008, 27, 3631–3638; https://doi.org/10.1016/j.poly.2008.09.011.Search in Google Scholar

11. Karthik, K., Qadir, A. Synthesis and crystal structure of a new binuclear copper(II) carboxylate complex as precursor for copper(II) xide nanoparticles. J. Struct. Chem. 2019, 60, 1126–1132; https://doi.org/10.1134/s002247661907014x.Search in Google Scholar

12. Addison, A., Rao, T., Reedijk, J., Rijn, J., Verschoor, G. Synthesis, structure, and spectroscopic properties of copper (II) compounds containing nitrogen-sulphur donor ligands; the crystal and molecular structure of aqua [1,7-bis(N-methylbenzimidazol--yl)-2,6-dithiaheptane]copper(II) perchlorate. J. Chem. Soc., Dalton Trans. 1984, 7, 1349–1356; https://doi.org/10.1039/dt9840001349.Search in Google Scholar
Received: 2021-05-06
Accepted: 2021-05-31
Published Online: 2021-06-21
Published in Print: 2021-09-27

© 2021 Zhongyu Zhang et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 International License.
