The crystal structure of 6-bromohexanoic acid, C6H11BrO2

  • Lubabalo Ndima , Eric C. Hosten ORCID logo and Richard Betz ORCID logo EMAIL logo
Published/Copyright: July 12, 2021
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 236 Issue 5

Abstract

C6H11BrO2, monoclinic, P21/n (no. 14), a = 10.6730(14) Å, b = 5.2781(6) Å, c = 14.7781(18) Å, β = 109.610(4)°, V = 784.21(17) Å3, Z = 4, R gt (F) = 0.0225, wR ref (F2) = 0.0564, T = 200(2) K.

CCDC no.: 2093007

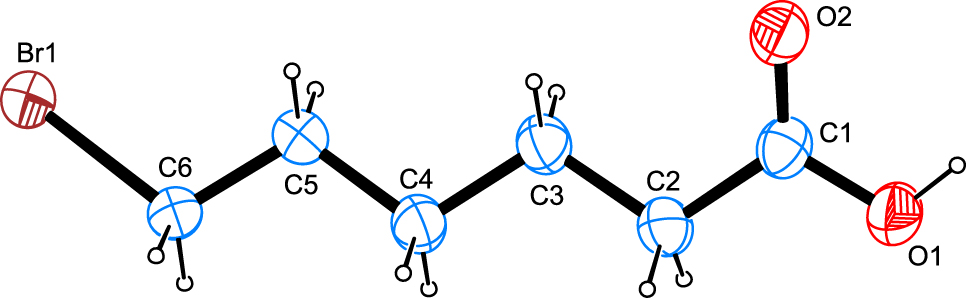

The molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Colourless block
Size: 0.57 × 0.54 × 0.27 mm
Wavelength: Mo Kα radiation (0.71073 Å)
μ: 5.17 mm−1
Diffractometer, scan mode: Bruker APEX-II, φ and ω
θmax, completeness: 28.4°, >99%
N(hkl)measured, N(hkl)unique, Rint: 7266, 1944, 0.025
Criterion for Iobs, N(hkl)gt: Iobs > 2 σ(Iobs), 1622
N(param)refined: 84
Programs: Bruker [1, 2], SHELX [3], WinGX/ORTEP [4], Mercury [5], PLATON [6]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z Uiso*/Ueq
Br1 0.71652 (2) 0.94843 (4) 0.65878 (2) 0.03851 (9)
O1 0.50025 (17) 0.2173 (3) 0.07297 (10) 0.0508 (4)
H1 0.486055 0.269487 0.016716 0.076*
O2 0.55600 (18) 0.6200 (3) 0.10813 (10) 0.0552 (4)
C1 0.54244 (18) 0.4060 (4) 0.13367 (14) 0.0359 (4)
C2 0.57476 (19) 0.3316 (4) 0.23689 (13) 0.0365 (4)
H2A 0.657561 0.230102 0.256967 0.044*
H2B 0.502382 0.223005 0.242981 0.044*
C3 0.5926 (2) 0.5566 (4) 0.30397 (14) 0.0372 (4)
H3A 0.505618 0.641811 0.290785 0.045*
H3B 0.653982 0.679231 0.290148 0.045*
C4 0.6469 (2) 0.4853 (4) 0.40977 (14) 0.0368 (4)
H4A 0.735673 0.406706 0.424119 0.044*
H4B 0.587308 0.358960 0.423743 0.044*
C5 0.65831 (18) 0.7164 (4) 0.47411 (12) 0.0357 (4)
H5A 0.715882 0.844305 0.458635 0.043*
H5B 0.569062 0.792352 0.460515 0.043*
C6 0.7149 (2) 0.6520 (4) 0.57911 (13) 0.0384 (4)
H6A 0.806787 0.587673 0.594028 0.046*
H6B 0.660936 0.516239 0.594111 0.046*

Source of material

The compound was obtained commercially (Sigma Aldrich). Crystals suitable for the diffraction study were taken directly from the provided product.

Experimental details

Carbon-bound H atoms were placed in calculated positions (C–H 0.99 Å) and were included in the refinement in the riding model approximation, with U(H) set to 1.2 Ueq(C).

The H atom of the hydroxyl group was allowed to rotate with a fixed angle around the C–O bond to best fit the experimental electron density (HFIX 147 in the SHELX program suite [3]), with U(H) set to 1.5 Ueq(O).

Comment

The synthesis of alkylarsonic acids can be achieved easily by means of the Meyer reaction, which involves a nucleophilic substitution reaction employing arsenite as the nucleophile [7]. In an attempt to synthesize a polyfunctional member of this compound class the title compound was chosen as the starting material. To prevent accidentally characterizing the title compound instead of the intended arsonic acid and in continuation of our own studies into the structural aspects of carboxylic acids [8], [9], [10], [11], [12], [13], the structure of the substrate was determined. Structural information about the homologous series of ω-bromo alkanoic acids for a maximum of 10 carbon atoms is otherwise limited exclusively to bromoacetic acid [14].

The structure solution shows the presence of a derivative of hexanoic acid bearing a bromo substituent in ω position. The C–Br bond length of 1.9549(19) Å as well as the C–O bond lengths of 1.215(2) and 1.315(2) Å are in good agreement with comparable bonding patterns in compounds whose metrical parameters have been deposited with the Cambridge Structural Database [15]. The hydrocarbon chain adopts an ideal zig-zag conformation.

In the crystal, the formation of centrosymmetric dimers based on hydrogen bonding between the carboxyl groups of two neighboring molecules of the title compound is observed. In terms of graph-set analysis [16, 17], the descriptor for these contacts at the unary level is R 2 2 (8).

Corresponding author: Richard Betz, Department of Chemistry, Nelson Mandela University, Summerstrand Campus (South), University Way, Summerstrand, PO Box 77000, Port Elizabeth 6031, South Africa, E-mail:

Funding source: National Research Foundation 10.13039/501100001321

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: This study was supported by the National Research Foundation.

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Bruker. APEX2 and SAINT; Bruker AXS Inc.: Madison, Wisconsin, USA, 2012.Search in Google Scholar

2. Bruker. SADABS; Bruker AXS Inc.: Madison, Wisconsin, USA, 2008.Search in Google Scholar

3. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s0108767307043930.Search in Google Scholar PubMed

4. Farrugia, L. J. WinGX and ORTEP for Windows: an update. J. Appl. Crystallogr. 2012, 45, 849–854; https://doi.org/10.1107/s0021889812029111.Search in Google Scholar

5. Macrae, C. F., Bruno, I. J., Chisholm, J. A., Edgington, P. R., McCabe, P., Pidcock, E., Rodriguez-Monge, L., Taylor, R., van de Streek, J., Wood, P. A. Mercury CSD 2.0 - new features for the visualization and investigation of crystal structures. J. Appl. Crystallogr. 2008, 41, 466–470; https://doi.org/10.1107/s0021889807067908.Search in Google Scholar

6. Spek, A. L. Structure validation in chemical crystallography. Acta Crystallogr. 2009, D65, 148–155.10.1107/S090744490804362XSearch in Google Scholar PubMed PubMed Central

7. Meyer, G. Ueber einige anomale Reaktionen. Ber. Dtsch. Chem. Ges. 1883, 13, 1439–1443; https://doi.org/10.1002/cber.188301601316.Search in Google Scholar

8. Schalekamp, H., Hosten, E. C., Betz, R. Redetermination of the crystal structure of endo-2-carboxy-bicyclo[2.2.1]- heptane, C8H12O2. Z. Kristallogr. N. Cryst. Struct. 2015, 230, 33–34; https://doi.org/10.1515/ncrs-2014-0235.Search in Google Scholar

9. Betz, R., Klüfers, P. 1–Hydroxycyclopropane-1-carboxylic acid. Acta Crystallogr. 2007, E63, o3891; https://doi.org/10.1107/s1600536807041256.Search in Google Scholar

10. Betz, R., Klüfers, P. 1–Hydroxycyclobutane-1-carboxylic acid. Acta Crystallogr. 2007, E63, o4032; https://doi.org/10.1107/s1600536807043747.Search in Google Scholar

11. Betz, R., Klüfers, P. 1–Hydroxycyclopentane-1-carboxylic acid. Acta Crystallogr. 2007, E63, o3932; https://doi.org/10.1107/s1600536807042183.Search in Google Scholar

12. Betz, R., Klüfers, P., Mangstl, M. M. tert–Butylglycolic acid. Acta Crystallogr. 2007, E63, o4144; https://doi.org/10.1107/s1600536807046156.Search in Google Scholar

13. Gerber, T., Betz, R. rac-3,3,3–Trifluorolactic acid. Acta Crystallogr. 2013, E69, o336; https://doi.org/10.1107/s1600536813003097.Search in Google Scholar PubMed PubMed Central

14. Vor der Bruck, O., Leiserowitz, L. Two crystalline modifications of bromoacetic acid. Cryst. Struct. Commun. 1975, 4, 647–651.Search in Google Scholar

15. Groom, C. R., Allen, F. H. The Cambridge Structural Database in retrospect and prospect. Angew. Chem. Int. Ed. 2014, 53, 662–671; https://doi.org/10.1107/s0108768102003890.Search in Google Scholar PubMed

16. Bernstein, J., Davis, R. E., Shimoni, L., Chang, N.-L. Patterns in hydrogen bonding: functionality and graph set analysis in crystals. Angew Chem. Int. Ed. Engl. 1995, 34, 1555–1573; https://doi.org/10.1002/anie.199515551.Search in Google Scholar

17. Etter, M. C., MacDonald, J. C., Bernstein, J. Graph-set analysis of hydrogen-bond patterns in organic crystals. Acta Crystallogr. 1990, B46, 256–262; https://doi.org/10.1107/s0108768189012929.Search in Google Scholar PubMed
