The crystal structure of tetrakis(1-isopropyl-1H-imidazolium) octamolybdate, C24H44Mo8N8O26

  • Bingchuan Yang ORCID logo EMAIL logo , Xueyan Lv and Rutao Liu
Published/Copyright: June 9, 2021
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 236 Issue 5

Abstract

C24H44Mo8N8O26, monoclinic, P21/n (no. 14), a = 10.3214(11) Å, b = 21.810(2) Å, c = 10.9371(11) Å, V = 2340.4(4) Å3, Z = 2, R gt (F) = 0.0423, wR ref (F 2) = 0.0893, T = 298(2) K.

CCDC no.: 2081662

Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Colourless block
Size: 0.22 × 0.20 × 0.19 mm
Wavelength: Mo Kα radiation (0.71073 Å)
μ: 2.16 mm−1
Diffractometer, scan mode: Bruker SMART APEX II, φ and ω
θ max, completeness: 25.0°, >99%
N(hkl)measured, N(hkl)unique, R int: 11,330, 4105, 0.051
Criterion for I obs, N(hkl)gt: I obs > 2σ(I obs), 3229
N(param)refined: 302
Programs: Bruker [1], Shelx [2]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z U iso*/U eq
C1 0.9294 (8) 0.4192 (4) 0.1540 (8) 0.048 (2)
H1 1.017262 0.417630 0.211551 0.057*
C2 0.8211 (9) 0.4426 (5) 0.1782 (9) 0.058 (3)
H2 0.818436 0.459938 0.254995 0.070*
C3 0.7589 (9) 0.4089 (5) −0.0176 (9) 0.056 (3)
H3 0.705776 0.398919 −0.100715 0.067*
C4 0.9822 (9) 0.3704 (4) −0.0352 (9) 0.050 (2)
H4 1.055829 0.348749 0.028821 0.060*
C5 1.0446 (12) 0.4225 (5) −0.0894 (13) 0.094 (4)
H5A 0.973395 0.447891 −0.142947 0.142*
H5B 1.098033 0.406104 −0.139595 0.142*
H5C 1.101831 0.446595 −0.020102 0.142*
C6 0.9069 (11) 0.3247 (4) −0.1352 (9) 0.069 (3)
H6A 0.861853 0.295461 −0.096868 0.103*
H6B 0.970331 0.303889 −0.168979 0.103*
H6C 0.840541 0.345777 −0.203670 0.103*
C7 0.1229 (9) 0.6633 (4) 0.5614 (9) 0.049 (2)
H7 0.207674 0.660072 0.548753 0.059*
C8 0.0163 (8) 0.6255 (4) 0.5140 (8) 0.048 (2)
H8 0.012559 0.591634 0.461441 0.058*
C9 −0.0433 (8) 0.6955 (4) 0.6279 (9) 0.046 (2)
H9 −0.094966 0.718005 0.668154 0.055*
C10 0.1657 (9) 0.7610 (4) 0.6927 (9) 0.055 (3)
H10 0.114919 0.783012 0.741239 0.067*
C11 0.1838 (13) 0.8035 (5) 0.5930 (13) 0.101 (5)
H11A 0.237867 0.783967 0.546953 0.151*
H11B 0.228876 0.840092 0.633506 0.151*
H11C 0.096211 0.813949 0.534122 0.151*
C12 0.2986 (10) 0.7395 (6) 0.7878 (11) 0.089 (4)
H12A 0.279615 0.713965 0.851672 0.134*
H12B 0.350941 0.774401 0.828673 0.134*
H12C 0.349351 0.716518 0.743237 0.134*
Mo1 0.32461 (5) 0.52157 (3) 0.44087 (5) 0.02029 (15)
Mo2 0.47563 (6) 0.66385 (3) 0.44107 (6) 0.02752 (17)
Mo3 0.42473 (6) 0.41297 (3) 0.29025 (6) 0.02489 (16)
Mo4 0.57701 (6) 0.55273 (3) 0.29281 (5) 0.02444 (16)
N1 0.8908 (6) 0.3980 (3) 0.0319 (6) 0.0372 (16)
N2 0.7149 (7) 0.4360 (4) 0.0682 (7) 0.062 (2)
H2′ 0.632522 0.447790 0.057114 0.074*
N3 0.0835 (6) 0.7076 (3) 0.6321 (6) 0.0374 (16)
N4 −0.0836 (7) 0.6464 (3) 0.5574 (7) 0.0477 (19)
H4′ −0.162767 0.629819 0.541237 0.057*
O1 0.1678 (4) 0.4898 (2) 0.4064 (4) 0.0309 (12)
O2 0.3741 (4) 0.5299 (2) 0.6278 (4) 0.0236 (10)
O3 0.2944 (4) 0.5998 (2) 0.4063 (4) 0.0279 (11)
O4 0.3752 (4) 0.5014 (2) 0.2878 (4) 0.0229 (10)
O5 0.5546 (4) 0.5580 (2) 0.4958 (4) 0.0237 (10)
O6 0.4664 (5) 0.6511 (2) 0.6112 (5) 0.0291 (11)
O7 0.3763 (5) 0.7268 (2) 0.3893 (5) 0.0445 (14)
O8 0.6382 (5) 0.6903 (2) 0.4794 (5) 0.0376 (13)
O9 0.4701 (5) 0.6243 (2) 0.2804 (4) 0.0295 (11)
O10 0.7381 (5) 0.5820 (2) 0.3377 (5) 0.0363 (13)
O11 0.5427 (5) 0.5344 (2) 0.1348 (4) 0.0357 (12)
O12 0.4590 (5) 0.4063 (2) 0.1494 (5) 0.0396 (13)
O13 0.2655 (5) 0.3843 (2) 0.2625 (5) 0.0352 (12)

Source of material

A mixture of ammonium molybdate (0.25 mmol), 1-iso-propylimidazole (2.0 mmol) in H2O (15 mL) was stirred for 60 min at room temperature. Then the solution was sealed in a 25 mL Teflon-lined autocalve at 100 °C for three days. After the reaction was completed, the block crystals were obtained. Yield: 37.6%. Anal. Calcd for C24H44Mo8N8O26: C, 17.70; H, 2.72; N, 6.88; found: C, 17.92; H, 2.64; N, 6.63.

Experimental details

Hydrogen atoms were assigned with common isotropic displacement factors U iso (H) = 1.2 times U eq (C, imidazole ring and methanetriyl carbon) and U iso (H) = 1.5 times U eq (C, methyl carbon). All the H atoms were refined as riding on their parent atom.

Comment

In the past decades, polyoxomolybdates, a subclass of polyoxometalates that featured intriguing structure and excellent properties in the areas of magnetism, biomedicine, materials science, catalysis and energy science [3], [4], have received increasing attention because of their extending application and properties in catalysis, analytical chemistry, and separation science, and so on [5], [6]. For example, a ligand-induced protocol for the selective synthesis of the first lacunary polyoxomolybdate in pyridine solvent was reported [7]. Wang’s group synthesized four novel Mo8O26-based metal-organic frameworks derived from the bis(pyrazine)-bis(amide) N-ligands under hydrothermal conditions and found that the four octamolybdate-based frameworks exhibited excellent amperometric sensing properties toward four different metal and non-metal ions, such as, Cr(VI), Fe(III), B r O 3 − , and N O 2 − [8]. So far, various aluminium based polyoxomolybdates has been reported, but imidazole-decorated octamolybdate clusters are rarely reported [9]. Therefore, the design and assembly of novel imidazole-based octamolybdates with multifunctional performance is an imperative issue.

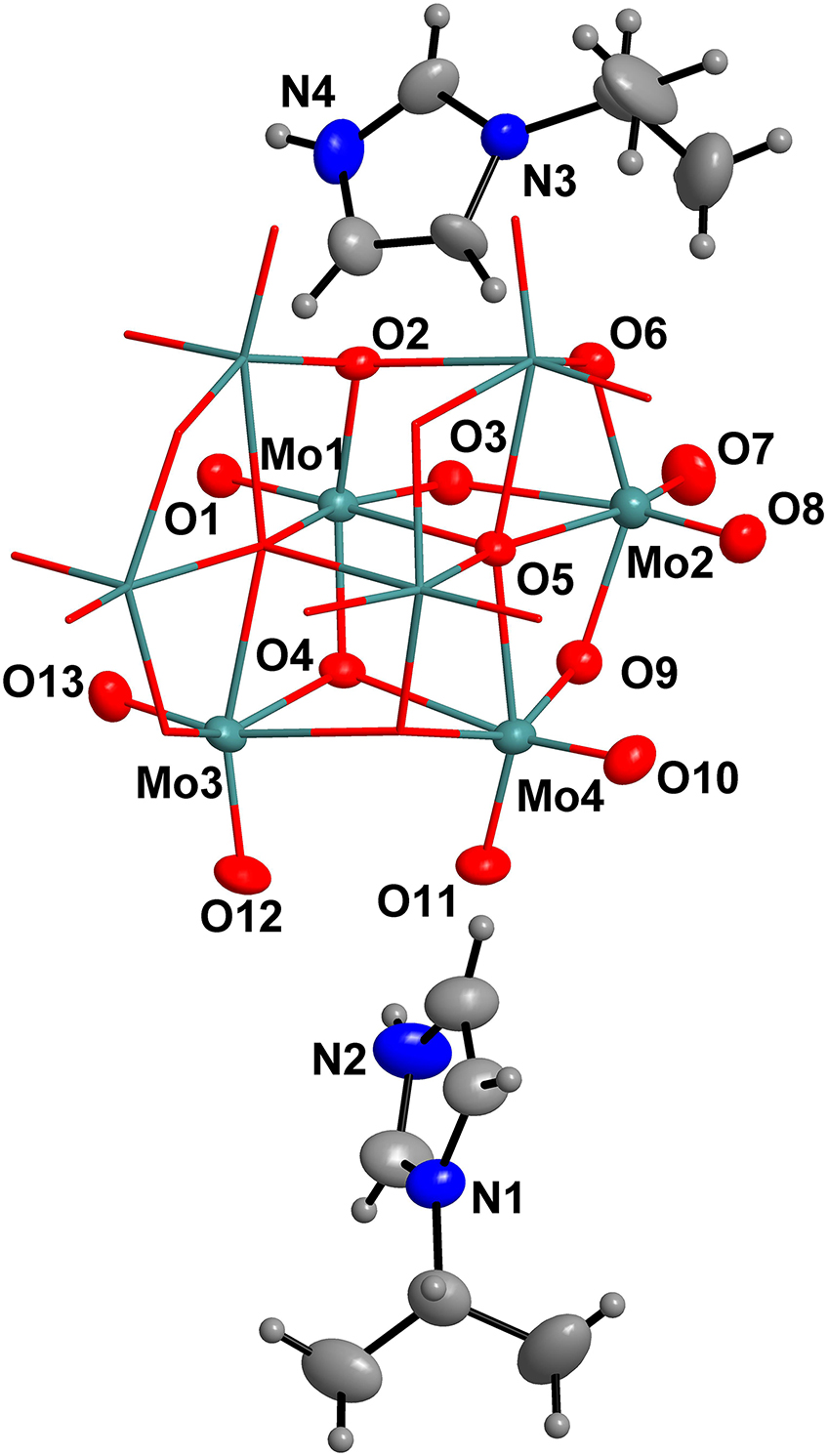

The crystal structure of the title 1-isopropylimidazole-based octamolybdate is shown in Figure. Single crystal X-ray diffraction analysis reveals that the asymmetric unit of the octamolybdate cluster structure consist of half one octamolybdate cluster and two 1-isopropyl-1H-imidazolium cations (1-iIM) with the proton attached to the N atom of the imidazole ring. Non-hydrogen atoms forming the asymmetric unit are shown as ellipsids in the figure. Moreover, due to the rigidity of the ring, all the non-H atoms of imidazole ring lie nearly in the same plane. Although the crystallographically independent Mo atoms are in {MoO6} environments, they can still be divided into three types based on subtle differences in their coordination environments. Mo(1) coordinates to one terminal O1 atom (Ot), one μ2-bridging O3 atom (Ob), two μ3-bridging O2 and O4 atoms (Oc), two μ5-bridging O5 and O5 #1 (#1 = 1.5 − x, 1.5 + y, 1.5 − z) atoms (Od) and presents the [MoO6] coordinated octahedron environments. Conversely, for Mo(2), their coordination environments comprises two Ot atoms, three Ob atoms, one Od atom and also exhibits [MoO6] coordinated octahedron environments. In contrast to Mo1 and Mo2 modes, Mo(3) and Mo(4) atoms are surrounded by two Ot atoms, one Ob atom, two Oc atoms and one Od atom, respectively. Correspondingly, the Mo–O bond lengths are all in the normal range and are comparable with those of a reported (HiIM)4[(iIM)2Mo8O26]·2iIM·2H2O [10].

In addition, the supramolecular structure of title 1-iIM-based octamolybdate was formed by intermolecular N–H⋯O hydrogen-bonding interactions between the octamolybdate cluster and protonated 1-isopropylimidazole molecules.

Corresponding author: Bingchuan Yang, School of Environmental Science and Engineering, Shandong University, Qingdao 266237, China; and School of Chemistry and Chemical Engineering, Liaocheng University, Liaocheng 252000, Shandong, China, E-mail:

Funding source: Liaocheng University

Acknowledgements

We gratefully acknowledge support by the Research on Experimental Technology of Liaocheng University.

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: Research on Experimental Technology of Liaocheng University.

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Bruker . APEX2, SAINT and SADABS; Bruker AXS Inc.: Madison, Wisconsin, USA, 2004.Search in Google Scholar

2. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Search in Google Scholar PubMed PubMed Central

3. Li, L., Yang, H., Li, X. N., Guo, Y., Zhang, H. Reunderstanding the photoinduced charge transfer process of ammonium polyoxomolybdate. Dalton Trans. 2019, 48, 10683–10688; https://doi.org/10.1039/c9dt02106j.Search in Google Scholar PubMed

4. Wang, Y. P., Lu, J. K., Ma, X. Y., Niu, Y. J., Singh, V., Ma, P. T., Zhang, C., Niu, J. Y., Wang, J. P. Synthesis characterization and catalytic oxidation of organosilanes with a novel multilayer polyoxomolybdate containing mixed-valence antimony. Mol. Catal. 2018, 452, 167–174; https://doi.org/10.1016/j.mcat.2018.04.013.Search in Google Scholar

5. An, H. Y., Hou, Y. J., Chang, S. Z., Zhang, J., Zhu, Q. S. Highly efficient oxidation of various thioethers catalyzed by organic ligand-modified polyoxomolybdates. Inorg. Chem. Front. 2020, 7, 169–176; https://doi.org/10.1039/c9qi01098j.Search in Google Scholar

6. Dopta, J., Mahnke, L. K., Bensch, W. New pronounced progress in the synthesis of group 5 polyoxometalates. CrystEngComm 2020, 22, 3254–3268; https://doi.org/10.1039/d0ce00315h.Search in Google Scholar

7. Li, C. F., Yamaguchi, K., Suzuki, K. Ligand-directed approach in polyoxometalate synthesis: formation of a new divacant lacunary polyoxomolybdate [PMo10O36]7−. Angew. Chem. Int. Ed. 2021, 60, 6960–6964; https://doi.org/10.1002/anie.202016642.Search in Google Scholar PubMed

8. Wang, X. L., Cui, Z. W., Lin, H. Y., Chang, Z. H. The rational design of four multifunctional octamolybdate-based complexes for detecting different ions and removing organic dyes from aqueous solution. CrystEngComm 2021, 23, 2113–2121; https://doi.org/10.1039/d1ce00009h.Search in Google Scholar

9. Gu, X. Y., Lin, J., Zhao, W. L., Cui, C. S., Qi, Y. Q., Xue, Z. C., Huang, X. Q. An organic imidazole functionalized polyoxomolybdenum cluster: synthesis and selectivity switch in the oxidation of sulfides. J. Liaocheng Univ. (Nat. Sci. Ed.) 2021, 34, 77–82.Search in Google Scholar

10. Chen, B. K., Lin, Z. G., Wang, B., Feng, X., Fan, L. Y., Yang, S., Huang, X. Q., Hu, C. W. A new synthetic approach to functionalize oxomolybdenum complexes. CrystEngComm 2013, 15, 7410–7413; https://doi.org/10.1039/c3ce40994e.Search in Google Scholar
Received: 2021-04-06
Accepted: 2021-05-04
Published Online: 2021-06-09
Published in Print: 2021-09-27

© 2021 Bingchuan Yang et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 International License.
