Crystal structure of catena-poly[(1,4,8,11-tetraazacyclotetradecane-κ4N,N′,N″,N′′′)-bis(μ2-thiocyanato-κ2N:S)-bis(thiocyanato-κS)-nickel(II)palladium(II)], C14H24N8NiPdS4

  • Kwang Ha ORCID logo
Veröffentlicht/Copyright: 15. Februar 2021
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 236 Heft 3

Abstract

C14H24N8NiPdS4, triclinic, P1‾ (no. 2), a = 12.0330(8) Å, b = 12.0959(8) Å, c = 15.9551(12) Å, α = 85.768(3)°, β = 71.917(3)°, γ = 87.899(3)°, V = 2201.3(3) Å3, Z = 4, Rgt(F) = 0.0379, wRref(F2) = 0.0973, T = 223 K.

CCDC no.: 2059322

Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Red block
Size:0.20 × 0.12 × 0.10 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:2.07 mm−1
Diffractometer, scan mode:PHOTON 100 CMOS, φ and ω
θmax, completeness:26.1°, >99%
N(hkl)measured, N(hkl)unique, Rint:56699, 8670, 0.029
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 7640
N(param)refined:511
Programs:Bruker [1], SHELX [2], ORTEP-3 [3], PLATON [4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Pd10.40991 (3)0.01828 (3)0.65109 (2)0.03873 (10)
Ni10.50000.50000.50000.02997 (15)
Ni20.00000.00000.50000.04070 (19)
S10.55706 (14)0.13849 (12)0.64671 (14)0.0757 (5)
S20.36764 (14)0.11266 (14)0.53229 (11)0.0680 (4)
S30.25772 (11)−0.10661 (10)0.68036 (9)0.0500 (3)
S40.46462 (16)−0.10186 (11)0.75464 (12)0.0691 (5)
N10.5270 (4)0.3424 (3)0.5598 (3)0.0460 (9)
N20.1732 (7)0.2397 (5)0.6196 (5)0.100 (2)
N30.1097 (4)−0.0405 (3)0.5801 (3)0.0492 (10)
N40.5779 (5)0.0179 (5)0.8466 (4)0.0743 (15)
N50.5838 (6)0.4486 (4)0.3767 (3)0.0788 (18)
H50.58870.51440.33500.095*
N60.3524 (5)0.4390 (5)0.4835 (4)0.0820 (19)
H60.33960.36580.51680.098*
N70.1470 (4)0.0048 (4)0.3892 (3)0.0617 (12)
H70.2160−0.00040.41060.074*
N8−0.0032 (4)−0.1667 (4)0.4780 (3)0.0628 (13)
H8−0.0622−0.17390.44710.075*
C10.5361 (4)0.2574 (4)0.5932 (3)0.0439 (10)
C20.2567 (6)0.1864 (4)0.5834 (4)0.0609 (15)
C30.1734 (4)−0.0651 (4)0.6187 (3)0.0398 (10)
C40.5310 (4)−0.0282 (4)0.8078 (3)0.0481 (11)
C50.7838 (7)0.4833 (8)0.3923 (7)0.116 (3)
H5A0.78120.55530.36040.139*
H5B0.86510.45660.37270.139*
C60.7133 (7)0.4062 (6)0.3633 (5)0.090 (3)
H6A0.71160.33440.39640.108*
H6B0.75100.39470.30060.108*
C70.5179 (11)0.3739 (6)0.3550 (5)0.118 (4)
H7A0.52540.30080.38380.142*
H7B0.54360.36750.29090.142*
C80.3912 (9)0.4152 (7)0.3862 (5)0.102 (3)
H8A0.38300.48300.35090.122*
H8B0.34030.35910.37680.122*
C90.2464 (7)0.4975 (9)0.5125 (7)0.117 (4)
H9A0.18420.45540.50250.141*
H9B0.25230.56890.47830.141*
C100.1507 (6)0.2125 (6)0.3812 (4)0.076 (2)
H10A0.20710.20360.41440.091*
H10B0.17650.27520.33760.091*
C110.1584 (5)0.1094 (6)0.3312 (4)0.076 (2)
H11A0.09650.11270.30320.091*
H11B0.23370.10810.28430.091*
C120.1461 (6)−0.0947 (6)0.3457 (4)0.0720 (17)
H12A0.2237−0.10830.30400.086*
H12B0.0898−0.08650.31240.086*
C130.1129 (6)−0.1908 (6)0.4133 (4)0.0712 (16)
H13A0.1090−0.25850.38420.085*
H13B0.1719−0.20220.44400.085*
C14−0.0365 (6)−0.2434 (5)0.5565 (5)0.0748 (19)
H14A0.0235−0.24360.58630.090*
H14B−0.0406−0.31850.53860.090*
Pd20.93554 (2)0.44721 (2)0.12721 (2)0.02725 (8)
Ni31.00000.00000.00000.03090 (16)
Ni40.50000.50000.00000.02828 (15)
S50.85268 (10)0.59981 (9)0.06996 (7)0.0390 (2)
S61.05965 (12)0.57290 (10)0.15527 (10)0.0545 (3)
S71.02674 (9)0.30026 (8)0.18631 (7)0.0362 (2)
S80.81388 (10)0.31918 (9)0.09892 (9)0.0461 (3)
N90.6479 (4)0.6245 (4)0.2142 (3)0.0551 (11)
N101.0935 (5)0.4998 (6)0.3169 (4)0.0837 (17)
N111.0144 (3)0.1220 (3)0.0859 (3)0.0404 (8)
N120.6275 (3)0.4230 (3)0.0522 (2)0.0366 (8)
N130.8194 (4)0.0037 (4)0.0536 (3)0.0624 (12)
H130.79950.06450.09420.075*
N140.9957 (5)−0.1255 (3)0.0958 (3)0.0618 (13)
H141.0071−0.19630.06650.074*
N150.5137 (4)0.6438 (3)0.0586 (3)0.0499 (10)
H150.57940.63090.08320.060*
N160.6323 (3)0.5413 (4)−0.1154 (3)0.0522 (11)
H160.70710.5218−0.10390.063*
C150.7333 (4)0.6139 (3)0.1573 (3)0.0385 (9)
C161.0765 (4)0.5283 (4)0.2521 (4)0.0506 (12)
C171.0189 (3)0.1950 (3)0.1267 (3)0.0305 (8)
C180.7058 (3)0.3851 (3)0.0710 (3)0.0314 (8)
C190.7951 (6)0.1229 (5)−0.0756 (5)0.075 (2)
H19A0.78690.1883−0.04130.090*
H19B0.74150.1340−0.11100.090*
C200.7523 (6)0.0261 (5)−0.0115 (5)0.0764 (19)
H20A0.7569−0.0400−0.04450.092*
H20B0.66990.03900.02120.092*
C210.7876 (6)−0.0966 (5)0.1063 (5)0.0736 (17)
H21A0.7883−0.15700.06850.088*
H21B0.7082−0.08930.14710.088*
C220.8701 (6)−0.1231 (4)0.1570 (4)0.0621 (15)
H22A0.8512−0.19540.18950.075*
H22B0.8622−0.06720.20010.075*
C231.0814 (7)−0.1226 (4)0.1396 (5)0.080 (2)
H23A1.0722−0.18710.18200.096*
H23B1.0691−0.05570.17270.096*
C240.4094 (5)0.6511 (5)0.1338 (4)0.0657 (15)
H24A0.34380.68010.11420.079*
H24B0.42220.70160.17520.079*
C250.5428 (5)0.7474 (4)−0.0019 (4)0.0648 (16)
H25A0.47550.7694−0.02180.078*
H25B0.55760.80750.03110.078*
C260.6469 (5)0.7318 (5)−0.0803 (4)0.0665 (16)
H26A0.66890.8050−0.11040.080*
H26B0.71140.7048−0.05860.080*
C270.6389 (5)0.6564 (5)−0.1476 (4)0.0671 (17)
H27A0.56950.6765−0.16530.081*
H27B0.70760.6664−0.20000.081*
C280.6179 (5)0.4616 (6)−0.1783 (3)0.0629 (15)
H28A0.55460.4877−0.20160.075*
H28B0.69010.4582−0.22800.075*

Source of material

To a solution of [Ni(NCS)2(cyclam)] (cyclam = 1,4,8,11-tetraazacyclotetradecane; 0.2229 g, 0.594 mmol) in acetone (20 ml) was added K2Pd(SCN)4 (0.2501 g, 0.600 mmol) and refluxed for 2 h. After cooling, the formed precipitate was separated by filtration, washed with acetone, and dried at 50 °C, to give a redbrown powder (0.1815 g). Crystals were obtained by slow evaporation from an N,N-dimethylformamide (DMF) solution at 60 °C.

Experimental details

Hydrogen atoms were positioned geometrically and allowed to ride on their parent atoms with d(C–H) = 0.98 Å, d(N–H) = 0.99 Å and Uiso(H) = 1.2Ueq(C,N) with the help of the SHELXL program (AFIX 23 or 13 options) [2]. The highest peak (1.25 e Å−3) and the deepest hole (−1.07 e Å−3) in the difference Fourier map are located 0.99 and 0.64 Å from the atoms N13 and S2, respectively.

Comment

The crystal structures of the related heterometallic cyanido-complexes [Ag(cyclam)M1(CN)4]n (cyclam = 1,4,8,11-tetraazacyclotetradecane; M1 = Pd, Pt) [5] and [Cu(cyclam)M2(CN)4]n (M2 = Ni, Pd, Pt) [6] have been determined previously. The structures are formed by one-dimensional cyanido-bridged chains.

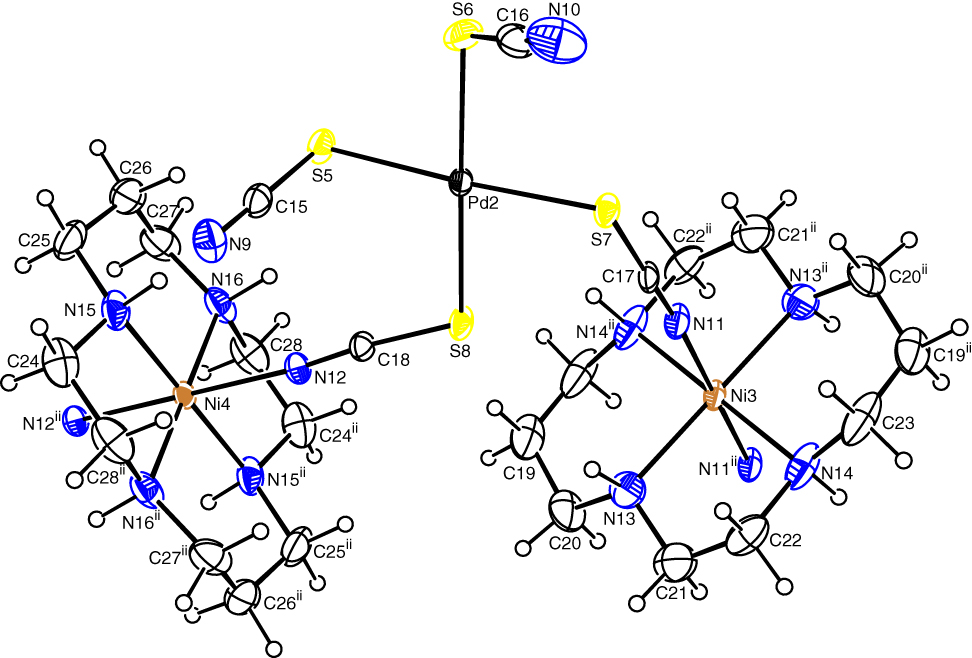

The title compound consists of two streochemically different heterometallic complexes [Ni(cyclam)Pd(SCN)4]n. In the trans-like complex moiety of the title coordination polymer (upper part of the Figure), two trans-thiocyanato ligands of Pd(II) unit [Pd(SCN)4]2− are linked to two Ni(II) units [Ni(cyclam)]2+, whereas in the cis-like complex moiety, two cis-coordinated thiocyanato ligands of the Pd(II) unit (lower part of the Figure) are linked to the two Ni(II) units. The both complexes moieties are connected to exhibit one-dimensional SCN-bridged chains. The Pd(II) ion in each complex is four-coordinated in a distorted square-planar environment by four S atoms from four SCN− ligands, whereas the Ni(II) ions in each complex are six-coordinated in a distorted octahedral coordination geometry by four N atoms of a tetradentate cyclam ligand and two N atoms derived from two mutually trans-positioned bridging SCN− ligands and are located on an inversion center. The Pd–S bond lengths are almost equal with d(Pd–S) = 2.3133(13)–2.3507(13) Å. The Ni–N(thiocyanato) bonds with d(Ni–N) = 2.119(3)–2.133(3) Å are slightly longer than the Ni–N(cyclam) bonds with d(Ni–N) = 2.043(4)–2.076(5) Å. In the crystal structure, the complexes display intra- and intermolecular N–H⋯N hydrogen bonds with distances of 2.909(6)–3.447(9) Å between the donor and acceptor atoms, to stabilize the three-dimensional packing [4].

Corresponding author: Kwang Ha, School of Chemical Engineering, Research Institute of Catalysis, Chonnam National University, Gwangju61186, Republic of Korea, E-mail:

Funding source: Ministry of Education

Award Identifier / Grant number: 2018R1D1A1B07050550

Acknowledgements

The author thanks the KBSI, Seoul Center, for the X-ray data collection.

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: This research was supported by Basic Science Research Program through the National Research Foundation of Korea (NRF) funded by the Ministry of Education (grant number: 2018R1D1A1B07050550).

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Bruker. APEX2, SAINT and SADABS; Bruker AXS Inc.: Madison, WI, USA, 2016.Suche in Google Scholar

2. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Suche in Google Scholar

3. Farrugia, L. J. ORTEP-3 for Windows-a version of ORTEP–III with a graphical user interface (GUI). J. Appl. Crystallogr. 1997, 30, 565; https://doi.org/10.1107/s0021889897003117.Suche in Google Scholar

4. Spek, A. L. Single-crystal structure validation with the program PLATON. J. Appl. Crystallogr. 2003, 36, 7–13; https://doi.org/10.1107/s0021889802022112.Suche in Google Scholar

5. Munakata, M., Zhong, J. C., Ino, I., Kuroda–Sowa, T., Maekawa, M., Suenaga, Y., Oiji, N. 1–D cyano-bridged heterometallic complexes consisting of 1,4,8,11-tetraazacyclotetradecanesilver(II) and tetracyanopalladium(II) or tetracyanoplatinum(II). Inorg. Chim. Acta 2001, 317, 268–275; https://doi.org/10.1016/s0020-1693(01)00366-8.Suche in Google Scholar

6. Černák, J., Kuchár, J., Stolárová, M., Kajn̋aková, M., Vavra, M., Potočňák, I., Falvello, L. R., Tomás, M. Preparation, spectroscopic and magnetic characterization of Cu(cyclam)M(CN)4 complexes exhibiting one-dimensional crystal structures (cyclam = 1,4,8,11-tetraazacyclotetradecane, M = Ni, Pd, Pt). Transit. Met. Chem. 2010, 35, 737–744.10.1007/s11243-010-9387-5Suche in Google Scholar

Received: 2021-01-15
Accepted: 2021-01-28
Published Online: 2021-02-15
Published in Print: 2021-05-26
