Crystal structure of bis(amino(carbamothioylamino)methaniminium) 3-nitrophthalate monohydrate, C12H19N9O7S2

  • Peizhi Wang , Rui Wang and Tingting Zhang ORCID logo EMAIL logo
Published/Copyright: March 3, 2021
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 236 Issue 3

Abstract

C12H19N9O7S2, monoclinic, P21/n (no. 14), a = 7.3376(8) Å, b = 37.536(4) Å, c = 7.7149(8) Å, β = 117.1190(10)°, V = 1891.3(3) Å3, Z = 4, Rgt(F) = 0.0453, wRref(F2) = 0.1321, T = 298 K.

CCDC no.: 2051193

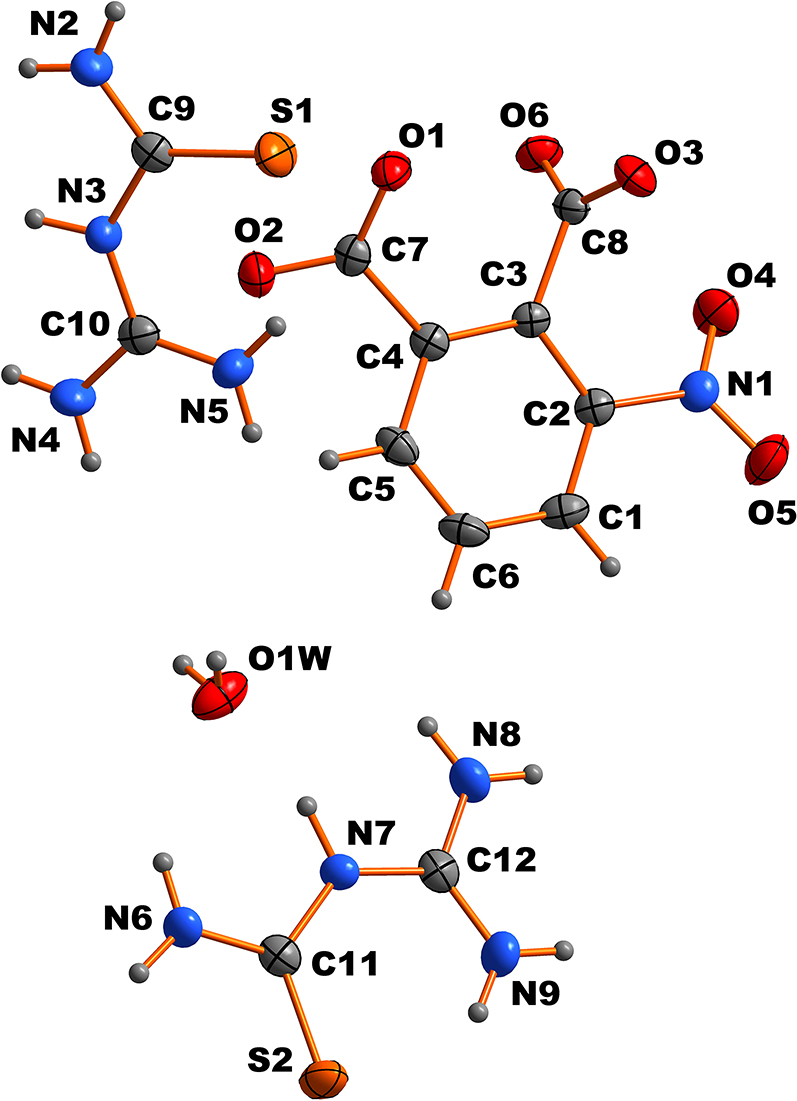

The asymmetric unit of the title crystal structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colorless block
Size:0.40 × 0.30 × 0.20 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.34 mm−1
Diffractometer, scan mode:Bruker APEX-II, φ and ω
θmax, completeness:25.0°, >99%
N(hkl)measured, N(hkl)unique, Rint:9554, 3339, 0.041
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 3095
N(param)refined:277
Programs:SHELX [1], [, 2], Bruker [3], [, 4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
S10.18117 (11)0.21275 (2)0.79951 (9)0.0411 (2)
C10.8048 (3)0.07343 (6)0.5654 (3)0.0311 (5)
H1A0.81910.05040.52890.037*
O10.7322 (3)0.18333 (4)0.9003 (2)0.0337 (4)
N11.0721 (3)0.05997 (5)0.8883 (3)0.0289 (4)
O1W0.5484 (3)0.86633 (5)0.0718 (3)0.0469 (5)
H1WA0.46170.84930.06240.070*
H1WB0.61080.85980.02360.070*
S20.77203 (10)0.96808 (2)0.54773 (9)0.0422 (2)
C20.9200 (3)0.08492 (5)0.7548 (3)0.0232 (4)
O20.6683 (3)0.20212 (4)0.6048 (2)0.0373 (4)
N20.2030 (3)0.28108 (5)0.7422 (3)0.0345 (5)
H2A0.21170.29890.67640.041*
H2B0.19940.28460.85080.041*
O30.9552 (2)0.11576 (4)1.1467 (2)0.0320 (4)
C30.9012 (3)0.11869 (5)0.8215 (3)0.0207 (4)
N30.2024 (3)0.24733 (5)0.5019 (3)0.0271 (4)
H30.208 (4)0.2698 (4)0.455 (4)0.041*
C40.7607 (3)0.14186 (5)0.6821 (3)0.0230 (4)
O41.2240 (2)0.07121 (5)1.0265 (3)0.0414 (4)
N40.1968 (3)0.22647 (5)0.2244 (3)0.0385 (5)
H4A0.18940.20960.14580.046*
H4B0.20820.24820.19580.046*
C50.6492 (3)0.13076 (6)0.4897 (3)0.0305 (5)
H5A0.55960.14660.39790.037*
O51.0423 (3)0.02799 (5)0.8544 (3)0.0539 (5)
N50.1737 (3)0.18599 (5)0.4325 (3)0.0391 (5)
H5B0.16610.16890.35510.047*
H5C0.17000.18140.54010.047*
O61.1684 (2)0.14948 (4)1.0835 (2)0.0320 (4)
C60.6684 (4)0.09681 (6)0.4320 (3)0.0335 (5)
H6A0.58960.08970.30350.040*
N60.7657 (3)0.90039 (5)0.4622 (3)0.0326 (4)
H6B0.71940.88250.38440.039*
H6C0.86370.89740.57770.039*
C70.7185 (3)0.17892 (5)0.7331 (3)0.0244 (4)
N70.5304 (3)0.93216 (5)0.2146 (3)0.0269 (4)
H70.509 (4)0.9107 (4)0.149 (3)0.040*
C81.0192 (3)0.12912 (5)1.0354 (3)0.0240 (4)
N80.2533 (3)0.94923 (6)−0.0616 (3)0.0355 (5)
H8A0.16830.9650−0.13580.043*
H8B0.24160.9274−0.09900.043*
C90.1951 (3)0.24830 (6)0.6765 (3)0.0256 (4)
N90.4250 (3)0.99152 (5)0.1720 (3)0.0387 (5)
H9A0.34221.00780.10080.046*
H9B0.52310.99690.28420.046*
C100.1910 (3)0.21902 (6)0.3865 (3)0.0280 (5)
C110.6868 (3)0.93218 (6)0.4046 (3)0.0265 (4)
C120.4018 (3)0.95860 (6)0.1096 (3)0.0268 (5)

Source of material

Amidinothiourea (0.25 mmol, A. R.), 3-nitrophthalic acid (0.25 mmol, A. R.) and tetrapropylammonium hydroxide (30% aqueous solution) were dissolved (ratio: 1/2/2) in a small amount of water/ethanol (v/v, 1:2) to yield a clean solution. After stirring for an hour, the solution was set aside to generate colorless block crystals of the title compound after about two weeks. Tetrapropylammonium hydroxide was not present in the final structure.

Experimental details

Hydrogen atoms were positioned using riding model options of the SHELX system [2].

Comment

Amidinothiourea, which is a medical intermediate of famotidine [5], can be utilized to coordinate varied metal ions to yield novel compounds [6]. Amidinothiourea can yield plenty of hydrogen bonds because it has several –NH2 groups and one S atom. Therefore, the title compound was prepared to explore the hydrogen bonding patterns.

In the asymmetric unit of the title compound, there are two monoprotonated amidinothiourea cations, one nitrophthalate and one water molecule. It is obvious that the 3-nitrophthalic acid throws its two carboxylic protons to generate the corresponding anion [7], [8], and two N atoms derived from two amidinothiourea molecules spontaneously accept the two protons to yield the two cations of the asymmetric unit. From the packing diagram, it can be seen that these two cations connect with each other to form a hydrogen-bonded ribbon by N–H⋯S contacts, then the ribbons are further linked with the 3-nitrophthalate to give a 3-dimensional framework with cavities by different N–H⋯O hydrogen bonds. The water molecule further consolidates the hydrogen-bonded framework by different N–H⋯O and O–H⋯O interactions. It is clear that amidinothiourea can be used as a qualified hydrogen-bonding synthon to generate novel crystal structures [7].

Corresponding author: Tingting Zhang, Henan University of Chinese Medicine, Zhengzhou, 450046, China, E-mail:

Funding source: Henan University of Chinese Medicine

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: Henan University of Chinese Medicine.

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Sheldrick, G. M. SHELXT – integrated space-group and crystal-structure determination. Acta Crystallogr. 2015, A71, 3–8; https://doi.org/10.1107/s2053273314026370.Search in Google Scholar

2. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Search in Google Scholar

3. Bruker. APEX2; Bruker AXS Inc: Madison, Wisconsin, USA, 2005.Search in Google Scholar

4. Bruker. SAINT; Bruker AXS Inc: Madison, Wisconsin, USA, 1998.Search in Google Scholar

5. Adane, L., Bhagat, S., Arfeen, M., Bhatia, S., Sirawaraporn, R., Sirawaraporn, W., Chakraborti, A. K., Bharatam, P. V. Design and synthesis of guanylthiourea derivatives as potential inhibitors of Plasmodium falciparum dihydrofolate reductase enzyme. Bioorg. Med. Chem. Lett. 2014, A24, 613–617; https://doi.org/10.1016/j.bmcl.2013.12.009.Search in Google Scholar

6. Trimble, R. H. Comparison of the reactions of amidinourea and amidinothiourea with various metal ions. Anal. Chem. 1962, 34, 1633–1635; https://doi.org/10.1021/ac60192a037.Search in Google Scholar

7. Janczak, J. Diversity in supramolecular solid-state architecture formed by self-assembly of 1-(diaminomethylene)thiourea and aliphatic dicarboxylic acids. Cryst. Growth Des. 2015, 15, 5097–5111; https://doi.org/10.1021/acs.cgd.5b01049.Search in Google Scholar

8. Perpetuo, G. J., Janczak, J. NLO crystals of bis[1-diaminomethylene) thiouron-1-ium]tartate(2-) hemihydrate and deuterated [1-diaminomethylene) thiouron-1-ium]tartate(-). J. Mol. Struct. 2013, 1031, 14–21; https://doi.org/10.1016/j.molstruc.2012.07.034.Search in Google Scholar

Received: 2020-11-23
Accepted: 2020-12-18
Published Online: 2021-03-03
Published in Print: 2021-05-26

© 2020 Peizhi Wang et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 International License.
