The crystal structure of aqua{N,N,N′,N′-tetrakis[(1H-benzimidazol-κN3) methyl]cyclohexane-1,2-diamine}lead(II) diacetate–methanol (1/2), C44H54N10O7Pb

  • Ji Li ORCID logo EMAIL logo and Ming-Zhi Miao
Published/Copyright: August 20, 2020
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 235 Issue 6

Abstract

PbC44H54N10O7, triclinic, P1̄ (no. 2), a = 12.096(2) Å, b = 12.916(2) Å, c = 16.5904(7) Å, α = 101.163(2)°, β = 110.634(2)°, γ = 100.698(2)°, V = 2287.0(4) Å3, Z = 2, Rgt(F) = 0.0604, wRref(F2) = 0.1409, T = 298(2) K.

CCDC no.: 2010990

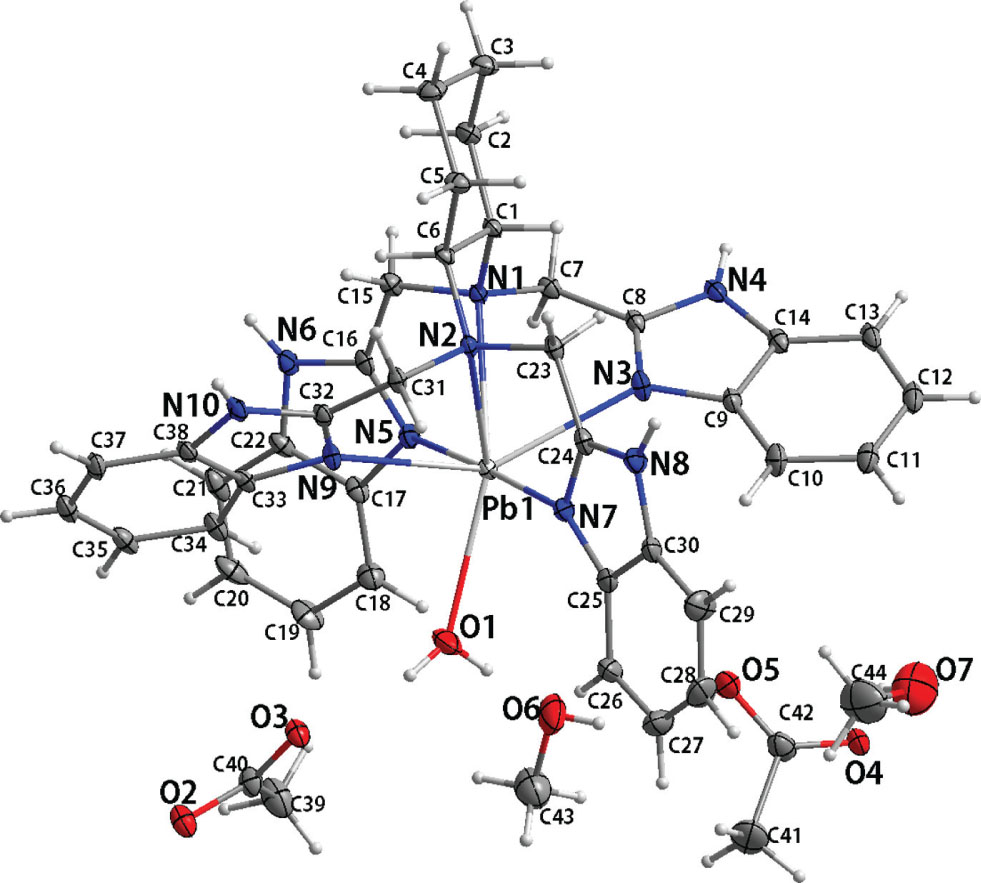

The molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colourless block
Size:0.16 × 0.12 × 0.10 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:3.7 mm−1
Diffractometer, scan mode:Bruker APEX2, φ and ω
θmax, completeness:56.6°, 99%
N(hkl)measured, N(hkl)unique, Rint:7966, 7966,
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 7079
N(param)refined:566
Programs:Bruker [1], SHELX [2], [3], [4], Diamond [5], Olex2 [6]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Pb10.50164(3)0.75760(2)0.74428(2)0.04121(13)
C10.6977(7)0.9397(6)0.6758(5)0.0436(19)
H10.74360.88610.66830.052*
C20.7253(9)1.0225(7)0.6264(6)0.062(2)
H2A0.67731.07450.62930.074*
H2B0.69990.98420.56370.074*
C30.8627(9)1.0862(8)0.6656(7)0.070(3)
H3A0.91101.03550.65910.084*
H3B0.87491.13900.63310.084*
C40.9047(10)1.1453(8)0.7639(7)0.072(3)
H4A0.86011.19930.77020.086*
H4B0.99161.18330.78890.086*
C50.8818(8)1.0631(8)0.8140(6)0.057(2)
H5A0.90811.10220.87670.068*
H5B0.93201.01320.81100.068*
C60.7468(7)0.9953(6)0.7780(5)0.0421(18)
H60.69941.04760.78540.050*
C70.5352(8)0.7917(7)0.5536(5)0.051(2)
H7A0.56460.82460.51450.061*
H7B0.44670.76220.52290.061*
C80.5912(7)0.7009(7)0.5711(6)0.048(2)
C90.6573(8)0.5789(7)0.6327(6)0.052(2)
C100.6924(10)0.5133(8)0.6871(7)0.074(3)
H100.68480.52410.74170.088*
C110.7394(9)0.4309(8)0.6585(8)0.071(3)
H110.76290.38480.69420.085*
C120.7520(10)0.4158(8)0.5785(9)0.078(3)
H120.78550.36020.56190.094*
C130.7170(9)0.4800(7)0.5213(7)0.066(3)
H130.72470.46900.46670.079*
C140.6692(8)0.5623(7)0.5518(6)0.052(2)
C150.4836(8)0.9483(7)0.6221(6)0.050(2)
H15A0.48180.97250.56990.060*
H15B0.51691.01300.67330.060*
C160.3554(8)0.8945(7)0.6076(5)0.049(2)
C170.1921(8)0.7831(7)0.5960(6)0.051(2)
C180.1053(9)0.6956(9)0.5954(7)0.073(3)
H180.12500.63130.60420.088*
C19−0.0090(9)0.7063(11)0.5818(8)0.087(4)
H19−0.06790.64870.58180.104*
C20−0.0389(10)0.8001(12)0.5680(8)0.088(4)
H20−0.11810.80470.55840.105*
C210.0444(10)0.8873(11)0.5677(6)0.076(3)
H210.02340.95090.55820.091*
C220.1621(8)0.8770(9)0.5823(6)0.058(2)
C230.8167(8)0.8535(7)0.8471(6)0.050(2)
H23A0.89550.90310.88970.060*
H23B0.82540.82300.79220.060*
C240.7811(8)0.7625(7)0.8849(6)0.049(2)
C250.6839(10)0.6344(7)0.9187(7)0.060(3)
C260.5933(12)0.5558(9)0.9257(8)0.083(3)
H260.50990.54850.89670.100*
C270.6359(16)0.4915(12)0.9775(11)0.120(5)
H270.57960.43780.98420.144*
C280.7586(18)0.5019(13)1.0206(11)0.129(6)
H280.78200.45521.05560.155*
C290.8480(13)0.5773(11)1.0148(9)0.101(4)
H290.93110.58371.04470.121*
C300.8072(10)0.6436(8)0.9614(7)0.063(3)
C310.7242(8)0.9769(7)0.9138(5)0.047(2)
H31A0.78861.04560.93860.056*
H31B0.74160.93430.95660.056*
C320.6036(8)0.9996(7)0.8993(5)0.047(2)
C330.4076(8)0.9840(7)0.8525(5)0.046(2)
C340.2828(9)0.9501(8)0.8117(6)0.058(2)
H340.24170.88270.76850.070*
C350.2193(10)1.0204(10)0.8372(7)0.068(3)
H350.13380.99940.81100.082*
C360.2802(10)1.1202(9)0.9004(7)0.065(3)
H360.23511.16690.91360.078*
C370.4036(10)1.1525(8)0.9437(6)0.061(3)
H370.44381.21860.98860.073*
C380.4691(8)1.0830(7)0.9189(6)0.051(2)
C390.0339(12)0.6633(12)0.8160(9)0.120(5)
H39A0.06250.66600.76910.180*
H39B−0.03760.68990.80400.180*
H39C0.01340.58880.81850.180*
C400.1337(10)0.7341(8)0.9047(6)0.063(3)
C410.2713(19)0.2104(15)0.7107(11)0.156(7)
H41A0.18830.21490.69400.233*
H41B0.32270.26250.76790.233*
H41C0.27410.13760.71460.233*
C420.3174(12)0.2360(12)0.6399(8)0.085(4)
C430.0862(15)0.4072(15)0.6648(13)0.154(7)
H43A0.08360.38750.71720.232*
H43B0.05940.34200.61600.232*
H43C0.03290.45330.64890.232*
C440.652(2)0.2835(19)0.8205(13)0.217(11)
H44A0.72130.26260.85560.326*
H44B0.58990.27310.84420.326*
H44C0.67680.35940.82270.326*
N10.5656(6)0.8770(5)0.6377(4)0.0403(15)
N20.7238(6)0.9153(5)0.8281(4)0.0410(15)
N30.6086(7)0.6685(6)0.6434(5)0.058(2)
N40.6261(6)0.6406(6)0.5132(5)0.0543(19)
H40.62230.64920.46220.065*
N50.3168(7)0.7960(6)0.6127(5)0.0516(18)
N60.2671(7)0.9475(6)0.5883(5)0.0548(19)
H6A0.27491.01230.58120.066*
N70.6698(7)0.7119(6)0.8705(5)0.0511(17)
N80.8676(7)0.7266(6)0.9390(5)0.060(2)
H80.94580.75100.95640.072*
N90.4966(6)0.9321(5)0.8415(4)0.0469(17)
N100.5929(6)1.0917(5)0.9470(4)0.0465(17)
H10A0.65211.14550.98720.056*
O10.3451(7)0.6623(6)0.8067(6)0.097(3)
H1A0.31900.59610.78240.145*
H1B0.32570.67920.84910.145*
O20.1001(6)0.7763(6)0.9625(5)0.076(2)
O30.2405(6)0.7435(5)0.9145(4)0.0689(18)
O40.3303(8)0.1593(7)0.5906(6)0.094(3)
O50.3330(8)0.3312(6)0.6334(5)0.089(2)
O60.2079(11)0.4646(8)0.6832(9)0.137(4)
H6B0.25320.42500.69620.205*
O70.6026(19)0.2172(18)0.7294(12)0.245(8)
H70.53980.23150.70030.367*

Source of material

All reagents and solvents were used as obtained without further purification. The ligand CTB was synthesized according to the literature methods [7]. The title compound (I) was synthesized by reaction of CTB (0.64 g, 1 mmol) and Pb(CH3COO)2 ⋅ 3(H2O) (0.38 g, 1 mmol) in 95% methanol (30 mL) at 333 K for 2 h. The solution was then cooled to room temperature, filtered and evaporated to obtain the product (yield 72%). Crystals of (I) were grown from a methanol solution by slow evaporation at room temperature. Elemental analysis calculated: C 50.71, H 5.22, N 13.44%; found: C 50.53, H 5.52, N 13.39%.

Experimental details

Hydrogen atoms bonded to carbon atoms were placed in their geometrically idealized positions and constrained to ride on their parent atoms with C—H = 0.95 Å (aromatic), 0.99 Å (methylene), 0.98 Å (methyl) Uiso(H) = 1.2Ueq(aromatic and methylene) and 1.5Ueq(methyl). Hydrogen atoms bonded to nitrogen, O1 and O2 atoms were initially found from the difference maps and refined with the restraints of N—H = 0.88(1) Å, O—H = 0.82(1) Å. Due to the relatively high thermal factors of methanol solvent, commands DFIX and ISOR were used in the refinement to restrain C—O and their the thermal factors In the structure refinement, the crystal model was founded to be twinned by the twin law [0.019 0.921 −0.059, 1.019 −0.079 −0.059, −1.019–0.921 −0.941]. In the final result, the best ratio outcome for the major and minor components is 0.748(4):0.252(4).

Comment

As part of our continuing studies on the ligands or metal complexes containing multi-benzimidazole group [8], we have synthesized another ligand N,N,N′,N′-tetrakis[(1H-benzimidazol -2-yl) methyl]cyclohexane-1,2-diamine (CTB). On the other hand, due to the unique lone electron effects with ns2np0 configuration of the p-block Pb(II) ion, its metal complexes can provide some special opportunities for the screening of novel photoluminescent materials [9], [10]. Based on this concept, we have synthesized the title compound and reported its crystal structure in this paper.

In (I), its asymmetric unit was composed of each one [Pb(CTB)(H2O)]2+, two acetate anions and two methanol solvent molecules. The Pb(II) ion is coordinated in a distorted monocapped trigonal-prismatic environment by four benzimidazole (bzim) N atoms, two amino N atoms of the ligand CTB and one water molecule. These seven donor atoms occupy a space around the Pb(II) ion and the underneath direction space is occupied by the 6s2 lone elcetron pair, which may induce its special photoluminescence behavior [11]. Around the Pb(II) center, it should be mentioned that the Pb1-N3/N5/O1 bond distances (2.670(7) Å/2.720(7) Å/2.680(7) Å) are apparently longer than the other two Pb1-Nbzim distances (2.606(7) Å/2.530(6) Å) which should be ascribed to the lone electron pair steric hindrance. However, these two Pb1—Namino bond distances (2.746(7) Å and 2.772(6) Å) are apparently longer than the mean value (2.641(7) Å) of the five coordination bonds which should be mainly ascribed to the steric effect of ligand CTB. Similar phenomena are observed in some analogs [12], [13], [14].

In the crystal packing, the ions and molecules are linked into a three-dimensional network by a combination of extensive N-H⋯O and O-H⋯O hydrogen-bondings. In more details, the [Pb(CTB)(H2O)]2+ and O2/O3-containing acetate ions are firstly hydrogen-bonded by intermolecular N8—H8⋯O2 (dN8⋯O2 = 2.633(1) Å; 1 + x, y, z), N10—H10A⋯O3 (dN10⋯O3 = 2.669(2) Å; 1 + x, 2 − y, 2 − z) and O1—H1A⋯O3 (dO1⋯O3 = 2.695(1) Å) interactions into a one-dimensional chain along the [100] axis. These adjacent [100] chains are further linked into the final three-dimensional network by two N—H⋯O and three O—H⋯O hydrogen bonds between [Pb(CTB)(H2O)]2+cation, O4/O5-containing acetate and the two methanol molecules. Analysis by Platon [15] indicates that two weak intermolecular π⋯π interactions exist between two pairs of symmetry-related imidazole rings (N3/C8/N4/C14/C9 and N9/C32/N10/C38/C33) with centroid-centroid distances of 3.895(6) Å and 3.830(5) Å, respectively.

Acknowledgements

This work was financially supported by the special funding of Guiyang Science and Technology Bureau and Guiyang University (GYU-KYZ(2019)-02).

References

1. Bruker. SMART and SAINT. Bruker AXS Inc., Madison, WI, USA (2003).Search in Google Scholar

2. Sheldrick, G. M.: SHELXTL Integrated space-group and crystal-structure determination. Acta Crystallogr. A71 (2015) 3–8.10.1107/S2053273314026370Search in Google Scholar

3. Sheldrick, G. M.: Crystal refinement with SHELX. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053273314026370Search in Google Scholar PubMed PubMed Central

4. Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

5. Brandenburg, K.: DIAMOND. Crystal Impact GbR, Bonn Germany (2006).Search in Google Scholar

6. Dolomanov, O. V.; Bourhis, L. J.; Gildea, R. J.; Howard, J. A. K.; Puschmann, H.: OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Cryst. 42 (2009) 339–341.10.1107/S0021889808042726Search in Google Scholar

7. Hendriks, H. M. J.; Birker, J. M. W. L.; Van Rijn, J.; Verschoor, G. C.; Reedijk, J.: Synthesis and characterization of coordination compounds of chelating ligands containing imidazole groups. The crystal and molecular structures of the dinuclear copper(I) and copper(II) compounds. J. Am. Chem. Soc. 104 (1982) 3607–3617.10.1021/ja00377a012Search in Google Scholar

8. Li, J.; Wu, S.-Q.: The crystal structure of dichlorido-(tris(2-benzimidazolylmethyl)amine-κ4N,N′, N′′,N′′′)chromium(III) chloride— methanol (1/3), CrC27H33Cl3N7O3. Z. Kristallogr. NCS 235 (2020) 285–287.10.1515/ncrs-2019-0607Search in Google Scholar

9. Chen, L.; Yan, C.; Pan, M.; Fan, Y.-Z.; Zhang, L.-Y.; Yin, S.-Y.; Hou, Y.-J.; Wu, K.; Jiang, J.-J.; Su, C.-Y.: Semidirected versus holodirected coordination and single-component white light luminescence in Pb(ii) complexes. New J. Chem. 39 (2015) 5287–5292.10.1039/C5NJ00720HSearch in Google Scholar

10. Yan, C.; Chen, L.; Pan, M.; Zhang, L.-Y.; Yin, S.-Y.; Zhu, Y.-X.; Wu, K.; Hou, Y.-J.; Su, C.-Y.: Photoluminescence and white-light emission in two series of heteronuclear Pb(ii)–Ln(iii) complexes. New J. Chem. 39 (2015) 3770–3776.10.1039/C5NJ00168DSearch in Google Scholar

11. Toma, O.; Mercier, N.; Bouilland, M.; Allain, M.: N-oxide-4,4′-bipyridine, a forgotten ligand in coordination chemistry: structure–photoluminescence property relationships in 2D and 1D lead-coordination polymers. CrystEngComm 14 (2012) 7844–7847.10.1039/c2ce26237aSearch in Google Scholar

12. Xiao, Z.-A.; Jiang, T.-T.: (Nitrato-κO){N,N,N′,N′-tetrakis[(1H-benzimidazol-2-yl-κN3)methyl]cyclohexane-1,2-diamine}lead(II) hemiaqua{N,N,N′,N′-tetrakis[(1H-benzimidazol-2-yl-κN3)methyl]cyclohexane-1,2-diamine}lead(II) trinitrate dihydrate. Acta Crystallogr. E67 (2011) m1854–m1855.10.1107/S1600536811050082Search in Google Scholar PubMed PubMed Central

13. Jia, Y.-H.; Huang, F.-F.; Peng, M.-H.; Nie, F.-M.: Synthesis and crystal structure of catena-poly[(μ2-nicotinato-κ2O,O′: κ1N)-(nitrato-κ1O)-(bis(2-benzimidazol-ylmethyl)amine-κ3N,N′,N′′)lead(II)], C22H18N7O5Pb. Z. Kristallogr. NCS 232 (2017) 227–229.10.1515/ncrs-2016-0217Search in Google Scholar

14. Chen, X.; Liu, Y.-P.; Liu, L.-F.; Wang, C.; Nie, F.-M.: Crystal structure of bis(p-nitrobenzoato-κ1O;κ2O,O′) [bis(2-benzimidazol-yl-methyl)amine-κ3N,N′,N′′] lead (II)—methanol (1:1), C31H27N7O9Pb. Z. Kristallogr. NCS 230 (2015) 277–279.10.1515/ncrs-2014-9091Search in Google Scholar

15. Spek, A. L. Structure validation in chemical crystallography. Acta Crystallogr. D65 (2009) 148–155.10.1107/S090744490804362XSearch in Google Scholar PubMed PubMed Central
