Crystal structure of O-hexyl benzoylcarbamothioate, C14H19NO2S

  • Ignez Caracelli EMAIL logo , Julio Zukerman-Schpector , Ariel L. Llanes Garcia , Heiddy Márquez Alvarez and Edward R.T. Tiekink ORCID logo EMAIL logo
Published/Copyright: August 21, 2020
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 235 Issue 6

Abstract

C14H19NO2S, monoclinic, P21/c (no. 14), a = 8.6849(10) Å, b = 18.740(2) Å, c = 10.0465(12) Å, β = 112.845(3)°, V = 1506.9(3) Å3, Z = 4, Rgt(F) = 0.0685, wRref(F2) = 0.2023, T = 293(2) K.

CCDC no.: 2022653

The molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Yellow irregular
Size:0.30 × 0.13 × 0.09 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.21 mm−1
Diffractometer, scan mode:Bruker APEX-II, φ and ω
θmax, completeness:26.4°, >99%
N(hkl)measured, N(hkl)unique, Rint:44808, 3095, 0.060
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 1838
N(param)refined:167
Programs:SHELX [1], [2], Bruker [3], SIR2014 [4], WinGX/ORTEP [5]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
S10.11624(17)0.38660(6)0.19203(11)0.1009(5)
O10.1362(3)0.35784(13)−0.0561(2)0.0774(7)
O20.3238(4)0.26347(13)0.3469(2)0.0834(8)
N10.2573(3)0.27733(14)0.1066(2)0.0590(7)
H1N0.270(4)0.2599(16)0.032(2)0.071*
C10.1709(4)0.34067(17)0.0810(3)0.0594(8)
C20.3222(4)0.23946(17)0.2342(3)0.0588(8)
C30.0388(6)0.4221(2)−0.1146(4)0.0886(12)
H3A0.1005000.463951−0.0656180.106*
H3B−0.0656450.420393−0.1007940.106*
C40.0056(6)0.4254(2)−0.2707(4)0.1014(15)
H4A−0.0523760.469685−0.3095020.122*
H4B0.1116890.426643−0.2817720.122*
C5−0.0945(7)0.3654(3)−0.3567(5)0.1186(17)
H5A−0.1960470.361206−0.3387420.142*
H5B−0.0316470.321535−0.3247340.142*
C6−0.1411(8)0.3740(4)−0.5196(6)0.160(3)
H6A−0.2094130.416485−0.5520250.192*
H6B−0.0396070.381486−0.5363390.192*
C7−0.2306(9)0.3141(6)−0.6063(7)0.216(4)
H7A−0.1577060.272763−0.5797560.259*
H7B−0.3257260.303690−0.5816590.259*
C8−0.2876(9)0.3228(5)−0.7542(7)0.208(4)
H8A−0.3506210.366285−0.7814580.313*
H8B−0.3576630.283218−0.8014070.313*
H8C−0.1941470.325008−0.7826230.313*
C90.3910(4)0.16785(17)0.2267(3)0.0595(8)
C100.3545(5)0.13003(18)0.0991(4)0.0693(9)
H100.2895530.1508680.0110700.083*
C110.4143(6)0.0618(2)0.1029(5)0.0908(12)
H110.3874870.0363480.0173290.109*
C120.5128(6)0.0310(3)0.2313(6)0.1048(15)
H120.553510−0.0150580.2326880.126*
C130.5514(6)0.0680(3)0.3579(5)0.1029(14)
H130.6189690.0472540.4451860.123*
C140.4906(5)0.1356(2)0.3560(4)0.0831(11)
H140.5163900.1602180.4423490.100*

Source of material

O-Hexyl benzoylcarbamothioate was prepared by reacting benzoyl chloride and potassium thiocyanate in acetone. The intermediate isothiocyanate obtained in situ was then reacted with hexan-1-ol to provide the desired thiocarbamate in 71% yield. Yellow solid. M.pt = 343–345 K, MeOH/H2O (lit. [6] M.pt = 343 K, EtOH/H2O). IR (KBr; cm−1): 3259, 3217, 3062, 2954, 2924, 2854, 1697, 1601, 1527, 1489, 1296, 1184, 710. 1H NMR (300 MHz, CDCl3, rotamers, 298 K, TMS): δ = 9.16 (br s, 1H), 7.82 (m, 2H), 7.59 (m, 1H), 7.48 (m, 2H), 4.58 (t, J = 6.6 Hz, 2H), 1.82 (m, 2H), 1.60–1.20 (m, 6H), 0.90 (t, J = 6.6 Hz, 3H). 13C{1H} NMR (75 MHz, CDCl3, rotamers, 298 K, TMS): δ = 189.3, 162.2, 132.8, 132.7, 128.7, 127.4, 73.6, 31.3, 28.0, 25.4, 22.4, 14.0. MS (EI): m/z (rel. intensity) = 265(16) [M]+, 182(41), 123(32), 121(30), 105(100), 77(48), 56(24), 51(23). HRMS calcd. for C14H19NO2S 265.11365, found 265.11493. Yellow crystals were obtained by dissolving the product in hot n-hexane and allowing the solution to slowly evaporate.

Experimental details

The C-bound H atoms were geometrically placed (C—H = 0.93–0.97 Å) and refined as riding with Uiso(H) = 1.2–1.5Ueq(C). The N-bound H atom was refined with N—H = 0.86 ± 0.01 Å, and with Uiso(H) = 1.2Ueq(N). Evidence for disorder is noted in the terminal ethyl residue but, this was not resolved.

Comment

The title compound, O-hexyl benzoylcarbamothioate, (I), is an example of a benzoylthiocarbamic acid ester, RC(=O)N(H)C(=S)OR′, and has been reported in the literature [6], [7]. Herein, the hitherto unreported crystal structure of (I) is described. While the molecules themselves attract attention with respect to the relative conformation of the thione and carbonyl groups in the central C(=O)N(H)C(=S) chromophore [8], metal complexes of these molecules are comparatively rare. In this context, the characterisation of a binuclear bis(triphenylphosphane)copper species is noted [9].

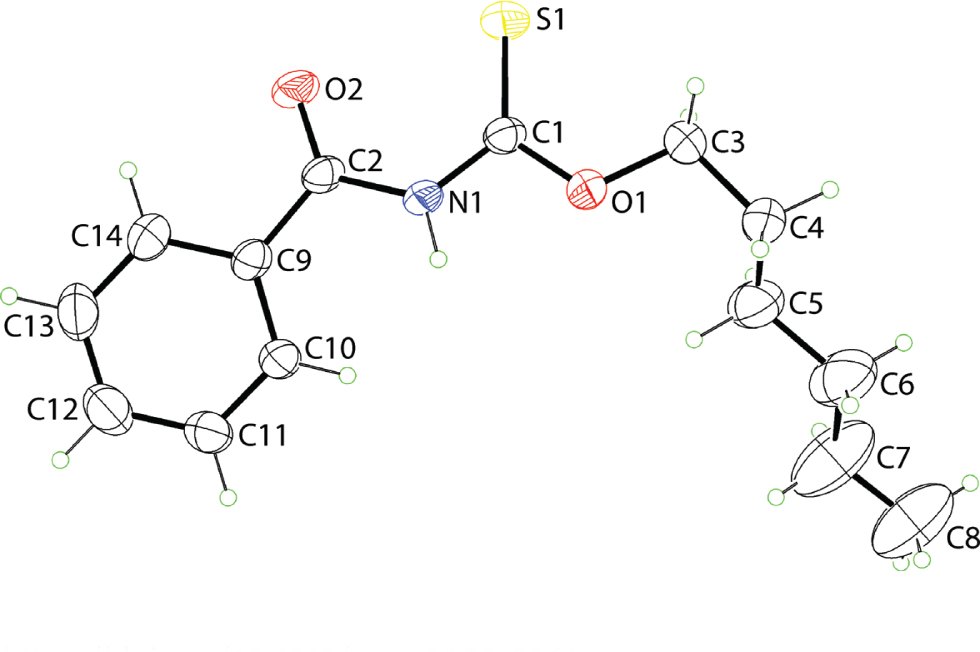

The molecular structure of (I) is shown in the figure (25% displacement ellipsoids) and exhibits key geometric parameters of C1—S1 [1.620(3) Å], C2—O2 [1.214(3) Å], C1—N1 [1.374(4) Å] and C2—N1 [1.379(4) Å], indicative of limited delocalisation of π-electron density over this residue. This is despite the observation this part of the molecule is almost planar as seen in the values of the C2—N1—C1—S1 and C1—N1—C2—O2 torsion angles of −2.4(5) and −8.0(5)°, respectively. The thione-S1 and carbonyl-O2 atoms are to a first approximation in a syn conformation. The conformation in (I) is also found in the PhC(=O)N(H)C(=S)OR′ derivatives with R′ = Me [10], Et [11] and n-Bu [12].

The most prominent feature of the molecular packing is the formation of amide-N—H⋯O(amide) [N1—H1n⋯O2i: H1n⋯O2i = 2.13(3) Å, N1⋯O2i = 2.983(3) Å with angle at H1n = 169(3)° for symmetry operation (i) x, 1/2 − y, −1/2 + z] hydrogen bonds which lead to zig-zag chains along the c-axis [glide symmetry]. As the chains pack without directional interactions between them, a further analysis of the molecular packing was conducted via the calculation of the Hirshfeld surfaces and of the full and delineated two-dimensional fingerprint plots using Crystal Explorer 17 [13] and established methods [14].

The most notable feature of the fingerprint plots is the sharp spikes due to the N—H⋯O hydrogen bonding. Overall, H⋯O/O⋯H contacts contribute 11.0% to the Hirshfeld surface. Greater contributions are made by H⋯S/S⋯H [12.7%], H⋯C/C⋯H [18.4%] and, especially, H⋯H contacts [54.6%]. In common with (I), the crystals of the R′ = Me [10], Et [11] and n-Bu [12] derivatives feature supramolecular zig-zag chains. Systematic variations in the contributions to the calculated surface contacts are noted with H⋯H decreasing with the decreasing size of the R′ group [49.8, 39.1 and 35.0%, respectively] with concomitant increasing contributions by H⋯C/C⋯H, H⋯S/S⋯H and H⋯O/O⋯H of, for example, for R′ = Me, 22.5, 17.1 and 15.9%, respectively.

Acknowledgements

The Brazilian agencies Coordination for the Improvement of Higher Education Personnel, CAPES, Finance Code 001 and the National Council for Scientific and Technological Development (CNPq) are acknowledged for grants (312210/2019–1, 433957/2018–2 and 406273/2015–4) to IC and for a fellowship (303207/2017–5) to JZS. Sunway University Sdn Bhd is thanked for financial support of this work through Grant No. STR-RCTR-RCCM-001–2019.

References

1. Sheldrick, G. M.: SADABS. University of Göttingen, Germany (1996).Search in Google Scholar

2. Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Search in Google Scholar PubMed PubMed Central

3. Bruker. APEX2 and SAINT. Bruker AXS Inc., Madison, WI, USA (2009).Search in Google Scholar

4. Burla, M. C.; Caliandro, R.; Carrozzini, B.; Cascarano, G. L.; Cuocci, C.; Giacovazzo, C.; Mallamo, M.; Mazzone, A.; Polidori, G.: Crystal structure determination and refinement via SIR2014. J. Appl. Cryst. 48 (2015) 306–309.10.1107/S1600576715001132Search in Google Scholar

5. Farrugia, L. J.: WinGX and ORTEP for Windows: an update. J. Appl. Cryst. 45 (2012) 849–854.10.1107/S0021889812029111Search in Google Scholar

6. Schröder, U.; Beyer, L.; Dietze, F.; Richter, R.; Schmidt, S.; Hoyer, E.: Ligand properties of N-acyl-thiocarbamic-O-alkylesters – a new class of aza-analogous 1,3-thioxoketones. J. Prakt. Chem. 337 (1995) 184–188.10.1002/prac.19953370141Search in Google Scholar

7. Ribeiro da Silva, M. A. V.; Santos, L. M. N. B. F.; Schröder, B.; Dietze, F.; Beyer, L.: Standard molar enthalpies of formation of three N-benzoylthiocarbamic-O-alkylesters. J. Chem. Thermodyn. 36 (2004) 491–495.10.1016/j.jct.2004.03.004Search in Google Scholar

8. Channar, P. A.; Saeed, A.; Larik, F. A.; Flörke, U.; El-Seedi, H.; Rodriguez, P.; Lucas, S.; Erben, M. F.: An intramolecular 1,5-chalcogen bond on the conformational preference of carbonyl thiocarbamate species. New J. Chem. 44 (2020) 5243–5253.10.1039/C9NJ06417FSearch in Google Scholar

9. Nor, N. A. M. M.; Ahmad, J.; Abdullah, Z.; Halim, S. N. A.; Otero-de-la-Roza, A.; Tiekink, E. R. T.: Bipodal benzoylthiocarbamic acid esters: crystal and molecular structures of R = Et (a polymorph), and of a binuclear Cu(I) complex, R = iPr. Z. Kristallogr. Cryst. Mater. 230 (2015) 397–405.10.1515/zkri-2014-1820Search in Google Scholar

10. Odame, F.; Hosten, E.; Tshentu, Z. R.; Betz, R.: Crystal structure of N-(methoxy)methanethioylbenzamide, C9H9NO2S. Z. Kristallogr. NCS 229 (2014) 329–330.10.1515/ncrs-2014-0169Search in Google Scholar

11. Arslan, H.; Flörke, U.; Külcü, N.: Theoretical studies of molecular structure and vibrational spectra of O-ethyl benzoylthiocarbamate. Spectrochim. Acta, Part A 67 (2007) 936–943.10.1016/j.saa.2006.09.011Search in Google Scholar PubMed

12. Plutín, A. M.; Suárez, M.; Machado, T.; Álvarez, A.; Rodríguez, A.; Martińez, R.; Duque, J.; Martinez-Alvarez, R.; Martin, N.: On the selective methylation of benzoyl and furoylthiocarbamates. ARKIVOC 11 (2010) 276–290.10.3998/ark.5550190.0011.a23Search in Google Scholar

13. Turner, M. J.; McKinnon, J. J.; Wolff, S. K.; Grimwood, D. J.; Spackman, P. R.; Jayatilaka, D.; Spackman, M. A.: Crystal Explorer v17. The University of Western Australia, Australia (2017).Search in Google Scholar

14. Tan, S. L.; Jotani, M. M.; Tiekink, E. R. T.: Utilizing Hirshfeld surface calculations, non-covalent interaction (NCI) plots and the calculation of interaction energies in the analysis of molecular packing. Acta Crystallogr. E75 (2019) 308–318.10.1107/S2056989019001129Search in Google Scholar PubMed PubMed Central
