The crystal structure 2,2′-bipyridine-κ2N,N′-(2-(3-amino-4-chlorobenzoyl)benzoato-κ1O)-(2-(3-amino-4-chlorobenzoyl)benzoato-κ2O,O′)zinc(II) — ethanol (1/1), C40H32Cl2N4O7Zn

  • Wang Li-Hua , Liang Lei and Tai Xi-Shi ORCID logo EMAIL logo
Published/Copyright: August 25, 2020
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 235 Issue 6

Abstract

C40H32Cl2N4O7Zn, monoclinic, P21/c (no. 14), a = 13.5114(8) Å, b = 16.5735(7) Å, c = 17.0403(9) Å, β = 107.528(6)°, V = 3638.7(3) Å3, Z = 4, Rgt(F) = 0.0398, wRref(F2) = 0.0831, T = 100 K.

CCDC no.: 2023128

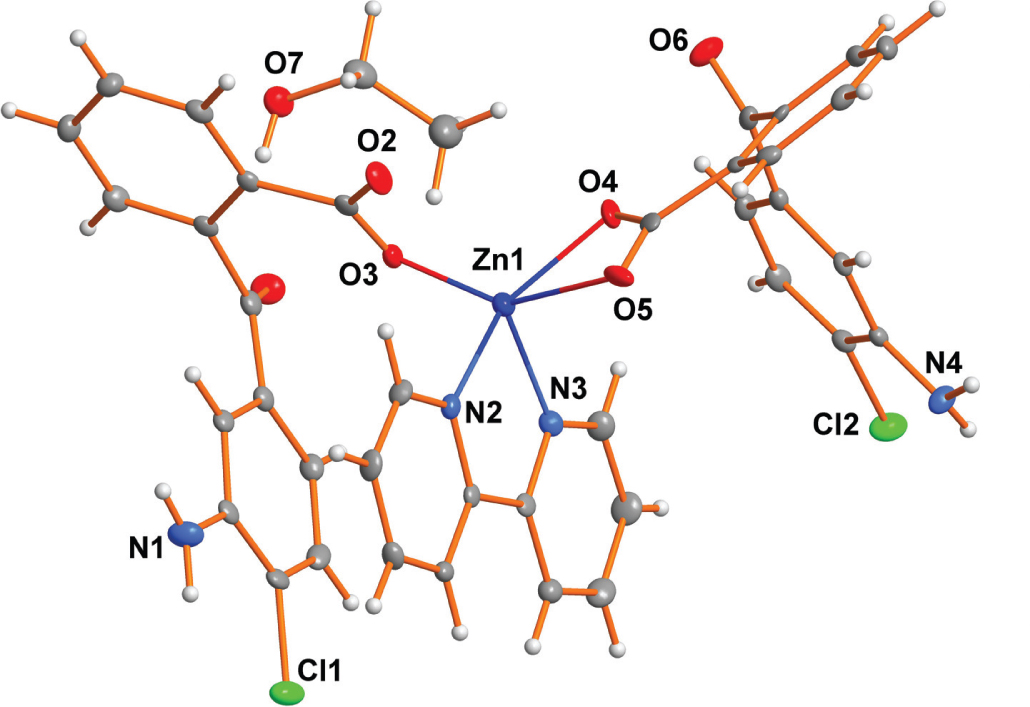

The molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colourless block
Size:0.13 × 0.11 × 0.09 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.88 mm−1
Diffractometer, scan mode:SuperNova, ω
θmax, completeness:25.0°, >99%
N(hkl)measured, N(hkl)unique, Rint:16321, 6406, 0.043
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 5112
N(param)refined:502
Programs:Bruker [1], Olex2 [2], SHELX [3], Diamond [4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Zn10.34474(2)0.35986(2)0.58398(2)0.01581(10)
Cl10.23354(6)0.47766(5)0.21345(4)0.02819(19)
Cl20.20843(5)0.74272(4)0.76205(4)0.02696(18)
O1−0.02269(15)0.29723(12)0.44381(12)0.0271(5)
O20.34630(15)0.19617(12)0.57818(11)0.0255(5)
O30.22322(14)0.28999(11)0.54183(10)0.0199(4)
O40.37922(16)0.36922(11)0.70717(11)0.0264(5)
O50.52489(17)0.36857(11)0.67401(11)0.0295(5)
O60.31600(16)0.35665(12)0.86597(13)0.0309(5)
O7−0.09230(15)0.21257(13)0.56274(12)0.0280(5)
H7−0.0820680.2305960.5210400.042*
N10.2695(2)0.30022(19)0.24191(16)0.0273(6)
H1A0.286(2)0.2533(18)0.2525(17)0.018(9)*
H1B0.294(2)0.3321(19)0.2091(18)0.031(9)*
N20.40791(17)0.36563(13)0.48843(12)0.0164(5)
N30.30515(16)0.47661(13)0.54452(12)0.0164(5)
N40.4340(2)0.69564(14)0.81109(15)0.0199(6)
H4A0.4030060.7410600.8107270.024*
H4B0.494(3)0.689(2)0.8383(19)0.040(11)*
C10.1770(2)0.15828(16)0.49308(15)0.0147(6)
C20.1971(2)0.07587(17)0.50263(16)0.0195(6)
H20.2605720.0582400.5372900.023*
C30.1239(2)0.01976(17)0.46123(16)0.0213(7)
H30.138101−0.0351320.4681750.026*
C40.0298(2)0.04586(17)0.40963(16)0.0219(7)
H4−0.0197780.0083910.3820690.026*
C50.0087(2)0.12757(17)0.39867(16)0.0202(6)
H5−0.0548570.1446120.3636210.024*
C60.0821(2)0.18453(16)0.43978(15)0.0153(6)
C70.0512(2)0.27186(17)0.42353(16)0.0190(6)
C80.1006(2)0.32339(16)0.37458(15)0.0172(6)
C90.1660(2)0.28938(16)0.33473(15)0.0168(6)
H90.1822690.2348260.3421660.020*
C100.2083(2)0.33516(17)0.28353(15)0.0170(6)
C110.1828(2)0.41745(17)0.27580(15)0.0201(6)
C120.1183(2)0.45184(17)0.31616(16)0.0224(7)
H120.1031770.5066430.3099860.027*
C130.0767(2)0.40576(16)0.36521(16)0.0198(6)
H130.0330000.4289410.3919370.024*
C140.2559(2)0.21720(17)0.54166(16)0.0186(6)
C150.4599(2)0.30682(16)0.46380(16)0.0199(6)
H150.4671410.2571460.4903220.024*
C160.5031(2)0.31691(17)0.40094(16)0.0224(7)
H160.5390600.2750630.3853860.027*
C170.4918(2)0.39041(17)0.36158(16)0.0217(7)
H170.5202300.3987580.3188390.026*
C180.4381(2)0.45179(16)0.38583(15)0.0166(6)
H180.4303670.5017710.3598820.020*
C190.39603(19)0.43771(15)0.44943(15)0.0137(6)
C200.33572(19)0.49916(16)0.47936(15)0.0148(6)
C210.3125(2)0.57513(16)0.44437(16)0.0200(6)
H210.3344570.5900340.3997090.024*
C220.2561(2)0.62842(17)0.47669(18)0.0261(7)
H220.2394280.6794110.4537410.031*
C230.2250(2)0.60494(17)0.54361(18)0.0270(7)
H230.1869790.6397350.5663050.032*
C240.2514(2)0.52901(17)0.57578(17)0.0240(7)
H240.2311750.5133920.6210850.029*
C250.4774(3)0.37229(15)0.72666(16)0.0229(7)
C260.5377(2)0.37897(15)0.81644(15)0.0139(6)
C270.6437(2)0.36437(15)0.84157(16)0.0195(6)
H270.6773300.3547740.8022130.023*
C280.7004(2)0.36382(16)0.92418(17)0.0215(6)
H280.7713180.3532440.9403090.026*
C290.6502(2)0.37920(16)0.98231(17)0.0225(7)
H290.6877420.3790861.0378980.027*
C300.5450(2)0.39471(16)0.95868(16)0.0193(6)
H300.5122970.4054190.9983900.023*
C310.4872(2)0.39443(15)0.87534(15)0.0152(6)
C320.3722(2)0.40937(16)0.85364(16)0.0182(6)
C330.3325(2)0.49129(16)0.82517(15)0.0154(6)
C340.4004(2)0.55475(15)0.82762(14)0.0146(6)
H340.4713240.5444100.8428150.018*
C350.3654(2)0.63382(15)0.80793(15)0.0139(6)
C360.2576(2)0.64503(16)0.78386(15)0.0173(6)
C370.1890(2)0.58174(17)0.77938(16)0.0204(6)
H370.1178280.5912400.7622140.024*
C380.2259(2)0.50529(17)0.80023(15)0.0197(6)
H380.1800560.4628590.7977510.024*
C39−0.0033(2)0.22575(19)0.63107(18)0.0299(7)
H39A0.0568040.2030850.6191760.036*
H39B−0.0119050.1975510.6784760.036*
C400.0165(3)0.3140(2)0.6522(2)0.0420(9)
H40A0.0264840.3421350.6058800.063*
H40B0.0774930.3194460.6986170.063*
H40C−0.0420150.3365470.6653620.063*

Source of material

0.1378 g 2-(3-Amino-4-chloro-benzoyl)benzoic acid (0.5 mmol), 0.020 g NaOH (0.5 mmol) and 0.0780 g 2,2′-bipyridine (0.5 mmol) were dissolved in 15 mL of a water-95% ethanol (v:v = 1:2) solution with stirring at R.T. After the solid was dissolved, 0.1097 g zinc acetate dihydrate (0.5 mmol) was added. The mixture was heated to 75 °C and stirred for 5 h. Filter after reaction, colorless crystals of the title compound were received from the filtrate in three weeks.

Experimental details

Hydrogen atoms were positioned geometrically (C—H = 0.93-0.97 Å, O—H = 0.82 Å and N—H = 0.81–0.90 Å). The Uiso values were set to 1.2Ueq or 1.5Ueq of the parent atoms.

Comment

Zn(II) complexes display excellent properties and potential applications in many ways such as luminescent sensor, explosives detection, antitumor activity, and catalytic degradation [5], [6], [7], [8]. As part of our study, some metal complexes have been synthesized and characterized [9], [10], [11], [12].

The asymmetric unit of the title structure contains one Zn(II) ion, one 2,2′-bipyridine ligand, two 2-(3-amino-4-chloro-benzoyl)benzoate ligands and one uncoordinated ethanol molecule. In the title complex, two carboxylate groups of two 2-(3-amino-4-chloro-benzoyl)benzonate ligands adopt two coordination modes (monodentate and bidentate). The Zn(II) ion is five-coordinated with three carboxylic O atoms from two benzoato ligands (O3, O4 and O5), and two N atoms from one 2,2′-bipyridine ligand (N2 and N3), and forms a distorted square pyramidal coordination geometry. The Zn—O distances are 1.9602(18) Å (Zn1—O3), 2.0146(18) Å (Zn1—O4), 2.460(2) Å (Zn1—O5), respectively. The Zn—N distances are 2.056(2) Å (Zn1—N2) and 2.065(2) Å (Zn1—N3).

Funding source: National Natural Science Foundation of China

Award Identifier / Grant number: 21171132

Funding statement: This project was supported by the National Natural Science Foundation of China (no. 21171132), the Natural Science Foundation of Shandong (ZR2014BL003), the project of Shandong Province Higher Educational Science and Technology Program (J14LC01) and Science Foundation of Weifang.

References

1. Bruker. SAINT and SADABS. Bruker AXS Inc., Madison, WI, USA (2000).Search in Google Scholar

2. Dolomanov, O. V.; Bourhis, L. J.; Gildea, R. J.; Howard, J. A. K.; Puschmann, H.: OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 42 (2009) 339–341.10.1107/S0021889808042726Search in Google Scholar

3. Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Search in Google Scholar PubMed PubMed Central

4. Brandenburg, K.: DIAMOND. Visual Crystal Structure Information System. Ver. 3.2. Crystal Impact, Bonn, Germany (2012).Search in Google Scholar

5. Yao, S. L.; Liu, S. J.; Tian, X. M.; Zheng, T. F.; Cao, C.; Niu, C. Y.; Chen, Y. Q.; Chen, J. L.; Huang, H.; Wen, H. R.: A Zn(II)-based metal-organic framework with a rare tcj topology as a turn-on fluorescent sensor for acetylacetone. Inorg. Chem. 58 (2019) 3578–3581.10.1021/acs.inorgchem.8b03316Search in Google Scholar PubMed

6. Yao, S. L.; Liu, S. J.; Cao, C.; Tian, X. M.; Bao, M. N.; Zheng, T. F.: Temperature- and solvent-dependent structures of three zinc(II) metal-organic frameworks for nitroaromatic explosives detection. J. Solid State Chem. 269 (2019) 195–202.10.1016/j.jssc.2018.09.032Search in Google Scholar

7. Tai, X. S.; Wang, X.; You, H. Y.: Synthesis, crystal structure and antitumor activity of a Zn(II) complex based on acetyl-L-phenylalanine and 1,10-phenanthroline. Chin. J. Struct. Chem. 35 (2016) 586–590.Search in Google Scholar

8. Benjamin, B.; Alexandre, M.; Veronique, D.: Zn-azatrane complexes as efficient catalysts for the conversion of CO2 into cyclic carbonates. ChemCatChem 10 (2018) 843–848.10.1002/cctc.201701481Search in Google Scholar

9. Tai, X.-S.; Guo, H. M.; Guo, Q. Q.: Synthesis, crystal structure and antitumor activity of a novel Zn(II) complex with 2-(nicotinoyloxy)acetic acid ligand. Chin. J. Struct. Chem. 37 (2018) 1052–1056.Search in Google Scholar

10. Tai, X.-S.; Jiang, G. Y.; Yu, Y. T.; Yao, H.; Wang, A. J.: Bis(ethanol-kO)-bis(6-aminopicolinato-k2N,O)magnesium(II), C16H22O6N4Mg. Z. Kristallogr. NCS 234 (2019) 289–290.10.1515/ncrs-2018-0345Search in Google Scholar

11. Tai, X.-S.; Wang, X.: Synthesis, structural characterization and antitumor activity of a Ca(II) coordination polymer based on 4-formyl-1,3-benzenedisulfonate-2-furoic acid hydrazide ligands. Crystallogr. Rep. 62 (2017) 242–245.10.1134/S1063774517020286Search in Google Scholar

12. Tai, X.-S.; Liu, L. L.; Zhou, X. J.: The crystal structure of poly[μ2-aqua-tetraaquabis(μ9-4-formylbenzene-1,3-disulfonato)tetrasodium(I) hydrate, C14H18O19S4Na4. Z. Kristallogr. NCS 234 (2019) 685–686.10.1515/ncrs-2019-0035Search in Google Scholar
