Crystal structure of chlorido-(O-methyl phenylcarbamothioamide-κS)-bis(triphenylphosphane-κP)silver(I), C44H39AgClNOP2S

  • Chien Ing Yeo , Sin-Yeang Teow , Li Yuan Liew , Jactty Chew and Edward R.T. Tiekink ORCID logo EMAIL logo
Published/Copyright: September 18, 2020
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 235 Issue 6

Abstract

C44H39AgClNOP2S, triclinic, P1̄ (no. 2), a = 10.2520(3) Å, b = 13.2252(4) Å, c = 14.9378(3) Å, α = 78.424(2)°, β = 78.388(2)°, γ = 84.534(3)°, V = 1940.35(9) Å3, Z = 2, Rgt(F) = 0.0382, wRref(F2) = 0.0807, T = 100(2) K.

CCDC no.: 2022654

The molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colourless prism
Size:0.10 × 0.05 × 0.05 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.76 mm−1
Diffractometer, scan mode:SuperNova, ω
θmax, completeness:27.6°, >99%
N(hkl)measured, N(hkl)unique, Rint:30490, 8967, 0.056
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 7094
N(param)refined:464
Programs:CrysAlisPRO [1], SHELX [2], [3], WinGX/ORTEP [4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Ag0.86583(2)0.75024(2)0.25301(2)0.01561(6)
Cl11.11233(6)0.76342(5)0.25111(4)0.02003(15)
S10.84634(7)0.85009(6)0.07791(4)0.02095(16)
P10.81885(7)0.57098(5)0.25117(4)0.01358(14)
P20.73868(7)0.85804(5)0.36090(4)0.01349(14)
O11.01595(19)0.89720(14)−0.08262(11)0.0218(4)
N11.1105(2)0.82275(17)0.03710(13)0.0162(5)
H1N1.103(3)0.806(2)0.0975(7)0.019*
C10.9976(3)0.8567(2)0.00793(16)0.0169(6)
C21.2433(3)0.81508(19)−0.01460(17)0.0172(6)
C31.2723(3)0.7920(2)−0.10352(18)0.0222(6)
H31.20230.7859−0.13490.027*
C41.4042(3)0.7781(2)−0.14591(18)0.0265(7)
H41.42430.7629−0.20690.032*
C51.5071(3)0.7860(2)−0.10078(19)0.0267(7)
H51.59710.7753−0.13020.032*
C61.4778(3)0.8095(2)−0.01215(19)0.0268(7)
H61.54800.81530.01920.032*
C71.3465(3)0.8246(2)0.03047(17)0.0212(6)
H71.32670.84150.09080.025*
C80.9032(3)0.9457(2)−0.12306(18)0.0288(7)
H8A0.93480.9810−0.18700.043*
H8B0.85590.9961−0.08620.043*
H8C0.84250.8928−0.12340.043*
C110.9458(3)0.5006(2)0.17872(16)0.0154(5)
C121.0384(3)0.5580(2)0.11114(16)0.0188(6)
H121.03250.63130.10300.023*
C131.1397(3)0.5086(2)0.05535(18)0.0236(6)
H131.20260.54830.00950.028*
C141.1492(3)0.4022(2)0.06628(19)0.0272(7)
H141.21780.36870.02780.033*
C151.0578(3)0.3447(2)0.13389(19)0.0271(7)
H151.06440.27140.14180.033*
C160.9567(3)0.3931(2)0.19013(18)0.0227(6)
H160.89490.35290.23640.027*
C210.7937(3)0.48227(19)0.36336(16)0.0146(5)
C220.9039(3)0.4540(2)0.40765(17)0.0206(6)
H220.98960.47650.37700.025*
C230.8880(3)0.3936(2)0.49585(18)0.0247(7)
H230.96310.37410.52510.030*
C240.7633(3)0.3612(2)0.54176(18)0.0246(7)
H240.75290.31990.60240.029*
C250.6543(3)0.3891(2)0.49909(18)0.0244(7)
H250.56880.36730.53070.029*
C260.6689(3)0.4493(2)0.40979(17)0.0185(6)
H260.59350.46770.38070.022*
C310.6617(3)0.56835(19)0.21201(16)0.0142(5)
C320.5636(3)0.6443(2)0.23418(17)0.0192(6)
H320.58300.69620.26440.023*
C330.4379(3)0.6453(2)0.21282(18)0.0257(7)
H330.37070.69610.23000.031*
C340.4115(3)0.5712(2)0.16602(19)0.0282(7)
H340.32580.57150.15080.034*
C350.5091(3)0.4968(2)0.14138(18)0.0247(7)
H350.49090.44740.10800.030*
C360.6334(3)0.4941(2)0.16531(16)0.0191(6)
H360.69940.44170.14990.023*
C410.5712(3)0.89356(19)0.33661(17)0.0150(5)
C420.4550(3)0.8737(2)0.40218(18)0.0196(6)
H420.46020.84540.46510.023*
C430.3315(3)0.8951(2)0.37592(19)0.0229(6)
H430.25260.88050.42090.028*
C440.3224(3)0.9375(2)0.28490(19)0.0232(6)
H440.23750.95180.26730.028*
C450.4375(3)0.9590(2)0.21940(18)0.0224(6)
H450.43120.98880.15690.027*
C460.5615(3)0.9377(2)0.24410(17)0.0194(6)
H460.64000.95280.19880.023*
C510.8055(3)0.9804(2)0.36421(15)0.0147(5)
C520.9378(3)0.9765(2)0.37567(17)0.0199(6)
H520.98980.91290.37850.024*
C530.9935(3)1.0659(2)0.38290(17)0.0230(6)
H531.08331.06310.39140.028*
C540.9188(3)1.1587(2)0.37783(17)0.0241(7)
H540.95701.21930.38340.029*
C550.7887(3)1.1636(2)0.36475(18)0.0265(7)
H550.73811.22780.36010.032*
C560.7310(3)1.0743(2)0.35826(17)0.0209(6)
H560.64121.07770.34980.025*
C610.7131(3)0.79487(19)0.48370(16)0.0140(5)
C620.7242(3)0.6876(2)0.50624(17)0.0218(6)
H620.74310.64820.45800.026*
C630.7080(3)0.6375(2)0.59847(18)0.0274(7)
H630.71410.56410.61330.033*
C640.6828(3)0.6948(2)0.66869(18)0.0255(7)
H640.67350.66060.73180.031*
C650.6711(3)0.8014(2)0.64752(18)0.0259(7)
H650.65340.84040.69600.031*
C660.6852(3)0.8519(2)0.55508(17)0.0197(6)
H660.67590.92520.54060.024*

Source of material

To AgCl (Sigma Aldrich; 0.36 g, 2.5 mmol) in acetonitrile (25 mL) was added an equimolar quantity of MeOC(=S)N(H)Ph [5] (0.42 g, 2.5 mmol) in acetonitrile (25 mL), followed by addition of two moles equivalent of triphenylphosphane (Merck; 1.31 g, 5.0 mmol) in acetonitrile (25 mL). The resulting mixture was stirred for 3 h at 323 K, giving a white suspension. An equal volume of dichloromethane (75 mL) was added to the suspension and the clear solution that resulted was left for slow evaporation at room temperature, yielding colourless crystals after 1 week. Yield: 1.86 g (89%). M. pt. (Krüss KSP1N melting point meter): 425–427 K. Elemental Analysis for C44H39AgClNOP2S (Perkin Elmer PE 2400 CHN Elemental Analyser; %): C, 63.29; H, 4.71; N, 1.68. Found: C, 63.05; H, 4.62; N, 1.68. IR (Perkin Elmer Spectrum 400 FT Mid-IR/Far-IR spectrophotometer; cm−1): 3434 (br) ν(N—H), 1436 (s) ν(C—N), 1224 (s) ν(C—O), 1095 (s) ν(C=S). 1H NMR (Bruker Avance 400 MHz NMR spectrometer with chemical shifts relative to tetramethylsilane in CDCl3 solution at 298 K, ppm): δ 11.17 (s, br, 1H, NH), 7.41–7.20 (m, br, 35H, Ph3P, aryl-H), 4.02 (s, 3H, Me). 13C{1H} NMR (as for 1H NMR): δ 187.9 (Cq), 137.4 (Ph, Cipso), 134.0 (d, m-PC6H5, 3JCP = 16.47 Hz), 133.1 (d, i-PC6H5, 1JCP = 21.49 Hz), 129.8 (s, p-PC6H5), 128.8 (Ph, Cmeta), 128.7 (d, o-PC6H5, 2JCP = 9.23 Hz), 125.3 (Ph, Cpara), 122.4 (Ph, Cortho), 58.4 (OMe). 31P{1H} NMR (as for 1H NMR but with chemical shift referenced to 85% aqueous H3PO4 as the external reference): δ 5.4.

A preliminary screen for anti-bacterial activity was performed, again following literature protocols [6]. Compound (I) proved ineffective against the studied bacteria.

Experimental details

The C-bound H atoms were geometrically placed (C—H = 0.95–0.98 Å) and refined as riding with Uiso(H) = 1.2–1.5Ueq(C). The N-bound H atom was refined with N—H = 0.88 ± 0.01 Å, and with 1.2Ueq(N).

Comment

The synthesis and characterisation of the title compound, (Ph3P)2Ag[S=C(OMe)N(H)Ph]Cl, (I), was motivated by the biological potential exhibited by their phosphanegold(I) thiolate counterparts of general formula R3PAu[SC(OR′)=NAr]. These have proven to be potent against bacteria, especially Gram-positive bacteria [7] and against a number of cancer cell lines, inducing cell death via apoptotic pathways [8].

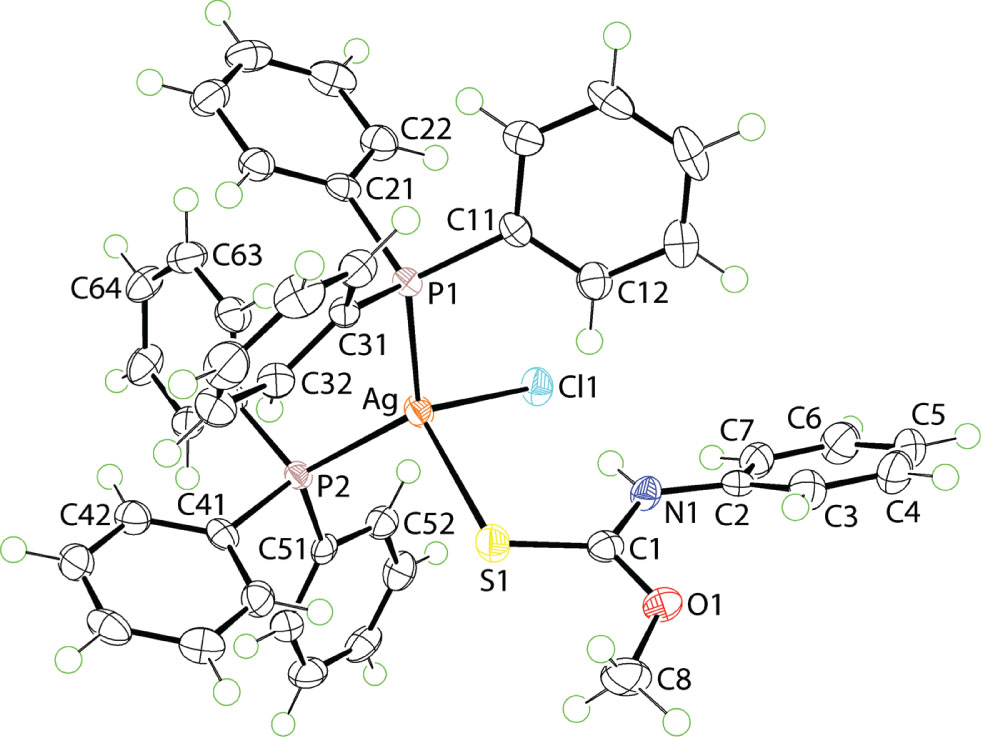

The molecular structure of (I) is shown in the figure (70% displacement ellipsoids). The Ag atom is tetrahedrally coordinated by the Cl [2.5438(7) Å], thione-S [2.7201(7) Å] and two phosphane-P atoms [Ag—P1, P2 = 2.4702(7), 2.4600(7) Å]. The C1 = S1 and C1—N1 bond lengths in (I) of 1.685(3) and 1.326(3) Å, respectively, are similar to those of the uncoordinated acid, i.e. S=C(OMe)N(H)Ph [5], of 1.6708(11) and 1.3288(15) Å, respectively, confirming the thione form of the ligand in (I). The range of tetrahedral angles is from a small 100.95(2)°, for Cl1—Ag—S1, to a wide 125.07(2)° for P1—Ag—P2. The thiocarbamide molecule is orientated to place the amide-N—H in a position to form an intramolecular amide-N—H⋯Cl hydrogen bond [N1—H1n⋯Cl1: H1n⋯Cl1 = 2.270(12) Å, N1⋯Cl1 = 3.139(2) Å with angle at H1n = 173(3)°] to form a quasi six-membered ring.

The most closely related structure in the literature is found in the accompanying report which describes the structure of the O-ethyl analogue of (I) which displays the same basic molecular structure [9]. Further, there is the direct copper(I) analogue of (I) which, while not isostructural features a very similar geometry [10].

The molecular packing of (I) features phenyl-C—H⋯Cl interactions [C24—H24⋯Cl1i: H24⋯Cl1i = 2.81 Å, C24⋯Cl1i = 3.613(3) Å with angle at H24 = 143° and C33—H33⋯Cl1ii: H33⋯Cl1ii = 2.69 Å, C33⋯Cl1ii = 3.536(3) Å with angle at H33 = 149° for symmetry operations (i) 2 − x, 1 − y, 1 − z and (ii) −1 + x, y, z]. These interactions serve to link molecules into a linear, supramolecular chain along the a-axis. As there are no apparent directional interactions between the chains, a further analysis of the molecular packing was conducted by calculating the Hirshfeld surface and two-dimensional fingerprint plots with the aid of Crystal Explorer 17 [11] following established procedures [12].

The distinctive feature of the fingerprint plot are symmetric spikes due to the specified H⋯Cl/Cl⋯H interactions. Yet, these contacts contribute only 4.0% to the overall Hirshfeld surface. By far, the most prominent contacts are H⋯H contacts, contributing 62.8% followed by H⋯C/C⋯H contacts, at 28.0%. Finally, reflecting the lack of π⋯π stacking, C⋯C contacts contributed only 1.5% to the overall surface.

Acknowledgements

Sunway University Sdn Bhd is thanked for financial support of this work through Grant No. STR-RCTR-RCCM-001-2019.

References

1. Agilent Technologies: CrysAlisPRO. Agilent Technologies, Santa Clara, CA, USA (2014).Search in Google Scholar

2. Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

3. Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Search in Google Scholar PubMed PubMed Central

4. Farrugia, L. J.: WinGX and ORTEP for Windows: an update. J. Appl. Crystallogr. 45 (2012) 849–854.10.1107/S0021889812029111Search in Google Scholar

5. Ho, S. Y.; Lai, C. S.; Tiekink, E. R. T.: O-Methyl N-phenylthiocarbamate. Acta Crystallogr. E59 (2003) o1155–o1156.10.1107/S1600536803015435Search in Google Scholar

6. Tan, Y. J.; Tan, Y. S.; Yeo, C. I.; Chew, J.; Tiekink, E. R. T.: In vitro anti-bacterial and time kill evaluation of binuclear tricyclohexylphosphanesilver(I) dithiocarbamates, {Cy3PAg(S2CNRR′)}2. J. Inorg. Biochem. 192 (2019) 107–118.10.1016/j.jinorgbio.2018.12.017Search in Google Scholar PubMed

7. Yeo, C. I.; Sim, J.-H.; Khoo, C.-H.; Goh, Z.-J.; Ang, K.-P.; Cheah, Y.-K.; Fairuz, Z. A.; Halim, S. N. B. A.; Ng, S. W.; Seng, H.-L.; Tiekink, E. R. T.: Pathogenic Gram-positive bacteria are highly sensitive to triphenylphosphanegold(O-alkylthiocarbamates), Ph3PAu[SC(OR)=N(p-tolyl)] (R = Me, Et and iPr). Gold Bull. 46 (2013) 145–152.10.1007/s13404-013-0091-zSearch in Google Scholar

8. Ooi, K. K.; Yeo, C. I.; Mahandaran, T.; Ang, K. P.; Akim, A. M.; Cheah, Y.-K.; Seng, H.-L.; Tiekink, E. R. T.: G2/M cell cycle arrest on HT-29 cancer cells and toxicity assessment of triphenylphosphanegold(I) carbonimidothioates, Ph3PAu[SC(OR)=NPh], R = Me, Et, and iPr, during zebrafish development. J. Inorg. Biochem. 166 (2017) 173–181.10.1016/j.jinorgbio.2016.11.008Search in Google Scholar PubMed

9. Yeo, C. I.; Liew, L. Y.; Chew, J.; Teow, S.-Y.; Tiekink, E. R. T.: Crystal structure of chlorido-(O-ethyl phenylcarbamothioamide-κS)-bis(triphenylphosphane-κS)-silver(I), C45H41AgClNOP2S. Z. Kristallogr. NCS 231 (2020) NCRS-2020-0363.10.1515/ncrs-2020-0363Search in Google Scholar

10. Yeo, C. I.; Halim, S. N. A.; Ng, S. W.; Tan, S. L.; Zukerman-Schpector, J.; Ferreira, M. A. B.; Tiekink, E. R. T.: Investigation of putative arene-C—H⋯π(quasi-chelate ring) interactions in copper(I) crystal structures. Chem. Commun. 50 (2014) 5984–5986.10.1039/C4CC02040ESearch in Google Scholar PubMed

11. Turner, M. J.; McKinnon, J. J.; Wolff, S. K.; Grimwood, D. J.; Spackman, P. R.; Jayatilaka, D.; Spackman, M. A.: Crystal Explorer v17. The University of Western Australia, Australia (2017).Search in Google Scholar

12. Tan, S. L.; Jotani, M. M.; Tiekink, E. R. T.: Utilizing Hirshfeld surface calculations, non-covalent interaction (NCI) plots and the calculation of interaction energies in the analysis of molecular packing. Acta Crystallogr. E75 (2019) 308–318.10.1107/S2056989019001129Search in Google Scholar PubMed PubMed Central

Received: 2020-07-16
Accepted: 2020-08-11
Published Online: 2020-09-18
Published in Print: 2020-10-27

©2020 Chien Ing Yeo et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 International License.
