Crystal structure of bis[μ2-(pyrrolidine-1-carbodithioato-κS:κS,κS′)]-bis(triethylphosphine-κP)disilver(I), C22H46Ag2N2P2S4

  • Yi Jiun Tan , Chien Ing Yeo , Nathan R. Halcovitch and Edward R.T. Tiekink ORCID logo EMAIL logo
Published/Copyright: July 21, 2020
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 235 Issue 6

Abstract

C22H46Ag2N2P2S4, triclinic, P1̄ (no. 2), a = 10.2008(3) Å, b = 12.2058(3) Å, c = 13.2466(4) Å, α = 88.155(2)°, β = 87.256(2)°, γ = 69.324(2)°, V = 1541.12(8) Å3, Z = 2, Rgt(F) = 0.0237, wRref(F2) = 0.0621, T = 100(2) K.

CCDC no.: 2015446

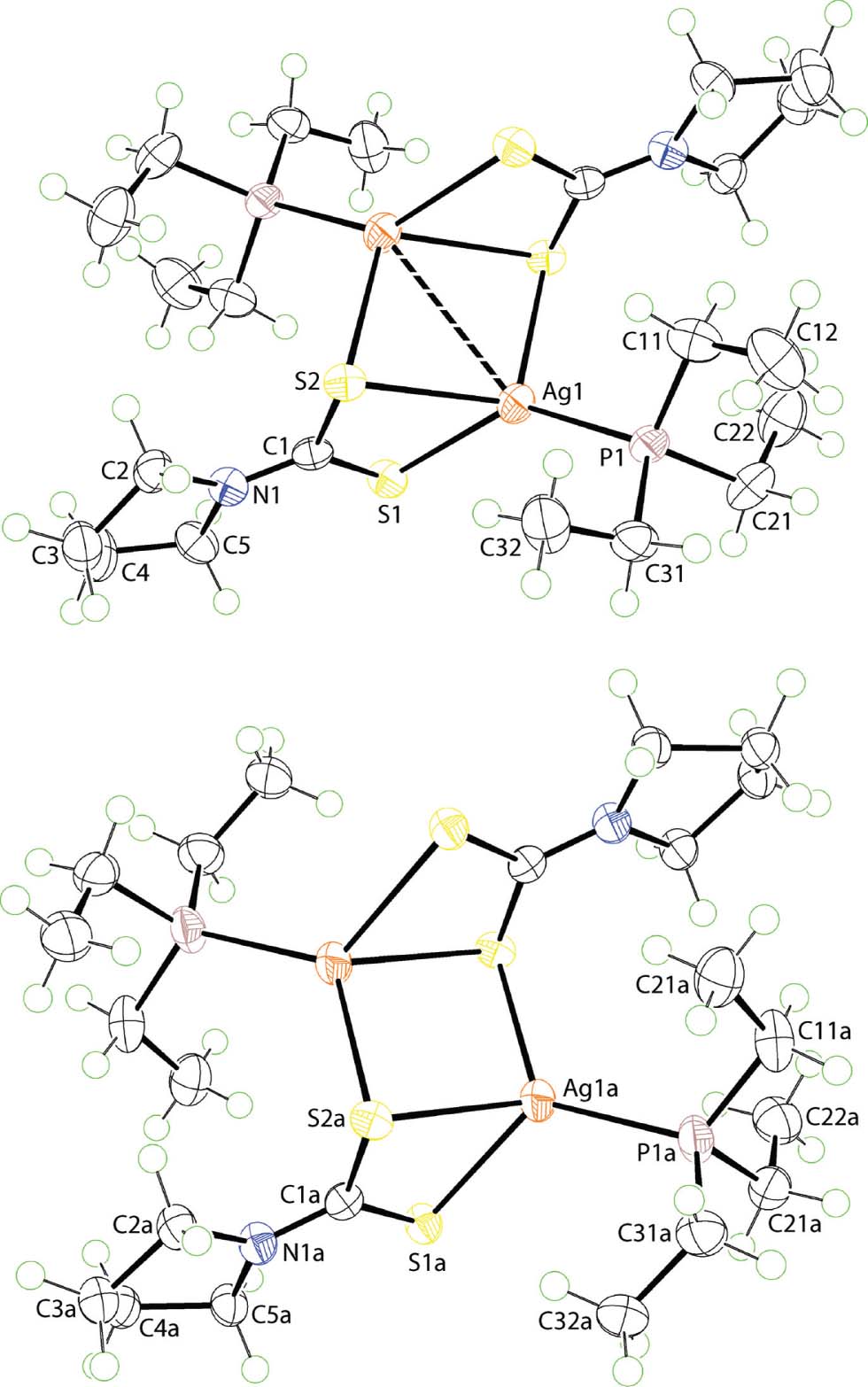

The molecular structures of the two independent compounds of the title structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colourless plate
Size:0.13 × 0.10 × 0.05 mm
Wavelength:Cu Kα radiation (1.54184 Å)
μ:13.8 mm−1
Diffractometer, scan mode:SuperNova, ω
θmax, completeness:76.6°, >99%
N(hkl)measured, N(hkl)unique, Rint:25450, 6430, 0.036
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 6034
N(param)refined:315
Programs:CrysAlisPRO [1], SHELX [2], [3], WinGX/ORTEP [4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Ag10.11287(2)0.38539(2)0.04670(2)0.02312(5)
S10.08870(5)0.61752(4)0.07322(4)0.01976(10)
S20.28321(5)0.44607(4)−0.07159(4)0.02195(10)
P10.11511(6)0.27387(5)0.19974(4)0.02173(11)
N10.29447(19)0.65402(15)−0.03537(13)0.0204(3)
C10.2285(2)0.57957(18)−0.01394(15)0.0185(4)
C20.2592(2)0.76924(18)0.01227(17)0.0237(4)
H2A0.2427640.7635380.0861960.028*
H2B0.1748680.827643−0.0170220.028*
C30.3879(3)0.8011(2)−0.0119(2)0.0311(5)
H3A0.4599060.7669760.0389450.037*
H3B0.3636960.887093−0.0146250.037*
C40.4388(3)0.7479(2)−0.1152(2)0.0373(6)
H4A0.5395770.734981−0.1278400.045*
H4B0.3846370.799075−0.1695760.045*
C50.4136(2)0.6316(2)−0.10896(17)0.0258(4)
H5A0.3896420.610892−0.1755600.031*
H5B0.4972380.567470−0.0849920.031*
C11−0.0605(3)0.3141(2)0.2600(2)0.0315(5)
H11A−0.1025850.4006670.2606750.038*
H11B−0.1185890.2859140.2172130.038*
C12−0.0707(3)0.2684(3)0.3676(2)0.0441(7)
H12A−0.0182180.1839410.3706760.066*
H12B−0.1692830.2834410.3872680.066*
H12C−0.0311450.3084030.4139420.066*
C210.1745(3)0.1139(2)0.18877(19)0.0317(5)
H21A0.2737850.0846260.1641350.038*
H21B0.1696290.0788200.2566290.038*
C220.0883(3)0.0740(2)0.1177(2)0.0382(6)
H22A−0.0087590.0973610.1444480.057*
H22B0.127832−0.0114070.1120690.057*
H22C0.0902220.1103060.0508750.057*
C310.2243(2)0.2895(2)0.29976(17)0.0271(5)
H31A0.2072330.2475770.3613150.032*
H31B0.3242630.2524470.2782360.032*
C320.1954(3)0.4170(2)0.3252(2)0.0365(6)
H32A0.2069160.4601230.2636920.055*
H32B0.2614310.4209050.3750920.055*
H32C0.0992660.4520660.3530540.055*
Ag1A0.39068(2)0.02426(2)0.60657(2)0.02487(5)
S1A0.35714(5)−0.02768(4)0.41435(4)0.01889(10)
S2A0.42601(5)−0.19830(4)0.58892(4)0.02034(10)
P1A0.20415(6)0.15836(5)0.70428(5)0.02621(12)
N1A0.40529(19)−0.25486(15)0.40062(13)0.0203(3)
C1A0.3976(2)−0.16928(17)0.46324(15)0.0178(4)
C2A0.3859(2)−0.23945(18)0.29079(16)0.0219(4)
H2A10.461930−0.2179140.2564950.026*
H2A20.294527−0.1782920.2760830.026*
C3A0.3909(2)−0.35979(19)0.25767(17)0.0240(4)
H3A10.430488−0.3762050.1877530.029*
H3A20.296213−0.3652210.2615210.029*
C4A0.4868(2)−0.44421(18)0.33353(16)0.0225(4)
H4A10.470312−0.5194560.3379880.027*
H4A20.586819−0.4596470.3149210.027*
C5A0.4441(2)−0.37810(18)0.43252(16)0.0226(4)
H5A10.363528−0.3931680.4667750.027*
H5A20.523069−0.4007860.4787450.027*
C11A0.1867(3)0.3134(2)0.70350(18)0.0304(5)
H11C0.0956250.3597320.7365900.036*
H11D0.2620550.3223630.7431020.036*
C12A0.1950(3)0.3614(2)0.59675(19)0.0338(5)
H12D0.2837640.3143900.5630000.051*
H12E0.1898720.4429300.5998900.051*
H12F0.1166040.3577810.5586700.051*
C21A0.2090(3)0.1181(2)0.8390(2)0.0307(5)
H21C0.1294010.1767320.8755370.037*
H21D0.1969800.0412610.8473130.037*
C22A0.3452(3)0.1110(2)0.8859(2)0.0336(5)
H22D0.4247040.0547700.8488230.050*
H22E0.3443370.0853240.9567430.050*
H22F0.3543560.1883310.8824530.050*
C31Aa0.0280(3)0.1738(4)0.6652(3)0.0294(8)
H31Ca−0.0410310.2072160.7211920.035*
H31Da0.0029370.2286710.6065980.035*
C32Aa0.0212(3)0.0554(3)0.6363(3)0.0344(10)
H32Da0.0854500.0245300.5781540.052*
H32Ea−0.0746340.0656860.6186580.052*
H32Fa0.0485630.0004170.6936020.052*
C31Bb0.0328(13)0.1251(16)0.7013(14)0.030(4)
H31Eb0.0502160.0423690.7210040.036*
H31Fb−0.0389400.1759980.7489100.036*
C32Bb−0.0161(13)0.1479(16)0.5963(11)0.042(5)
H32Gb−0.0477410.2322660.5815710.063*
H32Hb−0.0940650.1198370.5891670.063*
H32Ib0.0610910.1067880.5489340.063*

  1. aOccupancy: 0.797(9), bOccupancy: 0.203(9).

Source of material

A solution of triethylphosphine solution (Sigma Aldrich; 1.0 M in THF, 1 mL, 1.0 mmol) was added to silver nitrate (Sigma Aldrich; 0.169 g, 1.0 mmol) in acetonitrile (10 mL), followed by the addition of ammonium pyrrolidinedithiocarbamate (Fluka; 0.164 g, 1.0 mmol) in acetonitrile (10 mL). The resulting mixture was stirred for 4 h and left for slow evaporation at room temperature, giving yellow crystals after 4 weeks. Yield: 0.197 g (53%). M. pt (Biobase automatic melting point apparatus MP450): 370 K. IR (Bruker Vertex 70v FTIR Spectrophotometer; cm−1): 1408 (s) ν(C=N), 985 (s) ν(C–S).

Experimental details

The H-atoms were placed in calculated positions (C—H = 0.98–0.99 Å) and were included in the refinement in the riding model approximation, with Uiso(H) set to 1.2–1.5Ueq(C). The C31a-ethyl group was found to be disordered over two positions. Each component was refined independently with the major component having a site occupancy factor = 0.797(9).

Comment

In connection with recent anti-bacterial screening and pharmacokinetic studies of binuclear phosphanesilver(I) dithiocarbamates, {Cy3PAg(S2CNRR′)}2, complementary crystallographic studies revealed a novel conformation for one of the derivatives [5]. The common feature of the solid-state structures are μ2-bridging dithiocarbamate ligands and a central Ag2S2 core, with the distinction arising in terms of the relative disposition of the dithiocarbamate ligands. In three of the structures, i.e. with R = R′ = Et and CH2CH2OH, and R = Me, R′ = CH2CH2OH, the dithiocarbamate ligands lie to either side of the core, i.e. adopt an anti-conformation. The unusual structure was observed when NRR′ = N(CH2)4, which has a syn conformation as the dithiocarbamate ligands are orientated to the same side of the Ag2S2 core. The majority of related structures adopt the anti-conformation [6], [7], [8], [9], [10], [11], with the only other exceptional structure being that of {Ph2(Me)PAg(S2CNEt2)}n, which, although having a similar mode of coordination of the dithiocarbamate ligand, is a one-dimensional coordination polymer in the solid-state [9]. In continuation of studies in this area, herein, the results of the crystal structure determination of {Et3PAg[S2CN(CH2)4]}2, (I), are described.

The molecular structures of the two independent binuclear molecules of (I) are shown in the figure (70% displacement ellipsoids; the unlabelled atoms in the upper and lower images are generated by the application of the symmetry operations (i) −x, 1 − y, −z and (ii) 1 − x, −y, 1 − z, respectively). As each binuclear complex is disposed about a centre of inversion, the asymmetric unit comprises two half complexes. The dithiocarbamate ligand is tridentate, simultaneously chelating the Ag1 atom [Ag1—S1 = 2.7882(5) Å and Ag1—S2 = 2.5683(5) Å] and bridging the Ag1i atom [Ag1i—S1 = 2.6684(5) Å]; the fourth position in the PS3 coordination geometry is occupied by the phosphane-P1 atom [Ag1—P1 = 2.4017(5) Å]. The Ag1a atom exhibits the same general features but, in this case, the shortest Ag—S bond involves the S1aii atom which links the monomeric units into the dimer [Ag1a—S1a, S2a, S1aii & P1 = 2.7097(5), 2.6278(5), 2.5890(5) & 2.3825(5) Å, respectively]. The four-coordinate geometry defined by the PS3 donor set is highly distorted as seen in the range of angles subtended at the Ag1 atom, i.e. 67.791(15)°, for the S1—Ag1—S2 chelate angle, to 139.496(19)° for S2–Ag1—P1. The range is reduced for the Ag1a atom, i.e. 68.334(15) Å for S1a—Ag1a—S2a to 125.188(19)° for S1aii—Ag1a—P1a. An intramolecular Ag1⋯Ag1i [3.1876(3) Å] contact is noted but, the equivalent separation for the Ag1a-complex is considerably longer at 3.4451(4) Å. This represents the greatest difference between the independent complexes.

In the crystal, weak P-methylene-C—H⋯S(bridging) interactions [C21—H21b⋯S1a: H21b⋯S1a = 2.86 Å, C21⋯S1a = 3.649(3) Å with angle at H21b = 137° and C21a—H21c⋯S1iii: H21c⋯S1iii = 2.78 Å, C21a⋯S1iii = 3.738(3) Å with angle at H21c = 163° for (iii) −x, 1 − y, 1 − z]. As these occur between the independent molecules comprising the asymmetric unit and each of these forms two donor and two acceptor interactions that extend laterally, the complexes are assembled into a two-dimensional array parallel to (1 1 0). The layers stack without directional interactions between them.

Using Crystal Explorer 17 [12] and following standard protocols [13], the Hirshfeld surfaces and two-dimensional fingerprint plots were calculated for each of the independent complexes. There are two dominant surface contacts for the Ag1-complex, namely H⋯H and H⋯S/S⋯H contributing 77.8 and 18.5%, respectively, the latter, in part, reflecting the H⋯S contacts discussed above. A similar dominance is observed for the Ag1a-complex (major component; no significant difference was noted for the minor component), but, with distinct percentage contributions to the Hirshfeld surface, i.e. 80.7 and 17.2%.

Acknowledgements

Sunway University Sdn Bhd is thanked for financial support of this work through Grant No. STR-RCTR-RCCM-001-2019.

References

1. Rigaku/Oxford Diffraction: CrysAlisPro. Rigaku Corporation, The Woodlands, TX, U.S.A. (2015).Search in Google Scholar

2. Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

3. Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Search in Google Scholar PubMed PubMed Central

4. Farrugia, L. J.: WinGX and ORTEP for Windows: an update. J. Appl. Cryst. 45 (2012) 849–854.10.1107/S0021889812029111Search in Google Scholar

5. Tan, Y. J.; Tan, Y. S.; Yeo, C. I.; Chew, J.; Tiekink, E. R. T.: In vitro anti-bacterial and time kill evaluation of binuclear tricyclohexylphosphanesilver(I) dithiocarbamates, {Cy3PAg(S2CNRR′)}2. J. Inorg. Biochem. 192 (2019) 107–118.10.1016/j.jinorgbio.2018.12.017Search in Google Scholar PubMed

6. Kumar, V.; Singh, V.; Gupta, A. N.; Manar, K. K.; Prasad, L. B.; Drew, M. G. B.; Singh, N.: Influence of ligand environment on the structure and properties of silver(I) dithiocarbamate cluster-based coordination polymers and dimers. New J. Chem. 38 (2014) 4478–4485.10.1039/C4NJ00580ESearch in Google Scholar

7. Nath, P.; Bharty, M. K.; Maiti, B.; Bharti, A.; Butcher, R. J.; Wikaira, J. L.; Singh, N. K.: Ag(I), Cu(II), Co(III) and Hg(II) complexes and metal-assisted products derived from 4-methyl-piperidine-carbodithioate: syntheses, structures, thermal analyses, redox behaviour and fluorescence properties. RSC Adv. 6 (2016) 93867–93880.10.1039/C6RA15186HSearch in Google Scholar

8. Škoch, K.; Štěpnička, P.: The crystal structure of bis[μ2-(N,N-diethylcarbamodithioato-κS:κS,κS′)] bis[1′-(diphenylphosphino-κP)-1-cyanoferrocene]disilver(I), C56H56Ag2Fe2N4P2S4. Z. Kristallogr. NCS 234 (2019) 885–887.10.1515/ncrs-2019-0086Search in Google Scholar

9. Di Nicola, C.; Ngoune, J.; Effendy, Pettinari, C.; Skelton, B. W.; White, A. H.: Synthesis and structural characterization of adducts of silver (I) diethyldithiocarbamate with P-donor ligands. Inorg. Chim. Acta 360 (2007) 2935–2943.10.1016/j.ica.2007.02.016Search in Google Scholar

10. Yeo, C. I.; Tan, Y. J.; Shiomitsu, A.; Chew, J.; Halcovitch, N. R.; Tiekink, E. R. T.: Crystal structure of bis[μ2-(N,N-diethylcarbamodithioato-κS:κS,κS′)]-bis(triethylphosphine-P)-di-silver(I), C22H50Ag2N2P2S4. Z. Kristallogr. NCS 235 (2020) 1365–1368.10.1515/ncrs-2020-0317Search in Google Scholar

11. Yeo, C. I.; Lo, K. M.; Tiekink, E. R. T.: Crystal structure of bis[μ2-(N-(2-hydroxyethyl)-N-methylcarbamodithioato-κS:κS, κS′)]-bis(triethylphosphine-P)-di-silver(I), C20H46Ag2N2O2P2S4. Z. Kristallogr. NCS 235 (2020) 1373–1376.10.1515/ncrs-2020-0320Search in Google Scholar

12. Turner, M. J.; McKinnon, J. J.; Wolff, S. K.; Grimwood, D. J.; Spackman, P. R.; Jayatilaka, D.; Spackman, M. A.: Crystal Explorer v17. The University of Western Australia, Australia (2017).Search in Google Scholar

13. Tan, S. L.; Jotani, M. M.; Tiekink, E. R. T.: Utilizing Hirshfeld surface calculations, non-covalent interaction (NCI) plots and the calculation of interaction energies in the analysis of molecular packing. Acta Crystallogr. E75 (2019) 308–318.10.1107/S2056989019001129Search in Google Scholar PubMed PubMed Central
