Synthesis and crystal structure of trans-tetraaqua-bis(3-(((7-hydroxy-3-(4-hydroxy-3-sulfonatophenyl)-4-oxo-4H-chromen-8-yl)methyl)ammonio)propanoato-κO)zinc(II) tetrahydrate, C38H48N2O26S2Zn

  • Hai-Lin Chen , Li-Wei Pan , Yong-Ling Qin EMAIL logo , Yan-Jun Xie and Peng Zhang
Published/Copyright: December 22, 2018
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 234 Issue 2

Abstract

C38H48N2O26S2Zn, monoclinic, P21/c (no. 14), a = 15.7219(7) Å, b = 8.0394(4) Å, c = 17.1968(8) Å, β = 92.210(4)°, V = 2171.97(18) Å3, Z = 2, Rgt(F) = 0.0395, wRref(F2) = 0.0951, T = 293(2) K.

CCDC no.: 1879642

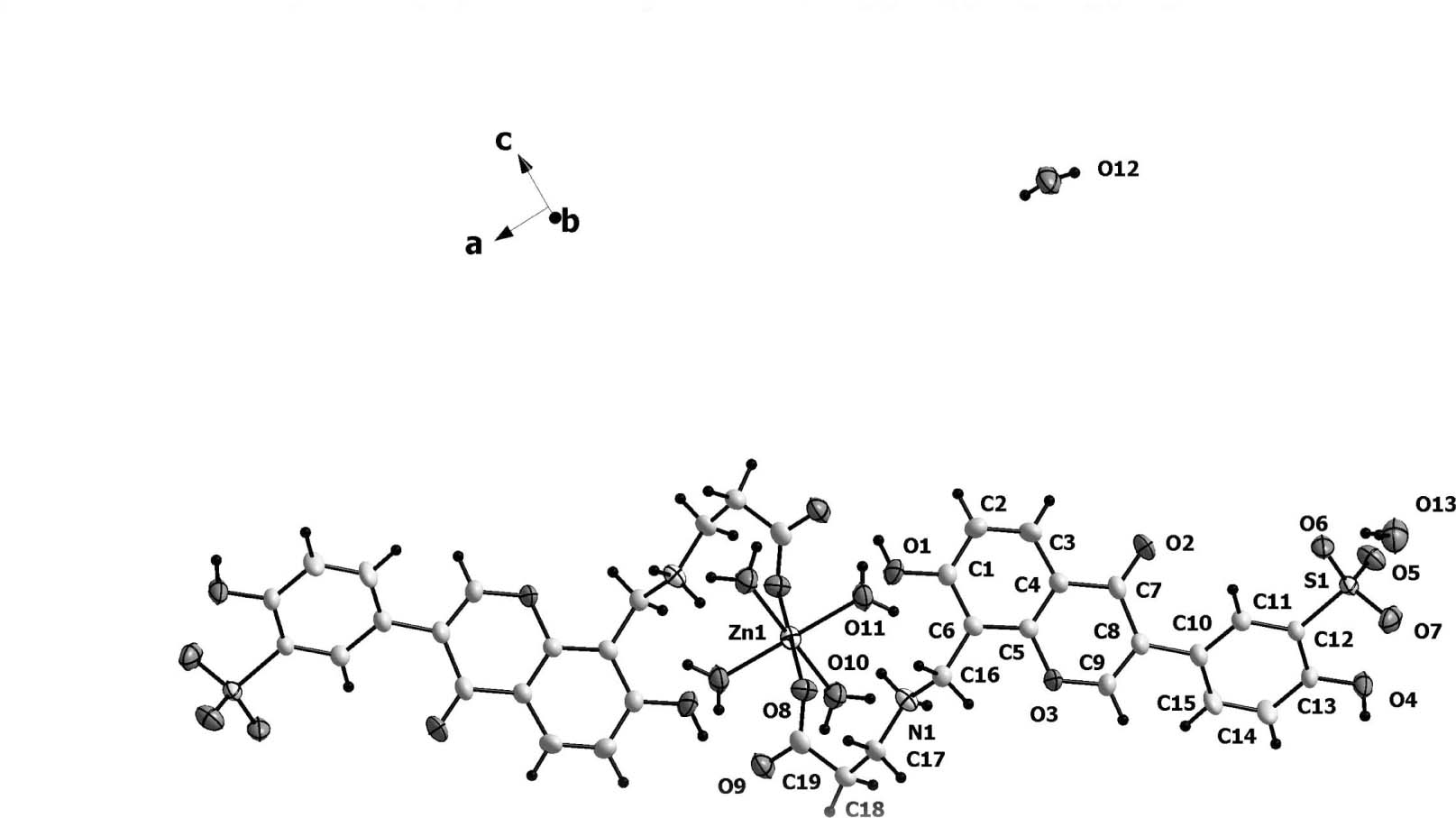

The crystal structure is shown in the figure. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colorless prism
Size:0.40 × 0.10 × 0.10 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.76 mm−1
Diffractometer, scan mode:Bruker SMART, φ and ω-scans
θmax, completeness:25°, >99%
N(hkl)measured, N(hkl)unique, Rint:8830, 3813, 0.031
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 2937
N(param)refined:313
Programs:Bruker programs [1], SHELX [2], [3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Zn11.0000000.0000000.5000000.02915(15)
S10.22333(5)0.53926(9)0.20695(4)0.02665(19)
N10.89627(14)0.4397(3)0.39539(14)0.0290(6)
H1A0.8728950.3567880.3609360.044*
H1B0.9091950.3662880.4374360.044*
O10.81607(13)0.4478(3)0.56448(12)0.0393(6)
H10.8121030.4287940.6128150.059*
O20.46416(14)0.3251(3)0.38305(14)0.0530(7)
O30.68781(13)0.5283(3)0.31862(12)0.0355(5)
O40.27956(13)0.4169(3)0.05569(12)0.0426(6)
H130.3003590.3915760.0123640.064*
O50.17162(13)0.3915(3)0.20238(13)0.0405(6)
O60.22958(13)0.6102(3)0.28481(12)0.0374(5)
O70.19513(14)0.6621(3)0.14980(12)0.0411(6)
O81.02329(13)0.2369(2)0.45895(12)0.0337(5)
O91.13537(13)0.1783(3)0.38890(13)0.0396(6)
O100.98447(14)−0.0842(3)0.38270(12)0.0410(6)
H10A0.940233−0.0693690.3535340.062*
H10B1.023722−0.0738890.3504140.062*
O110.87349(13)0.0691(3)0.50467(13)0.0381(5)
H11A0.850268−0.0053920.5317960.057*
H11B0.8437680.0666680.4623260.057*
O120.31241(14)0.3285(3)0.91059(13)0.0506(6)
H12A0.3542580.2651090.9019170.076*
H12B0.2714780.2699690.8919270.076*
O130.12753(16)0.9099(3)0.28461(14)0.0560(7)
H13A0.1480190.9929540.3095530.084*
H13B0.1636090.8377650.3006430.084*
C10.74705(19)0.4302(4)0.51697(17)0.0294(7)
C20.6729(2)0.3550(4)0.54189(19)0.0415(8)
H20.6707270.3137410.5922890.050*
C30.6040(2)0.3424(4)0.49243(19)0.0429(9)
H30.5545180.2939940.5098980.052*
C40.60531(19)0.3999(4)0.41630(17)0.0306(7)
C50.68042(18)0.4706(3)0.39292(17)0.0263(7)
C60.75214(18)0.4889(3)0.44191(17)0.0261(6)
C70.53140(19)0.3868(4)0.36301(18)0.0331(7)
C80.54401(19)0.4511(4)0.28476(18)0.0315(7)
C90.61941(19)0.5171(4)0.26920(19)0.0359(8)
H90.6253030.5595000.2193780.043*
C100.47498(19)0.4443(4)0.22402(18)0.0324(7)
C110.39245(18)0.4888(4)0.24024(18)0.0297(7)
H110.3804900.5240630.2901540.036*
C120.32762(18)0.4822(3)0.18397(17)0.0260(7)
C130.34441(18)0.4289(4)0.10891(17)0.0312(7)
C140.4271(2)0.3883(5)0.09246(19)0.0449(9)
H140.4395480.3554470.0423160.054*
C150.4910(2)0.3955(4)0.14875(19)0.0436(9)
H150.5461730.3671780.1362030.052*
C160.83206(18)0.5683(3)0.41536(17)0.0272(7)
H16A0.8189680.6369090.3700600.033*
H16B0.8556440.6396470.4562640.033*
C170.97687(18)0.5093(4)0.36714(19)0.0314(7)
H17A1.0056710.5707490.4089560.038*
H17B0.9639860.5863770.3249180.038*
C181.03512(19)0.3753(4)0.33912(17)0.0337(7)
H18A1.0048050.3123750.2986990.040*
H18B1.0832840.4281520.3155970.040*
C191.06836(19)0.2559(4)0.40006(18)0.0314(7)

Source of material

The educt sodium 5-(8-(((2-carboxyethyl)amino)methyl)-7-hydroxy-4-oxo-4H-chromen-3-yl)-2-hydroxybenzenesulfonate was synthesized via a Mannich reaction. In a typical experiment a formaldehyde solution (10 mL, 37%) and sodium 2-hydroxy-5-(7-hydroxy-4-oxo-4H-chromen-3-yl)benzenesulfonate (3.56 g, 0.01 mol) were added to ethanol (200 mL, 99%) and stirred for 0.5 h at 328 K. Then, the saturated solution of 3-aminopropionic acid (1.336 g, 0.015 mol) was added to the reaction mixture. Then, hot water was added until a transparent solution was obtained. After 24 h reaction time, the mixture was filtered, and the residue was collected. Then the residue was dried at 383 K. Sodium 5-(8-(((2-carboxyethyl)amino)methyl)-7-hydroxy-4-oxo-4H-chromen-3-yl)-2-hydroxybenzenesulfonate (0.874 g) was obtained. NMR spectra were recorded on a Bruker AVANCE III HD instrument. 1H-NMR (400 MHz, DMSO-d6) δ: 10.61 (s, 1H, H13), 8.37 (s, 1H, H9), 8.07 (d, J = 8.9 Hz, 1H, H3), 7.69 (d, J = 2.3 Hz, 1H, H11), 7.40 (dd, J = 8.5, 2.3 Hz, 1H, H15), 7.10 (d, J = 8.9 Hz, 1H, H2), 6.86 (d, J = 8.5 Hz, 1H, H14), 4.33 (s, 2H, H16A, H16B), 3.21 (t, J = 6.9 Hz, 2H, H17A, H17B), 2.68 (t, J = 6.9 Hz, 2H, H18A, H18B). 13C-NMR (100 MHz, DMSO-d6) δ: 174.54 (C7), 172.02 (C19), 161.58 (C1), 155.85 (C5), 153.36 (C13), 152.77 (C9), 131.47 (C15), 130.71 (C12), 128.14 (C3), 127.68 (C11), 123.28 (C10), 121.96 (C8), 116.48 (C4), 116.35 (C14), 114.42 (C2), 105.57 (C6), 42.90 (C17), 39.10 (C16), 30.36 (C18). IR (potassium bromide pellet) were recorded on a Nicolet 6700. IR (v/cm−1): 3565, 3428, 3090, 1707, 1632, 1605, 1510, 1452, 1400, 1383, 1329, 1300, 1274, 1213, 1172, 1107, 1071, 1093, 1040, 1025, 832, 811, 793, 741, 728, 645, 620, 534. ESI-MS: m/z 434.17[M–Na]−. Zincacetate dihydrate (0.0550 g, 0.25 mmol) and the aforementioned sodium salt (0.0229 g, 0.05 mmol) were added to water (10 mL) and sonicated for 10 min. The mixture was heated for 9 h at 358 K. After filtration, a transparent solution was obtained. After 2 days, colorless needle crystals of the title compound were obtained.

Experimental details

Carbon-bound H atoms were placed in calculated positions and were included in the refinement in the riding model approximation, with Uiso(H) set to 1.2 Ueq(C). The oxygen- and nitrogen-bound H atoms were located on a difference Fourier map.

Discussion

In the past decades, the synthesis of Mannich bases that contained amino acids has been widely studied [4], [5], [6], [7], [8]. We have already synthesized two amino-acid derivatives of sodium 2-hydroxy-5-(7-hydroxy-4-oxo-4H-chromen-3-yl)benzenesulfonate by the Mannich reaction and studied their coordination behavior with metal ions [9], [10], [11]. As a continuation, we synthesized a 3-aminopropanoic acid derivative, sodium 5-(8-(((2-carboxyethyl)amino)methyl)-7-hydroxy-4-oxo-4H-chromen-3-yl)-2-hydroxybenzenesulfonate. We used this compound to react with a zinc(II) acetate solution and got the title complex.

X-ray crystallographic analysis of a single crystal of the title Zn(II) complex reveals a mononuclear structure. There is one half of a Zn(II) ion, one organic ligand, two coordinated water molecules and two uncoordinated water molecules in the asymmetric unit of the title structure (cf. the figure, the asymmetric unit is labeled). Zn1, located at an inversion center, is six-coordinated with a distorted octahedral geometry by four coordinated water and two O atoms from two monodentate coordinating ligands. The Zn—O bond distances are in the range of 2.0686(19) Å and 2.133(2) Å. The carboxylate groups adopt trans conformations, with the C19—C18—C17—N1 torsion angles to be −65.0°. The nitrogen atom N1 is protonated. Adjacent ligands have intramolecular N1—H1B⋯O8 hydrogen bond of length 2.094 Å. There exist some more O—H⋯O and N—H⋯O hydrogen bonds forming a three-dimensional framework. It is obvious that the hydrogen bonds play important roles in the self-assembly and enhance stability of the resultant structure.

Acknowledgements

This work was financially supported by the Foundation of Guangxi Colleges Universities Key Laboratary of Exploitation and Utilization of Microbial and Botanical Resources (No. 2018HL005), the Education Department of Guangxi Zhuang Autonomous Region of China (No. KY2016LX290), the Foundation of Hechi University (No. XJ2016QN023).

References

1. Bruker: APEX3, SAINT-Plus, XPREP. Bruker AXS Inc., Madison, WI, USA (2016).Search in Google Scholar

2. Sheldrick, G. M.: SHELXT – Integrated space-group and crystal-structure determination. Acta Crystallogr. A71 (2015) 3–8.10.1107/S2053273314026370Search in Google Scholar PubMed PubMed Central

3. Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Search in Google Scholar PubMed PubMed Central

4. Garazd, M. M.; Garazd, Y. L.; Ogorodniichuk, A. S.; Shilin, V. V.; Turov, A. V.; Khilya, V. P.: Mannich reaction in the series of 7-hydroxy-3-phenoxychromones and their derivatives. Chem. Nat. Compd. 34 (1998) 442–447.10.1007/BF02329591Search in Google Scholar

5. Gorbulenko, N. V.; Tkachuk, T. M.; Shokol, T. V.; Semeniuchenko, V. V.; Turov, A. V.; Khilya, V. P.: 2-[6-Alkyl-3-hetaryl-4-oxo-9,10-dihydro-4H,8H-chromeno-[8,7-e][1,3]oxazin-9-yl]acetic acids. Chem. Heterocycl. Compd. 43 (2007) 569–575.10.1007/s10593-007-0091-0Search in Google Scholar

6. Frasinyuk, M. S.; Mrug, G. P.; Fedoryak, O. D.; Bondarenko, S. P.: Synthesis of amino-acid derivatives of formononetin and cladrin. Chem. Nat. Compd. 48 (2012) 570–573.10.1007/s10600-012-0313-2Search in Google Scholar

7. Gradre, J. N.; Shetty, N. K.; Raote, P. S.: Synthesis and antibacterial activity of mannich bases of 4-[2-(2-furyl)vinyl]-7-hydroxy coumarin. Indian J. Heterocycl. Chem. 5 (1996) 207–210.Search in Google Scholar

8. Hassan, H. M.; Shedid, S. A. M.: Synthesis and antimicrobial activity of some new Mannich bases, N-(2-hydroxy-1-naphthyl)amino acid, methyl ester and hydrazide derivatives. J. Serb. Chem. Soc. 63 (1998) 125–130.Search in Google Scholar

9. Chen, H.-L.; Lai, H.-F.; Qin, Y.-L.; Guo, Y.-N.; Chen, T.; Huang, X.-Y.: Synthesis and crystal structure poly[aqua(μ3-2-(((7-hydroxy-3-(4-hydroxy-3-sulfonatophenyl)-4-oxo-4H-chromen-8-yl)methyl)ammonio)acetate-κ4O,O′:O′′:O′′′)sodium] monohydrate, C18H18NNaO11S. Z. Kristallogr. NCS 233 (2018) 417–419.10.1515/ncrs-2017-0321Search in Google Scholar

10. Chen, H.-L.; Pan, L.-W.; Zhang, H.-Y.; Yin, X.-J.: Synthesis and crystal structure of poly[aqua{μ3-(1S,2S)-1-((7-hydroxy-3-(4-hydroxy-3-sulfonatophenyl)-4-oxo-4H-chromen-8-yl)methyl)pyrrolidin-1-ium-2-carboxylato-κ4O,O′:O′′:O′′′}sodium(I)] monohydrate, C21H22NNaO11S. Z. Kristallogr. NCS 233 (2018) 469–471.10.1515/ncrs-2017-0360Search in Google Scholar

11. Chen, H.-L.; Lai, H.-F.; Wei, L.-Q.; Jiang, L.-R.; Su, Y.-X.: Synthesis and crystal structure of trans-tetraqua-bis(2-(((7-hydroxy-3-(4-hydroxy-3-sulfonatophenyl)-4-oxo-4H-chromen-8-yl)methyl)ammonio)acetato-κO)cobalt(II) hexahydrate, C36H48CoN2O28S2. Z. Kristallogr. NCS 232 (2017) 1025–1027.10.1515/ncrs-2017-0153Search in Google Scholar

Received: 2018-07-18
Accepted: 2018-11-18
Published Online: 2018-12-22
Published in Print: 2019-03-26

©2019 Hai-Lin Chen et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 Public License.
