Crystal structure of 1,1′-(ethane-1,2-diyl)bis(3-ethyl-1H-imidazol-3-ium)bis(hexafluorido phosphate), C12H20F12N4P2

  • Xiong Wan-Ming , Di Yi-Bo , Lan Ying-Dong , Chen Jing , Nie Xu-Liang EMAIL logo und Huang Chang-Gan
Veröffentlicht/Copyright: 25. Oktober 2018
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 234 Heft 2

Abstract

C12H20F12N4P2, monoclinic, P21/c (no. 14), a = 7.012(2) Å, b = 15.507(5) Å, c = 10.398(2) Å, β = 118.945(15)°, Z = 2, V = 989.4(5) Å3, Rgt(F) = 0.0526, wRref(F2) = 0.1537, T = 296(2) K.

CCDC no.: 1861132

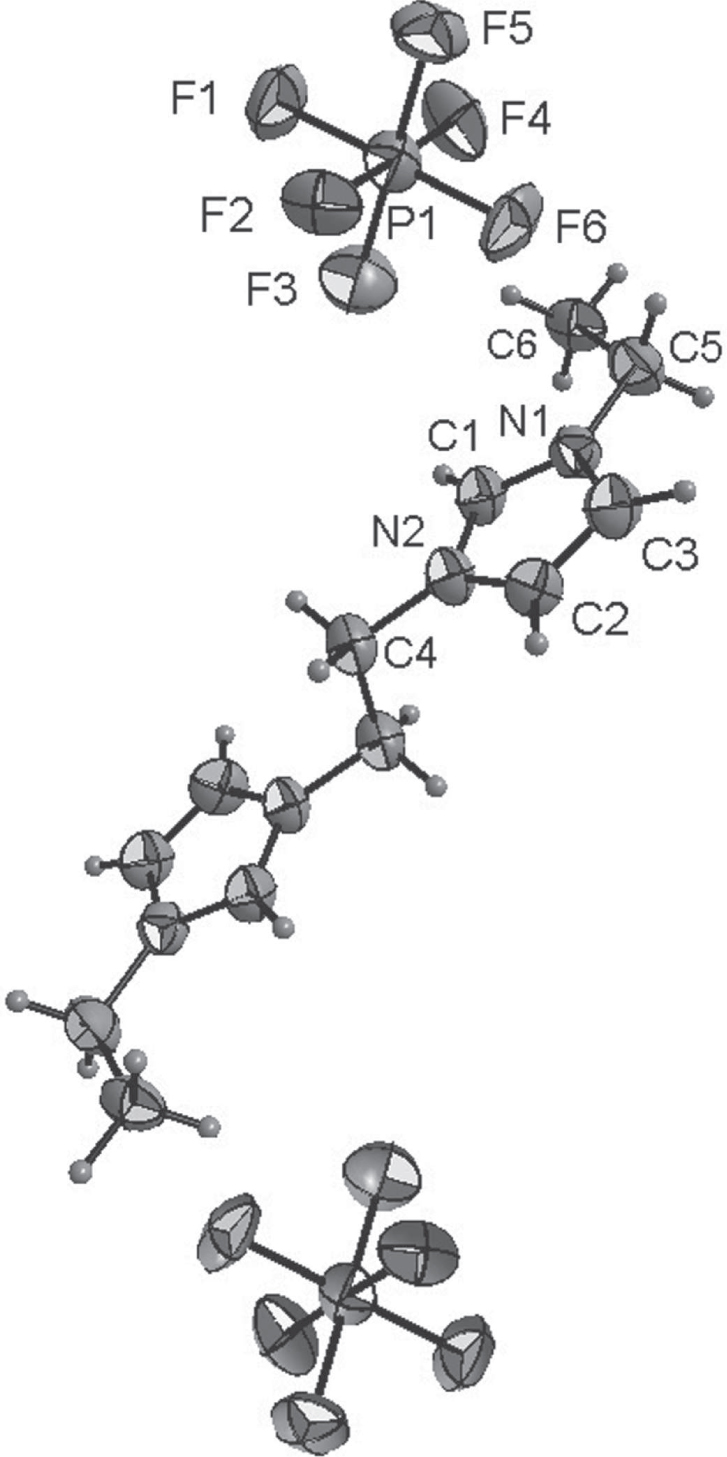

The crystal structure is shown in the figure. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Crystal collection and handling.

Crystal:Block, colorless
Size:0.20 × 0.16 × 0.14 mm
Wavelength:Mo Kα radiation (λ = 0.71073 Å)
μ:0.337 mm−1
Diffractometer, scan mode:Bruker APEX-II CCD, Φ and ω-scans
θmax, completeness:25.5°, >99%
N(hkl)measured, N(hkl)unique, Rint:7271, 1855, 0.0432
Criterion for Iobs, N(hkl)gt:Iobs > 2σ(Iobs), 1304
N(param)refined:137
Programs:Bruker programs [1], SHELX [2]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
P10.28340(15)0.38522(5)0.23936(9)0.0454(3)
F10.1900(4)0.45033(15)0.1072(3)0.0875(8)
F20.0508(5)0.37866(16)0.2265(4)0.1022(10)
F30.2283(4)0.30818(14)0.1285(2)0.0802(7)
F40.5143(4)0.3942(2)0.2504(3)0.0996(9)
F50.3377(5)0.46287(15)0.3512(3)0.0870(8)
F60.3755(6)0.32007(17)0.3715(3)0.1119(11)
N10.4895(4)0.12781(15)0.2988(3)0.0433(6)
N20.1745(4)0.07467(16)0.1524(3)0.0427(6)
C10.3488(5)0.11304(19)0.1608(3)0.0437(7)
H10.36840.12730.08110.052
C20.2090(6)0.0638(2)0.2936(4)0.0513(8)
H20.11450.03800.32120.062
C30.4035(6)0.0973(2)0.3827(4)0.0530(9)
H30.46960.09960.48470.064
C4−0.0145(5)0.0460(2)0.0173(3)0.0464(8)
H4A−0.03400.0831−0.06330.056
H4B−0.14410.05020.02790.056
C50.7064(6)0.1674(2)0.3568(4)0.0598(10)
H5A0.81600.12510.41550.072
H5B0.71770.21480.42110.072
C60.7543(6)0.2004(3)0.2416(5)0.0733(12)
H6A0.75120.15350.18030.110
H6B0.89610.22660.28700.110
H6C0.64670.24240.18270.110

Source of materials

1-Ethylimidazole (9.61 g, 0.1 mol) was dissolved in methylbenzene (20 mL), 1,2-dibromoethane (9.393 g, 0.05 mol) was quickly added under stirring. The mixture was first reacted at 60 °C for 10 min, and then heated to 110 °C for 8 h. After the reaction completed (monitored by TLC), a white solid was produced on slow cooling. The resulting suspension was filtered, crushed and washed with ethylacetate and diethyl ether 3 times respectively. The white powder intermediate (C2M—Br) dryed in vacuo (16.72 g, yield 88%). Then the intermediate (C2M—Br) (3.80 g, 0.01 mol), potassium hexafluorophosphate (5.38 g, 0.026 mol) was dissolved in water (40 mL). The mixture stirred well for 12 h at 95 °C and then cooled slowly to give the crystals.

Experimental details

All H atoms were included in calculated positions and refined as riding atoms, with C—H = 0.90–0.97 Å with Uiso(H) = 1.5 Ueq(C) for methyl H atoms and 1.2 Ueq(C) for all other H atoms.

Comment

Ionic liquid, as a new type of environmentally friendly solvent and liquid acid base catalyst, owing to the advantages of adjustable structure, high catalytic efficiency, mild conditions, and can be recycled, etc, has been widely used in biomass energy. many fields of research. Because of the unique physical and chemical properties of ionic liquids, they have potential advantages of biodiesel preparation [3], [4], [5]. In recent years, various functional ionic liquids have been synthesised, and have been used to prepare biodiesel highly efficiently and environmental friendly [6], [7]. It was found that dinuclear alkaline ionic iquid bis-(3-methyl-1-imidazolium-)ethlyene dihydroxide ([MC2]OH) shows excellent catalytic efficiency, the highest conversion rate of cotton seed oil was up to 98.5% [8]. Our group is still focused on the preparation of biodiesel catalyzed by ionic liquid [9], [10] and already reported some structures directly reacted to the title compound [11], [12], [13]. In order to find the ionic liquid catalyst with better catalytic efficiency, we were engaged in the synthesis of new ionic liquid catalysts with imidazole.

Bond lengths and angles within the imidazloe ring are very similar to those given in the literature for diimidazloe ionic liquid [11], [12], [13], [14]. The asymmetric unit of the title structure consists of one half of C2M2+ cation (1,1′-(ethane-1,2-diyl)bis(3-ethyl-1H-imidazol-3-ium)) and one [PF6]− anion (cf. the figure). Two cationic 1-ethylimidazolium rings were bound to the both sides of ethyl group. The two imidazole rings are crystallographically dependant, planar and parallel to each other. The torsion angle of C4-N2-C2-C3 and C4′-C4-N2-C1 is 178.2° and 86.4° respectively.

Acknowledgements

X-ray data were collected at Instrumental Analysis Center Nanchang Hangkong University, Nanchang 330063. This work was supported by the National Natural Science Foundation of China (Nos. 31760193, 31760068) and the Research Foundation of Educational Department of Jiangxi Province [GJJ160382, 160408].

References

1. Bruker. APEX2, SAINT and SADABS. Brucker AXS Inc., Madison, WI, USA (2009).Suche in Google Scholar

2. Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Suche in Google Scholar

3. Zhen, B.; Jiao, Q. Z.; Wu, Q.; Li, H. S.: Catalytic performance of acidic ionic liquid-functionalized silica in biodiesel production. J. Energy Chem. 23 (2014) 97–104.10.1016/S2095-4956(14)60122-4Suche in Google Scholar

4. Rafiee, E.; Eavani, S.: A new organic–inorganic hybrid ionic liquid polyoxometalate for biodiesel production. J. Mol. Liq. 199 (2014) 96–101.10.1016/j.molliq.2014.08.034Suche in Google Scholar

5. Fan, M. M.; Zhou, J. J.; Han, Q. J.; Zhang, P. B.: Effect of various functional groups on biodiesel synthesis from soybean oils by acidic ionic liquids. Chin. Chem. Lett. 23 (2012) 1107–1110.10.1016/j.cclet.2012.07.009Suche in Google Scholar

6. Han, X. X.; He, Y. F.; Hung, C. T.; Liu, L. L.; Huang, S. J.; Liu, S. B.: Efficient and reusable polyoxometalate-based sulfonated ionic liquid catalysts for palmitic acid esterification to biodiesel. Chem. Eng. Sci. 104 (2013) 64–72.10.1016/j.ces.2013.08.059Suche in Google Scholar

7. Li, Y.; Hu, S. G.; Cheng, J. H.; Lou, W. Y.: Acidic ionic liquid catalyzed esterification of oleic acid for biodiesel synthesis. Chinese J. Catal. 35 (2014) 396–406.10.1016/S1872-2067(14)60005-XSuche in Google Scholar

8. Liang, J. H.; Ren, X. Q.; Wang, J. T.; Jinag, M.; Li, Z. J.: Preparation of biodiesel by transesterification from cotton seed oil using the basic dication ionic liquids as catalysts. J. Fuel Chem. Tech. 38 (2010) 275–280.10.1016/S1872-5813(10)60033-3Suche in Google Scholar

9. Xiong, W. M.; Zhu, M. Z.; Deng, L.; Fu, Y.; Guo, Q. X.: Esterification of organic acid in bio-oil using acidic ionic liquid catalysts. Energy Fuels 23 (2009) 2278–2283.10.1021/ef801021jSuche in Google Scholar

10. Kong, J. H.; Lan, Y. D.; Chen, J.; Huang, C. G.; Xiong, W. M.: Preparation and component analysis of biodiesel catalyzed by functionalized dication ionic liquid. Acta Agric. Univ. Jiangxiensis. 38 (2016) 386–390.Suche in Google Scholar

11. Xiong, W. M.; Chen, J.; Peng, D. Y.; Nie, X. L.; Huang, C. G.: Crystal structure of 1,1′-butanebis(3-methyl-1H-imidazol-3-ium), bis(hexafluorophosphate), C12H20F12N4P2. Z. Kristallogr. NCS 232 (2017) 1007–1008.10.1515/ncrs-2017-0135Suche in Google Scholar

12. Nie, X. L.; Kong, J. H.; Chen, J.; Chen, J. Z.; Xiong, W. M.: Crystal structure of 1,1′-(hexane-1,6-diyl)bis(3-methyl-1H-imidazol-3-ium)bis(hexafluoro phosphate), C9H14F12N4P2. Z. Kristallogr. NCS 232 (2017) 73–74.10.1515/ncrs-2016-0153Suche in Google Scholar

13. Xiong, W. M.; Zhou, L.; Lv, S. M.; Nie, X. L.; Chen, J.; Huang, C. G.: Crystal structure of 1,1′-(pentane-1,5-diyl)bis(3-methyl-1H-imidazol-3-ium), bis(hexafluorophosphate), C9H14F12N4P2. Z. Kristallogr. NCS 233 (2018) 473–474.Suche in Google Scholar

14. Li, M.; Niu, Z. B.; Schoonover, D. V.; Slebodnick, C.; Gibson, H. W.: 1,2-Bis(N-(N′-alkylimidazolium))ethane salts as new guests for crown ethers and cryptands. Tetrahedron 66 (2010) 7077–7082.10.1016/j.tet.2010.07.010Suche in Google Scholar

Received: 2018-05-18
Accepted: 2018-08-09
Published Online: 2018-10-25
Published in Print: 2019-03-26

©2019 Xiong Wan-Ming et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 Public License.
