The crystal structure of 1,4-dinitroso-2,3,5,6-tetraacetoxy-piperazine, C12H16N4O10

  • Xue Mei , Li Yunlu , Wang Jianlong EMAIL logo , Chen Jun and Li Jianghong
Published/Copyright: December 11, 2018
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 234 Issue 2

Abstract

C12H16N4O10, monoclinic, C2/c (no. 15), a = 21.953(3) Å, b = 7.0292(9) Å, c = 13.5984(19) Å, β = 127.569(4)°, V = 1663.23(40) Å3, Z = 4, Rgt(F) = 0.0555, wRref(F2) = 0.1224, T = 122(2) K.

CCDC no.: 1879671

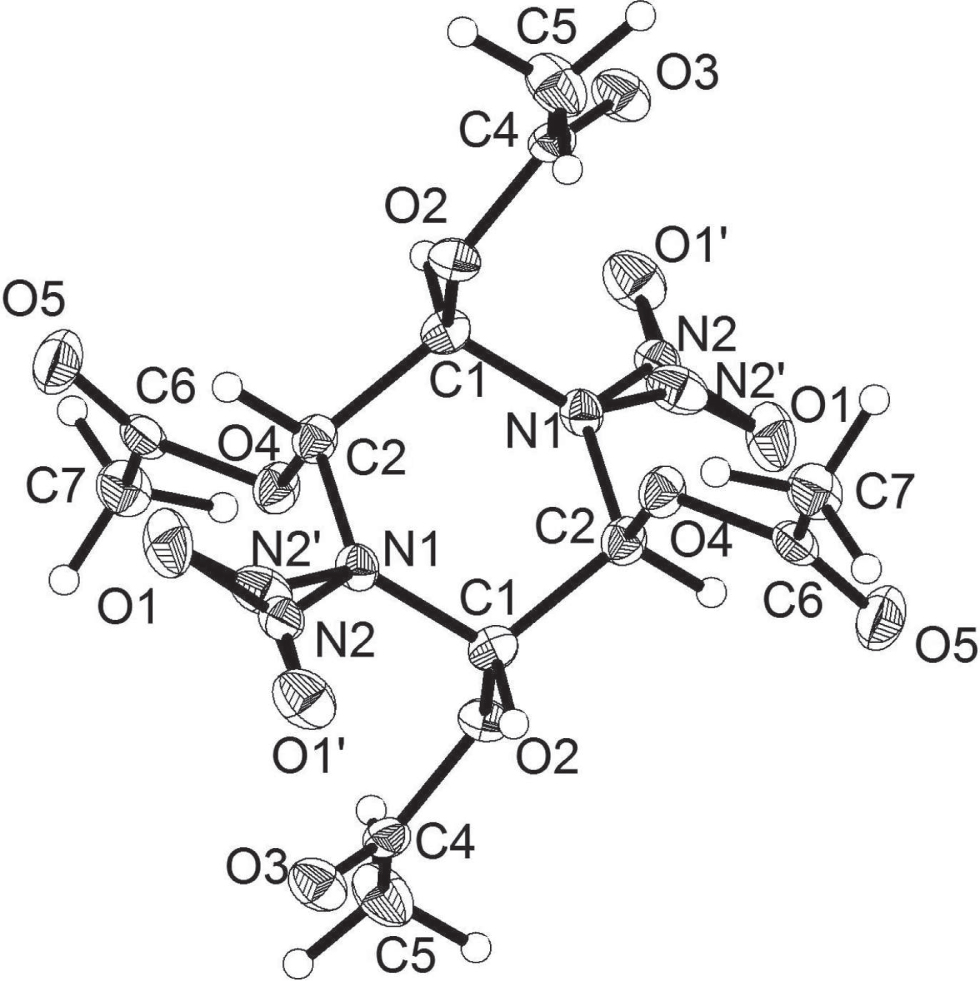

The crystal structure is shown in the figure. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colourless plate
Size:0.21 × 0.17 × 0.08 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.13 mm−1
Diffractometer, scan mode:PHOTON 100 CMOS, ω
θmax, completeness:25.4°, >99%
N(hkl)measured, N(hkl)unique, Rint:4558, 1522, 0.069
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 1025
N(param)refined:139
Programs:Bruker [1], SHELX [2], [3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
N2a1.0579(11)0.242(2)0.9259(15)0.018(3)
O1a1.0962(2)0.1669(6)0.8967(4)0.0302(13)
N2′b1.0655(16)0.206(3)0.924(2)0.025(5)
O1′b1.0400(3)0.3713(9)0.8940(5)0.0293(19)
C10.99682(16)0.2028(4)1.0206(3)0.0177(6)
H10.97770.33110.98150.021*
C20.92969(15)0.0723(4)0.9768(3)0.0183(7)
H20.90440.11141.01490.022*
C41.09630(15)0.3466(4)1.2136(3)0.0196(7)
C51.13626(18)0.3368(5)1.3493(3)0.0305(8)
H5A1.18390.41091.39300.046*
H5B1.14840.20391.37660.046*
H5C1.10290.38911.36770.046*
C60.80813(15)0.1786(4)0.7964(3)0.0202(7)
C70.76145(16)0.1946(4)0.6597(3)0.0266(7)
H7A0.72530.08800.62060.040*
H7B0.79540.19170.63550.040*
H7C0.73290.31470.63240.040*
N11.04447(12)0.1225(3)0.9910(2)0.0165(5)
O21.03780(11)0.2162(2)1.15220(17)0.0190(5)
O31.11001(11)0.4519(3)1.15972(19)0.0252(5)
O40.87641(10)0.0875(3)0.84454(18)0.0205(5)
O50.79117(11)0.2320(3)0.8609(2)0.0303(6)

  1. aOccupancy: 0.581(7), bOccupancy: 0.419(7).

Source of material

40% Glyoxal solution (6.00 mL) was added to an aqueous solution (30.00 mL) of potassium sulfamate (14.85 g), the mixture was stirred at a low temperature for about 3 days. After filtering and drying, a white solid (HKIW, 4.38 g) was obtained.

98% nitric acid (4.63 g) was added to a certain amount of acetic anhydride at low temperatures. HKIW (3.50 g) was added to the mixed acid and reaction for 4 h at 328 K. The mixture was poured into deionized water, filtered at room temperature and dried under vacuum in a drying oven. Then a white solid (1,4-dinitroso-2,3,5,6-tetraacetoxy-piperazine, 0.74 g) was obtained. Colorless transparent crystals were obtained by slow evaporation from a dichloromethane solution at room temperature.

Experimental details

Hydrogen atoms were placed in calculated positions using the riding model. Uiso(H) were constrained to 1.5 Ueq(C) for methyl H atoms and 1.2 Ueq(C) for other H atoms. The asymmetric unit contains a half molecule and the whole molecule is sited on a crystallographic inversion centre. The nitroso group is disordered over two positions, with refined occupancies of 0.581(7) and 0.419(7).

Comment

Piperazine derivatives have important applications in the fields of medicinal chemistry and materials [4], [5], [6], [7], [8], [9], [10]. The molecular structure of the title compound (cf. the figure) has two nitroso groups and four acetoxy groups, which are bonded to two nitrogen atoms and four carbon atoms on the piperazine ring, respectively. All bond lengths and angles are within normal ranges and in good agreement with those found for the structure of 1,4-diformyl-2,3,5,6-tetra-acetoxypiperazine, which crystallises in space group P21/n and has been previously reported in the literature [11]. The planes defined by the nitroso group (N1, N2, O1) and by C1, N1, C2 are almost coplanar for the angle between the two planes is 3.52°. The dihedral angle between the two acetoxy groups (C1, O2, C4, O3, C5 and C2, O4, C6, O5, C7) and the plane (C1, C2, C1′, C2′) is 87.41° and 78.73° respectively. The dihedral angle between the plane defined by the nitroso group (N1, N2, O1) and the plane (C1, C2, C1′, C2′) is 49.00°.

Acknowledgements

We are grateful for the support of the Testing and Analysis Center of Huaiyin Normal University.

References

1. BRUKER. SAINT, APEX2 and SADABS. Bruker AXS Inc., Madison, WI, USA (2014).Search in Google Scholar

2. Sheldrick, G. M.: SHELXT – Integrated space-group and crystal-structure determination. Acta Crystallogr. A71 (2015) 3–8.10.1107/S2053273314026370Search in Google Scholar PubMed PubMed Central

3. Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Search in Google Scholar PubMed PubMed Central

4. Solomon, V. R.; Hu, C.; Lee, H.: Design and synthesis of anti-breast cancer agents from 4-piperazinylquinoline: a hybrid pharmacophore approach. Bioorg. Med. Chem. 18 (2010) 1563–1572.10.1016/j.bmc.2010.01.001Search in Google Scholar PubMed

5. Gao, L. H.; Li, M.; Meng, T.; Peng, H. L.; Xie, X.; Zhang, Y. L.; Jin, Y.; Wang, X.; Zou, L. B.; Shen, J. K.: Asymmetric synthesis and biological evaluation of N-cyclohexyl-4-[1-(2,4-dichlorophenyl)-1-(p-tolyl)methyl]piperazine-1-carboxamide as hCB1 receptor antagonists. Eur. J. Med. Chem. 43 (2012) 5310–5316.10.1002/chin.201211153Search in Google Scholar

6. Nong, J.; Nong, K. L.; Zheng, G. J.: Research progress of piperazium ammonium. Technology & Development of Chemical Industry. 41 (2012) 24–27.Search in Google Scholar

7. Mao, Z. W.; Zheng, X.; Lin, Y. P.; Hu, C. Y.; Wang, X. L.; Wan, C. P.; Rao, G. X.: Design, synthesis and anticancer activity of novel hybrid compounds between benzofuran and N-aryl piperazine. Bioorg. Med. Chem. Lett. 26 (2016) 3421–3424.10.1016/j.bmcl.2016.06.055Search in Google Scholar PubMed

8. Liu, Y. Z.; Yu, Z. Y.; Yu, J. Y.: Piperazine chemistry part I. developments on synthesis of high energy density compound of piperazine series. Chin. J. Energ. Mater. 16 (2008) 356–360.Search in Google Scholar

9. Huo, H.; Wang, B. Z.; Lian, P.; Lai, W. P.; Li, H.; Ge, Z. X.: Synthesis of 6-dinitroethylene-4,5,8-trinitro-5,6,7,8-tetrahydro-4H-imidazo[4,5-e]furazano[3,4-b] piperazine. Chin. J. Energ. Mater. 22 (2014) 274–275.Search in Google Scholar

10. Zhou, J. H.; Huang, C. C.; Shi, M. J.; Liu, J.; Ding, L.: Crystal structure of 2-[[4-[2-[4-(4-methoxyphenyl)-1-piperazinyl]ethyl]phenyl]methyl]-1H-isoindole-1,3(2H)-dione, C28H29N3O3. Z. Kristallogr. NCS 233 (2018) 711–714.10.1515/ncrs-2018-0034Search in Google Scholar

11. Vedachalam, M.; Ramakrishnan, V. T.; Boyer, J. H.; Dagley, I. J.; Nelson, K. A.; Adolph, H. G.; Gilardi, R.; George, C.; Flippen-Anderson, J. L.: Facile synthesis and nitration of cis-syn-cis-2,6-dioxodecahydro-1H,5H-diimidazo[4,5-b:4′,5′-e]pyrazine. J. Org. Chem. 53 (1991) 3413–3419.10.1021/jo00010a043Search in Google Scholar
