Crystal structure of ethanol-bis(N-((5-(ethoxycarbonyl)-3,4-dimethyl-1H-pyrrol-2-yl)methylene)benzohydrazonato-κ2N,O)copper(II), C36H42N6O7Cu

  • Wen-Zhao Xue , Qiang Hu EMAIL logo , Yu-Fei Song and Wei-Na Wu
Published/Copyright: October 30, 2018
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 234 Issue 2

Abstract

C20H29N3O5, triclinic, P1̄ (no. 2), a = 8.482(6) Å, b = 15.272(12) Å, c = 15.285(12) Å, a = 112.024(11)°, β = 95.325(9)°, γ = 98.958(9)°, V = 1788(2) Å3, Z = 2, Rgt(F) = 0.0570, wRref(F2) = 0.1687, T = 296(2) K.

CCDC no.: 1873689

Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Brown block
Size:0.16 × 0.14 × 0.13 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.67 mm−1
Diffractometer, scan mode:SMART detector, φ and ω
θmax, completeness:27.4°, >99%
N(hkl)measured, N(hkl)unique, Rint:18896, 8026, 0.055
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 5977
N(param)refined:473
Programs:SHELX [1], Bruker [2]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Cu10.58033(4)0.65052(2)0.22980(2)0.04688(14)
O10.5943(3)0.52211(14)0.21912(15)0.0547(5)
O20.5433(3)1.00774(17)0.33665(18)0.0663(6)
O30.6248(4)1.13971(17)0.4739(2)0.0846(8)
O40.6426(3)0.77094(14)0.21670(14)0.0559(5)
O50.3041(4)0.3346(2)0.2342(2)0.0926(9)
O60.1055(4)0.2098(2)0.1409(3)0.0980(10)
O70.3729(4)0.6933(2)0.3228(2)0.0935(9)
H70.3740250.7501730.3622370.140*
N10.7809(3)0.60301(17)0.35735(18)0.0527(6)
N20.7329(3)0.68563(17)0.35240(17)0.0479(5)
N30.6896(3)0.89660(16)0.40507(17)0.0490(6)
H30.6370850.8656980.3478080.059*
N40.4882(3)0.68792(16)0.06650(17)0.0474(6)
N50.4470(3)0.61425(16)0.10065(17)0.0449(5)
N60.2918(3)0.42428(17)0.11428(19)0.0523(6)
H60.3667340.4527280.1635650.063*
C10.8189(5)0.2608(3)0.2808(3)0.0761(11)
H10.8458920.2035680.2793570.091*
C20.7431(5)0.2645(3)0.2000(3)0.0787(11)
H20.7173260.2093670.1435060.094*
C30.7039(5)0.3500(2)0.2015(3)0.0667(9)
H3A0.6525170.3519060.1459790.080*
C40.7408(4)0.4323(2)0.2851(2)0.0502(7)
C50.8189(5)0.4275(3)0.3665(3)0.0674(9)
H50.8468940.4825670.4230720.081*
C60.8553(5)0.3424(3)0.3645(3)0.0799(11)
H6A0.9048520.3397340.4201150.096*
C70.7027(4)0.5248(2)0.2873(2)0.0472(6)
C80.7967(4)0.7616(2)0.4281(2)0.0501(7)
H80.8672490.7510380.4716850.060*
C90.7778(4)0.8589(2)0.4566(2)0.0472(6)
C100.8446(4)0.9323(2)0.5453(2)0.0492(7)
C110.7961(4)1.0165(2)0.5478(2)0.0515(7)
C120.6999(4)0.9928(2)0.4611(2)0.0506(7)
C130.9503(4)0.9218(3)0.6240(2)0.0657(9)
H13A0.9808110.9827000.6778060.099*
H13B0.8917630.8745860.6429340.099*
H13C1.0456550.9012800.6013160.099*
C140.8405(5)1.1143(2)0.6300(3)0.0683(9)
H14A0.7499941.1259300.6628750.102*
H14B0.8687651.1632760.6058280.102*
H14C0.9311081.1157440.6734980.102*
C150.6210(4)1.0553(2)0.4263(3)0.0599(8)
C160.4595(5)1.0633(3)0.2954(3)0.0842(12)
H16A0.5372671.1077100.2810990.101*
H16B0.3970491.1003430.3402010.101*
C170.3513(6)0.9946(4)0.2067(3)0.0942(14)
H17A0.2947011.0294630.1780780.141*
H17B0.4143590.9584460.1627220.141*
H17C0.2746980.9511090.2215890.141*
C180.7673(5)0.9906(2)0.0459(3)0.0730(10)
H180.8078651.0393250.0265200.088*
C190.6362(6)0.9190(3)−0.0093(3)0.0821(12)
H190.5866410.920526−0.0654230.099*
C200.5776(5)0.8451(2)0.0178(2)0.0651(9)
H200.4903830.796543−0.0207060.078*
C210.6484(4)0.84323(19)0.10220(19)0.0447(6)
C220.7765(4)0.9159(2)0.1578(2)0.0626(9)
H220.8236700.9162950.2153750.075*
C230.8367(5)0.9892(2)0.1290(3)0.0731(10)
H230.9248071.0374380.1668840.088*
C240.5881(4)0.76268(19)0.13058(19)0.0443(6)
C250.3392(3)0.5432(2)0.0385(2)0.0475(6)
H250.3076670.550182−0.0180320.057*
C260.2611(4)0.4555(2)0.0433(2)0.0492(7)
C270.1285(4)0.3899(2)−0.0230(2)0.0536(7)
C280.0796(4)0.3176(2)0.0105(3)0.0594(8)
C290.1836(4)0.3399(2)0.0943(3)0.0583(8)
C300.0529(4)0.3934(3)−0.1139(3)0.0714(10)
H30A0.1078050.449808−0.1207900.107*
H30B0.0615230.336742−0.1673150.107*
H30C−0.0591860.395945−0.1119260.107*
C31−0.0602(5)0.2326(3)−0.0370(3)0.0863(13)
H31A−0.1116830.235079−0.0944500.130*
H31B−0.0211060.173791−0.0525880.130*
H31C−0.1369220.2349540.0058170.130*
C320.1903(5)0.2871(3)0.1566(3)0.0718(10)
C330.3283(9)0.2863(4)0.2984(4)0.132(2)
H33A0.2324110.2377640.2887070.158*
H33B0.4187010.2542880.2847420.158*
C340.3607(10)0.3564(5)0.3972(4)0.158(3)
H34A0.3766290.3240690.4394100.237*
H34B0.4563390.4039620.4067500.237*
H34C0.2704860.3874770.4107060.237*
C35a0.268(2)0.5817(11)0.3880(10)0.133(5)
H35Aa0.3723100.5657340.3833130.199*
H35Ba0.1864990.5236850.3686030.199*
H35Ca0.2646970.6227700.4529570.199*
C35Ab0.169(3)0.594(2)0.357(2)0.191(13)
H35Db0.1190210.6381680.3386990.287*
H35Eb0.1365420.5931140.4150100.287*
H35Fb0.1357500.5302500.3069220.287*
C36a0.2350(11)0.6329(6)0.3247(7)0.073(3)
H36Aa0.1918640.5857550.2602990.088*
H36Ba0.1538670.6705730.3470060.088*
C36Ab0.326(2)0.6208(12)0.3696(14)0.093(6)
H36Cb0.3731790.5647980.3415090.112*
H36Db0.3681460.6509020.4375440.112*

  1. aOccupancy: 0.61(2), bOccupancy: 0.39(2).

Source of material

The title complex was prepared according to the literature method while using ethanol as solvent [5].

Experimental details

The structure was solved by direct methods and refined with the SHELX software package [1]. Each of the carbon atoms of ethanol molecule occupied two positions with the occupancy ratio of C35(C36)/C35A(C36A) being 0.61/0.39. All hydrogen atoms were placed at calculated positions.

Comment

Acylhydrazones are an important class of ligands in coordination chemistry and have been found extensive application [3]. Our previous work shows that acylhydrazone ligands bearing pyrrole units and their complexes exhibit considerable antibacterial and antitumor activity [4], [5], [6]. As part of our continuous work, the title complex was synthesized and characterized by X-ray diffraction.

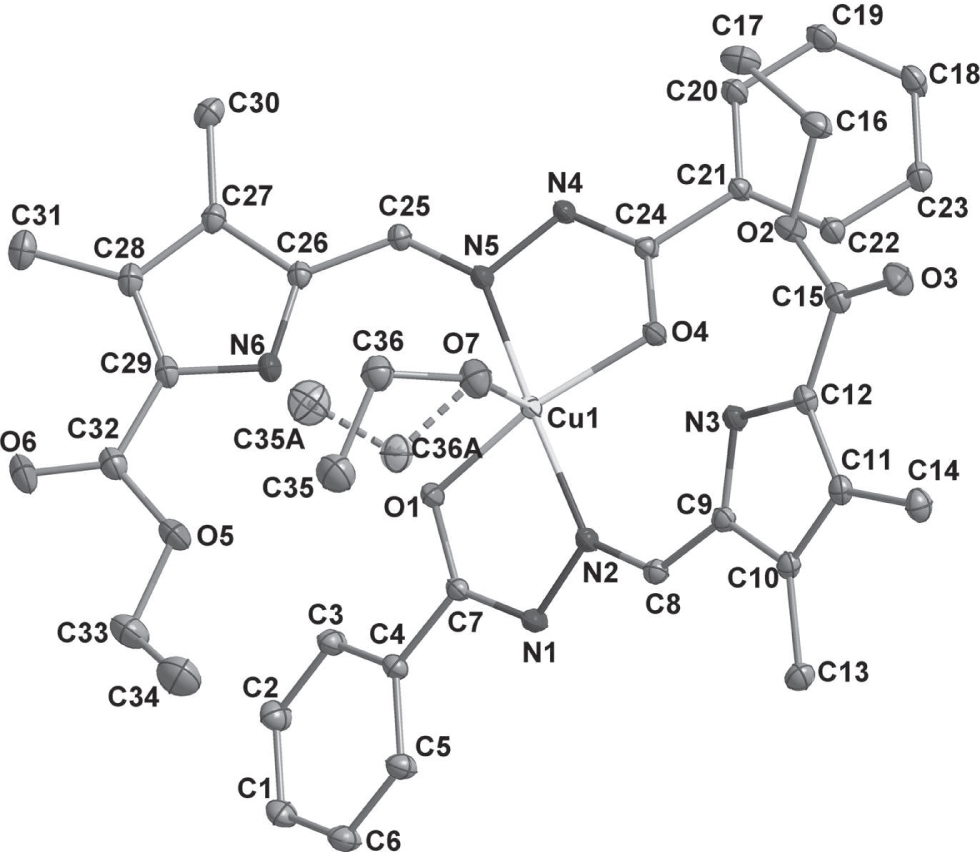

In the title crystal structure, the central copper ion is coordinated with two enolizated acylhydrazone ligands by NO bidentate donor sets and an additional coordination of ethanol (cf. the figure). The maximal two angles between the coordination atoms and Cu(II) ion are 174.36(10)° and 156.76(11)°, respectively. According to the Addison rule [5], the geometric index τ value is 0.293, indicating that the irregular coordination geometry of the copper ion should be described as a distorted square-pyramidal geometry. There also exist classical intermolecular N—H⋯O hydrogen bonds in the crystal.

References

1. Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

2. Bruker. SMART and SAINT. Bruker AXS Inc., Madison, WI, USA (2007).Search in Google Scholar

3. Dong, W.-K.; Li, X.-L.; Wang, L.; Zhang, Y.; Ding, Y.-J.: A new application of Salamo-type bisoximes: as a relay – sensor for Zn2+/Cu2+ and its novel complexes for successive sensing of H+/OH−. Sens. Actuators, B 229 (2016) 370–378.10.1016/j.snb.2016.01.139Search in Google Scholar

4. Han, X.-F.; Cai, H.-X.; Jia, L.; Wu, W.-N.; Zhang, X.; Xu, J.; Zhang, Z.-P.; Wang, Y.: Syntheses, characterizations and antitumor activities of two copper(II) complexes with an acylhydrazone ligand bearing Pyrrole unit. Chin. Inorg. Chem. Commun. 31 (2015) 1453–1459.Search in Google Scholar

5. Ye, X.-P.; Wang, G.-J.; Pan, P.; Zhang, Z.-P.; Wu, W.-N.; Wang, Y.: Syntheses, crystal structures and biological activities of two Cu(II) complexes with an acylhydrazone ligand bearing pyrrole unit. Chin. Inorg. Chem. Commun. 30 (2014) 2789–2795.Search in Google Scholar

6. Ye, X.-P.; Zhu, T.-F.; Wu, W.-N.; Ma, T.-L.; Xu, J.; Zhang, Z.-P.; Wang, Y.; Jia, L.: Syntheses, characterizations and biological activities of two Cu(II) complexes with acylhydrazone ligand bearing pyrrole unit. Inorg. Chem. Commun. 47 (2014) 60–62.10.1016/j.inoche.2014.07.022Search in Google Scholar

Received: 2018-07-31
Accepted: 2018-10-17
Published Online: 2018-10-30
Published in Print: 2019-03-26
