Crystal structure of rac-trans-6,6′-((cyclohexane-1,2-diylbis(azanylylidene))bis(methanylylidene))bis(2-bromophenolato-κ4N,N′,O,O′)-bis(methanol)cobalt(III) chloride, C22H25Br2Co8N2O4Cl

  • Qiong Wu EMAIL logo , Qiaoli Zi , Jindong Li und Yajuan Li
Veröffentlicht/Copyright: 25. Oktober 2018
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 234 Heft 2

Abstract

C22H25Br2Co8N2O4Cl, monoclinic, P21/c (no. 14), a = 7.8246(13) Å, b = 23.695(4) Å, c = 13.225(2) Å, β = 95.987(17)°, V = 2438.6(7) Å3, Z = 4, Rgt(F) = 0.0844, wRref(F2) = 0.2192, T = 173(2) K.

CCDC no.: 1855962

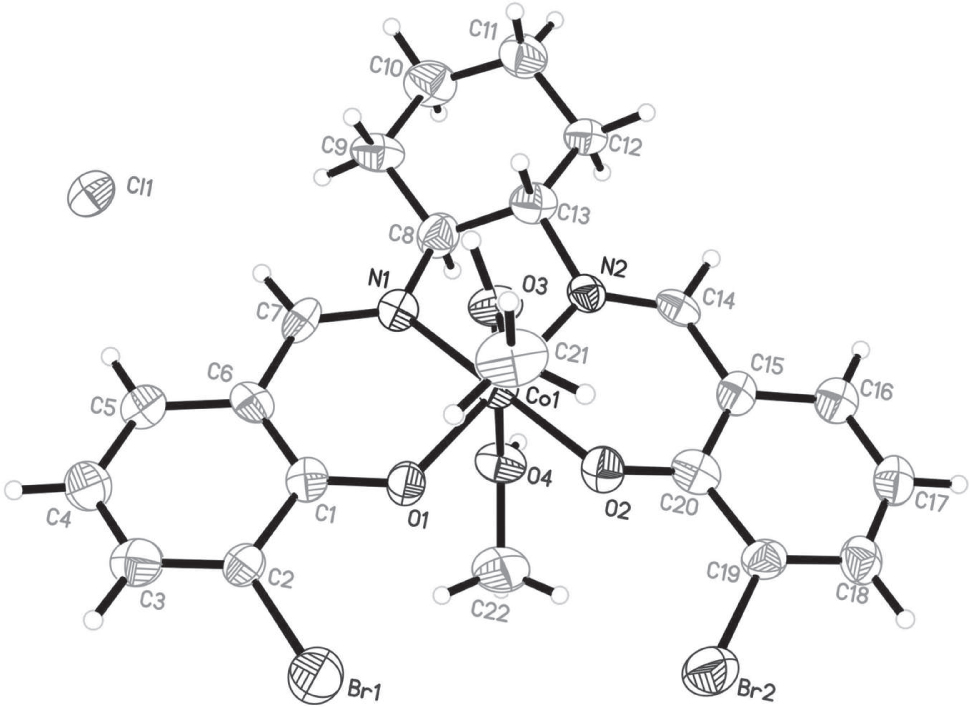

The crystal structure is shown in the figure. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Block
Size:0.10 × 0.22 × 0.16 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:4.12 mm−1
Diffractometer, scan mode:Xcalibur, Eos, Gemini, φ and ω-scans
θmax, completeness:25°, >99%
N(hkl)measured, N(hkl)unique, Rint:9593, 4290, 0.093
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 1747
N(param)refined:297
Programs:CrysAlisPRO [1], SHELX [2], OLEX2 [3], DIAMOND [4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Br10.25032(17)0.22523(5)0.66695(11)0.0913(5)
Br20.63496(16)0.27004(5)0.97420(10)0.0827(4)
Co10.42329(14)0.41407(5)0.74650(10)0.0442(4)
O10.3403(7)0.3460(2)0.6897(4)0.0507(19)
O20.5032(7)0.3715(3)0.8599(5)0.0535(19)
O30.2078(6)0.4243(2)0.8058(5)0.0528(19)
H30.1290(18)0.4504(7)0.793(3)0.079*
O40.6369(7)0.4033(2)0.6886(5)0.059(2)
H40.714(2)0.4290(6)0.678(3)0.089*
N10.3448(8)0.4570(3)0.6326(5)0.042(2)
N20.5006(9)0.4835(3)0.8057(5)0.046(2)
C10.2535(10)0.3389(4)0.6036(7)0.046(3)
C20.1987(11)0.2824(4)0.5740(8)0.055(3)
C30.1082(12)0.2742(5)0.4826(9)0.068(4)
H3A0.07000.23700.46560.082*
C40.0687(13)0.3155(5)0.4139(8)0.067(3)
H4A0.00870.30680.34970.081*
C50.1144(11)0.3693(4)0.4367(7)0.055(3)
H50.08550.39860.38900.066*
C60.2061(11)0.3818(4)0.5327(7)0.047(3)
C70.2527(10)0.4398(4)0.5509(7)0.047(3)
H70.21430.46690.50070.056*
C80.4040(13)0.5162(4)0.6401(8)0.065(3)
H80.52370.51600.62000.077*
C90.3093(13)0.5598(4)0.5754(8)0.068(3)
H9A0.18610.55820.58620.082*
H9B0.31900.55100.50310.082*
C100.3759(15)0.6196(4)0.5979(8)0.082(4)
H10A0.48860.62410.57100.098*
H10B0.29510.64700.56240.098*
C110.3950(14)0.6320(5)0.7075(8)0.076(4)
H11A0.27910.63540.73060.091*
H11B0.45240.66910.71830.091*
C120.4940(12)0.5894(4)0.7718(8)0.059(3)
H12A0.48840.59830.84460.071*
H12B0.61600.59020.75820.071*
C130.4196(13)0.5322(4)0.7481(8)0.061(3)
H130.29920.53390.76690.073*
C140.6084(11)0.4878(4)0.8836(7)0.046(3)
H140.64340.52490.90350.055*
C150.6837(11)0.4421(4)0.9455(7)0.049(3)
C160.8172(12)0.4548(4)1.0252(7)0.057(3)
H160.85360.49281.03680.068*
C170.8902(12)0.4133(5)1.0831(7)0.061(3)
H170.97920.42221.13520.073*
C180.8391(13)0.3582(5)1.0688(7)0.061(3)
H180.89290.32971.11140.073*
C190.7129(12)0.3437(4)0.9947(8)0.056(3)
C200.6266(11)0.3857(4)0.9285(7)0.051(3)
C210.1407(12)0.3790(4)0.8608(8)0.081(4)
H21A0.12000.34620.81600.122*
H21B0.03250.39070.88570.122*
H21C0.22370.36890.91870.122*
C220.7154(13)0.3472(4)0.6853(9)0.088(4)
H22A0.63530.32150.64660.132*
H22B0.74160.33290.75470.132*
H22C0.82170.34980.65240.132*
Cl10.0864(3)0.51218(12)0.2974(2)0.0641(8)

Source of material

All hydrogen atoms were placed in calculated positions using a riding model. Methyl C—H bonds were fixed at 0.97 Å, with Uiso(H) set to 1.2Ueq(C), and were allowed to spin about the C—C bond. Aromatic C—H distances were set to 0.93 Å and their Uiso set to 1.2 times the Ueq of the parent atom.

Experimental details

All commercially available reagents were used as supplied. A mixture of 3-bromo-2-hydroxybenzaldehyde (0.094 mmol) and (+−)-1.2-cyclohexanediamin (0.047 mmol) was dissolved in 30 mL of methanol and stirred for 30 min at room temperature, then 0.1 g cobalt nitrate hexahydrate was added and afforded a orange solution. After this, the purple suspension was stirred at 60 °C for 3 h and filtrated. The purple crystals of the title compound slowly appears after 2 weeks.

Discussion

Cobalt-based complexes are of interest because of their special biological and catalytic activities [5], [6], [7], [8]. In this field, a large number of Schiff-base ligands have been used [9], [10]. However related research about halogenated Schiff base cobalt complexes is still rare [11], [12], [13]. As a part of our current interest in Schiff base complexes, we report here a new Co(III) compound.

The title compound crystallizes in the monoclinic space group P21/c. Thus the unit cell contains the two racemic cationic monomer complexes [Co((+)-3-brsalcy)(CH3OH)2] and [Co((-)-3-brsalcy)(CH3OH)2]. The central CoIII is chelated by the tetradentate Schiff-base ligand via N2O2 in the equatorial plane and two oxygen atoms at the axial sites from methanol ligands. The bond lengths of Co—O(N) are in the range of 1.860(6)−1.948(5) Å and bond angles of O(N)—Co—O vary from 86.0(3) to 179.5(3)°. In addition, a chloride anion act as counterions, by which the cationic monomers are linked by classical hydrogen bonds: [O3—H3⋯Cl1′(′ = −1 + x, y, z): 2.961(6) Å, O4—H4⋯Cl1 Å: 2.941(7) Å].

Acknowledgements

This work was supported by Fund for National Nature Science Foundation of China (No. 31760257); Joint Research Projects of Yunnan province of Local of institutions (partial) of higher education (2017FH001–002).

References

1. Agilent Technologies: CrysAlisPRO Software system, version 1.171.38.41, Agilent Technologies UK Ltd, Oxford, UK (2015).Suche in Google Scholar

2. Sheldrick, G. M.: Crystal structure refinementwith SHELXL. Acta. Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Suche in Google Scholar PubMed PubMed Central

3. Dolomanov, O. V.; Bourhis, L. J.; Gildea, R. J.; Howard, J. A. K.; Puschmann, H.: OLEX2: a complete structure solution, refinementand analysis program. J. Appl. Crystallogr. 42 (2009) 339–341.10.1107/S0021889808042726Suche in Google Scholar

4. Brandenburg, K.: DIAMOND. Visual Crystal Structure Information System. Version 3.2i. Crystal Impact, Bonn, Germany (2012).Suche in Google Scholar

5. Alshehri, S. M.; Ahamad, T.; Aldalbahi, A.; Alhokbany, N.: Pyridylimine cobalt(II) and nickel(II) complex functionalized multiwalled carbon nanotubes and their catalytic activities for ethylene oligomerization. Adv. Polym. Tech. 35 (2016). https://onlinelibrary.wiley.com/doi/full/10.1002/adv.2213710.1002/adv.21528Suche in Google Scholar

6. Bhoware, S. S.; Singh, A. P.: Characterization and catalytic activity of cobalt containing MCM-41 prepared by direct hydrothermal, grafting and immobilization methods. J. Mol. Catal. A: Chem. 266 (2007) 118–130.10.1016/j.molcata.2006.09.031Suche in Google Scholar

7. Khan, S. A.; Khan, S. B.; Asiri, A. M.: Electro-catalyst based on cerium doped cobalt oxide for oxygen evolution reaction in electrochemical water splitting. J. Mate. Sci. Mater. El 27 (2016) 1–9.10.1007/s10854-016-4427-3Suche in Google Scholar

8. Wang, T.; Su, P.; Lin, F.; Yang, Y.; Yang, Y.: Self-sacrificial template synthesis of mixed-valence-state cobalt nanomaterials with high catalytic activities for colorimetric detection of glutathione. Sensor. Actuat. B. Chem. 254 (2017) 329–336.10.1016/j.snb.2017.07.104Suche in Google Scholar

9. Dai, C. H.; Mao, F. L.: Synthesis, structures, and antibacterial activity of Schiff-base cobalt(III) complexes. Russ. J. Coord. Chem. 40 (2014) 120–124.10.1134/S107032841402002XSuche in Google Scholar

10. Wang, N.; Pu, Y. L.: Crystal structure of bis(4-bromo-2-((3-methylaminopropylimino)-methyl)phenolato)cobalt(II) dinitrate, [Co(C11H15BrN2O)2][NO3]2. Z. Kristallogr. NCS 221 (2006) 523–524.10.1524/ncrs.2006.221.14.523Suche in Google Scholar

11. Ghosh, K.; Harms, K.; Bauzá, A.; Frontera, A.; Chattopadhyay, S.: Heteronuclear cobalt(iii)/sodium complexes with salen type compartmental Schiff base ligands: methylene spacer regulated variation in nuclearity. Dalton. Trans. 47 (2018) 331.10.1039/C7DT03929HSuche in Google Scholar PubMed

12. Abu-Surrah, A. S.; Abdel-Halim, H. M.; Abu-Shehab, H. A. N.; Al-Ramahi, E.: Iron and cobalt salicylaldimine complexes as catalysts for epoxide and carbon dioxide coupling: effects of substituents on catalytic activity. Transit. Metal. Chem. 42 (2016) 1–6.10.1007/s11243-016-0113-9Suche in Google Scholar

13. Miao, J.; Xue, J.; Zhu, J.; Liu, K.: CO2 capture and conversion using a cobalt(III) schiff base complex as a catalyst at ambient conditions. EPD Congress 2015. 130 (2015) 117–124.10.1007/978-3-319-48214-9_14Suche in Google Scholar

Received: 2018-08-15
Accepted: 2018-10-09
Published Online: 2018-10-25
Published in Print: 2019-03-26

©2019 Qiong Wu et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 Public License.
