The crystal structure of N,N-diethyl-4,6-bis(naphthalen-2-yloxy)-1,3,5-triazin-2-amine, C27H24N4O2

  • Zhenyu Zuo EMAIL logo , Fuhou Lei , Xiao Song und Lu Wang
Veröffentlicht/Copyright: 31. August 2018
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 233 Heft 6

Abstract

C27H24N4O2 monoclinic, P21/c (no. 14), a = 5.8073(2) Å, b = 31.2564(9) Å, c = 24.8105(8) Å, β = 90.13°, V = 4503.5(2) Å3, Z = 8, Rgt(F) = 0.0644, wRref(F2) = 0.1854, T = 150(2) K.

CCDC no.: 1816720

Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Block
Size:0.19 × 0.18 × 0.17 mm
Wavelength:Cu Kα radiation (1.54184 Å)
μ:0.67 mm−1
Diffractometer, scan mode:Bruker, φ and ω-scans
θmax, completeness:66°, >99%
N(hkl)measured, N(hkl)unique, Rint:13522, 6998, 0.058
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 5443
N(param)refined:604
Programs:Bruker programs [1], SHELX [2], Olex2 [3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
N11.0425(5)0.11384(9)0.24328(13)0.0351(7)
N21.1338(5)0.04868(8)0.28875(12)0.0315(6)
N30.9303(5)0.04699(9)0.20495(12)0.0324(6)
N41.0215(5)−0.01517(9)0.25004(13)0.0389(8)
N50.5394(5)0.36321(9)0.19920(13)0.0341(7)
N60.4232(5)0.29812(8)0.24128(12)0.0317(6)
N70.6241(5)0.29671(8)0.15714(12)0.0319(6)
N80.5073(6)0.23435(9)0.19873(13)0.0390(8)
O11.2335(5)0.11476(8)0.32150(11)0.0403(6)
O20.8532(5)0.11169(7)0.16529(11)0.0406(6)
O30.3489(5)0.36429(7)0.27750(11)0.0394(6)
O40.7292(5)0.36153(8)0.12125(11)0.0399(6)
C11.5751(6)0.07623(12)0.34842(16)0.0366(8)
H11.62640.07610.31210.044*
C21.7076(6)0.05881(11)0.38842(16)0.0364(8)
H21.85220.04640.37980.044*
C31.6317(6)0.05909(11)0.44264(16)0.0334(8)
C41.7662(7)0.04089(12)0.48427(17)0.0406(9)
H41.91080.02830.47610.049*
C51.6897(8)0.04135(14)0.5358(2)0.0532(12)
H51.78090.02870.56340.064*
C61.4750(8)0.06052(13)0.54948(18)0.0469(10)
H61.42520.06100.58590.056*
C71.3397(7)0.07839(12)0.50970(17)0.0417(9)
H71.19560.09090.51860.050*
C81.4162(6)0.07808(10)0.45559(16)0.0322(8)
C91.2810(6)0.09590(10)0.41331(15)0.0324(8)
H91.13640.10880.42080.039*
C101.3619(6)0.09421(11)0.36213(15)0.0315(8)
C111.1321(6)0.09058(10)0.28290(15)0.0320(8)
C120.9434(6)0.08907(10)0.20643(15)0.0315(7)
C130.7102(6)0.09100(11)0.12761(16)0.0347(8)
C140.7709(6)0.09341(11)0.07486(16)0.0344(8)
H140.91320.10600.06470.041*
C150.6197(7)0.07690(11)0.03513(16)0.0357(9)
C160.6779(8)0.07841(13)−0.02049(17)0.0462(10)
H160.81790.0912−0.03190.055*
C170.5286(10)0.06103(14)−0.0574(2)0.0587(13)
H170.56720.0617−0.09450.070*
C180.3182(10)0.04211(14)−0.0413(2)0.0601(14)
H180.21790.0303−0.06760.072*
C190.2588(8)0.04078(13)0.01185(19)0.0498(11)
H190.11690.02820.02240.060*
C200.3554(7)0.05669(12)0.10643(18)0.0431(9)
H200.21370.04430.11750.052*
C210.4092(7)0.05827(12)0.05161(17)0.0385(9)
C220.5038(7)0.07274(12)0.14474(17)0.0392(9)
H220.46650.07140.18200.047*
C231.0287(6)0.02736(11)0.24803(14)0.0304(8)
C241.1161(8)−0.03971(12)0.29590(18)0.0467(10)
H24A1.1979−0.06520.28190.056*
H24B1.2300−0.02170.31520.056*
C250.9380(10)−0.05380(15)0.3344(2)0.0658(14)
H25A0.8307−0.07330.31620.099*
H25B0.8536−0.02880.34780.099*
H25C1.0113−0.06860.36470.099*
C26a0.9123(8)−0.04028(13)0.20664(19)0.0478(10)
H26Aa0.8312−0.06500.22270.057*
H26Ba0.7960−0.02230.18820.057*
H26Ca0.9740−0.03100.17140.057*
H26Da0.9500−0.07090.21140.057*
C27a1.076(2)−0.0557(3)0.1673(4)0.0594(18)
H27Aa1.1447−0.03130.14840.089*
H27Ba0.9969−0.07410.14120.089*
H27Ca1.1972−0.07200.18560.089*
C27A0.6726(18)−0.0350(3)0.2070(4)0.0594(18)
H27Da0.6130−0.04180.24290.089*
H27Ea0.6026−0.05420.18040.089*
H27Fa0.6346−0.00530.19790.089*
C280.2088(6)0.34473(11)0.31667(16)0.0351(8)
C290.2708(6)0.34842(11)0.36882(16)0.0361(8)
H290.41300.36160.37810.043*
C300.1234(7)0.33262(11)0.41012(16)0.0334(8)
C310.1821(7)0.33443(12)0.46515(16)0.0403(9)
H310.32290.34730.47590.048*
C320.0373(8)0.31770(13)0.50331(18)0.0502(12)
H320.07830.31920.54030.060*
C33−0.1677(8)0.29871(13)0.48833(19)0.0485(11)
H33−0.26590.28690.51510.058*
C34−0.2295(7)0.29683(12)0.43564(19)0.0450(10)
H34−0.37160.28380.42600.054*
C35−0.0875(6)0.31378(11)0.39474(16)0.0355(9)
C36−0.1483(7)0.31129(12)0.33946(16)0.0379(8)
H36−0.29070.29870.32920.046*
C37−0.0035(6)0.32677(12)0.30109(16)0.0371(8)
H37−0.04530.32550.26410.045*
C380.4394(6)0.33986(10)0.23771(15)0.0309(7)
C390.6280(6)0.33865(11)0.16087(15)0.0312(7)
C400.8579(6)0.33952(10)0.08214(15)0.0315(8)
C411.0685(6)0.32137(11)0.09718(16)0.0367(9)
H411.11690.32160.13380.044*
C421.2034(6)0.30331(11)0.05835(16)0.0359(8)
H421.34640.29080.06840.043*
C431.1358(6)0.30275(11)0.00397(16)0.0325(8)
C441.2720(7)0.28453(11)−0.03711(17)0.0411(9)
H441.41570.2718−0.02810.049*
C451.2006(7)0.28486(13)−0.08966(18)0.0481(10)
H451.29470.2723−0.11660.058*
C460.9911(8)0.30346(13)−0.10412(18)0.0484(11)
H460.94250.3034−0.14070.058*
C470.8562(6)0.32180(12)−0.06549(16)0.0376(8)
H470.71480.3349−0.07560.045*
C480.9234(6)0.32168(10)−0.01065(15)0.0315(8)
C490.7856(6)0.34034(11)0.03025(15)0.0321(8)
H490.64280.35340.02120.039*
C500.5183(6)0.27707(10)0.19906(15)0.0307(8)
C510.4014(7)0.21090(12)0.24350(18)0.0448(10)
H51A0.32430.18490.22960.054*
H51B0.28380.22910.26100.054*
C520.5881(9)0.19825(14)0.2850(2)0.0581(12)
H52A0.70560.18070.26740.087*
H52B0.51720.18190.31430.087*
H52C0.65970.22410.29970.087*
C530.6119(8)0.20937(12)0.15564(18)0.0483(10)
H53A0.70010.18520.17110.058*
H53B0.71940.22750.13480.058*
C540.4187(12)0.19216(17)0.1181(2)0.0810(18)
H54A0.48610.17330.09080.122*
H54B0.34170.21620.10020.122*
H54C0.30630.17610.13950.122*

  1. aOccupancy: 0.5.

Source of material

To the solution of cyanuric chloride (3.69 g, 0.02 mol) and 2-naphthol (5.77 g, 0.04 mol) in tetrahydrofuran (50 mL) was added K2CO3 (5.52 g, 0.04 mol). The mixture was stirred at room temperature for 6 h and filtered. The filtrate was evaporated under reduced pressure to get a yellow solid, which was purified by silica gel to afford the intermediate product 2-chloro-4,6-bi(2-naphthoxyl)-1,3,5-triazine (4.90 g, yield 72%). To the solution of 2-chloro-4,6-bi(2-naphthoxyl)-1,3,5-triazine (2.00 g, 0.005 mol) in tetrahydrofuran (30 mL) was added HN(C2H5)2 (0.439 g, 0.006 mol) at room temperature. After the mixture was stirred for 2 h, the solvent was evaporated under reduced pressure to get a white solid, which was recrystallized with petroleum ether to afford the title compound (1.88 g, yield 86%) 1H NMR: 7.86–7.76 ppm (m, 6H), 7.65 ppm (s, 2H), 7.48 ppm (dd, J = 3.6 HZ, J = 4.8 HZ, 4H), 7.36 ppm (d, J = 8.8 HZ, 2H) 3.45 ppm (q, J = 6.8 HZ, 4H), 1.08 ppm (t, J = 6.8 HZ, 6H). Crystals were obtained by recrystallization with petroleum ether at room temperature.

Experimental details

The data were scaled and corrected for absorption using SADABS-2016/2 [1]. The hydrogen atoms were placed at calculated positions and refined as riding atoms with fixed isotropic displacement parameters. There is a 1/1 disorder at one of the ethyl groups (cf. table 2)

Discussion

Azo compounds containing a heterocyclic moiety were widely used in material field (such as molecular memory storages, nonlinear optical elements, printing system), pharmacy, agriculture, chemical industry and so on. As one of the most important class of azo compounds, s-triazines and its new derivative have drawn more and more attention of scientists from all over the world due to its diverse pharmacological activity [4] (such as antitumor [5], anti-inflammatory), biological activities (such as antibacteria [6], [7], antimycotic, herbicidal, insecticidal activities), high catalyst activity, abundant optoelectronic properties [8] and so on. In this paper, a new s-triazines derivative was synthesized by substitution reactions using 2,4,6-trichloro-1,3,5-triazine as starting material. Its structure was characterized by 1H NMR and X-ray single crystal diffraction.

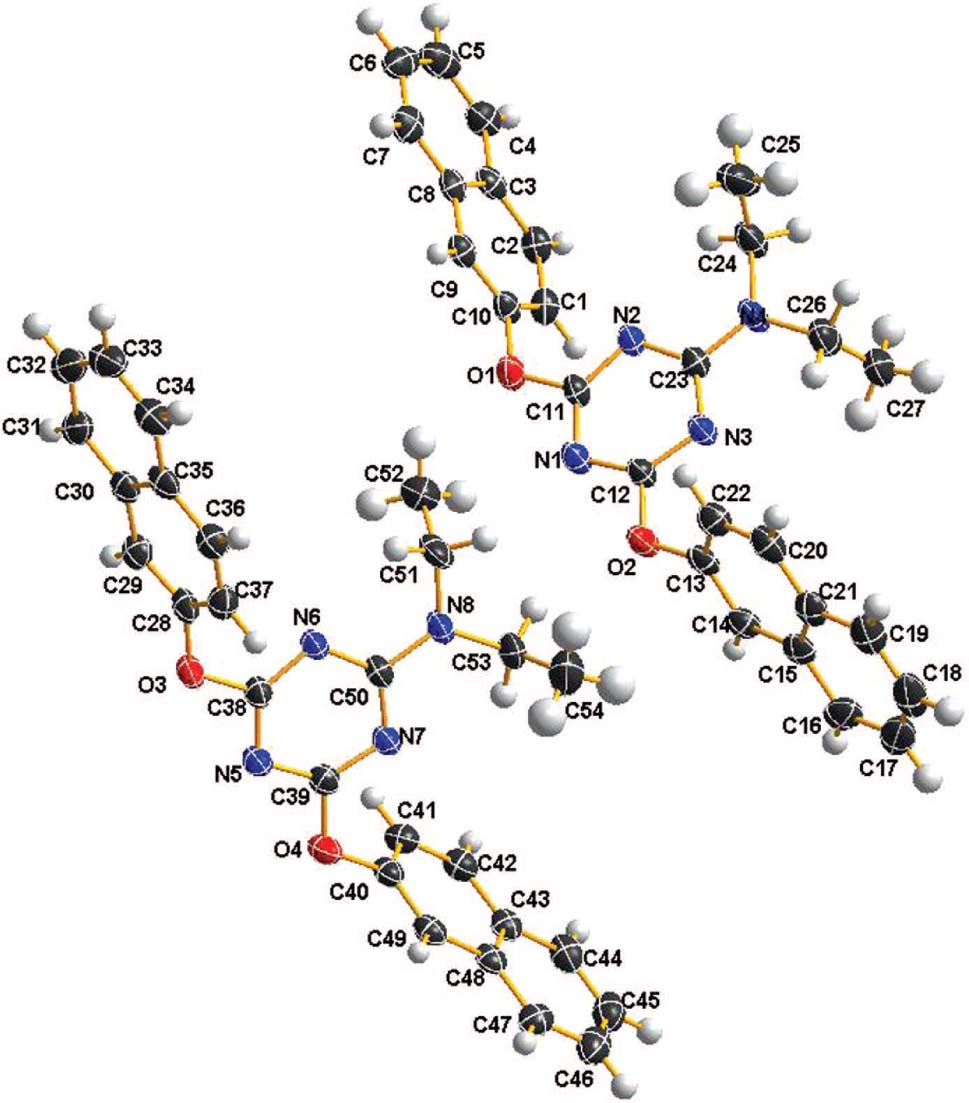

There are two cystallographically independent molecules (cf. the figure) in the asymmetric unit, in which all bond lengths are in normal ranges. The geometric parameters of both crystallographically independent molecules are similar and are in accord with another symmetrically substituted triazine [9]. In molecular packing diagram, there are obvious π-π stacking interactions between the adjacent naphthalenyl moieties. The distance between adjacent naphthalenyl moieties is less than 3.585 Å, which is within normal range [10]. No classic hydrogen bonds were observed as following: C51—H51B⋯N6 hydrogen bond (d(H51B⋯N6) = 2.36 Å), C53—H53A⋯O2 hydrogen bond (d(H53A⋯O2) = 2.47 Å) and C53—H53B⋯N7 hydrogen bond (d(H53B⋯N7) = 2.30 Å).

Acknowledgements

We acknowledge the supports by Key project of Shaanxi Provincial Education Department (17JS029), Natural Science Basic Research Program of Shaanxi (2017JM8070). China Postdoctoral Science Foundation funded project (2016M602994).

References

Bruker. APEX2, SAINT and SADABS. Bruker AXS Inc., Madison, Wisconsin, USA (2012).Suche in Google Scholar

Sheldrick, G. M.: Crystal structure refinement with ShelXL. Acta Crystallogr. C27 (2015) 3–8.10.1107/S2053229614024218Suche in Google Scholar PubMed PubMed Central

Dolomanov, O. V.; Bourhis, L. J.; Gildea, R. J.; Howard, J. A. K.; Puschmann, H.: Olex2: a complete structure solution, refinement and analysis program. J. Appl. Cryst. 42 (2009) 339–341.10.1107/S0021889808042726Suche in Google Scholar

Huang, W.; Zheng, W.; Urbanb, D. J.; Inglesea, J.; Sidransky, E.; Austina, C. P.; Thomas, C. J.: Bioorg. Med. Chem. Lett. 17 (2007) 5783–5789.10.1016/j.bmcl.2007.08.050Suche in Google Scholar PubMed PubMed Central

Shiva, K.-M.; Claire, B.; Daniel, S.; Christian, G.: Synthesis and cytotoxicity evaluation of aryl triazolic derivatives and their hydroxymethine homologues against B16 melanoma cell line. Eur. J. Med. Chem. 122 (2016) 436–441.10.1016/j.ejmech.2016.06.057Suche in Google Scholar PubMed

Zhao, H.; Liu, Y.; Cui, Z.; Beattie, D.; Gu, Y.; Wang, Q.: Design, synthesis, and biological activities of arylmethylamine substituted chlorotriazine and methylthiotriazine compounds. J. Agr. Food Chem. 59 (2011) 11711–11717.10.1021/jf203383sSuche in Google Scholar PubMed

Pate, R. V.; Park, S. W.: Access to a new class of biologically active quinoline based 1,2,4-triazoles. Eur. J. Med. Chem. 71 (2014) 24–30.10.1016/j.ejmech.2013.10.059Suche in Google Scholar PubMed

Kima, S. H.; Debnatha, D.; Geckeler, K. E.: Nanopumpkins and a sunscreen agent: the inclusion complex of cucurbituril and Tinosorb S. SupramolChem. 23 (2011) 337–341.10.1080/10610278.2010.514609Suche in Google Scholar

Zuo, Z.; Lei, F.; Dai, Y.; Wang, L.: The crystal structure of 2-phenyl-4,6-bis(R-tert-butylsulfonamido)-1,3,5-triazine – ethyl acetate (2/1), C38H58N10O6S4. Z. Kristallogr. NCS 233 (2018) 555–557.10.1515/ncrs-2017-0292Suche in Google Scholar

Deng, L.; Liu, H.; Li, S.: Crystal structure of 4-(chloromethyl)-3-nitrobenzoic acid, C8H6ClNO4. Z. Kristallogr. NCS 232 (2017) 647–648.10.1515/ncrs-2016-0389Suche in Google Scholar

Received: 2018-06-14
Accepted: 2018-08-09
Published Online: 2018-08-31
Published in Print: 2018-11-27
