Abstract

C18H12N4O8Zn, monoclinic, P21/n (no. 14), a = 9.5472(6) Å, b = 21.1662(10) Å, c = 9.6909(6) Å, β = 110.525(7)°, V = 1834.0(2) Å3, Z = 4, Rgt(F) = 0.0371, wRref(F2) = 0.0809, T = 291.2(3) K.

CCDC no.: 1838164

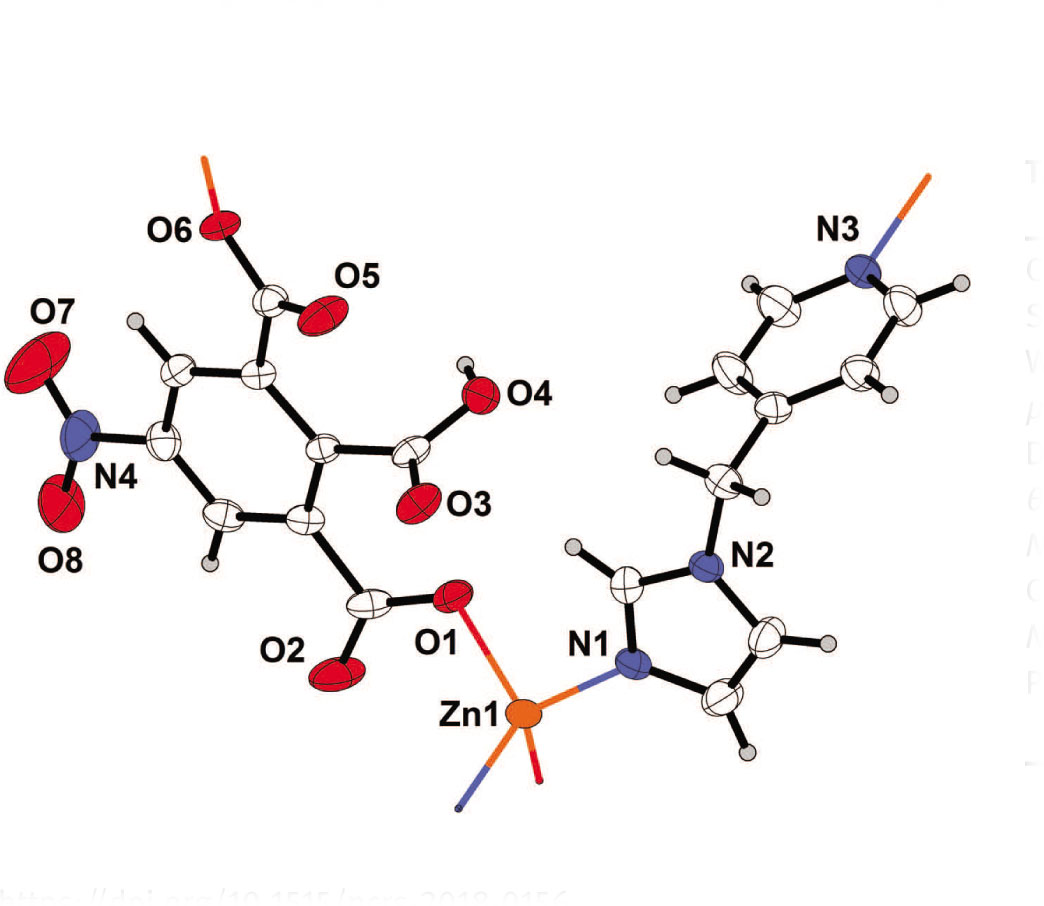

The crystal structure is shown in the figure. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colorless block
Size:0.32 × 0.28 × 0.21 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:1.40 mm−1
Diffractometer, scan mode:SuperNova, φ and ω-scans
θmax, completeness:25°, >99%
N(hkl)measured, N(hkl)unique, Rint:9731, 3218, 0.028
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 2868
N(param)refined:281
Programs:CrysAlisPRO [1], SHELX [2, 3] , OLEX2 [4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Zn10.35765(4)0.59229(2)0.62976(4)0.02586(12)
O10.3705(2)0.55468(10)0.4510(2)0.0358(5)
O20.1724(3)0.49616(12)0.4314(3)0.0580(7)
O30.3570(2)0.64236(9)0.2231(2)0.0374(5)
O40.5573(2)0.58564(9)0.2528(2)0.0346(5)
H40.57730.54930.23700.052*
O50.3879(3)0.61246(10)−0.0691(2)0.0454(6)
O60.3546(2)0.53056(9)−0.2195(2)0.0290(5)
O70.0709(5)0.35134(18)−0.1497(4)0.1197(16)
O8−0.0079(3)0.34853(14)0.0300(3)0.0704(9)
N10.5235(3)0.65433(12)0.6663(3)0.0309(6)
N20.6750(3)0.71635(11)0.6043(3)0.0275(5)
N31.1663(3)0.64316(11)0.5877(3)0.0282(5)
N40.0620(4)0.37272(15)−0.0377(4)0.0547(8)
C10.2644(4)0.51812(14)0.3822(3)0.0321(7)
C20.2502(3)0.50062(13)0.2260(3)0.0271(6)
C30.1636(3)0.44850(14)0.1630(3)0.0324(7)
H30.11650.42560.21620.039*
C40.1474(3)0.43068(14)0.0229(3)0.0337(7)
C50.2096(3)0.46461(14)−0.0626(3)0.0317(7)
H50.19510.4520−0.15860.038*
C60.2941(3)0.51778(13)−0.0033(3)0.0246(6)
C70.3518(3)0.55754(14)−0.1008(3)0.0274(6)
C80.3169(3)0.53560(12)0.1429(3)0.0229(6)
C90.4109(3)0.59256(13)0.2089(3)0.0267(6)
C100.5695(3)0.67202(15)0.5597(3)0.0348(7)
H100.53300.65560.46470.042*
C110.6045(4)0.68971(15)0.7860(4)0.0407(8)
H110.59650.68770.87880.049*
C120.6974(4)0.72790(15)0.7476(3)0.0395(8)
H120.76440.75680.80830.047*
C130.7555(3)0.74302(14)0.5143(3)0.0313(7)
H13A0.77580.78740.53840.038*
H13B0.69360.74000.41100.038*
C140.9005(3)0.70865(13)0.5402(3)0.0284(7)
C151.0360(3)0.73869(14)0.5923(3)0.0329(7)
H151.04040.78170.61250.040*
C161.1654(3)0.70527(14)0.6149(4)0.0378(8)
H161.25620.72660.65040.045*
C171.0338(4)0.61408(15)0.5379(4)0.0423(8)
H171.03170.57090.51940.051*
C180.9009(4)0.64492(15)0.5127(4)0.0427(8)
H180.81120.62280.47710.051*

Source of material

A mixture of Zn(OAc)2 ⋅ 2H2O (22.0 mg, 0.1 mmol), 1,2,3-benzenetricarboxylic acid (25.5 mg, 0.1 mmol), N-(4-pyridylmethyl)imidazole (15.9 mg, 0.1 mmol) and 6 mL distilled water in a 25 mL Teflon-lined autoclave was kept under autogenous pressure at 413 K for 5 days. After cooling to room temperature at a rate of 5 K h−1, colourless block crystals were collected by filtration and washed with distilled water in 27% yield. Elemental analysis calc: C 45.26%, H 2.53%, N 11.73%.

Experimental details

Hydrogen atoms were placed in their geometrically idealized positions and constrained to ride on their parent atoms.

Discussion

For decades, coordination polymers have been investigated due to their intriguing topological variety and potential applications [5], [6], [7]. In general, the structures of coordination polymers are totally dependent on organic ligands with different binding sites, metal ions with various coordination abilities, and reaction conditions such as temperature, pH, solvent, and reaction time. Multicarboxylic acids and the deprotonated products are employed to construct many coordination polymers with interesting structures. From a structural point of view, the anions of the 5-nitro-1,2,3-benzenetricarboxylic acid (H3nbta) may act as good ligands bearing up to three carboxylate groups and non-coordinating electron-withdrawing nitro-group on the aromatic backbone [8]. In addition, the flexible 4-((1H-imidazol-1-yl)methyl)pyridine (pyim) ligand possesses flexibility owing to the presence of a –CH2– spacer between the pyridyl ring and imidazole moiety, which makes it a useful bridge to construct coordination polymers [9].

In this work, we report a two-dimensional coordination polymer constructed from central Zn(II) ions, dianionic Hnbta and pyim ligands. The title compound, C18H12N4O8Zn, was prepared under hydrothermal condition. The asymmetric unit of the crystal structure consists of one Zn(II) ion, one Hnbta2− anion and one pyim ligand. Each Zn(II) ion is four-coordinated with distorted tetrahedral geometry and defined by two carboxylate oxygen atoms from two Hnbta anionic ligands (Zn–O bond lengths are 1.949(2), and 1.9675(19) Å) and two N-atoms donor from two pyim ligands (Zn–N bond lengths are 1.991(2), and 2.035(2) Å). Both Zn–O and Zn–N bond lengths are well-matched to those in similar complexes [10], [11]. The 1- and 3-positions in the Hnbta ligand are deprotonated and coordinated to two Zn(II), while the 2-position is still protonated. The Hnbta anions link the Zn(II) ions into a one-dimensional chain structure, and the pyim ligands further connect adjacent chanis to generate a two-dimensional layer.

Acknowledgements

We thank the Natural Science Foundation of Henan Province (No. 172102210410) for the financial support.

References

Agilent Technologies: CrysAlisPRO Software system, version 1.171.38.41r, Agilent Technologies UK Ltd, Oxford, UK (2015).Search in Google Scholar

Sheldrick, G. M.: SHELXT-integrated space-group and Crystal Structure determination. Acta Crystallogr. A71 (2015) 3–8.10.1107/S2053273314026370Search in Google Scholar PubMed PubMed Central

Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Search in Google Scholar PubMed PubMed Central

Dolomanov, O. V.; Bourhis, L. J.; Gildea, R. J.; Howard, J. A. K.; Puschmann, H.: OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 42 (2009) 339–341.10.1107/S0021889808042726Search in Google Scholar

Carlucci, L.; Ciani, G.; Proserpio, D. M.; Mitina, T. G.; Blatov, V. A.: Entangled two-dimensional coordination networks: a general survey. Chem. Rev. 114 (2014) 7557–7580.10.1021/cr500150mSearch in Google Scholar PubMed

Kreno, L. E.; Leong, K.; Farha, O. K.; Allendorf, M.; Van Duyne, R. P.; Hupp, J. T.: Metal–organic framework materials as chemical sensors. Chem. Rev. 112 (2012) 1105–1125.10.1021/cr200324tSearch in Google Scholar PubMed

Li, Z.; He, S.; Xue, L.; Wang, X.; Zhang, D.; Zhao, B.: Exploring methyl-3-hydroxy-5-carboxy-2-thiophenecarboxylate and varying flexible bis(imidazole)-based synthons as building blocks for the construction of diverse cadmium coordination polymers. Dyes Pigments 149 (2018) 498–504.10.1016/j.dyepig.2017.10.036Search in Google Scholar

Zhu, X.; Wang, N.; Luo, Y.; Pang, Y.; Tian, D.; Zhang, H.: Three novel polymeric CoII/CuII complexes assembled from 5-Nitro-1,2,3-benzenetricarboxylate and 4,4′-bipyridine: syntheses, crystal Structures, and magnetic properties. Aust. J. Chem. 64 (2011) 1346–1354.10.1071/CH10431Search in Google Scholar

Liu, Z.; Liu, P.; Chen, Y.; Wang, J.; Huang, M.: Synthesis and characterization of infinite coordination networks from a hybrid ligand N-(4-pyridylmethyl)imidazole. Inorg. Chem. Commun. 8 (2005) 212–215.10.1016/j.inoche.2004.12.001Search in Google Scholar

Xue, L.; Chang, X.; Ma, L.; Wang, L.: Four d10 metal coordination polymers based on bis(2-methyl imidazole) spacers: syntheses, interpenetrating structures and photoluminescence properties. RSC Adv. 4 (2014) 60883–60890.10.1039/C4RA10331ASearch in Google Scholar

Gu, T.; Dai, M.; Young, D. J.; Ren, Z.; Lang, J.: Luminescent Zn(II) coordination polymers for highly selective sensing of Cr(III) and Cr(VI) in water. Inorg. Chem. 56 (2017) 4668–4678.10.1021/acs.inorgchem.7b00311Search in Google Scholar PubMed

Received: 2018-04-24
Accepted: 2018-07-26
Published Online: 2018-08-18
Published in Print: 2018-11-27
