Crystal structure of 1,3-dimethyl-2-(p-tolyl)-1H-perimidin-3-ium iodide 1.5 hydrate, C20H22IN2O1.5

  • Lin Yuan , Zhong-Yan Li EMAIL logo , Xian-You Yuan und Min Zhang
Veröffentlicht/Copyright: 8. August 2018
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 233 Heft 6

Abstract

C20H22IN2O1.5, monoclinic, C2/c (no. 15), a = 38.828(4) Å, b = 9.5689(9) Å, c = 26.186(2) Å, β = 127.719(1)°, Z = 8, V = 7696.0(12) Å3, Rgt(F) = 0.0379, wRref(F2) = 0.1058, T = 296(2) K.

CCDC no.: 1472982

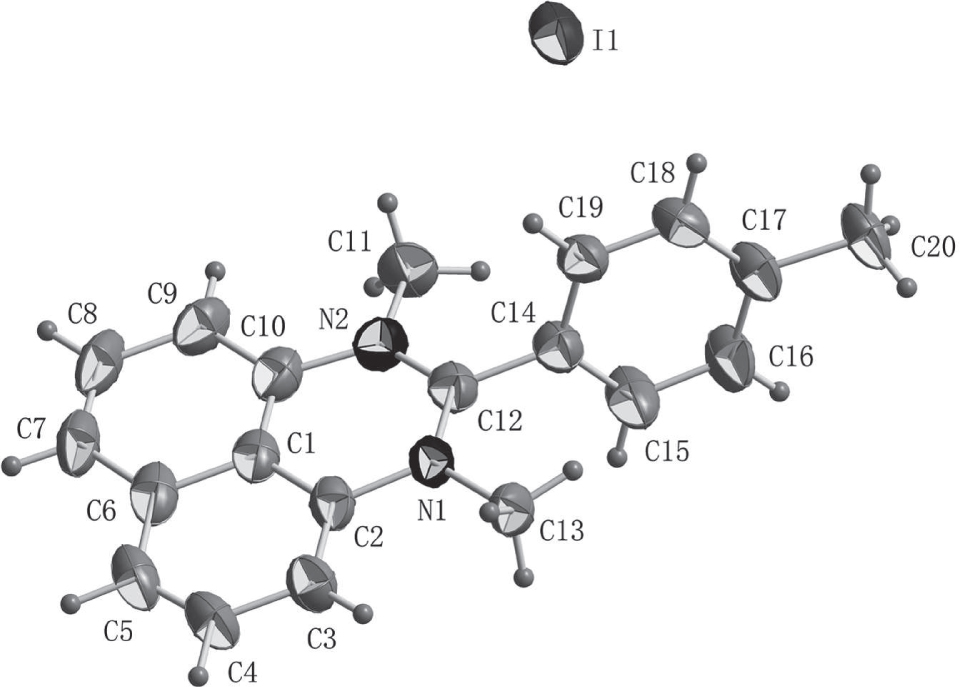

The crystal structure is shown in the figure. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Block, colorless
Wavelength:Mo Kα radiation (0.71073 Å)
μ:1.68 mm−1
Diffractometer, scan mode:Bruker APEX-II, φ and ω-scans
θmax, completeness:25°, >99%
N(hkl)measured, N(hkl)unique, Rint:35774, 6781, 0.018
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 5614
N(param)refined:448
Programs:Bruker programs [1], SHELX [2, 3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
I2−0.079488(9)0.98965(3)0.020967(15)0.07124(12)
I10.164420(10)0.36573(4)0.309302(15)0.07974(13)
O2−0.03783(19)0.2095(5)0.1576(2)0.1342(17)
H2A−0.01360.20910.19530.201*
H2B−0.03630.15590.13320.201*
N10.01707(9)0.7558(3)0.07866(14)0.0492(7)
N2−0.02088(11)0.6172(4)0.10198(16)0.0590(8)
N3−0.18228(9)0.8937(3)−0.15015(14)0.0463(7)
C5−0.06228(15)0.6206(6)−0.1137(2)0.0773(14)
H5−0.07980.5913−0.15660.093*
C6−0.06783(12)0.5627(5)−0.0705(2)0.0662(12)
C1−0.04127(11)0.6118(4)−0.00493(18)0.0519(9)
C2−0.00965(11)0.7131(4)0.01290(17)0.0509(8)
C120.01034(11)0.7107(4)0.11965(18)0.0515(8)
C140.03907(12)0.7594(4)0.18777(18)0.0542(9)
C150.03324(17)0.8884(6)0.2047(2)0.0874(16)
H150.01070.94630.17370.105*
C160.06129(18)0.9309(6)0.2685(2)0.0947(18)
H160.05681.01690.28010.114*
C170.09582(14)0.8488(5)0.3153(2)0.0687(12)
C200.12821(18)0.9053(8)0.3836(2)0.0993(19)
H20A0.14240.98640.38280.149*
H20B0.14950.83490.41050.149*
H20C0.11310.93020.40060.149*
C130.05114(14)0.8595(5)0.0980(2)0.0667(11)
H13A0.06830.82730.08530.100*
H13B0.06950.87170.14390.100*
H13C0.03780.94710.07720.100*
C11−0.03097(19)0.5807(7)0.1463(3)0.0955(17)
H11A−0.02060.48810.16280.143*
H11B−0.06190.58430.12340.143*
H11C−0.01700.64600.18150.143*
C10−0.04721(12)0.5593(4)0.0390(2)0.0585(10)
C9−0.07704(15)0.4560(5)0.0215(3)0.0837(15)
H9−0.08070.41980.05090.100*
C8−0.10241(15)0.4057(6)−0.0435(3)0.0947(19)
H8−0.12230.3342−0.05590.114*
C7−0.09848(15)0.4576(6)−0.0869(3)0.0870(16)
H7−0.11640.4238−0.12890.104*
C180.10090(14)0.7214(5)0.2975(2)0.0663(11)
H180.12380.66410.32850.080*
C190.07292(14)0.6756(5)0.23470(19)0.0615(10)
H190.07680.58770.22380.074*
C3−0.00445(14)0.7657(5)−0.0302(2)0.0659(11)
H30.01690.8321−0.01740.079*
C4−0.03175(17)0.7183(6)−0.0940(2)0.0821(14)
H4−0.02860.7559−0.12370.099*
C25−0.17093(13)1.2183(5)−0.24712(19)0.0614(10)
H25−0.16881.2895−0.26920.074*
C24−0.15646(14)1.0879(5)−0.2457(2)0.0651(11)
H24−0.14451.0717−0.26690.078*
C23−0.15906(13)0.9769(4)−0.21310(19)0.0570(9)
H23−0.14960.8880−0.21360.068*
C22−0.17574(11)1.0019(4)−0.18056(17)0.0462(8)
C32−0.19358(10)0.9213(4)−0.11245(16)0.0453(8)
C34−0.20099(12)0.8063(4)−0.08252(17)0.0502(8)
C39−0.24237(13)0.7961(5)−0.0990(2)0.0643(11)
H39−0.26340.8627−0.12590.077*
C38−0.25224(15)0.6872(5)−0.0756(2)0.0739(12)
H38−0.28010.6809−0.08710.089*
C37−0.22143(16)0.5866(5)−0.0351(2)0.0670(11)
C40−0.2330(2)0.4671(6)−0.0103(3)0.0951(17)
H40A−0.22950.49640.02770.143*
H40B−0.21420.38920.00000.143*
H40C−0.26270.4399−0.04290.143*
C27−0.20642(12)1.3776(4)−0.21622(19)0.0599(10)
H27−0.20631.4512−0.23930.072*
C26−0.18931(11)1.2466(4)−0.21521(17)0.0521(9)
C33−0.17779(17)0.7502(4)−0.1652(2)0.0686(11)
H33A−0.19180.7425−0.21050.103*
H33B−0.19120.6866−0.15370.103*
H33C−0.14750.7277−0.14110.103*
C35−0.16969(13)0.7085(4)−0.0410(2)0.0604(10)
H35−0.14170.7155−0.02890.072*
C36−0.18009(15)0.6008(5)−0.0176(2)0.0663(11)
H36−0.15870.53620.01060.080*
N4−0.20240(9)1.0517(3)−0.10570(14)0.0473(7)
C31−0.20382(15)1.0908(5)−0.05240(19)0.0626(10)
H31A−0.23341.1090−0.06940.094*
H31B−0.18661.1732−0.03140.094*
H31C−0.19241.0156−0.02180.094*
C30−0.20565(10)1.1629(4)−0.14404(16)0.0454(8)
C21−0.19002(10)1.1365(4)−0.17953(16)0.0446(8)
C29−0.22229(12)1.2903(4)−0.1464(2)0.0565(9)
H29−0.23301.3063−0.12350.068*
C28−0.22303(13)1.3972(4)−0.1839(2)0.0629(11)
H28−0.23521.4832−0.18660.076*
O10.04859(19)0.3069(7)0.2480(3)0.158(2)
H1A0.07580.34220.29170.236*
H1B0.05260.23710.27350.236*
O3−0.1282(3)0.3201(10)0.0871(4)0.251(4)
H3A−0.10820.25970.10110.376*
H3B−0.14440.29600.09730.376*

Source of material

Iodomethane (3.02 g, 0.021 mol) was added dropwise to a solution of 1-methyl-2-(p-tolyl)-1H-perimidine (2.72 g, 0.01 mol) in dimethylformamide (20 mL) at 373 K. The mixture was heated for 8 h, giving a yellow precipitate. After cooling, the yellow solid was filtered, washed with ethanol and dried under vacuum to give the title compound (3.11 g, 75%). Yellow needle crystals were obtained by recrystallization from ethyl acetate.

Experimental details

The methyl groups refined using rigid groups allowed to rotate about the N—C bond (AFIX 137 option of the SHELX program). The Uiso values of the hydrogen atoms of methyl groups were set to 1.5Ueq(C) and the Uiso values of other hydrogen atons were set to 1.2Ueq(C).

Discussion

Perimidines have drawn extensive examinations [4], [5]. There are several preparative methods for the synthesis of perimidine derivatives [6], [7].

There are two cations, two anions and three water molecules in the asymmetric unit. In its structure, the bond angles of N(1)—C(12)—N(2), N(1)—C(12)—C(14) and N(2)—C(12)—C(14) are 121.5(3), 119.7(3) and 118.7(3) in turn, which indicates the sp2 hybridization state of C(12) atom and the new-formed three-membered heterocyclic ring is essentially planar. Geometric parameteres are in accord with those of other compounds of this class reported by us [8].

Acknowledgements

This work was financially supported by the Natural Science Foundation of Hunan Province of China (2017JJ3093).

References

Bruker: APEX3 , SAINT-Plus, XPREP. Bruker AXS Inc., Madison, WI, USA (2016).Suche in Google Scholar

Sheldrick, G. M.: SHELXT − Integrated space-group and crystal-structure determination. Acta Crystallogr. A71 (2015) 3–8.10.1107/S2053273314026370Suche in Google Scholar

Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Suche in Google Scholar

Bu, X.; Deady, L. W.; Finlay, G. J.; Baguley, B. C.; Denny, W. A.: Synthesis and cytotoxic activity of 7-Oxo-7H-dibenz[f,ij] isoquinoline and 7-oxo-7H-benzo[e]perimidine derivatives. J. Med. Chem. 44 (2001) 2004–2014.10.1021/jm010041lSuche in Google Scholar

Hendrickson, J. B.; Hussoin, M. S.: Seeking the ideal dehydrating reagent. J. Org. Chem. 52 (1987) 4137–4139.10.1021/jo00227a041Suche in Google Scholar

Fu, C. R.; Pei, J.; Ning, Y.; Liu, M.; Shan, P. C.; Liu, J.; Li, Y. Q.; Hu, F. Z.; Zhu, Y. Q.; Yang, H. Z.; Zou, X. M.: Synthesis and insecticidal activities of novel pyrazole oxime ether derivatives with different substituted pyridyl rings. Pest Manag. Sci. 70 (2013) 1207–1214.10.1002/ps.3672Suche in Google Scholar

Vanden, E. J. J.; Delfosse, F.; Mayence, A.; Haverbeke, Y. V.: Old reagents, new results-aromatization of Hantzsch 1,4-dihydropyridines with manganese-dioxide and 2,3-dichloro-5,6-dicyano-1,4-benzoquinone. Tetrahedron 51 (1995) 5813–5818.10.1016/0040-4020(95)00318-3Suche in Google Scholar

Li, Z.-Y.; Zhang, M.; Yuan, X.-Y.; Yuan, L.: Crystal structure of 2-(4-chlorophenyl)-2,3-dihydro-1H-perimidine, C17H13ClN2. Z. Kristallogr. NCS 232 (2018) 263–264.10.1515/ncrs-2017-0261Suche in Google Scholar

Received: 2018-04-16
Accepted: 2018-07-11
Published Online: 2018-08-08
Published in Print: 2018-11-27
