Crystal structure of catena-poly[diaqua-bis(μ2-3,5-di(1H-1,2,4-triazol-1-yl)benzoate-κ2N:N′)cobalt(II))] 2.5 hydrate, C22H23CoN12O8.50

  • Hong-Hong Lan EMAIL logo
Published/Copyright: August 13, 2018
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 233 Issue 6

Abstract

C22H23CoN12O8.50, triclinic, P1̄ (no. 2), a = 9.6549(3) Å, b = 10.6027(4) Å, c = 13.4938(4) Å, α = 100.824(3)°, β = 99.707(3)°, γ = 96.642(3)°, V = 1321.76(8) Å3, Z = 2, Rgt(F) = 0.0366, wRref(F2) = 0.0914, T = 288.03(10) K.

CCDC no.: 1858180

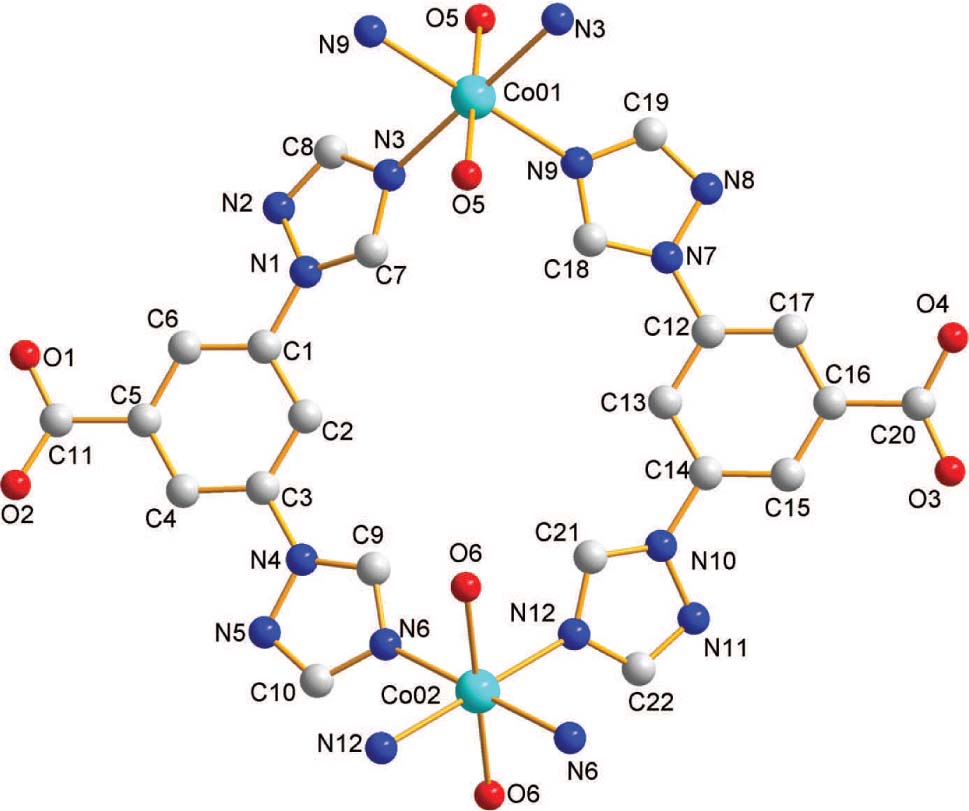

The crystal structure is shown in the figure. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Clear light pink block
Size:0.27 × 0.21 × 0.15 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.73 mm−1
Diffractometer, scan mode:SuperNova, φ and ω
θmax, completeness:25.5°, 99%
N(hkl)measured, N(hkl)unique, Rint:14128, 4844, 0.028
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 4245
N(param)refined:412
Programs:CrysAlisPRO [1], SHELX [2, 3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Co010.50001.00001.00000.01936(12)
Co021.00000.50000.50000.01942(12)
O10.8678(2)0.32659(17)1.20232(13)0.0390(5)
O2a1.0096(6)0.2309(5)1.1044(4)0.0367(9)
O2Ab0.9388(6)0.1854(5)1.0895(4)0.0367(9)
O30.32773(19)0.89171(18)0.22653(13)0.0358(4)
O40.2417(2)1.03115(17)0.33668(13)0.0382(4)
O50.68976(17)1.02834(16)0.94737(12)0.0301(4)
H5A0.74821.09000.98960.045*
H5B0.67491.05660.89150.045*
O61.03655(18)0.67644(15)0.60434(12)0.0308(4)
H6A1.01420.73570.57290.046*
H6B1.12530.69770.62780.046*
O70.0488(3)1.1038(2)0.44923(19)0.0608(6)
H7A−0.02611.04820.43680.091*
H7B0.10821.07410.41470.091*
O80.2284(2)1.23730(19)0.24516(16)0.0502(5)
H8A0.23731.17040.27040.075*
H8B0.14861.22550.20430.075*
N10.6489(2)0.63604(18)1.00752(14)0.0234(4)
N20.5733(2)0.63768(19)1.08453(15)0.0300(5)
N30.5464(2)0.80891(18)1.01085(15)0.0246(4)
N40.8938(2)0.38858(17)0.77082(14)0.0219(4)
N50.9699(2)0.29075(19)0.74506(16)0.0322(5)
N60.9464(2)0.40871(18)0.62279(14)0.0246(4)
N70.3624(2)0.88666(18)0.67502(14)0.0238(4)
N80.2540(2)0.9546(2)0.69348(16)0.0337(5)
N90.3917(2)0.94110(18)0.84193(14)0.0251(4)
N100.5937(2)0.62392(18)0.43906(14)0.0248(4)
N110.5815(2)0.5432(2)0.34465(15)0.0322(5)
N120.7849(2)0.53384(18)0.45077(15)0.0252(4)
C10.7313(2)0.5351(2)0.98384(17)0.0215(5)
C20.7654(2)0.5079(2)0.88717(17)0.0224(5)
H20.73320.55280.83700.027*
C30.8490(2)0.4117(2)0.86740(17)0.0211(5)
C40.8922(2)0.3403(2)0.93998(17)0.0226(5)
H40.94660.27490.92500.027*
C50.8533(2)0.3677(2)1.03540(17)0.0233(5)
C60.7742(2)0.4670(2)1.05818(17)0.0235(5)
H60.75060.48741.12270.028*
C70.6313(3)0.7386(2)0.96515(18)0.0258(5)
H70.67270.75780.91130.031*
C80.5141(3)0.7425(2)1.08300(18)0.0276(5)
H80.45470.76941.12770.033*
C90.8823(3)0.4569(2)0.69663(17)0.0256(5)
H90.83530.52880.69730.031*
C100.9978(3)0.3065(2)0.65592(19)0.0297(6)
H101.04860.25230.61850.036*
C110.9023(3)0.2952(2)1.11814(18)0.0299(6)
C120.3850(2)0.8441(2)0.57319(16)0.0213(5)
C130.4696(2)0.7488(2)0.55503(17)0.0239(5)
H130.50760.70960.60740.029*
C140.4963(2)0.7136(2)0.45687(17)0.0221(5)
C150.4391(2)0.7693(2)0.37761(18)0.0239(5)
H150.45730.74330.31190.029*
C160.3540(2)0.8648(2)0.39733(17)0.0217(5)
C170.3276(2)0.9030(2)0.49574(17)0.0228(5)
H170.27180.96750.50950.027*
C180.4417(2)0.8808(2)0.76462(17)0.0256(5)
H180.52170.83960.77140.031*
C190.2761(3)0.9841(3)0.79417(19)0.0323(6)
H190.21751.03060.83010.039*
C200.3017(2)0.9342(2)0.31297(18)0.0243(5)
C210.7151(2)0.6167(2)0.49999(18)0.0250(5)
H210.74600.66320.56740.030*
C220.6992(3)0.4920(2)0.35664(19)0.0294(5)
H220.72200.43170.30470.035*
O9c0.9241(4)−0.0389(4)1.0463(3)0.0482(10)
H9Ac0.9693−0.07141.00130.072*
H9Bc0.94770.04231.04910.072*

  1. aOccupancy: 0.517(5), bOccupancy: 0.483(5), cOccupancy: 0.5.

Source of material

The title compound was prepared by hydrothermal method. A mixture of Co(OAc)2 ⋅ 4 H2O (0.049 g, 0.2 mmol), 3,5-di(1,2,4-triazole-4)benzenecarboxylic acid (0.0256 g, 0.1 mmol), and H2O (10 mL) was sealed in a 25 mL Teflon-lined stainless steel vessel and heated at 160 °C for 4 days. The reaction mixture was slowly cooled to room temperature at a rate of 5 °C/h, and the red block crystals were collected, washed with water, and dried in air.

Experimental details

The hydrogen atoms were assigned with common isotropic displacement factors Uiso(H) = 1.2 times Ueq (C, aromatic ring), and Uiso(H) = 1.5 times Ueq(O, water). The final refinement by using geometrical restraints, with C—H = 0.93 Å (aromatic ring), and O—H = 0.85 Å (water).

Comment

Coordination polymer (CPs) or organic-inorganic hybrid materials, constructed by inorganic secondary building units and organic bridging ligands has taken wide attention owing to their intriguing structural as well as distinctive properties such as catalytic, luminescence, gas adsorption, and magnetism [4], [5], [6]. It is well known that the structures and properties of the CPs are strongly dependent on the organic ligands and the metal ions [7]. Bifunctional ligands containing carboxylate groups and nitrogen donors have attracted great interests in construction of CPs [8].

The asymmetric unit of the title compound consists of two-half Co(II) ions, two 3,5-di(1,2,4-triazole-4)benzenecarboxylic acid anions (L−), two coordinated water molecules and two and a half lattice water molecules (Figure). The two Co1 centers are both six-coordinated with slightly distorted octahedral geometry. The coordinations are completed by four nitrogen atoms from four different L− anions, and two oxygen atoms from coordinated water molecules. The Co—N bond lengths are in the range of 2.1506(18)–2.1737(18) Å, and the Co—O bond lengths are 2.0840(16) and 2.0728(16) Å, respectively. In the title compound, each L− ligand coordinated to two center Co(II) ions by two nitrogen atoms. Thus adjacent Co(II) ions are connected into 1D chain structure. The carboxyl group of L− did not participate in the coordination.

References

Agilent Technologies: CrysAlisPRO Software System, Agilent Technologies UK Ltd, Oxford, UK (2011).Search in Google Scholar

Sheldrick, G. M.: SHELXS97. Program for the solution of crystal structures. University of Göttingen, Germany (1997).Search in Google Scholar

Sheldrick, G. M.: SHELXTL. Structure determination software suite. Version 5.10. Bruker AXS, Madison, WI, USA (1998).Search in Google Scholar

Janiak, C.: Engineering coordination polymers towards applications. Dalton Trans. 14 (2003) 2781–2804.10.1039/b305705bSearch in Google Scholar

Miao, S. B.; Li, Z. H.; Xu, C. Y.; Ji, B. M.: A new 3-fold interpenetrating 3D Zn(II) metal-organic framework: synthesis, structures and luminescent property. Chin. J. Struct. Chem. 35 (2016) 1960–1966.Search in Google Scholar

Kurmoo, M.: Magnetic metal-organic frameworks. Chem. Soc. Rev. 38 (2009) 1353–1379.10.1039/b804757jSearch in Google Scholar PubMed

Yang, J.; Ma, J. F.; Liu, Y. Y.; Ma, J. C.; Batten, S. R.: A series of Cu(II) complexes based on different bis(imidazole) ligands and organic acids: formation of water clusters and fixation of atmospheric carbon dioxide. Cryst. Growth Des. 8 (2008) 4383–4393.10.1021/cg701119gSearch in Google Scholar

Li, G. P.; Liu, G.; Li, Y. Z.; Hou, L.; Wang, Y. Y.; Zhu, Z. H.: Uncommon pyrazoyl-carboxyl bifunctional ligand-based microporous lanthanide systems: sorption and luminescent sensing properties. Inorg. Chem. 55 (2016) 3952–3959.10.1021/acs.inorgchem.6b00217Search in Google Scholar PubMed

Received: 2018-03-24
Accepted: 2018-07-25
Published Online: 2018-08-13
Published in Print: 2018-11-27

©2018 Hong-Hong Lan, published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 4.0 License.
