Abstract

C98H84Cl6N8O8, triclinic, P1̄ (no. 2), a = 8.3431(3) Å, b = 16.1109(6) Å, c = 18.1405(7) Å, α = 109.242(4)°, β = 95.119(3)°, γ = 103.798(3)°, V = 2197.92(16) Å3, Z = 1, Rgt(F) = 0.0595, wRref(F2) = 0.1689, T = 293(2) K.

CCDC no.: 1841802

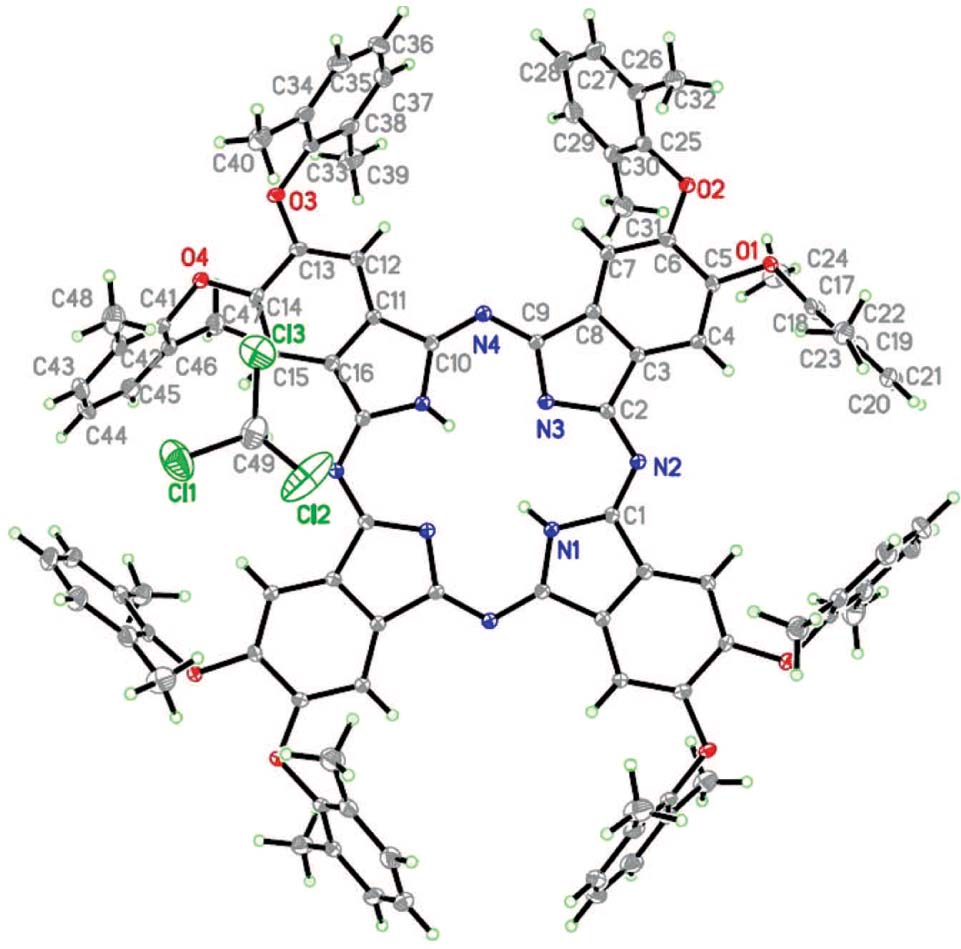

The crystal structure is shown in the figure. The non-hydrogen atoms of the asymmetric unit are labeled. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Green block
Size:0.10 × 0.08 × 0.06 mm
Wavelength:Cu Kα radiation (1.54184 Å)
μ:2.28 mm−1
Diffractometer, scan mode:APEX, ω and ϕ scans
θmax, completeness:63.5°, 98%
N(hkl)measured, N(hkl)unique, Rint:14028, 7069, 0.022
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 5641
N(param)refined:554
Programs:Bruker [1, 3] , SHELX [2]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
O1−0.1555(2)0.29448(12)0.72314(11)0.0247(4)
N10.5431(3)0.60934(16)0.60052(15)0.0235(5)
C10.4743(3)0.60477(18)0.66491(16)0.0221(6)
H10.522(4)0.570(2)0.558(2)0.031(9)*
O2−0.2205(2)0.15334(13)0.59084(11)0.0282(5)
N20.3595(3)0.53648(15)0.67115(13)0.0230(5)
C20.2965(3)0.45500(18)0.61243(16)0.0214(6)
O30.1971(3)0.04385(13)0.12218(11)0.0287(5)
N30.3465(3)0.42391(15)0.54137(13)0.0223(5)
C30.1606(3)0.38431(18)0.61993(16)0.0220(6)
O40.3897(3)0.14863(13)0.06637(11)0.0294(5)
N40.2539(3)0.27817(15)0.43062(13)0.0233(5)
C40.0650(3)0.38415(18)0.67917(16)0.0228(6)
H40.08350.43590.72480.027*
C5−0.0576(3)0.30472(19)0.66749(16)0.0218(6)
C6−0.0888(3)0.22660(18)0.59694(16)0.0233(6)
C70.0069(3)0.22754(18)0.53856(16)0.0236(6)
H7−0.01220.17640.49240.028*
C80.1330(3)0.30782(18)0.55144(16)0.0216(6)
C90.2500(3)0.33499(18)0.50298(16)0.0219(6)
C100.3475(3)0.30574(18)0.38343(16)0.0212(6)
C110.3473(3)0.25114(18)0.30185(16)0.0218(6)
C120.2582(4)0.16098(18)0.25422(16)0.0238(6)
H120.18800.12310.27440.029*
C130.2783(4)0.13045(18)0.17634(17)0.0248(6)
C140.3835(4)0.18815(19)0.14503(16)0.0229(6)
C150.4729(3)0.27647(18)0.19220(16)0.0229(6)
H150.54340.31430.17210.028*
C160.4535(3)0.30713(18)0.27161(16)0.0226(6)
C17−0.1900(4)0.37306(19)0.77348(17)0.0268(6)
C18−0.3363(4)0.3907(2)0.7497(2)0.0354(7)
C19−0.3789(5)0.4641(2)0.8012(2)0.0469(9)
H19−0.47740.47710.78690.056*
C20−0.2756(5)0.5178(2)0.8733(2)0.0515(10)
H20−0.30470.56700.90740.062*
C21−0.1293(5)0.4991(2)0.8950(2)0.0431(9)
H21−0.06030.53660.94350.052*
C22−0.0826(4)0.4253(2)0.84595(17)0.0318(7)
C230.0716(5)0.4022(2)0.87151(19)0.0419(8)
H23A0.14520.45450.91390.063*
H23B0.12820.38530.82740.063*
H23C0.04010.35180.88950.063*
C24−0.4450(5)0.3325(3)0.6696(2)0.0513(10)
H24A−0.55930.33300.67180.077*
H24B−0.43810.27070.65550.077*
H24C−0.40660.35660.63040.077*
C25−0.2718(4)0.0798(2)0.51717(18)0.0288(7)
C26−0.2391(4)−0.0020(2)0.51448(19)0.0316(7)
C27−0.2946(4)−0.0757(2)0.4425(2)0.0402(8)
H27−0.2753−0.13140.43840.048*
C28−0.3779(4)−0.0676(2)0.3771(2)0.0451(9)
H28−0.4121−0.11730.32920.054*
C29−0.4102(4)0.0138(2)0.3826(2)0.0419(8)
H29−0.46790.01820.33840.050*
C30−0.3583(4)0.0899(2)0.45322(19)0.0343(7)
C31−0.3983(5)0.1777(2)0.4590(2)0.0447(8)
H31A−0.44250.19970.50650.067*
H31B−0.48000.16680.41360.067*
H31C−0.29790.22280.46060.067*
C32−0.1521(4)−0.0109(2)0.5857(2)0.0406(8)
H4A1−0.20480.01150.63020.061*
H4A2−0.03630.02420.59760.061*
H4A3−0.1592−0.07420.57520.061*
C330.1221(4)−0.02066(18)0.15373(16)0.0260(6)
C340.2211(4)−0.0691(2)0.17681(17)0.0305(7)
C350.1459(5)−0.1343(2)0.2065(2)0.0426(8)
H350.2080−0.16860.22190.051*
C36−0.0207(5)−0.1488(2)0.2134(2)0.0461(9)
H36−0.0689−0.19200.23450.055*
C37−0.1170(4)−0.1007(2)0.1897(2)0.0430(9)
H37−0.2294−0.11200.19470.052*
C38−0.0472(4)−0.0348(2)0.15812(19)0.0332(7)
C39−0.1476(5)0.0175(3)0.1289(2)0.0507(10)
H39A−0.25750.00440.14200.076*
H39B−0.1571−0.00040.07240.076*
H39C−0.09230.08210.15370.076*
C400.4037(4)−0.0495(2)0.1696(2)0.0436(8)
H5A10.4507−0.09240.18350.065*
H5A20.46310.01170.20470.065*
H5A30.4135−0.05540.11590.065*
C410.4579(4)0.20785(19)0.02816(16)0.0247(6)
C420.6239(4)0.2188(2)0.01890(17)0.0318(7)
C430.6856(4)0.2739(2)−0.0232(2)0.0424(8)
H430.79630.2828−0.03070.051*
C440.5850(5)0.3156(2)−0.0540(2)0.0440(9)
H440.62810.3522−0.08200.053*
C450.4200(4)0.3030(2)−0.04332(19)0.0382(8)
H450.35290.3311−0.06460.046*
C460.3529(4)0.2492(2)−0.00138(17)0.0294(7)
C470.1736(4)0.2340(2)0.0111(2)0.0397(8)
H47A0.11290.2557−0.02250.059*
H47B0.17140.26680.06560.059*
H47C0.12220.1697−0.00180.059*
C480.7296(5)0.1712(3)0.0518(2)0.0532(10)
H48A0.83730.18220.03610.080*
H48B0.67490.10640.03160.080*
H48C0.74430.19440.10870.080*
C490.9318(6)0.3612(3)0.3093(3)0.0631(12)
H490.83320.37910.29420.076*
Cl11.0711(2)0.37556(13)0.24635(12)0.1074(6)
Cl21.0213(3)0.42992(13)0.40712(9)0.1453(10)
Cl30.86685(17)0.24623(10)0.29942(9)0.0835(4)

Source of material

n-Pentanol and n-octanol were distilled from sodium under nitrogen. Column chromatography was carried out on silica gel columns (Merck, Kieselgel 60, 70–230 mesh) with the indicated eluents. All other reagents and solvents were used as received. 2,3,9,10,16,17,23,24-octakis(2,6-dimethylphenoxy)phthalocyaninate was prepared according to the literature procedures with slight modification [4]. 4,5-Dichlorophthalonitrile (4.0 g, 20 mmol) and 2,6-dimethylphenol (14.6 g, 120 mmol) in dry DMSO (40 mL) were strirred under dry nitrogen at 95 °C. Dry potassium carbonate (60 g) was added (in 5 min) and the solution was stirred at 95 °C for an additional 1.5 h, then cooled and poured into ice-water (400 mL). The sticky precipitate was filtered, washed with cold water, ethanol, and then dissolved in trichloromethane and precipitated with ethanol with subsequent evaporation of dichloromethane. The precipitate was filtered and vacuum-dried to get the 4,5-bis(2,6-dimethylphenoxy)phthalonitrile. Then the bis(diiminoisoindoline) (prepared from the 101 mg (0.57 mmol) 1,2,4,5-tetra-cyanobenzene) and 4,5-bis(2,6-dimethylphenoxy)phthalonitrile (1.4 g, 4 mmol) were added to the n-BuOH (40 mL) solution and the mixture was heated under reflux for 48 h. After the reaction mixture had been cooled, methanol (200 mL) was added and the resulting mixture was stirred for 1 h. The precipitate was collected by the centrifugation, washed with methanol, dried and then extracted with toluene. After evaporation of toluene the solid was dissolved in trifluoroacetic acid (25 mL) and stirred in the dark for 1 h. The solution was poured into ice-water (100 mL) the precipitate collected, washed successively with water, 5% NaHCO3, water and methanol, then dried under vacumm, extracted with toluene/hexanes (4:1 v/v) and subjected to chromatography on silica gel eluting with toluene/hexanes gradually reducing the hexanes content from 20 to 50 vol%. From the first green fraction containing 2,3,9,10,16,17,23,24-octakis(2,6-dimethylphenoxy)phthalocyaninate the solvents were evaporated and the resulting solid was recrystallised from the toluene and trichloromethane. (0.36 g, 24%). 1H NMR (200 MHz, CDCl3, 25 °C, TMS): δ = 8.18(s, 8H), 7.30−7.41(brm, 24H), 2.43(s, 48H) – 0.76 ppm(brs, 2H); IR(KBr): 3296(N—H), 3024, 2952, 2922, 2854, 1612, 1588, 1442, 1396, 1328, 1276, 1222, 1188, 1092, 1016, 920, 878, 834, 800, 762, 708, 696 cm−1.

Experimental details

Hydrogen atoms were added using a riding model implemented in the crystallographic software [2], [3].

Comment

Some of the most important applications of phthalocyanines (Pcs) are based on the interaction of visible light with the chromophores of these molecules: dyes and pigments, photoconductors in laser printers, photosensitisers in the photodynamic therapy of cancer and degradation of pollutants of waste and natural water [5], [6], [7], [8], [9], [10], [11], [12]. Pcs as thin films or adsorbed on inorganic semiconductors have potential applications in photovoltaic or dye-sensitised solar cells. Based on these applications and taking into account the increasing interest in near-infrared (NIR) absorbing systems, it is important to sythesize compounds with absorptions over a broad region of visible light down to the NIR region. The similar phthalocyanine 2,3,9,10,16,17,23,24-octakis(2-tetrahydropyran)phthalocyanine has been reported [13].

The figure depicts a perspective drawing of the compound showing the atom numbering. The atoms of the phthalocyaninate ring are in the same plane, the 2,6-dimethylphenoxy group is almost vertical to the phthalocyaninate ring.

Acknowledgements

This work was supported by Henan science and technology project (Nos. 172102210161, 172102210160) and the Research Fund of Anyang Institute of Technology (No. YJJ2016014).

References

Bruker. SMART and SAINT for Windows NT Software Reference Manuals, Version 5.0. Bruker Analytical X-Ray Systems, Madison, WI (1997).Search in Google Scholar

Sheldrick, G. M.: SADABS, a software for empirical absorption correction. University of Göttingen, Göttingen, Germany (1997).Search in Google Scholar

SHELXL Reference Manual, version 5.1. Bruker Analytical X-Ray Systems, Madison, WI (1997).Search in Google Scholar

Sergey, M.; Christian, L.; Eugeny, A. E.; Olga, S.; Beate, R.; Dieter, W.: Synthesis and photophysical properties of annulated dinuclear and trinuclear phthalocyanines. Chem. Eur. J. 12 (2006) 1468–1474.10.1002/chem.200500617Search in Google Scholar PubMed

Bian, Y. Z.; Chen, X. H.; Wang, D. Y.; Choi, C. F.; Zhou, Y.; Zhu, P. H.; Ng, D. K. P.; Jiang, J. Z.; Weng, Y. X.; Li, X. Y.: Porphyrin-appended europium(III) bis(phthalocyaninato) complexes: synthesis, characterization, and photophysical properties. Chem. Eur. J. 13 (2007) 4169–4177.10.1002/chem.200601668Search in Google Scholar PubMed

Sheng, N.; Zhu, P. H.; Ma, C. Q.; Jiang, J. Z.: The synthesis, spectroscopy, electrochemistry and photophysical properties of novel, sanwich europium(III) complexes with a porphyrin ligand bearing four pyrenyl groups in meso-positions. Dyes Pigments 81 (2009) 91–96.10.1016/j.dyepig.2008.09.009Search in Google Scholar

Gao, Y. N.; Ma, P.; Chen, Y. L.; Zhang, Y.; Bian, Y. Z.; Li, X. Y.; Jiang, J. Z.; Ma, C. Q.: Design, synthesis, characterization, and OFET properties of amphiphilic heteroleptic tis(phthalocyaninato) europium(III) complexes. The effect of crown ether hydrophilic substituents. Inorg. Chem. 48 (2009) 45–54.10.1021/ic801040zSearch in Google Scholar

Lu, G. F.; Zhang, X. M.; Cai, X.; Jiang, J. Z.: Tuning the morphology of self-assembled nanostructures of amphiphilic tetra(p-hydroxyphenyl)prophyrins with hydrogen and metal-ligand coordination bonding. J. Mater. Chem. 19 (2009) 2417–2424.10.1039/b820127gSearch in Google Scholar

Zhang, L. Y.; Chen, M. X.; Jiang, Y. L.; Chen, M. M.; Ding, Y. N.; Liu, Q. Y.: A facile preparation of montmorillonite-supported copper sulfide nanocompositesand their application in the detection of H2O2. Sens. Actuators, B 239 (2017) 28–35.10.1016/j.snb.2016.07.168Search in Google Scholar

Sun, L.; Ding, Y. Y.; Jiang, Y. L.; Liu, Q. Y.: Montmorillonite-loaded ceria nanocomposites with superior peroxidase-like activity for rapid colorimetric detection of H2O2. Sens. Actuators, B 239 (2017) 848–856.10.1016/j.snb.2016.08.094Search in Google Scholar

Cao, W.; Gao, C.; Zhang, Y. Q.; Qi, D. D.; Liu, T.; Wang, K.; Duan, C. Y.; Gao, S.; Jiang, J. Z.: Rational enhancement of the energy barrier of bis(tetrapyrrol) dysprosium SMMs via replacing atom of prophyrin core. Chem. Sci. 6 (2015) 5947–5954.10.1039/C5SC02314ASearch in Google Scholar PubMed PubMed Central

Wang, H. L.; Wang, B. W.; Bian, Y. Z.; Gao, S.; Jiang, J. Z.: Single-molecule magnetism of tetrapyrrole lanthanide compounds with sandwich multiple-decker structures. Coord. Chem. Rev. 306 (2016) 195–216.10.1016/j.ccr.2015.07.004Search in Google Scholar

Andrew, S. C.; D. Bradley, G. W.; Andrew, J. P. W.; David, J. W.; Steven, J. L.; Anthony, G. M. B.; Brian, M. H.: Enantiomerically pure ”winged” spirane porphyrazinoctaols. Angew. Chem. Int. Ed. Engl. 7 (1997) 760–761.10.1002/anie.199707601Search in Google Scholar

Received: 2018-05-12
Accepted: 2018-07-09
Published Online: 2018-08-23
Published in Print: 2018-11-27

©2018 Wang Xin et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 4.0 License.
