Crystal structure of catena-poly[bis(4,4′-dipyridylaminium-kN)-(μ2-germanowolframato-κ2O:O′)-(2,2′-bipyridine-κ2N,N′)copper(II)] with a Keggin-type heteropolyoxoanion, [Cu(C10H8N2)(C10H10N3)2][GeW12O40] ⋅ H2O

  • Li-Zhou Wu EMAIL logo
Veröffentlicht/Copyright: 8. August 2018
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 233 Heft 6

Abstract

C30H30GeW12CuN8O41, triclinic, P1̄ (no. 2), a = 12.095(2) Å, b = 13.488(3) Å, c = 19.220(4) Å, α = 90.221(3)°, β = 92.188(3)°, γ = 108.966(3)°, V = 2962.8(10) Å3, Z = 2, Rgt(F) = 0.0624, wRref(F2) = 0.1622, T = 296(2) K.

CCDC no.: 1582314

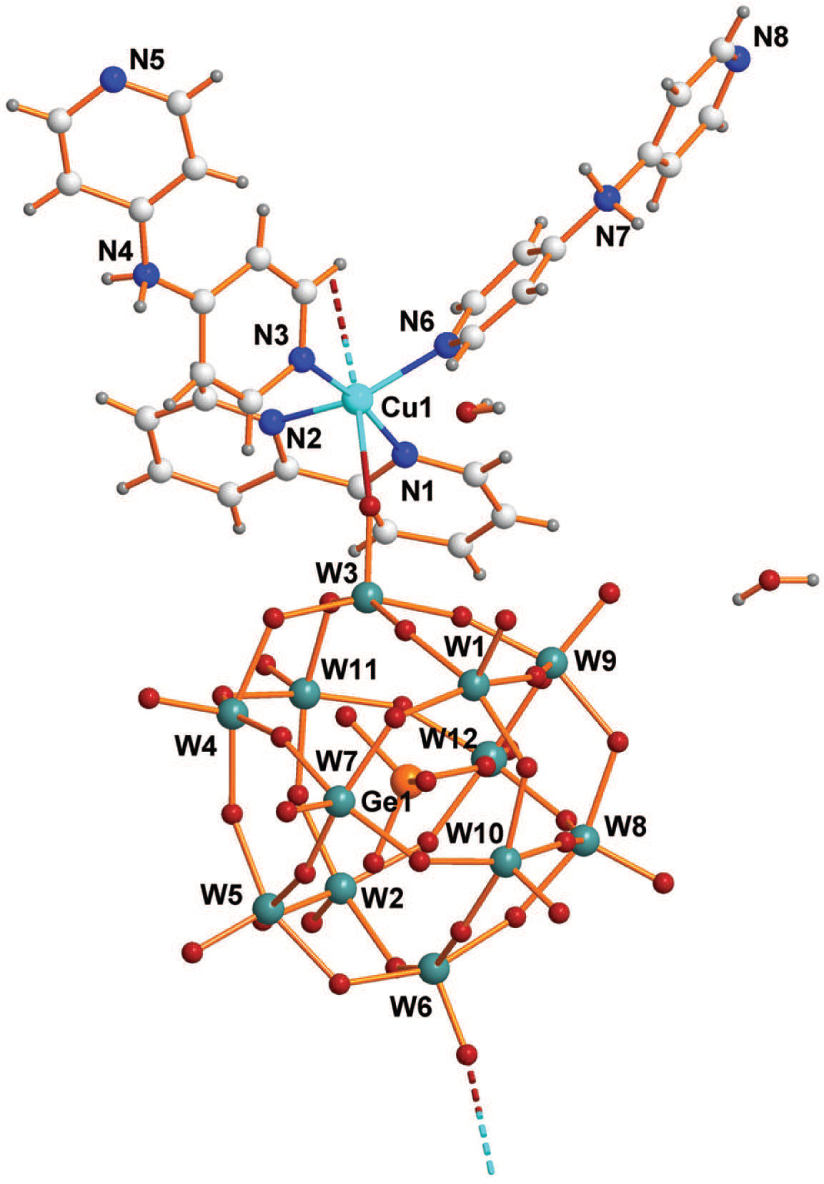

The crystal structure is shown in the figure. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Source of material

A mixture of K4[GeW12O40] ⋅ 14H2O (0.1 mmol), CuCl2 ⋅ 2 H2O (0.2 mmol), 4,4′-dipyridylamine (0.1 mmol), 2,2′-bipyridine (0.1 mmol), and H2O (10 mL) was stirred for 30 min at 25 °C, after the pH value of the solution was adjusted to 5.0 with diluted NaOH solution and then transferred to a 23 mL Teflon-lined stainless steel reactor. The solution was heated under autogenous pressure at 160 °C for 96 h. After the solution was slowly cooled to room termperature at a rate of 10 °C h−1, blue block-shaped crystals were filtered off, washed with distilled water and dried in air.

Table 1:

Data collection and handling.

Crystal:Blue block
Size:0.18 × 0.12 × 0.09 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:24.1 mm−1
Diffractometer, scan mode:Bruker APEX-II, φ and ω
θmax, completeness:26.9°, 98%
N(hkl)measured, N(hkl)unique, Rint:16457, 11935, 0.050
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 8794
N(param)refined:848
Programs:Olex2 [1], SHELX [2]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
W10.40968(6)1.01560(6)0.25592(3)0.01614(17)
W20.18792(7)1.43847(6)0.21179(4)0.02087(18)
W30.09213(6)0.96399(6)0.21505(4)0.01726(18)
W40.15391(6)1.11328(6)0.07249(3)0.01787(18)
W50.35750(6)1.38706(6)0.08883(3)0.01868(18)
W60.47650(7)1.48535(6)0.24480(4)0.02123(18)
W70.47307(6)1.16409(6)0.11303(3)0.01614(17)
W80.40702(7)1.32170(6)0.40380(3)0.02084(18)
W90.22299(6)1.07260(6)0.38941(3)0.01743(18)
W100.59278(6)1.26331(6)0.26990(4)0.01994(18)
W11−0.01308(6)1.16422(6)0.19447(4)0.02128(19)
W120.11872(7)1.27214(6)0.36868(4)0.02035(18)
Ge10.28985(15)1.22169(14)0.23592(8)0.0137(4)
Cu1−0.1781(2)0.71904(18)0.24552(10)0.0222(5)
O10.0130(10)1.1382(10)0.0991(5)0.019(3)
O20.3809(12)1.4366(10)0.0076(6)0.028(3)
O30.2305(12)1.2607(11)0.0684(6)0.026(3)
O40.1674(10)1.1406(10)0.1921(5)0.018(3)
O50.5168(11)1.2745(11)0.3526(6)0.025(3)
O60.3443(11)1.0426(10)0.3399(6)0.023(3)
O70.4055(10)1.1774(10)0.2224(5)0.017(2)
O80.2496(10)0.9670(9)0.2173(5)0.016(3)
O90.0262(10)1.1958(10)0.2914(6)0.021(3)
O100.2617(12)1.3420(10)0.4228(6)0.024(3)
O110.2681(10)1.2224(9)0.3232(5)0.011(2)
O120.3434(11)1.1806(11)0.4410(5)0.022(3)
O130.4348(11)1.4305(10)0.3358(6)0.025(3)
O140.3202(10)1.3463(9)0.2051(5)0.012(2)
O150.3108(10)1.1020(10)0.0848(5)0.018(3)
O160.2449(11)1.4525(9)0.1168(6)0.018(3)
O170.4319(12)0.8980(10)0.2722(6)0.026(3)
O180.5573(11)1.1148(11)0.2860(6)0.026(3)
O190.1105(13)1.5242(11)0.2087(7)0.033(3)
O200.4768(10)1.4895(10)0.1453(6)0.022(3)
O210.4586(10)1.0342(10)0.1623(5)0.018(3)
O220.0968(10)0.9763(9)0.1160(5)0.018(3)
O23−0.0336(11)1.0168(10)0.2116(6)0.023(3)
O240.0164(11)0.8330(11)0.2229(6)0.028(3)
O250.1244(11)1.0087(10)0.3113(5)0.019(3)
O260.1892(12)0.9760(10)0.4489(6)0.026(3)
O270.4502(10)1.2940(10)0.0954(5)0.018(3)
O280.5638(10)1.3897(10)0.2425(5)0.018(3)
O290.6079(11)1.2349(10)0.1724(5)0.019(3)
O300.5372(11)1.1427(11)0.0396(6)0.028(3)
O310.3420(12)1.5301(10)0.2419(6)0.029(3)
O320.5844(11)1.6026(10)0.2656(6)0.028(3)
O330.4913(12)1.3828(11)0.4738(6)0.030(3)
O340.1134(11)1.1435(11)0.4124(6)0.025(3)
O350.1223(10)1.0781(11)−0.0118(6)0.027(3)
O360.7344(13)1.3097(12)0.2969(7)0.034(3)
O37−0.1555(12)1.1621(12)0.1871(7)0.038(4)
O380.0714(11)1.3092(10)0.1816(6)0.021(3)
O390.0164(13)1.3026(12)0.4171(7)0.037(4)
O400.1674(10)1.3857(10)0.3036(6)0.020(3)
N1−0.1850(14)0.8330(13)0.3089(7)0.025(3)
N2−0.2759(13)0.7797(12)0.1849(7)0.019(3)
N3−0.1527(14)0.6235(13)0.1706(7)0.024(4)
N4−0.1713(15)0.4420(13)−0.0078(7)0.028(4)
H4A−0.22340.4606−0.03390.033*
H4B−0.10330.4686−0.02810.033*
N5−0.2633(18)0.1220(17)−0.0528(9)0.044(4)
N6−0.1455(15)0.6313(13)0.3237(7)0.026(4)
N7−0.1352(15)0.4036(14)0.4674(8)0.030(3)
H7A−0.14170.34830.44010.036*
H7B−0.06130.42560.48380.036*
N8−0.327(2)0.2658(16)0.6375(10)0.055(6)
C1−0.3266(19)0.7417(17)0.1226(9)0.032(5)
H1−0.31700.68080.10500.038*
C2−0.3943(19)0.7913(18)0.0827(9)0.031(5)
H2−0.43490.76060.04190.037*
C3−0.3977(17)0.8887(17)0.1074(10)0.030(4)
H3−0.43480.92700.08080.036*
C4−0.3447(18)0.9271(16)0.1721(10)0.029(5)
H4−0.34800.99060.18920.034*
C5−0.2859(16)0.8697(15)0.2119(8)0.021(4)
C6−0.2352(15)0.9001(15)0.2802(8)0.020(4)
C7−0.241(2)0.989(2)0.3176(11)0.047(6)
H7−0.28051.03240.29920.056*
C8−0.184(2)1.008(2)0.3851(10)0.043(6)
H8−0.18511.06540.41170.051*
C9−0.1264(18)0.9431(18)0.4106(9)0.032(5)
H9−0.08810.95590.45430.038*
C10−0.1262(17)0.8612(18)0.3721(8)0.030(5)
H10−0.08310.81990.38930.036*
C11−0.1970(16)0.5215(16)0.1738(10)0.029(5)
H11−0.22670.49330.21590.035*
C12−0.2031(18)0.4530(18)0.1199(9)0.030(4)
H12−0.23420.38080.12510.036*
C13−0.1589(16)0.4981(15)0.0545(8)0.019(4)
C14−0.1068(16)0.6071(15)0.0528(9)0.021(4)
H14−0.07180.63840.01260.026*
C15−0.1073(16)0.6674(15)0.1096(8)0.022(4)
H15−0.07600.73990.10690.027*
C16−0.209(2)0.1581(19)0.0075(13)0.045(6)
H16−0.19120.11170.03800.055*
C17−0.178(2)0.2648(19)0.0272(11)0.037(5)
H17−0.14150.28700.07060.045*
C18−0.2013(17)0.3362(15)−0.0166(8)0.022(4)
C19−0.256(2)0.293(2)−0.0839(10)0.042(6)
H19−0.27170.3373−0.11710.051*
C20−0.283(2)0.191(2)−0.0982(12)0.050(6)
H20−0.31660.1656−0.14170.060*
C21−0.0608(16)0.5881(15)0.3251(9)0.021(4)
H21−0.00390.60860.29210.025*
C22−0.0533(18)0.5168(17)0.3716(10)0.031(5)
H220.00870.49030.37180.037*
C23−0.1418(17)0.4828(16)0.4201(10)0.026(4)
C24−0.2356(18)0.5229(18)0.4171(9)0.039(6)
H24−0.29740.49780.44660.047*
C25−0.235(2)0.5990(18)0.3704(10)0.038(5)
H25−0.29440.62910.36970.045*
C26−0.261(2)0.219(2)0.6012(12)0.054(6)
H26−0.25720.15470.61590.065*
C27−0.203(3)0.263(2)0.5454(13)0.069(10)
H27−0.16410.22610.52040.083*
C28−0.1986(18)0.3617(17)0.5240(9)0.028(4)
C29−0.259(2)0.4105(17)0.5635(8)0.035(5)
H29−0.25560.47840.55240.042*
C30−0.323(3)0.363(2)0.6190(10)0.058(8)
H30−0.36420.39790.64370.070*
O1Wa−0.463(3)0.888(3)0.4476(15)0.052(9)
H1WAa−0.50440.89590.47970.077*
H1WBa−0.41080.86630.46670.077*
O2Wa0.405(3)0.903(3)0.5585(15)0.061(10)
H2WAa0.42200.90630.60030.091*
H2WBa0.37190.94330.53820.091*

  1. aOccupancy: 0.5.

Experimental details

The Olex2 program equipped with SHELXT and SHELXL were used for structure analysis [1], [2]. All the non-hydrogen atoms were located by SHELXT directly and refined anisotropicly by SHELXL with least squares methods. All the hydrogens on N and C were placed at calculated positions (0.93 Å) and refined with the riding model, with Uiso(H) set to 1.2 Ueq(C) or 1.2 Ueq(N). The H atoms of the solvent water molecule were located from the difference Fourier map and then allowed to ride on their parent O atom in the final cycles of refinement with d(O–H) = 0.850 Å and Uiso(H) = 1.5 Ueq(O). The occupancies of water molecules were refined as 0.5.

Comment

The significant contemporary interest in the crystal engineering of inorganic-organic hybrid materials not only originates from their diversely structural flexibility, but also from their widely promising potential applications in catalysis, medicine, photochemistry and electromagnetism [3], [4], [5]. Up to now, although a number of inorganic-organic hybrid compounds containing polyoxomolybdates have been reported [6, 7] . Design and synthesis of novel hybrid materials with highly specific and cooperative functions are still a challenging work. A widely used approach to the synthesis of these materials is the hydrothermal crystallization in the presence of organic amines, which are used as templates or structure-directing agents to facilitate the formation of various networks [8, 9] .

The title crystal structure is composed of [GeW12O40]4− Keggin-type polyoxoanions, [Cu(C10H8N2)(C10H10N3)2]4+ copper complex cations and water molecules. The polyoxoanion [GeW12O40]4− is a well known α-Keggin structure composed of 12 corner- or edge-sharing WO6 octahedra with the central germanium ordered and coordinated to four oxygen atoms in a tetrahedral fashion (cf. the figure). The Ge—O distances are in the range of 1.708(9)–1.718(11) Å and the O—Ge—O angles are in the range of 108.9(5)–110.5(5)°. The W—O distances can be grouped into three sets according to the kind of oxygen atoms bound to the tungsten atoms: W—Ot = 1.681(12)−1.726(13) Å, W—Ob = 1.877(12)−1.964(11) Å and W—Oc = 2.291(12)−2.331(12) Å. The O—W—O angles are between 71.2(5) and 170.6(5)° and are in accord with the literature [10]. In the copper complex [Cu(C10H8N2)(C10H10N3)2]4+, each of the Cu2+ is six-coordinated by two nitrogen atoms from two 4,4′-dipyridylaminium cations (dpa) (N3 and N6), two nitrogen atoms from one 2,2′-bipyridine molecule (bipy, N1 and N2) and two oxygen atoms from adjacent POMs anions (O24 and O32), respectively, resulting a distorted octahedral geometry. The Cu—O distances were in the ranges of 2.412(13)−2.833(14) Å, and the Cu—N distances ranges from 1.982(16) to 2.026(14) Å. The dpa and bpy molecules act as a monodentate and bidentate ligand respectively coordinated to a copper atom with its nitrogen atoms. The most remarkable structural feature of the title compound is that the adjacent Keggin [GeW12O40]4− clusters are interconnected through [Cu(C10H8N2)(C10H10N3)2]4+ bridging groups to form a one-dimensional infinite anionic chain (cf. the figure; dashed lines). Furthermore, the adjacent one-dimensional chains are linked up by extensive hydrogen bonding interactions of the polyoxoanions, 4,4′-dipyridylamine, 2,2′-bipyridine and lattice water molecules to form a three-dimensional supramolecules framework. There are three types of intermolecular hydrogen bonds (O—H⋯O, C—H⋯O, N—H⋯O).

Acknowledgements

This work was supported by the Education Commission of Shaanxi Province (17JK0017), the Funded Projects of Ankang University (2013AYPYZR02, 2016AYQDZR13), and the training Programs of Innovation and Entrepreneurship of Ankang University Undergraduates (2016akxy038, 2017sxjy019).

References

Dolomanov, O. V.; Bourhis, L. J.; Gildea, R. J.; Howard, J. A. K.; Puschmann, H.: OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 42 (2009) 339–341.10.1107/S0021889808042726Suche in Google Scholar

Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Suche in Google Scholar

Dolbecq, A.; Dumas, E.; Mayer, C. R.; Mialane, P.: Hybrid organic-inorganic polyoxometalate compounds: from structural diversity to applications. Chem. Rev. 41 (2010) 6009–6048.10.1021/cr1000578Suche in Google Scholar

Sun, C. Y.; Liu, S. X.; Liang, D. D.; Shao, K. Z.; Ren, Y. H.; Su, Z. M.: Highly stable crystalline catalysts based on a microporous metal organic framework and polyoxometalates. J. Am. Chem. Soc. 131 (2009) 1883–1888.10.1021/ja807357rSuche in Google Scholar

Mitchell, S. G.; Streb, C.; Miras, H. N.; Boyd, T.; Long, D. L.; Cronin, L.: Face-directed self-assembly of an electronically active Archimedean polyoxometalate architecture. Nat. Chem. 2 (2010) 308–312.10.1038/nchem.581Suche in Google Scholar

Hagrman, P. J.; Hagrman, D.; Zubieta, J.: Organic-inorganic hybrid materials: from “simple” coordination polymers to organodiamine-templated molybdenum oxides. Angew. Chem. Int. Ed. 38 (1999) 2638–2684.10.1002/(SICI)1521-3773(19990917)38:18<2638::AID-ANIE2638>3.0.CO;2-4Suche in Google Scholar

Dolbecq, A.; Mialane, P.; Lisnard, L.; Marrot, J.; Secheresse, F.: Hybrid organic-inorganic 1D and 2D frameworks with epsilon-Keggin polyoxomolybdates as building blocks. Chem. Eur. J. 9 (2003) 2914–2920.10.1002/chem.200204670Suche in Google Scholar

Liu, X. Y.; Ma, X. H.; Cen, P. P.; Wu, Y. W.; Zhang, C. C.; Shi, Q.; Song, W. M.; Xie, G.; Chen, S. P.: A substituent effect of phenylacetic acid coligand perturbed structures and magnetic properties observed in two triple-bridged azido-Cu(II) chain compounds with ferromagnetic ordering and slow magnetic relaxation. Dalton Trans. 46 (2017) 7556–7566.10.1039/C7DT01338HSuche in Google Scholar

Lin, Z. E.; Yao, Y. W.; Zhang, J.; Yang, G. Y.: Isolation of a monomeric hybrid zinc phosphateand its one-dimensional relative. Dalton Trans. 32 (2003) 3160–3164.10.1039/b304778dSuche in Google Scholar

Han, Q.-X.; Wang, J.-P.; Song, L.-H.: K2NaH[GeW12O40] ⋅ 7H2O, with a Keggin-type heteropolyoxoanion. Acta Crystallogr. E 62 (2006) i201–i203.10.1107/S1600536806034362Suche in Google Scholar

Received: 2018-04-30
Accepted: 2018-07-25
Published Online: 2018-08-08
Published in Print: 2018-11-27

©2018 Li-Zhou Wu, published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 4.0 License.
