Crystal structure of (4-(4-chlorophenyl)-5-ethyl-1,3-dioxane-5-carboxylato-κ2O,O′)-(5,5,7,12,12,14-hexamethyl-1,4,8,11-tetraazacyclotetradecane-κ4N,N′,N′′,N′′′)nickel(II) perchlorate monohydrate, C29H52Cl2N4NiO9

  • Fang Liu , Guo-Kai Jia und Guang-Chuan Ou EMAIL logo
Veröffentlicht/Copyright: 8. August 2018
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 233 Heft 6

Abstract

C29H52Cl2N4NiO9, monoclinic, P21/n (no. 14), a =10.8347(19) Å, b = 14.502(3) Å, c = 21.731(4) Å, β = 93.344(2)°, V = 3408.6(10) Å3, Z = 4, Rgt(F) = 0.0360, wRref(F2) = 0.1009, T = 296(2) K.

CCDC no.: 1569959

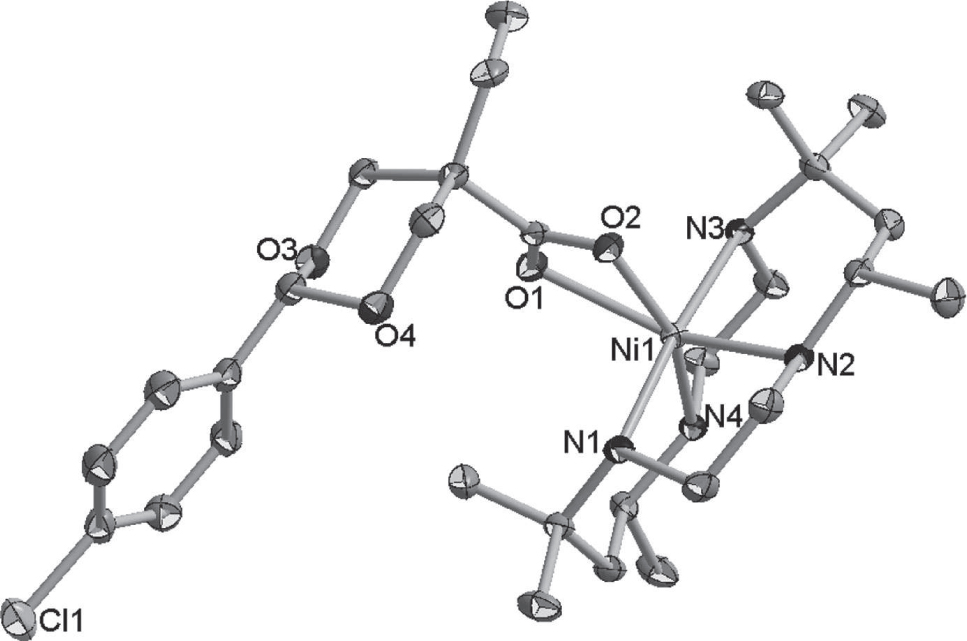

The crystal structure is shown in the figure. Hydrogen atoms are omitted for clarity. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Prism, blue
Size:0.45 × 0.42 × 0.30 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.78 mm−1
Diffractometer, scan mode:Bruker SMART, φ and ω-scans
θmax, completeness:27.5°, >97% (up to 25.2°, >99%)
N(hkl)measured, N(hkl)unique, Rint:37399, 7623, 0.019
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 6625
N(param)refined:419
Programs:Bruker programs [1], SHELX [2], [3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Ni10.26359(2)0.52040(2)0.16501(2)0.02486(8)
Cl10.82771(6)0.82560(4)0.19051(3)0.05458(16)
Cl2−0.34104(7)0.02911(5)0.00498(4)0.0705(2)
N10.09651(14)0.51940(11)0.10828(7)0.0305(3)
H1C0.11590.48460.07140.037*
N20.27869(14)0.65691(10)0.13539(7)0.0295(3)
H2C0.23890.69620.16510.035*
N30.42254(14)0.53193(11)0.22709(7)0.0294(3)
H3A0.45650.46950.23130.035*
N40.16406(13)0.53492(10)0.24460(7)0.0265(3)
H4D0.15030.60120.24990.032*
O10.29848(12)0.36685(9)0.16072(6)0.0344(3)
O1W0.34802(17)0.24713(12)0.25914(8)0.0539(4)
H1WB0.322(2)0.2800(17)0.2283(9)0.065*
H1WA0.4210(13)0.2635(19)0.2701(11)0.065*
O20.34195(13)0.46143(9)0.08699(6)0.0351(3)
O30.21761(13)0.18276(10)0.08573(6)0.0397(3)
O40.17587(14)0.28523(10)0.00549(6)0.0389(3)
O50.7527(2)0.8441(2)0.23994(11)0.0928(7)
O60.9437(2)0.8692(2)0.19691(14)0.1018(9)
O70.7664(3)0.8636(4)0.13739(14)0.1602(18)
O80.8442(4)0.7349(2)0.1815(3)0.203(3)
C10.07826(19)0.61579(15)0.08696(10)0.0403(5)
H1A0.03600.65060.11750.048*
H1B0.02740.61650.04870.048*
C20.2013(2)0.65943(15)0.07704(9)0.0397(5)
H2A0.24220.62630.04520.048*
H2B0.18950.72280.06360.048*
C30.40550(18)0.69357(13)0.12869(9)0.0335(4)
H30.44540.65570.09820.040*
C40.4040(2)0.79333(16)0.10613(12)0.0501(6)
H4A0.35950.79690.06670.075*
H4B0.48730.81420.10240.075*
H4C0.36420.83160.13510.075*
C50.48196(19)0.68724(14)0.18932(9)0.0362(4)
H5A0.43280.71230.22130.043*
H5B0.55320.72720.18650.043*
C60.52901(17)0.59238(14)0.21085(9)0.0341(4)
C70.59570(19)0.54337(16)0.16040(11)0.0437(5)
H7A0.63470.48860.17690.066*
H7B0.65730.58360.14510.066*
H7C0.53720.52710.12730.066*
C80.62207(19)0.60658(18)0.26621(11)0.0472(5)
H8A0.58630.64590.29590.071*
H8B0.69590.63460.25250.071*
H8C0.64220.54800.28480.071*
C90.37464(17)0.55461(15)0.28784(9)0.0351(4)
H9A0.36340.62080.29110.042*
H9B0.43400.53540.32050.042*
C100.25306(17)0.50647(15)0.29512(9)0.0340(4)
H10A0.26480.44020.29400.041*
H10B0.22130.52250.33450.041*
C110.04105(17)0.48930(13)0.24930(9)0.0316(4)
H110.05370.42240.25030.038*
C12−0.0210(2)0.51756(18)0.30777(10)0.0472(5)
H12A0.03440.50620.34310.071*
H12B−0.09520.48230.31120.071*
H12C−0.04110.58200.30580.071*
C13−0.04677(17)0.51258(14)0.19390(9)0.0336(4)
H13A−0.05130.57920.19070.040*
H13B−0.12850.49100.20290.040*
C14−0.01813(17)0.47499(14)0.13036(9)0.0343(4)
C15−0.1293(2)0.4952(2)0.08481(11)0.0511(6)
H15A−0.15090.55920.08720.077*
H15B−0.19850.45810.09520.077*
H15C−0.10780.48080.04370.077*
C160.0032(2)0.37139(16)0.13215(12)0.0488(5)
H16A0.01330.34920.09110.073*
H16B−0.06670.34160.14880.073*
H16C0.07630.35800.15770.073*
C170.33519(16)0.38038(13)0.10742(8)0.0295(4)
C180.37371(18)0.30143(13)0.06555(9)0.0333(4)
C190.5133(2)0.31096(17)0.05644(12)0.0490(5)
H19A0.53520.26900.02410.059*
H19B0.52950.37320.04260.059*
C200.5958(2)0.2913(2)0.11373(15)0.0651(7)
H20A0.57150.32970.14690.098*
H20B0.68020.30420.10550.098*
H20C0.58800.22770.12500.098*
C210.34589(19)0.20577(14)0.09103(10)0.0377(4)
H21A0.39170.16010.06910.045*
H21B0.37450.20330.13410.045*
C220.3028(2)0.31099(16)0.00260(9)0.0407(5)
H22A0.30760.3744−0.01130.049*
H22B0.34130.2722−0.02720.049*
C230.1700(2)0.19155(14)0.02419(9)0.0377(4)
H230.22030.1543−0.00240.045*
C240.0396(2)0.15631(14)0.01918(9)0.0379(4)
C25−0.0079(2)0.11880(17)−0.03608(11)0.0491(5)
H250.03960.1195−0.07040.059*
C26−0.1247(2)0.08056(18)−0.04062(12)0.0551(6)
H26−0.15580.0556−0.07780.066*
C27−0.1944(2)0.07955(15)0.00986(12)0.0462(5)
C28−0.1507(2)0.11636(17)0.06520(12)0.0497(5)
H28−0.19900.11580.09920.060*
C29−0.0330(2)0.15441(16)0.06931(10)0.0445(5)
H29−0.00250.17920.10660.053*

Source of material

An acetonitrile solution (20 mL) of [NiL](ClO4)2 (0.270 g, 0.5 mmol) (L = 5,5,7,12,12,14-hexamethyl-1,4,8,11-tetraazacyclotetradecane) was added to a solution of 4-(4-chlorophenyl)-5-ethyl-1,3-dioxane-5-carboxylic acid (0.270 g, 1.0 mmol) and NaOH (0.04 g, 1.0 mmol) in the minimum amount of water. After a few days, blue crystals were separated in ∼32% yield. Anal. Calcd. for C29H52Cl2N4NiO9: C, 47.69; H, 7.17; N, 7.67%. Found: C, 47.25; H, 7.51; N, 7.89%. IR data (cm−1, KBr): 3456(m), 3209(s), 2962(m), 1545(s), 1450(s), 1090(s).

Experimental details

All the hydrogen atoms of the ligands were placed in calculated positions with fixed isotropic thermal parameters and included in the final stage of refinement. The Uiso (H) values of methyl groups were set to 1.5Ueq(C) and the Uiso values of all other hydrogen atoms were set to 1.2Ueq(C, N).

Discussion

Ketal compounds are subjects of great interest because they are usually used as a protection of carbonyl or synthetic intermediates [4], and have been widely applied in fragrance and flavors as well as a new type of spices.

X-ray crystal structural analysis reveals that the title compound contains one complex cation [Ni(C16H36N4)(C13H14O4Cl)]+, one anion [ClO4]−, and one water molecule. Each Ni(II) ion lies on a general position of the monoclinic space group and is coordinated by four macrocyclic nitrogen atoms of L in a folded conformation and two carboxylate oxygen atoms of the anionic 4-(chlorophenyl)-5-ethyl-1,3-dioxane-5-carboxylato ligand. The Ni-N bond lengths [2.090(6)–2.131(6) Å] are slightly shorter than the Ni-O bond lengths [2.120(4) and 2.261(4) Å]. Neighbouring cations and anions are discrete, connected to each other through hydrogen bonds between the carboxylate oxygen atom of 4-(chlorophenyl)-5-ethyl-1,3-dioxane-5-carboxylato ligand and water and nitrogen atom of adjacent cation, forming a one-dimensional chain.

Acknowledgements

This work was financially Supported by the NSFC (51772091), the Scientific Research Fund of Hunan Education Department (17A081) and the Science and Technology Innovative plan of Hunan (2017).

References

Bruker: APEX3, SAINT-Plus, XPREP. Bruker AXS Inc., Madison, Wisconsin, USA (2016).Suche in Google Scholar

Sheldrick, G. M.: SHELXT – Integrated space-group and crystal-structure determination. Acta Crystallogr. A71 (2015) 3–8.10.1107/S2053273314026370Suche in Google Scholar PubMed PubMed Central

Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Suche in Google Scholar PubMed PubMed Central

Ono, D.; Yamamura, S.; Nakamura, M.: Preparation and properties of bis(sodium sulfate) types of cleavable surfactants derived from diethyl tartrate. J. Oleo. Sci. 54 (2005) 51–57.10.5650/jos.54.51Suche in Google Scholar

Received: 2018-05-22
Accepted: 2018-07-26
Published Online: 2018-08-08
Published in Print: 2018-11-27

©2018 Fang Liu et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 4.0 License.
