The crystal structure of 1-methyl-2,4-dinitro-5-iodoimidazole, C4H3IN4O4

  • Chen Lizhen , Lian Pengbao and Wang Jianlong EMAIL logo
Published/Copyright: January 11, 2017
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 232 Issue 2

Abstract

C4H3IN4O4, orthorhombic, Pbca (no. 61), a = 9.9513(6) Å, b = 11.3365(4) Å, c = 14.3295(12) Å, V = 1616.55(17) Å3, Z = 8, Rgt(F) = 0.0279, wRref(F2) = 0.0684, T = 105.6 K.

CCDC no.:: 1520552

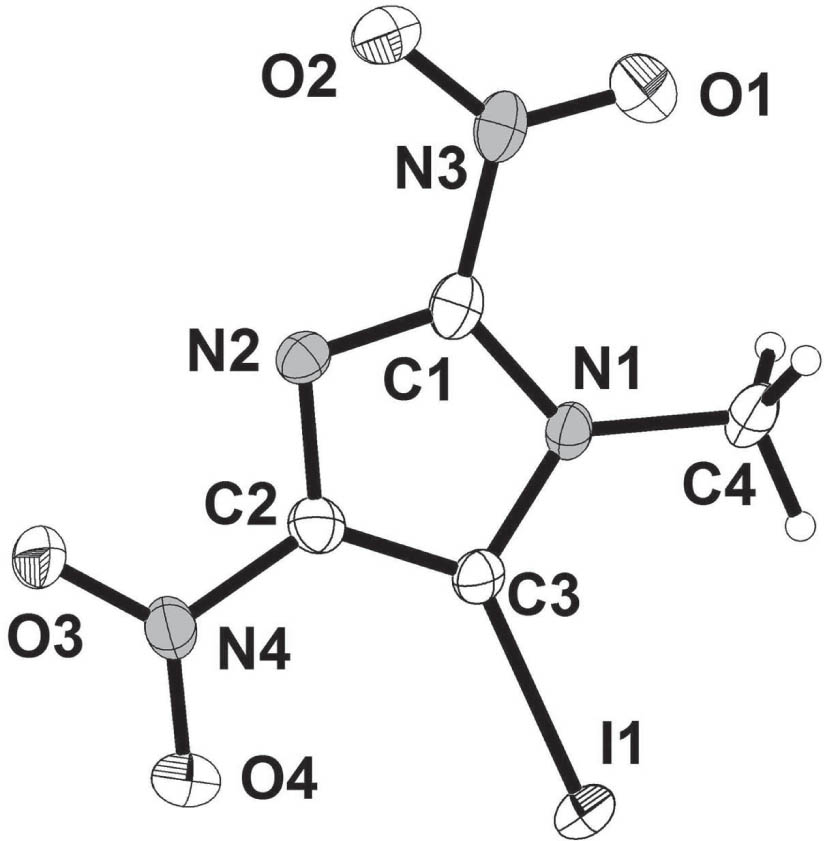

The asymmetric unit of the title crystal structure is shown in the figure. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1

Data collection and handling.

Crystal:Colourless block
Size:0.30 × 0.25 × 0.20 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:39.5 cm−1
Diffractometer, scan mode:Xcalibur, ω-scans
2θmax, completeness:52°, >99%
N(hkl)measured, N(hkl)unique, Rint:4081, 1585, 0.019
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 1465
N(param)refined:119
Programs:CrysAlisPRO [8], SHELX [9], OLEX2 [10]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
I10.07674(3)0.75983(2)0.287870(18)0.01716(12)
N10.1556(3)0.9159(3)0.1234(2)0.0126(7)
C40.2290(4)0.9996(3)0.1853(3)0.0193(9)
H4A0.18751.07780.18110.029*
H4B0.32311.00460.16560.029*
H4C0.22470.97150.24990.029*
N4−0.0396(3)0.6637(3)0.0563(2)0.0156(7)
C30.0916(4)0.8142(3)0.1503(3)0.0121(8)
C20.0405(4)0.7684(3)0.0682(3)0.0140(8)
O4−0.0608(3)0.6024(3)0.1253(2)0.0261(7)
O3−0.0825(3)0.6424(3)−0.02254(19)0.0208(7)
O20.1504(3)1.0180(2)−0.11046(19)0.0180(6)
O10.2522(3)1.0967(2)0.0084(2)0.0214(6)
N20.0690(3)0.8360(3)−0.0068(2)0.0120(7)
N30.1866(3)1.0214(3)−0.0291(2)0.0152(5)
C10.1378(4)0.9227(3)0.0290(3)0.0142(6)

Source of material

The title compound was prepared by nitrifying 1-menthyl-2,4,5-triiodoimidazole. It was recrystallized from acetone solution at room temperature to give colorless crystals suitable for single-crystal X-ray diffraction.

Experimental details

All H atoms were positioned geometrically and treated as riding, with C—H bond lengths constrained to 0.98 Å and Uiso(H) = 1.5Ueq(C). The diff. electron densities of 1.571 and -0.840 are caused by a partial disorder of I/NO2.

Discussion

Polynitroimidazole systems have been used as antifungal, antibacterial, antiviral, antitumor drugs and their intermediates [1], [2], [3]. Recently, these so called “high energy density materials” have attracted renewed attention in conjunction with their favorable detonation performance [4, 5] . As a promising candidate, 1-methyl-2,4,5-trinitroimidazole was synthesized by the nitration of 1-methyl-2,4,5-triiodoimidazole [6, 7] . The result showed two iodine atoms were substituted by nitro groups, while the position of another iodine could not been confirmed. In order to determine the molecular structure, the single crystal was cultured and X-ray diffraction experiment is completed.

As shown in the figure, the asymmetric unit of the title compound consists of one molecule. The imidazole ring is almost planar, the two nitro groups are twisted with the imidazole planar, making dihedral angles of 6.0 (N3/O1,O2) and 3.6 (N4/O3,O4)°, respectively. All bond lengths and angles are in the expected ranges.

Acknowledgements

We thank the Center of Testing and Analysis, Beijing University of Chemical Technology, for support.

References

1. Larina, L.; Lopyrev, V.: Nitroazoles: synthesis, structure and application, Springer Verlag, Heidelberg, New York, 2009.10.1007/978-0-387-98070-6Search in Google Scholar

2. Hofmann, K.: Imidazole and Its Derivatives. Part I, John Wiley & Sons, New York 1953.Search in Google Scholar

3. Breccia, A.; Cavalleri, B.; Adams, G. E.: Nitroimidazoles. Chemistry, Pharmacology and Clinical Applications, Vol. 42, Plenum, New York 1982.10.1007/978-1-4684-4151-2Search in Google Scholar

4. Cho, R. J.; Kim, J. K.; Cho, G. S.; Kim, J. K.: Synthesis and characterization of 1-methyl-2,4,5-trinitroimidazole (MTNI). J. Heterocyclic Chem. 142 (2001) 192–197.10.1002/jhet.5570390121Search in Google Scholar

5. Ravi, P.; Tewari, S. P.: Microwave-assisted synthesis of 1-methyl-2,4,5-trinitroimidazole. Propellants Explos. Pyrotech. 37 (2012) 544–548.10.1002/prep.201100044Search in Google Scholar

6. Jadhav, H. S.; Talawar, M. B.; Sivabalab, R.; Dhavalea, D. D.; Asthanab, S. N.; Krishnamurthya, V. N.: Synthesis, characterization and thermolysis studies on new derivatives of 2,4,5-trinitroimidazoles: Potential insensitive high energy materials. J. Hazard. Mater. 143 (2007) 611–619.10.1016/j.jhazmat.2006.09.014Search in Google Scholar PubMed

7. Novikov, S. S.; Khmel’nitskii, L. I.; Lebedev, O. V.; Epishina, L. V.; Sevost’yanova, V. V.: The nitration of iodoimidazoles. Chem. Heterocycl. Compd. 6 (1970) 614–618.10.1007/BF00500686Search in Google Scholar

8. Agilent Technologies: CrysAlisPRO Software system, version 1.171.35.15, Agilent Technologies UK Ltd, Oxford, UK, 2011.Search in Google Scholar

9. Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

10. Dolomanov, O. V.; Bourhis, L. J.; Gildea, R. J.; Howard, J. A. K.; Puschmann, H.: OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Cryst. 42 (2009) 339–341.10.1107/S0021889808042726Search in Google Scholar

Received: 2016-7-7
Accepted: 2016-12-2
Published Online: 2017-1-11
Published in Print: 2017-3-1
