Crystal structure of poly-[(μ6-benzene-1,2,4,5-tetracarboxylato)-(μ2-1,2-bis(imidazol-1-ylmethyl)benzene)dicobalt(II)], Co2C24H16N4O8

  • Ping Liu , Qiuxia Liu , Ning Zhao , Caixia An und Zhaoxun Lian EMAIL logo
Veröffentlicht/Copyright: 25. Februar 2017
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 232 Heft 2

Abstract

Co2C24H16N4O8, triclinic, P1̅ (no. 2), a = 7.3859(13) Å, b = 9.5719(17) Å, c = 16.442(3) Å, α = 77.450(3)°, β = 85.065(3)°, γ = 84.844(3)°, V = 1127.4(3) Å3, Z = 2, Rgt(F) = 0.0457, wRref(F2) = 0.1058, T = 296(2) K.

CCDC no.:: 1527486

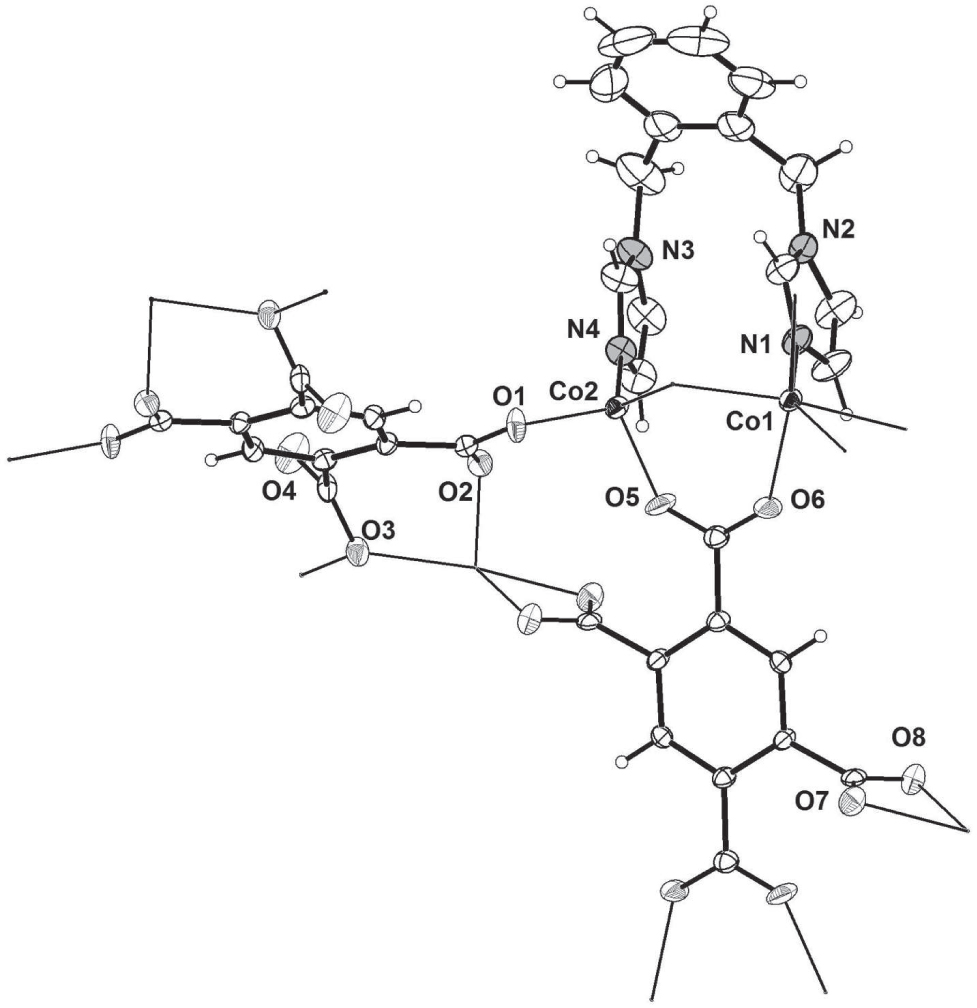

A part of the title crystal structure is shown in the figure. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Red block
Size:0.28 × 0.26 × 0.22 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:15.3 cm−1
Diffractometer, scan mode:Bruker SMART, ω-scans
2θmax, completeness:57°, >98%
N(hkl)measured, N(hkl)unique, Rint:7302, 5323, 0.028
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 3694
N(param)refined:343
Programs:Bruker SADABS, SMART, SAINT [9, 10] , SHELX [11], OLEX2 [12]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Co10.97356(6)0.20552(5)0.69818(3)0.01958(12)
Co20.52786(6)0.24612(4)0.77168(3)0.01901(12)
O10.3776(3)0.1168(3)0.85465(14)0.0284(6)
O20.1343(3)0.2298(2)0.79471(13)0.0243(5)
O3−0.2199(3)0.1467(3)0.80040(13)0.0273(5)
O4−0.3165(4)0.2724(3)0.89311(16)0.0414(7)
O50.5147(3)0.1919(3)0.66590(15)0.0357(6)
O60.8000(3)0.1405(3)0.62196(15)0.0338(6)
O70.8361(3)−0.2341(2)0.40639(14)0.0277(5)
O80.8304(3)−0.0250(2)0.32035(14)0.0292(6)
N10.9002(4)0.4218(3)0.67857(17)0.0293(7)
N20.8709(5)0.6465(3)0.6898(2)0.0380(8)
N30.4485(5)0.6773(3)0.7657(2)0.0452(9)
N40.4497(4)0.4555(3)0.75251(18)0.0293(7)
C10.8631(7)0.5072(4)0.6030(2)0.0514(12)
H10.85180.47430.55460.062*
C20.8454(7)0.6452(4)0.6087(3)0.0588(14)
H20.82060.72430.56610.071*
C30.9062(5)0.5108(4)0.7282(2)0.0337(9)
H30.93220.48230.78390.040*
C40.8694(7)0.7777(4)0.7230(3)0.0585(14)
H4A0.77960.84870.69560.070*
H4B0.98780.81670.71000.070*
C50.8261(6)0.7508(4)0.8154(3)0.0440(11)
C60.9678(7)0.7111(5)0.8661(4)0.0608(14)
H61.08620.70640.84190.073*
C70.9410(10)0.6787(6)0.9502(4)0.083(2)
H71.04020.65210.98280.100*
C80.7716(13)0.6848(6)0.9868(4)0.089(2)
H80.75350.66011.04460.107*
C90.6258(9)0.7271(5)0.9390(4)0.0740(17)
H90.50920.73300.96490.089*
C100.6494(6)0.7616(4)0.8520(3)0.0468(11)
C110.4874(7)0.7995(4)0.8015(4)0.0697(17)
H11A0.38260.82500.83650.084*
H11B0.50980.88190.75680.084*
C120.3714(6)0.6798(4)0.6941(3)0.0538(13)
H120.32670.76110.65720.065*
C130.3710(6)0.5434(4)0.6858(3)0.0449(11)
H130.32490.51360.64200.054*
C140.4939(5)0.5405(4)0.7987(3)0.0382(10)
H140.55030.50910.84860.046*
C150.2079(4)0.1408(3)0.85219(19)0.0200(7)
C160.0955(4)0.0644(3)0.92556(18)0.0174(6)
C17−0.0938(4)0.0868(3)0.93520(18)0.0189(7)
C18−0.1850(4)0.0228(3)1.00859(19)0.0198(7)
H18−0.31110.03841.01430.024*
C19−0.2126(4)0.1787(4)0.87221(19)0.0225(7)
C200.6331(4)0.1410(3)0.61963(19)0.0208(7)
C210.5612(4)0.0703(3)0.55715(18)0.0179(6)
C220.6821(4)0.0173(3)0.49966(19)0.0197(7)
H220.80560.02960.49960.024*
C230.6248(4)−0.0526(3)0.44278(18)0.0180(7)
C240.7692(4)−0.1082(4)0.38491(19)0.0209(7)

Source of material

A mixture of CoCl2⋅4H2O (0.048 g, 0.2 mmol), 1,2-bis(imidazole-1-ylmethyl)benzene (1,2-BIB) (0.046 g 0.2 mmol), benzene-1,2,4,5-tetracarboxylic acid (BTA)(0.025 g, 0.1 mmol), NaOH (0.008 g, 0.2 mmol) and H2O (10 mL) were stirred for about 30 min. The resulting solution was sealed in a Teflon-lined stainless autoclave and heated to 423 K for 3 days. The autoclave was cooled to ambient temperature spontaneously. Red single crystals (about 86%, based on Co input) were recovered by vacuum filtration and drying in air.

Experimental details

C-bound H atoms were geometrically placed (C—H = 0.95 Å) and refined as riding with Uiso(H) = 1.2Ueq(C).

Discussion

The design and synthesis of coordination polymers (CPs) and especially metal organic frameworks (MOFs) have developed rapidly owing to applications of these materials in a variety of fields [1, 2] . The 1, 2-bis(imidazole-1-ylmethyl)benzene (1,2-BIB) is an important semi-flexible N-donor ligand, and some fascinating archetypal structures based on the 1,2-BIB ligand are reported [3, 4] . 1, 2, 4, 5-benzenetertracarboxylate (BTA) have also been extensively employed in the preparation of CPs [5]. Furthermore, it has been shown that the combination of carboxylate linkers along with semi-flexible N-donor ligands is a good choice for the construction of new CPs [6], [7], [8].

As shown in Figure, the asymmetric unit of the title compound contains two unique Co(II) atoms, one 1,2-BIB ligand, and two halves of BTA ligands. The Co1 center is six-coordinated with a distorted-octahedral geometry, defined by five oxygen atoms from three different BTA ligands, and one nitrogen atom from one 1,2-BIB ligand. The Co—N is 2.054(3) Å, and Co—O lengths are in the range of 1.969(2)–2.209(2) Å, which is comparable to values reported for related Co(II) complexes [4]. The Co2 atom is surrounded by one nitrogen donor from one 1,2-BIB ligand, as well as three oxygen atoms from different BTA anions, which exhibits a slightly distorted tetrahedron coordination sphere. The Co—O bond lengths range between 1.933(2) and 2.058(2) Å, while the Co—N bond length is 1.999(3) Å, which are in the normal ranges [4]. Both cyrstallographically independent BTA ligands are coordinated in an octa-dentate, coordination mode. They are located around different inversion centres of the triclinic space group (cf. the figure). Two symmetry-related carboxylate groups containing (O7, O8) of a BTA ligand are coordinated to two Co(II) atoms in chelating mode, while the other carboxylat groups are coordinated to four metal atoms in bridge-monodentate mode. The symmetry-related carboxylate groups (O1, O2) of the crystallographically independent BTA ligand act as a μ2-bridging function to connect two metal atoms in monodentated mode. Each of the two symmetry-related carboxylate groups of this second BTA ligand connect two metal atoms by its O3 and O3′ atom (cf. the figure). All these coordinations result in a two dimensional grid structure.

Acknowledgement

This work was supported financially by Natural Science Foundation of Henan Provincial Education Department (Nos. 14 A150023 and 15 A110048).

References

1 Dhakshinamoorthy, A.; Garcia, H.: Metal-organic frameworks as solid catalysts for the synthesis of nitrogen-containing heterocycles. Chem. Soc. Rev. 43 (2014) 5750–5765.10.1039/C3CS60442JSuche in Google Scholar PubMed

2 Hu, Z. C.; Deibert, B. J.; Li, J.: Luminescent metal-organic frameworks for chemical sensing and explosive detection. Chem. Soc. Rev. 43 (2014) 5815–5840.10.1039/C4CS00010BSuche in Google Scholar PubMed

3 Tripuramallu, B. K.; Manna, P.; Das, S. K.: Structural library of coordination polymers based on flexible linkers exploiting the role of linker coordination angle: synthesis, structural characterization and magnetic properties. CrystEngComm 16 (2014) 4816–4833.10.1039/C3CE42637HSuche in Google Scholar

4 Song, X. Z.; Song, S. Y.; Zhu, M.; Hao, Z. M.; Meng, X.; Zhao, S. N.; Zhang, H. J.: Employing tripodal carboxylate ligand to construct Co(II) coordination networks modulated by N-donor ligands: syntheses, structures and magnetic properties. Dalton Trans. 42 (2013) 13231–13240.10.1039/c3dt51241jSuche in Google Scholar PubMed

5 Yang, E. C.; Feng, Y.; Liu, Z. Y.; Liu, T. Y.; Zhao, X. J.: Diverse mixed-ligand metal complexes with in situ generated 5-(pyrazinyl)tetrazolate chelating-bridging ligand: in situ synthesis, crystal structures, magnetic and luminescent properties. CrystEngComm 13 (2011) 230–242.10.1039/C000586JSuche in Google Scholar

6 Zhao, N.; Deng, Y. E.; Liu, P.; An, C. X.; Wang, T. X.; Lian, Z. X.: Three coordination polymers constructed from bis(imidazol-l-yl-methyl) benzene: syntheses, structures, and third-order nonlinear optical properties. Transition. Met. Chem. 40 (2015) 11–19.10.1007/s11243-014-9884-zSuche in Google Scholar

7 Zhao, N.; Deng, Y. E.; Liu, P.; An, C. X.; Wang, T. X.; Lian, Z. X.: Syntheses, structures and third-order nonlinear optical properties of three coordination polymers based on bis(imidazol-l-yl-methyl)benzene and aromatic dicarboxylic ligands. Polyhedron 85 (2015) 607–614.10.1016/j.poly.2014.09.021Suche in Google Scholar

8 Zhao, N.; Liu, P.; An, C. X.; Wang, T. X.; Lian, Z. X.: Structures and third-order nonlinear optical properties of two cobalt(II) coordination polymers constructed from bis(imidazol-yl-methyl)benzene and aromatic dicarboxylic ligands. Inorg. Chem. Commun. 50 (2014) 97–100.10.1016/j.inoche.2014.10.019Suche in Google Scholar

9 Bruker. SADABS. Brucker AXS Inc., Madison, Wisconsin, USA, (2007).Suche in Google Scholar

10 Bruker. SMART and SAINT. Brucker AXS Inc., Madison, Wisconsin, USA, (2009).Suche in Google Scholar

11 Sheldrick, G. M.: SHELXT-Integrated space-group and crystal-structure determination Acta Crystallogr. A71 (2015) 3–8.10.1107/S2053273314026370Suche in Google Scholar PubMed PubMed Central

12 Dolomanov, O. V.; Bourhis, L. J.; Gildea, R. J.; Howard, J. A. K.; Puschmann, H.: OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Cryst. 42 (2009) 339–341.10.1107/S0021889808042726Suche in Google Scholar

Received: 2016-8-18
Accepted: 2017-1-15
Published Online: 2017-2-25
Published in Print: 2017-3-1

©2017 Ping Liu et al., published by De Gruyter.

This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 3.0 License.
