Home Physical Sciences Crystal structure of 3-(methoxycarbonyl)-7-oxabicyclo[2.2.1]heptane-2-carboxylic acid, C9H12O5
Article Open Access

Crystal structure of 3-(methoxycarbonyl)-7-oxabicyclo[2.2.1]heptane-2-carboxylic acid, C9H12O5

  • Xuehui Hou ORCID logo EMAIL logo , Qinglong Wang , Jianling Wang , Aiqin Li , Degang Ding and Quanjian Lv
Published/Copyright: March 5, 2021
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 236 Issue 3

Abstract

C9H12O5, triclinic, P1‾ (no. 2), a = 5.6537(6) Å, b = 7.7954(8) Å, c = 10.6841(9) Å, α = 102.238(8)°, β = 95.381(8)°, γ = 90.940(9)°, V = 457.83(8) Å3, Z = 2, Rgt(F) = 0.0673, wRref(F2) = 0.2279, T = 293(2) K.

CCDC no.: 2054188

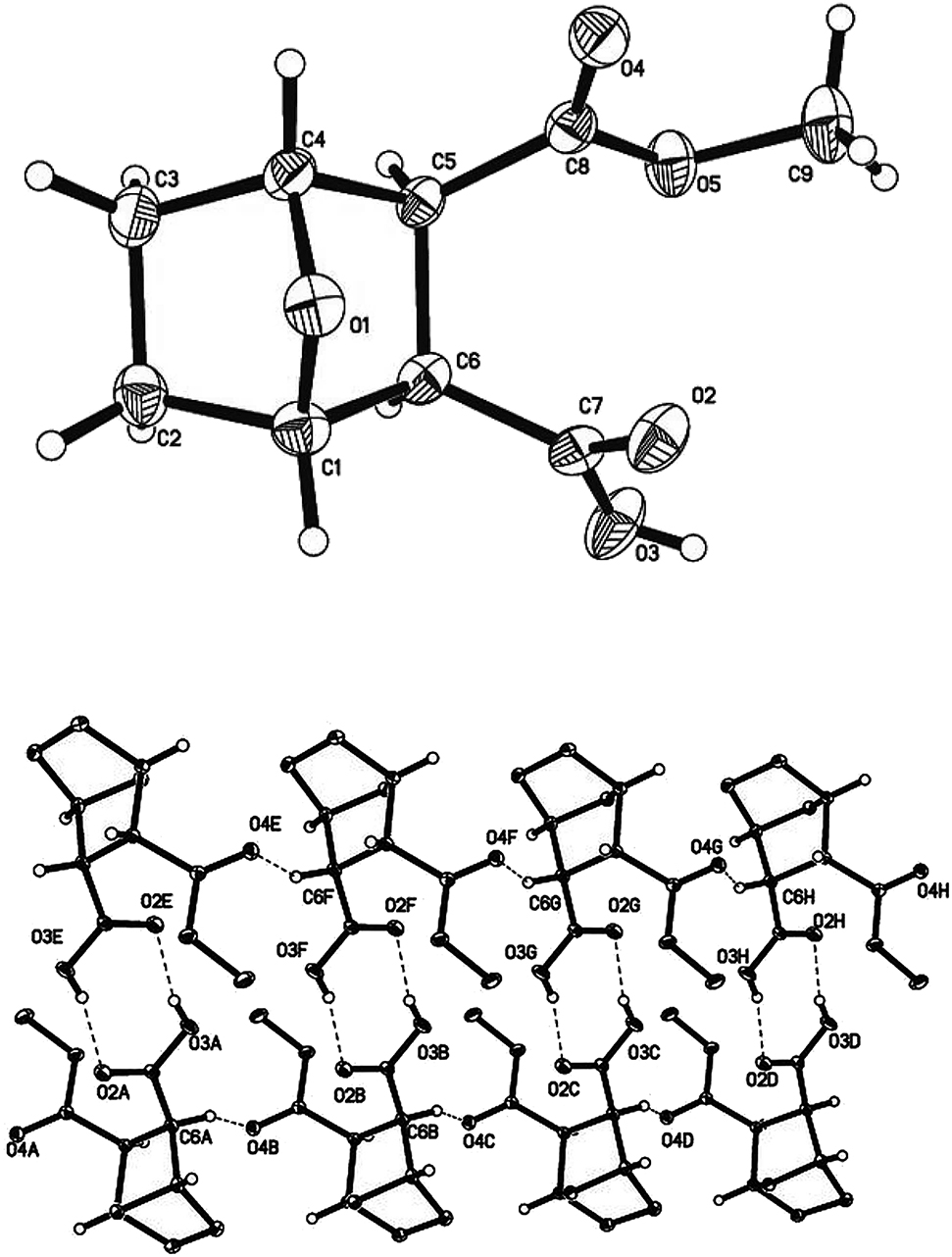

The asymmetric unit of the molecular structure is shown in the upper part of the Figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colourless block
Size:0.15 × 0.12 × 0.09 mm
Wavelength:Cu Kα radiation (1.54184 Å)
μ:1.02 mm−1
Diffractometer, scan mode:Xcalibur, ω
θmax, completeness:67.1°, 99%
N(hkl)measured, N(hkl)unique3149
Criterion for Iobs, N(hkl)gt:2411
N(param)refined:132
Programs:CrysAlisPRO [1], Olex2 [2], [ 3], SHELX [4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
O10.0546 (4)1.1100 (3)0.6853 (3)0.0410 (7)
O2−0.0577 (5)0.7088 (4)0.5760 (3)0.0517 (8)
O30.2902 (6)0.5800 (4)0.5636 (4)0.0649 (10)
H30.206 (11)0.505 (8)0.530 (6)0.078*
O4−0.1939 (5)0.8982 (4)0.8723 (3)0.0475 (7)
O50.0380 (5)0.6669 (3)0.8405 (3)0.0508 (8)
C10.2580 (6)1.0339 (5)0.6267 (4)0.0406 (9)
H10.23711.00820.53250.049*
C20.4569 (7)1.1704 (5)0.6848 (4)0.0466 (10)
H2A0.45831.26540.63900.056*
H2B0.61131.11810.68540.056*
C30.3857 (7)1.2340 (5)0.8223 (4)0.0484 (10)
H3A0.50521.20800.88630.058*
H3B0.35871.35900.84090.058*
C40.1554 (7)1.1262 (5)0.8162 (3)0.0385 (8)
H40.04931.17980.87980.046*
C50.2086 (6)0.9352 (4)0.8203 (3)0.0341 (8)
H50.33960.93240.88670.041*
C60.2944 (6)0.8689 (5)0.6838 (3)0.0376 (8)
H60.46420.84540.69280.045*
C70.1598 (7)0.7092 (5)0.6033 (3)0.0403 (9)
C8−0.0075 (6)0.8362 (5)0.8467 (3)0.0372 (8)
C9−0.1669 (9)0.5516 (6)0.8394 (6)0.0660 (13)
H9A−0.29460.57830.78170.099*
H9B−0.21620.56850.92460.099*
H9C−0.12520.43160.81120.099*

Source of material

The Dies-Alder reaction of furan (3.74 g, 55 mmol) with maleic anhydride (4.90 g, 50 mmol) was conducted in toluene (50 mL) at room temperature for 2 h. The Dies-Alder product was purified by recrystallization in acetone with 95% yield. Then the intermediate product (1.66 g, 10 mmol) was stirred in 10% methanol solution (10 mL) at 40 °C for 30 min to obtain the target product in 90% yield. The crystals of target product were obtained by slow evaporation from 5% methanol aqueous solution (10 mL, containing title compound 50 mg) at 25 °C within three days.

Experimental details

All H atoms were placed in calculated positions with C—H = 0.93–0.98 Å and refined as riding, with Uiso(H) = 1.2 Ueq(C) or 1.5 Ueq(C) for all C(H), C(H, H), O(H) and C(H, H, H) groups.

The title compound was refined as a 2-component twin. Twinned data refinement scales: 0.652(3) and 0.348(3).

Comment

Cantharidin (C10H12O4) is an important natural defense product. It has exhibited good antitumor activity, which has been used to treat liver and lung tumors [5], [6], [7]. However, its applications are blocked by its severe nephrotoxic and inflammatory side effects. In recent years, in order to find efficient and low toxic antitumor drugs, more and more pharmaceutical chemist have modified the structure of cantharidin [8], [9], [10] and evaluated the corresponding biological activity. The title compound is one example of this class of compounds.

Molecular structure of the title compound is shown in the upper part of the Figure. Crystal packing of the title compound is shown in the lower part of the Figure. The crystal structure of the title compound consists of two fused tetrahydrofuran rings having the cis-arrangement at the ring junctions, giving a V-shaped molecule. From the X-ray studies it was deduced that intermolecular hydrogen bonds (O3—H3⋯O2 and C6—H6⋯O4) link molecules into chains (see lower part of the Figure).

Corresponding author: Xuehui Hou, Henan University of Animal Husbandry and Economy, Zhengzhou450000, P. R. China, E-mail:

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: None declared.

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Agilent Technologies. CrysAlisPro Software System; Agilent Technologies UK Ltd: Oxford, UK, 2017.Search in Google Scholar

2. Dolomanov, O. V., Bourhis, L. J., Gildea, R. J., Howard, J. A. K., Puschmann, H. OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 2009, 42, 339–341; https://doi.org/10.1107/s0021889808042726.Search in Google Scholar

3. Bourhis, L. J., Dolomanov, O. V., Gildea, R. J., Howard, J. A. K., Puschmann, H. The anatomy of a comprehensive constrained, restrained refinement program for the modern computing environment-olex2 dissected. Acta Crystallogr. 2015, A71, 59–75; https://doi.org/10.1107/s2053273314022207.Search in Google Scholar

4. Sheldrick, G. M. A short history of shelx. Acta Crystallogr. 2008, A64, 112–122; https://doi.org/10.1107/s0108767307043930.Search in Google Scholar

5. Leung, A. Y. Traditional toxicity documentation of Chinese materia medica - an overview. Toxicol. Pathol. 2006, 34, 319–326; https://doi.org/10.1080/01926230600773958.Search in Google Scholar

6. Kadioglu, O., Kermani, N. S., Kelter, G., Sxhumacher, U., Fiebig, H. H., Greten, H. J., Efferth, T. Pharmacogenomics of cantharidin in tumor cells. Biochem. Pharmacol. 2014, 87, 399–409; https://doi.org/10.1016/j.bcp.2013.10.025.Search in Google Scholar

7. Stanton, H. L. K., Chung, H. C., Wing, S. L., Jien, C., Fung, Y. L., Raymond, S. M. W., Gregory, Y. M. C., Paul, B. S. L., Thomas, W. T. L., Michael, W. Y. Y., Johnny, C. O. T., Albert, S. C. C. Synthesis and structure evaluation of a novel cantharinide and its cytotoiciy on SK-Hep-1 hepatoma cells. Bioorg. Med. Chem. Lett. 2007, 17, 1155–1159.10.1016/j.bmcl.2006.12.039Search in Google Scholar PubMed

8. Wang, N., Lin, Q. Y., Wang, Y. J. rac-7-Oxabicyclo[2.2.1]heptane-2,3-dicarboxylic acid-2-amino-1,3,4-thiadiazole-water (1/1/1). Acta Crystallogr. 2009, E65, o1590; https://doi.org/10.1107/s1600536809021825.Search in Google Scholar

9. Baumeister, U., Hartung, H., Kaplonek, R. (2,2′-Bipyridine-N,N′)(7-oxabicyclo[2.2.1]-heptane-2-exo,3-exo-dicarboxylato-k3O2,3,7)-manganese(II)-7-oxabicyclo[2.2.1]heptane-2-exo,3-exo-dicarboxylic acid-water (1/1/1). Acta Crystallogr. 1999, C55, 715–717; https://doi.org/10.1107/s0108270198018095.Search in Google Scholar

10. Lin, Q. Y., Zhu, W.-Z., Cheng, J. P., Su, H. Crystal structure of 2-aminopyridinium norcantharidate (C5H7N2)(C8H9O5). Z. Kristallogr. NCS 2007, 222, 445–446; https://doi.org/10.1524/ncrs.2007.0188.Search in Google Scholar

Received: 2021-01-16
Accepted: 2021-02-08
Published Online: 2021-03-05
Published in Print: 2021-05-26

© 2021 Xuehui Hou et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 International License.
