Crystal structure of methyl 4-acetoxy-3,5-dimethoxybenzoate, C12H14O6

  • Chun-Lan Xiong , Ying-Dong Lan EMAIL logo , Xiu-Ying Song , Wan-Ming Xiong and Xu-Liang Nie ORCID logo EMAIL logo
Published/Copyright: February 3, 2021
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 236 Issue 3

Abstract

C12H14O6, orthorhombic, Pbca (no. 61), a = 18.0207(13) Å, b = 7.6885(5) Å, c = 18.2326(13) Å, V = 2526.2(3) Å3, Z = 8, Rgt(F) = 0.0411, wRref(F2) = 0.1214, T = 296(2) K.

CCDC no.: 2056372

Table 1 contains crystallographic data, and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colorless block
Size0.20 × 0.17 × 0.14 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.11 mm−1
Diffractometer, scan mode:Bruker APEX-II, φ and ω
θmax, completeness:25.5°, >99%
N(hkl)measured, N(hkl)unique, Rint:18,059, 2350, 0.029
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 1937
N(param)refined:168
Programs:Bruker [1], SHELX [2], [, 3], Diamond [4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
C10.09115 (10)0.9821 (2)0.26869 (9)0.0494 (4)
H10.05941.01420.30660.059*
C20.06371 (9)0.9536 (2)0.19840 (9)0.0457 (4)
C30.11230 (9)0.9086 (2)0.14246 (8)0.0413 (4)
C40.18750 (9)0.8889 (2)0.15531 (8)0.0434 (4)
C50.21473 (9)0.9154 (2)0.22570 (9)0.0488 (4)
H50.26510.90190.23540.059*
C60.16642 (9)0.9619 (2)0.28132 (8)0.0477 (4)
C70.19424 (11)0.9916 (3)0.35735 (9)0.0573 (5)
C80.29867 (14)0.9840 (4)0.43527 (12)0.0910 (8)
H8A0.29921.10600.44660.136*
H8B0.34860.94030.43520.136*
H8C0.27000.92310.47150.136*
C9−0.06253 (11)0.9828 (3)0.23395 (12)0.0724 (6)
H9A−0.05690.88970.26860.109*
H9B−0.11120.97780.21260.109*
H9C−0.05621.09220.25850.109*
C100.30770 (10)0.8598 (3)0.10271 (11)0.0647 (6)
H10A0.31970.97420.12020.097*
H10B0.33020.84180.05560.097*
H10C0.32600.77470.13670.097*
C110.05057 (8)0.7398 (2)0.05478 (9)0.0433 (4)
C120.01851 (12)0.7444 (3)−0.02022 (10)0.0648 (6)
H12A0.04950.6789−0.05290.097*
H12B0.01570.8628−0.03680.097*
H12C−0.03030.6947−0.01940.097*
O10.15657 (9)1.0397 (3)0.40764 (7)0.0893 (6)
O20.26587 (7)0.9579 (2)0.36356 (7)0.0760 (5)
O3−0.00855 (7)0.9662 (2)0.17826 (7)0.0637 (4)
O40.22926 (6)0.8432 (2)0.09629 (6)0.0580 (4)
O50.08545 (6)0.89220 (15)0.07113 (6)0.0451 (3)
O60.04805 (8)0.62225 (18)0.09706 (7)0.0660 (4)

Source of materials

The mixture of methyl 4-hydroxy-3,5-dimethoxybenzoate (2.12 g, 0.01 mol), acetic anhydride (2.04 g, 0.02 mol) was reacted at 80 °C for 1 h. After the reaction completed (monitored by TLC), colorless crystal appeared after cooled slowly. The product was filtered and washed with water three times respectively: yield 92% (based on methyl 4-hydroxybenzoate). Elemental Anal. Calcd. (%) for C12H14O6 (254.23): C, 56.69; H, 5.55. Found (%): C, 54.75; H, 5.74.

Experimental details

H atoms were included in calculated positions and refined as riding atoms, with C–H = 0.93 Å with Uiso(H) = 1.5 Ueq(C) for methyl H atoms and 1.2 Ueq(C) for all other H atoms.

Comment

Phenolic acids are polyphenols that occur naturally in plants, which are found in a variety of plant-based foods [5]. There are many different phenolic acids found in nature, and they can be divided into two categories: benzoic acid derivatives, such as gallic acid, and cinnamic acid derivatives, including caffeic acid [6], [7], [8]. The syringic acid, is a natural phenolic acid of benzoic acid category, which has antibacterial activities, sedative activities and local anesthetic effects [9], [10], [11], [12]. Because of its strong activities and its wide applications, pyromethyl was widely used in perfume, medicine, pesticide chemistry and organic synthesis. The synthesis and application of syringic acid and its derivatives have attracted much attention [13], [14], [15], [16]. We still focused on the synthesis and antibacterial activities of preservatives. Thus we have designed and synthesised a series of phenolic acids derivatives. Herein, we report the synthesis and crystal structure of an important intermediate.

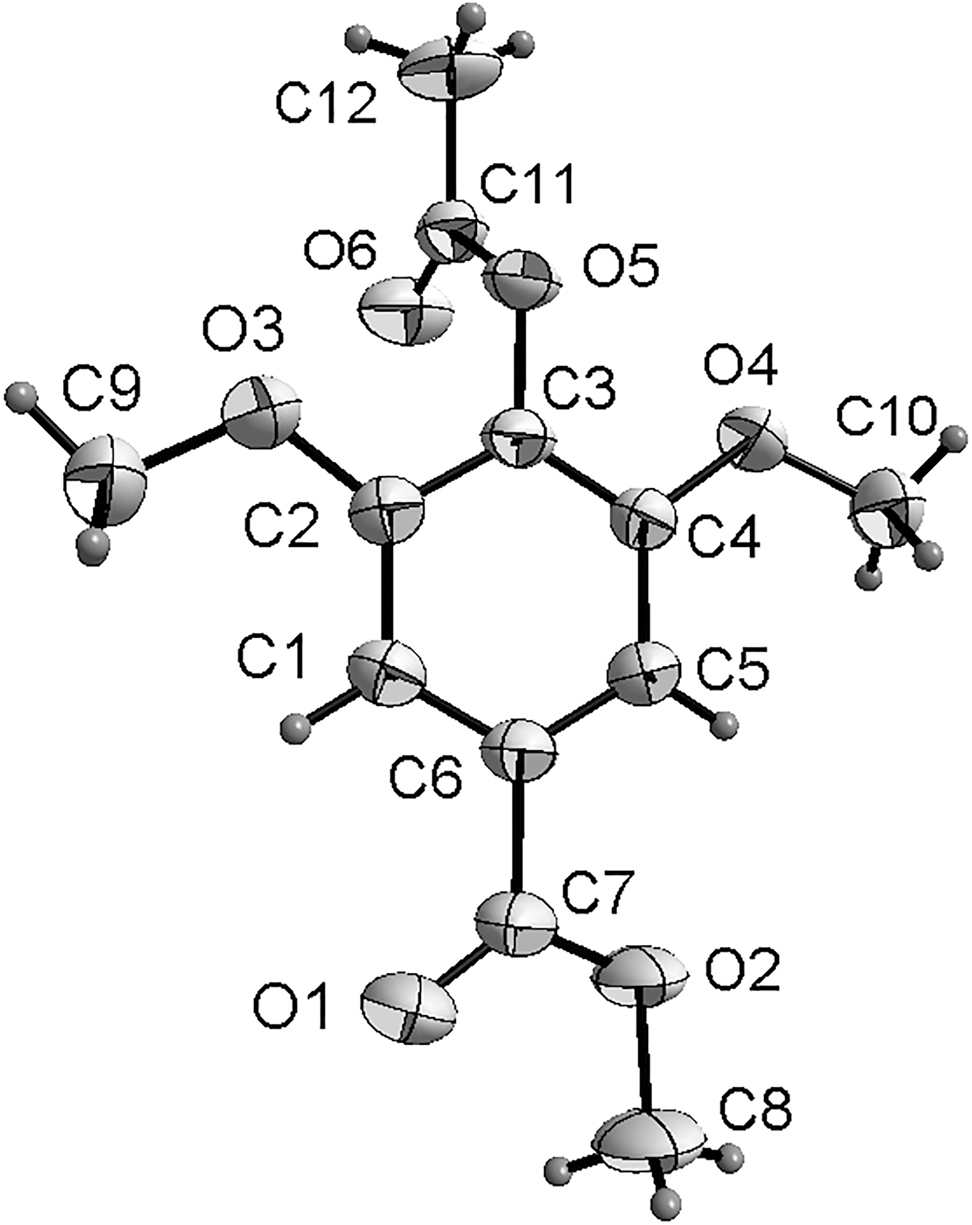

There is one crystallographic independant molecule in the asymmetric unit (shown in the figure). In the molecule of the title compound, bond lengths and angles are very similar to those given in methyl 4-acetoxybenzoate [17]. The dihedral angle formed between the C1–C6 plane the carboxylate group O1–C7–O2 plane is 4.0°. The acetyl group O5–C16–O6 plane is perpendicular to methyl p-hydroxy-3,5-dimethoxybenzoate and the dihedral angle is 81.5°.

Corresponding authors: Ying-Dong Lan, Key Laboratory of Chemical Utilization of Plant Resources of Nanchang/Department of Chemistry, Jiangxi Agricultural University, Nanchang 330031, People’s Republic of China, E-mail: ; and Xu-Liang Nie, Key Laboratory of Chemical Utilization of Plant Resources of Nanchang/Department of Chemistry, Jiangxi Agricultural University, Nanchang330031, People’s Republic of China, E-mail:

Funding source: Jiangxi Key R & D Project

Award Identifier / Grant number: 20192ACB60011

Award Identifier / Grant number: 20202BABL205003

Funding source: Key Research Foundation of Educational Department of Jiangxi Province of China

Award Identifier / Grant number: GJJ200386

Award Identifier / Grant number: GJJ180205

Award Identifier / Grant number: GJJ160382

Acknowledgements

X-ray data were collected at Instrumental Analysis Center Nanchang Hangkong University, Nanchang, 330063, People’s Republic of China

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: Jiangxi Key R & D Project (20192ACB60011 and 20202BABL205003), the Key Research Foundation of Educational Department of Jiangxi Province of China (GJJ200386, GJJ180205, GJJ160382).

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Bruker. APEX2, SAINT and SADABS; Bruker AXS Inc.: Madison, Wisconsin, USA, 2009.Search in Google Scholar

2. Sheldrick, G. M. A short history of SHELX. Acta Crystallogr. 2008, A64, 112–122; https://doi.org/10.1107/s0108767307043930.Search in Google Scholar

3. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Search in Google Scholar

4. Brandenburg, K. DIAMOND. Visual Crystal Structure Information System. Ver. 4.0; Crystal Impact: Bonn, Germany, 2015.Search in Google Scholar

5. Kumar, N., Goel, N. Phenolic acids: natural versatile molecules with promising therapeutic applications. Biotechnol. Rep. 2019, 24, e00370; https://doi.org/10.1016/j.btre.2019.e00370.Search in Google Scholar

6. Pandey, K. B., Rizvi, S. I. Plant polyphenols as dietary antioxidants in human health and disease. Oxidative Med. Cell. Longev. 2009, 2, 270–278; https://doi.org/10.4161/oxim.2.5.9498.Search in Google Scholar

7. Boz, H. Ferulic acid in cereals-a review. Czech J. Food Sci. 2015, 1, 1–7.10.17221/401/2014-CJFSSearch in Google Scholar

8. Wang, J. R., Ma, L., Li, W. F., Tang, X. H., Zhao, G., Peng, L. X., Zhao, J. L. Effect of trace elements on the flavonoids and phenolic acids in tartary buckwheat sprouts. Acta Agric. Univ. Jiangxiensis 2017, 39, 55–63.Search in Google Scholar

9. Srinivasulu, C., Ramgopal, M., Ramanjaneyulu, G., Anuradha, C. M., Suresh, K. C. Syringic acid (SA) – a review of its occurrence, biosynthesis, pharmacological and industrial importance. Biomed. Pharmacother. 2018, 108, 547–557; https://doi.org/10.1016/j.biopha.2018.09.069.Search in Google Scholar

10. Liu, F., Jiang, F. B., Li, Y. T. Cocrystallization with syringic acid presents a new opportunity for effectively reducing the hepatotoxicity of isoniazid. Drug Dev. Ind. Pharm. 2020, 46, 988–995; https://doi.org/10.1080/03639045.2020.1764024.Search in Google Scholar

11. Cordelia, M. J., Sumathy, A. Syringic acid (4-hydroxy-3,5-dimethoxybenzoic acid) inhibits adipogenesis and promotes lipolysis in 3T3-L1 adipocytes. Nat. Prod. Res. 2020, 34, 3432–3436.10.1080/14786419.2019.1573820Search in Google Scholar PubMed

12. Yang, N., Qiu, F., Zhu, F., Qi, L. Therapeutic potential of zinc oxide-loaded syringic acid against in vitro and in vivo model of lung cancer. Int. J. Nanomed. 2020, 15, 8249–8260; https://doi.org/10.2147/ijn.s272997.Search in Google Scholar

13. Zhou, X. L., Huang, S. X., Wang, P. C., Luo, Q., Huang, X., Xu, Q., Qin, J. K., Liang, C. Q., Chen, X. A syringic acid derivative and two iridoid glycosides from the roots of Stachys geobombycis and their antioxidant properties. Nat. Prod. Res. 2017, 31, 681–686; https://doi.org/10.1080/14786419.2017.1405413.Search in Google Scholar

14. Chen, P. S., Chen, H. M., Zhang, G. F., Chen, W. J., Chen, W. X. Synthesis, characterization and interaction of syringic acid-copper complex with DNA. Chin. J. Chem. 2018, 81, 170–174.Search in Google Scholar

15. Rabih, S., Ye, Y., Hong, D. S., Naing, A., Falchook, G., Fu, S., Wheler, J. J., Piha-Paul, S., Tsimberidou, A. M. Phase I clinical trial of lenalidomide in combination with 5-fluorouracil, leucovorin, and oxaliplatin in patients with advanced cancer. Cancer Chemother. Pharmacol. 2016, 77, 575–581; https://doi.org/10.1007/s00280-015-2952-z.Search in Google Scholar

16. Oppelt, P., Anthony, B. D., Lalitha, N. Approach to chemotherapy-associated thrombosis. Vasc. Med. 2015, 20, 153–161; https://doi.org/10.1177/1358863x14568705.Search in Google Scholar

17. Fang, L. M., Huang, J. P., Dai, J. C., Nie, X. L., Liu, C. X., Kang, N. Q., Huang, L. Crystal structure of methyl 4-acetoxybenzoate, C10H10O4. Z. Kristallogr. NCS 2019, 234, 585–586. https://doi.org/10.1515/ncrs-2018-0591.Search in Google Scholar
