Crystal structure of (E)-4-((4-chlorophenylimino)methyl)pyridinium 3,5-dinitrobenzoate, C19H13ClN4O6

  • Damilola Caleb Akintayo , Sizwe J. Zamisa ORCID logo EMAIL logo , Bernard Omondi ORCID logo und Sreekantha B. Jonnalagadda
Veröffentlicht/Copyright: 28. Februar 2020
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 235 Heft 3

Abstract

C19H13ClN4O6, monoclinic, P21/n (no. 14), a = 4.8032(1) Å, b = 19.5545(5) Å, c = 19.6915(6) Å, β = 90.640(1)°, V = 1849.39(8) Å3, Z = 4, Rgt(F) = 0.0369, wRref(F2) = 0.1011, T = 100(2) K.

CCDC no.: 1976390

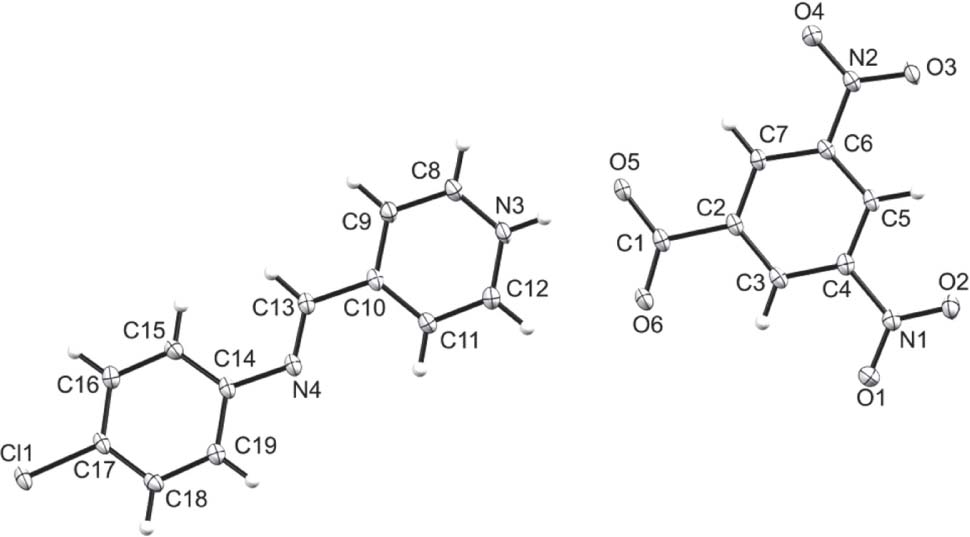

The molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Yellow block
Size:0.35 × 0.31 × 0.24 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.26 mm−1
Diffractometer, scan mode:Bruker SMART APEX-II, φ and ω
θmax, completeness:28.4°, >99%
N(hkl)measured, N(hkl)unique, Rint:23587, 4595, 0.023
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 4077
N(param)refined:271
Programs:Bruker [1], SHELX [2], [4], Mercury [3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Cl11.24030(7)0.17151(2)0.22774(2)0.02373(10)
O1−0.6861(2)−0.15929(6)0.88344(6)0.0303(3)
O2−1.0191(2)−0.14248(5)0.95467(5)0.0266(2)
O3−1.4605(2)0.07664(5)0.96821(5)0.0245(2)
O4−1.3363(2)0.15901(5)0.90140(6)0.0275(2)
O5−0.6239(2)0.11936(6)0.72800(5)0.0290(2)
O6−0.3923(2)0.02022(6)0.73132(5)0.0276(2)
N1−0.8627(3)−0.12316(6)0.90962(6)0.0207(2)
N2−1.3163(2)0.10035(6)0.92263(6)0.0194(2)
C1−0.5720(3)0.05961(7)0.75157(7)0.0200(3)
C2−0.7529(3)0.03677(7)0.81005(6)0.0185(3)
C3−0.7222(3)−0.02998(7)0.83349(7)0.0190(3)
H3A−0.588469−0.0597080.8140610.023*
C4−0.8907(3)−0.05222(7)0.88575(7)0.0183(3)
C5−1.0871(3)−0.01087(7)0.91609(6)0.0178(3)
H5−1.201508−0.0270420.9517120.021*
C6−1.1080(3)0.05523(7)0.89178(6)0.0175(3)
C7−0.9479(3)0.08027(7)0.83905(6)0.0183(3)
H7−0.9708190.1258240.8231840.022*
N3−0.3050(3)0.13949(7)0.62705(6)0.0233(3)
H3−0.4186430.1321590.6610300.028*
N40.4151(3)0.13075(6)0.44523(6)0.0209(2)
C8−0.2935(3)0.20121(7)0.59871(7)0.0219(3)
H8−0.4110180.2365640.6149040.026*
C9−0.1129(3)0.21478(7)0.54600(7)0.0210(3)
H9−0.1055780.2591400.5264270.025*
C100.0573(3)0.16282(7)0.52204(7)0.0190(3)
C110.0382(3)0.09823(8)0.55152(7)0.0249(3)
H110.1493140.0615230.5355800.030*
C12−0.1447(3)0.08833(8)0.60424(8)0.0281(3)
H12−0.1573790.0444880.6247590.034*
C130.2526(3)0.17694(7)0.46668(7)0.0194(3)
H130.2570270.2211750.4467740.023*
C140.6074(3)0.14498(7)0.39310(7)0.0191(3)
C150.6740(3)0.21052(7)0.36949(7)0.0228(3)
H150.5867730.2494840.3886810.027*
C160.8670(3)0.21873(7)0.31817(7)0.0223(3)
H160.9099860.2630310.3014740.027*
C170.9961(3)0.16144(7)0.29162(7)0.0193(3)
C180.9382(3)0.09634(7)0.31485(7)0.0211(3)
H181.0303790.0576700.2964540.025*
C190.7423(3)0.08864(7)0.36569(7)0.0202(3)
H190.6999630.0441500.3819740.024*

Source of material

The Schiff base (E)-N-(4-chlorophenyl)-1-(pyridin-4-yl)methanimine was synthesized using a solvent free grinding of 4-pyridinecarboxaldehyde and 4-chloroaniline [5]. 0.05 mmol of the Schiff base were added to a stirred solution containing magnesium acetate tetrahydrate (0.5 mmol) and 3,5-dinitrobenzoic acid (1 mmol) in ethanol (10 mL) for 6 hours. Slow evaporation of the ethanolic solution led to the formation of X-ray quality, yellow block-shaped crystals of the title compound after three days. Yield = 81%; m.p. =155–157 °C; 1H-NMR (d6DMSO, 400 MHz): δ (ppm) 7.36 (2H, q, J = 2.88 Hz), 7.49 (2H, q, J = 2.88 Hz), 7.84 (2H, d, J = 5.76 Hz), 8.69 (1H, s), 8.76 (2H, d, J = 4.44 Hz), 8.90 (2H, d, J = 2.16 Hz), 9.00 (1H, t, J = 2.12 Hz). 13C-NMR (d6DMSO, 400 MHz): δ (ppm) 115.67, 122.34, 122.59, 122.71, 123.52, 128.92, 129.33, 129.70, 131.71, 135.17, 142.76, 148.77, 149.76, 150.92, 151.55, 164.43, 193.80.

Experimental details

A Bruker Smart APEX2 diffractometer with Mo Kα radiation was used for crystal evaluation and data collection [1]. The structure was solved by the direct method using the SHELXS [2] program and refined. The visual crystal structure information was performed using Mercury [3] system software. All non-hydrogen atoms were refined isotropically and then by anisotropic refinement with full-matrix least squares method based on F2 using SHELXL [4]. All C—Haromatic and N—H bond distances were constrained using the appropriate HFIX commands and Uiso set to 1.2Ueq of the parent atom.

Comment

Schiff bases are condensation products of the reaction of carbonyl compounds (aldehyde or ketones) and amines. They were first isolated by Hugo Schiff in 1864 [6]. Their ability to stabilize metal centers at different oxidation state affords them versatility in biological application and co-ordination chemistry [7], [8]. Benzoic acid derivatives have been used as co-ligands for the formation of heteroleptic complexes [9], [10], [11].

The asymmetric unit of the title compound comprises of an anionic 3,5-dinitrobenzoate and a cationic (E)-4-((4-chlorophenylimino)methyl)pyridinium species. The pyridinium and anilinyl rings of the cationic species are not coplanar and have a dihedral angle of 10.37(7)°. On the other hand, the dihedral angle between each of the meta-nitro groups and the phenyl ring of the anionic species ranged from 1.04(8)° to 1.99(9)° which is narrower than that of the carboxylate group (5.4872(1)°) This could be attributed to the electrostatic effect including the intermolecular N3—H3⋯O5 (N3⋯O5 = 2.5535(15) Å; H3⋯O5 = 1.674 Å; N3—H3⋯O5 = 178°) and C12—H12⋯O6 [C12⋯O6 = 3.0849(18) Å; H12⋯O6 = 2.440 Å; C12—H12⋯O6 = 125°] hydrogen bonding patterns which exists between the carboxylate and pyridinium moieties that are similar to a closely related compound in literature [12].

Acknowledgements

We acknowledge the University of KwaZulu-Natal for financial support and an enabling environment for research.

References

1. Bruker. APEXII. Bruker AXS Inc., Madison, WI, USA (2009).Suche in Google Scholar

2. Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Suche in Google Scholar PubMed

3. Macrae, C. F.; Bruno, I. J.; Chisholm, J. A.; Edgington, P. R.; McCabe, P.; Pidcock, E.; Rodriguez-Monge, L.; Taylor, R.; van de Streek, J.; Wood, P. A.: Mercury CSD 2.0 – new features for the visualization and investigation of crystal structures. J. Appl. Crystallogr. 41 (2008) 466–470.10.1107/S0021889807067908Suche in Google Scholar

4. Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Suche in Google Scholar PubMed PubMed Central

5. Munzeiwa, W. A.; Nyamori, V. O.; Omondi, B.: N,O-Amino-phenolate Mg(II) and Zn(II) schiff base complexes: synthesis and application in ring-opening polymerization of ϵ-caprolactone and lactides. Inorg. Chim. Acta 487 (2019) 264–274.10.1016/j.ica.2018.12.028Suche in Google Scholar

6. Schiff, H.: Mittheilungen aus dem Universitätslaboratorium in Pisa: eine neue Reihe organischer Basen. Liebigs Ann. 131 (1864) 118–119.10.1002/jlac.18641310113Suche in Google Scholar

7. Rosengerg, B.; van Camp, L.; Krigas, T.: Inhibition of cell division in Escherichia coli by electrolysis products from a platinum electrode. Nature 205 (1965) 698–699.10.1038/205698a0Suche in Google Scholar PubMed

8. Patange, A. N.; Yadav, U. M.; Desai, P. A.; Singare, P. U.: Synthesis of some novel halogenated platinum(II) complexes of active Schiff’s base ligand derived from 5-bromo isatin and evaluation of their antibacterial activity. WSN 10 (2015) 32–43.10.56431/p-gb7jf1Suche in Google Scholar

9. Sarma, R.; Kalita, D.; Baruah, J. B.: Solvent induced reactivity of 3,5-dimethylpyrazole towards zinc (II) carboxylates. Dalton Trans. 36 (2009) 7428–7436.10.1039/b905534gSuche in Google Scholar PubMed

10. Akpan, E. D.; Ojwach, S. O.; Omondi, B.: Structural and kinetic studies of the ring-opening polymerization of cyclic esters using N,N′- diarylformamidines Zn(II) complexes. Polyhedron 10 (2016) 63–72.10.1016/j.poly.2016.02.007Suche in Google Scholar

11. Appavoo, D.; Omondi, B.; Guzei, I. A.; van Wyk, J. L.; Zinyemba, O.; Darkwa, J.: Bis(3,5-dimethylpyrazole) copper(II) and zinc(II) complexes as efficient initiators for the ring opening polymerization of ϵ-caprolactone and D,L-lactide. Polyhedron 69 (2014) 55–60.10.1016/j.poly.2013.11.011Suche in Google Scholar

12. Sharif, S.; Powell, D. R.; Schagen, D.; Steiner, T.; Toney, M. D.; Fogle, E.; Limback, H.-H.: X-ray crystallographic structures of enamine and amine Schiff bases of pyridoxal and its 1:1 hydrogen bonded complexes with benzoic acid derivatives: evidence for coupled inter- and intra- molecular proton transfer. Acta Crystallogr. B62 (2008) 480–487.10.1107/S0108768105040590Suche in Google Scholar PubMed

Received: 2019-11-25
Accepted: 2020-01-09
Published Online: 2020-02-28
Published in Print: 2020-04-28

©2020 Damilola Caleb Akintayo et al., published by De Gruyter, Berlin/Boston
