Crystal structure of catena-poly[diaqua-(μ2-4,4′-bipyridine-κ2N:N′)-bis(2,3,4,5-tetrabromo-6-carboxybenzoato-κ1O)-nickel(II)], C26H14Br8NiN2O10

  • Yong-Shuang Li and Min-Le Han ORCID logo EMAIL logo
Published/Copyright: February 12, 2020
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 235 Issue 3

Abstract

C26H14Br8NiN2O10, orthorhombic, Pbcn (no. 60), a = 24.1740(4) Å, b = 11.3727(2) Å, c = 11.7918(2) Å, V = 3241.84(10 Å3, Z = 4, Rgt(F) = 0.0300, wRref(F2) = 0.0804, T = 293 K.

CCDC no.: 1976158

Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Green block
Size:0.22 × 0.21 × 0.17 mm
Wavelength:Cu Kα radiation (1.54184 Å)
μ:12.9 mm−1
Diffractometer, scan mode:XtaLAB Pro, ω
θmax, completeness:66.6°, >99%
N(hkl)measured, N(hkl)unique, Rint:9567, 2863, 0.038
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 2660
N(param)refined:217
Programs:SHELX [1], [2], CrysAlisPRO [3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Br10.67791(2)0.18168(4)0.77771(4)0.04284(14)
Br20.81111(2)0.20439(4)0.74640(4)0.04221(14)
Br30.86293(2)0.41377(5)0.58456(4)0.04829(15)
Br40.77828(2)0.59198(4)0.44797(4)0.03776(13)
C10.60924(14)0.3568(3)0.6314(3)0.0249(7)
C20.65179(14)0.5278(3)0.4810(3)0.0253(7)
C30.67138(13)0.3717(3)0.6230(3)0.0226(7)
C40.70751(15)0.2993(3)0.6819(3)0.0267(7)
C50.76445(15)0.3095(3)0.6693(3)0.0276(7)
C60.78559(14)0.3953(3)0.5981(3)0.0285(8)
C70.74989(14)0.4695(3)0.5376(3)0.0252(7)
C80.69282(14)0.4550(3)0.5478(3)0.0235(7)
C90.53763(15)0.6332(3)0.8071(3)0.0305(8)
H90.56450.59240.84750.037*
C100.53886(14)0.7551(3)0.8098(3)0.0315(8)
H100.56590.79370.85180.038*
C110.50000.8195(4)0.75000.0220(10)
C120.50000.9505(4)0.75000.0232(10)
C130.53087(18)1.0149(3)0.8268(4)0.0407(10)
H130.55230.97640.88070.049*
C140.52989(18)1.1362(3)0.8237(4)0.0390(9)
H140.55131.17710.87600.047*
N10.50000.5715(3)0.75000.0239(8)
N20.50001.1980(3)0.75000.0243(9)
Ni10.50000.38531(6)0.75000.01829(18)
O10.58667(9)0.38611(19)0.72516(18)0.0221(5)
O20.58569(11)0.3188(3)0.5467(2)0.0432(7)
O30.61566(12)0.5835(3)0.5271(2)0.0442(7)
O40.65796(10)0.5184(2)0.37154(19)0.0297(5)
H40.63300.55400.33940.045*
O50.51630(11)0.3863(2)0.9202(2)0.0324(6)
H5A0.55060.37330.93140.049*
H5B0.50000.32810.95150.049*

Source of material

3,4,5,6-Tetrabromophthalic acid (H2Br4ph, 19 mg, 0.04 mmol), 4,4′-bipyridine (31 mg, 0.02 mmol), and Ni(ClO4)2⋅6H2O (29 mg, 0.08 mmol) were added to water (6 mL) in a 25 mL Teflon-lined autoclave. The mixture was heated at 393 K for 3 days and then slowly cooled. Light green block crystals of the title compound were obtained.

Experimental details

Hydrogen atoms were placed in calculated positions and refined using a riding model on attached atoms.

Comment

In the last three decades, nickel(II)-based metal-organic frameworks (Ni-MOFs) with intriguing structural topologies and potential applications have been reported in the literature [4], [5], [6]. Ni-MOFs and CPs can be constructed from Ni ions and mixed-ligands, including organic aromatic multicarboxylates and nitrogen-containing ligands. Among organic aromatic multicarboxylates, phthalic acid (1,2-benzenedicarboxylic acid) and its derivatives, as the mediators between the metal centers, have been widely utilized to construct MOFs [7], [8], [9]. On the other hand, 4,4′-bipyridine (4,4′-bipy), as a nitrogen donors ligand, can act as bidentate ligand to coordinate to two metal ions [10], [11], [12], [13].

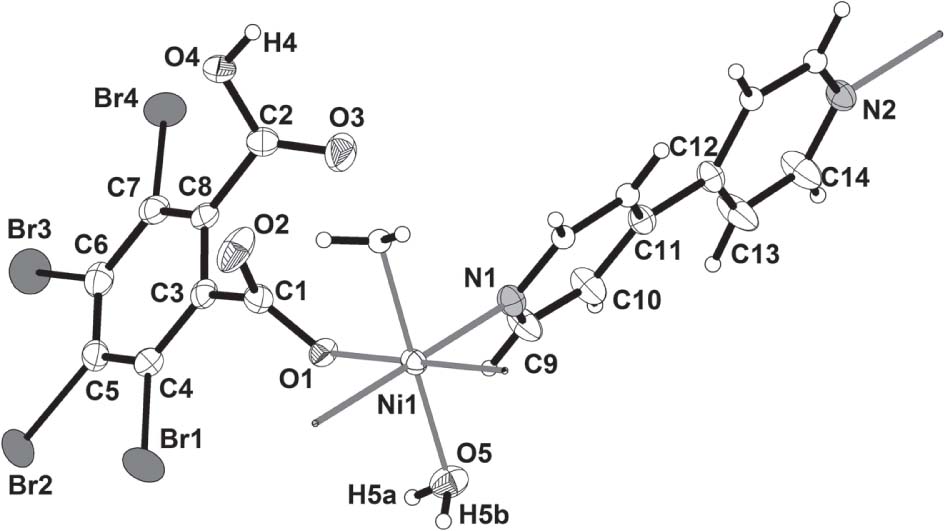

In the title complex, there are half of a Ni(II) ion, one coordinated water molecule, one HBr4ph ligand, and half of 4,4′-bipy ligand in the asymmetric unit (Atoms shown as ellipsoids in the Figure). Ni1 is six-coordinated with a distorted octahedral geometry by two O atoms from two HBr4ph and a pair of N atoms of two 4,4′-bipy ligands, located at the basal equatorial plane, and two coordinated water molecules from the axial positions with a O5-Ni1-O5′ angle of 179.34(15)°. The Ni—N bond lengths are 2.118(4) and 2.131(4) Å and the Ni—O ones are in the range of 2.045(2) and 2.116(2) Å. Ni(II) ions are linked by 4,4′-bipy ligands to form a chain. In the title complex, there are hydrogen bonds: (a) hydrogen bonding between water and carboxylate O atom O2 with d(O⋯O) = 2.61 Å; (b) hydrogen bonding between water and carboxylic group (O3) with d(O⋯O) = 2.73 Å; (c) hydrogen bonding between carboxy O atom O4 and carboxylate O atom O1 with d(O⋯O) = 2.67 Å. The 1-D chains are linked by intermolecular hydrogen bonding to form an extended three-dimensional network. The title structure is directly related with a structure reported in ref. [14] and shows isotypism to a recently reported structure [15].

Funding source: Natural Science Foundation of Henan province

Award Identifier / Grant number: 182300410238

Funding source: Henan tackle key problem of science and technology

Award Identifier / Grant number: 182102310620

Funding statement: This work was supported financially by the Natural Science Foundation of Henan province (no. 182300410238) and Henan tackle key problem of science and technology (no. 182102310620).

References

1. Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Search in Google Scholar PubMed PubMed Central

2. Sheldrick, G. M.: SHELXL – integrated space-group and crystal structure determination. Acta Crystallogr. A71 (2015) 3–8.10.1107/S2053273314026370Search in Google Scholar

3. Agilent Technologies: CrysAlisPRO Software system, version 1.171.35.15. Agilent Technologies UK Ltd, Oxford, UK (2011).Search in Google Scholar

4. Wu, Y.-P.; Tian, J.-W.; Liu, S.; Li, B.; Zhao, J.; Ma, L.-F.; Li, D.-S.; Lan, Y.-Q.; Bu, X.: Bi-microporous metal-organic framewoks with cubane [M4(OH)4] (M = Ni, Co) clusters and pore space partition for electrocatalytic methanol oxidation reaction. Angew. Chem. Int. Ed. 131 (2019) 12313–12317.10.1002/ange.201907136Search in Google Scholar

5. Zhao, J.; Wang, Y.; Dong, W.; Wu, Y.; Li, D.; Liu, B.; Zhang, Q.: A new surfactant-introduced strategy for separating pure single-phase of metal-organic frameworks. Chem. Commun. 51 (2015) 9479–9482.10.1039/C5CC02043CSearch in Google Scholar

6. Li, D.-S.; Zhao, J.; Wu, Y.-P.; Liu, B.; Bai, L.; Zou, K.; Du, M.: Co5/Co8-cluster-based coordination polymers showing high-connected self-penetrating networks: syntheses, crystal structures, and magentic properties. Inorg. Chem. 52 (2013) 8091–8098.10.1021/ic4007718Search in Google Scholar PubMed

7. Han, M.-L.; Ling, X.-L.; Chang, X.-H.; Liu, G.-Z.; Du, D.-G.: Syntheses, structures and characteristics of two new Cu(II) coordination polymers based on 4-tert-butyl-phthalate and different bis(1,2,4-triazol-1-yl) co-ligands. Chin. J. Struct. Chem. 34 (2015) 543–550.Search in Google Scholar

8. Farnum, G. A.; Pochodylo, A. L.; LaDuca, R. L.: Tether length control of topology in cadmium 4-methyphthalate two-dimensional coordination polymers: an acentric buckled grid and a rare self-catenated layer. Cryst. Growth Des. 11 (2011) 678–683.10.1021/cg100972sSearch in Google Scholar

9. Han, M.-L.; Duan, Y.-P.; Li, D.-S.; Xu, G.-W.; Wu, Y.-P.; Zhao, J.: A series of divalent metal coordination polymers based on isomeric tetracarboxylic acids: synthesis, structures and magnetic properties. Dalton Trans. 43 (2014) 17519–17527.10.1039/C4DT01946FSearch in Google Scholar

10. Han, M.-L.; Zhao, Y.; Li, D.-S.; Wu, Y.-P.; Ma, L.-F.: Bis(pyridyl)-based ligands driven NiII entangled metal-organic frameworks: from a new 1-D + 2-D→3-D polythreading motifs to a rare 3-fold interpenetrating ths network. Inorg. Chem. Commun. 52 (2015) 1–4.10.1016/j.inoche.2014.12.004Search in Google Scholar

11. Liu, G.-Z.; Li, S.-H.; Li, X.-L.; Xin, L.-Y.; Wang, L.-Y.: Three series of MOFs featuring various metal(II)-carboxylate chains cross-linked by dipyridyl-typed coligands: synthesis, structure, and solvent-dependent luminescence. CrystEngComm 15 (2013) 4571–4580.10.1039/c3ce40109jSearch in Google Scholar

12. Zhou, P.; Yao, J. F.; Sheng, C. F.; Li, H.: A continuing tale of chirality: metal coordination extended axial chirality of 4,4′-bipy to 1D infinite chain under cooperation of a nucleotide ligand. CrystEngComm 15 (2013) 8430–8436.10.1039/c3ce40977eSearch in Google Scholar

13. Chen, D.-M.; Zhang, X.-P.; Shi, W.; Cheng, P.: Tuning two-dimensional layer to three-dimensional pillar-layered metal-organic frameworks: polycatenation and interpenetration behaviors. Cryst. Growth Des. 14 (2014) 6261–6268.10.1021/cg500942gSearch in Google Scholar

14. Tobón-Trujillo, L. M.; Villanueva-Sánchez, L. F.; Martínez-Otero, D.; Dorazco-González, A.: Crystal structure of bis(μ2-tetrabromophthalato-κ2O1:O2)bis[aqua(N,N,N′,N′-tetramethyl-ethane-1,2-diamine-κ2N,N′)copper(II)]. Acta Crystallogr. E71 (2015) m171–m172.10.1107/S2056989015015194Search in Google Scholar PubMed PubMed Central

15. Li, Y.-S.; Luo, J.-Y.; He, M.-Q.; Han, M.-L.: Crystal structure of catena-diaqua-(μ24,4′-bipyridyl-κ:N,N′)-bis(hydrogen-3,4,5,6-tetrabromo-phthalato-κ:O)-cobalt(II). Z. Kristallogr. NCS 235 (2019) 113–115.10.1515/ncrs-2019-0527Search in Google Scholar

Received: 2019-10-14
Accepted: 2020-01-08
Published Online: 2020-02-12
Published in Print: 2020-04-28

©2020 Yong-Shuang Li et al., published by De Gruyter.

This work is licensed under the Creative Commons Attribution 4.0 Public License.
