The crystal structure of (E)-2-(((2-(1H-indol-3-yl)ethyl)iminio)methyl)-6-bromophenolate, C17H15N2BrO

  • Tai Xi-Shi ORCID logo EMAIL logo , Zhou Xiao-Jing , Liu Li-Li , Cao Shu-Hua and Wang Li-Hua
Published/Copyright: January 22, 2020
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 235 Issue 3

Abstract

C17H15N2BrO, monoclinic, P21/n (no. 14), a = 8.9886(8) Å, b = 8.2159(7) Å, c = 20.164(2) Å, β = 92.580(9)°, V = 1487.6(2) Å3, Z = 4, Rgt(F) = 0.0370, wRref(F2) = 0.0716, T = 293(2) K.

CCDC no.: 1974916

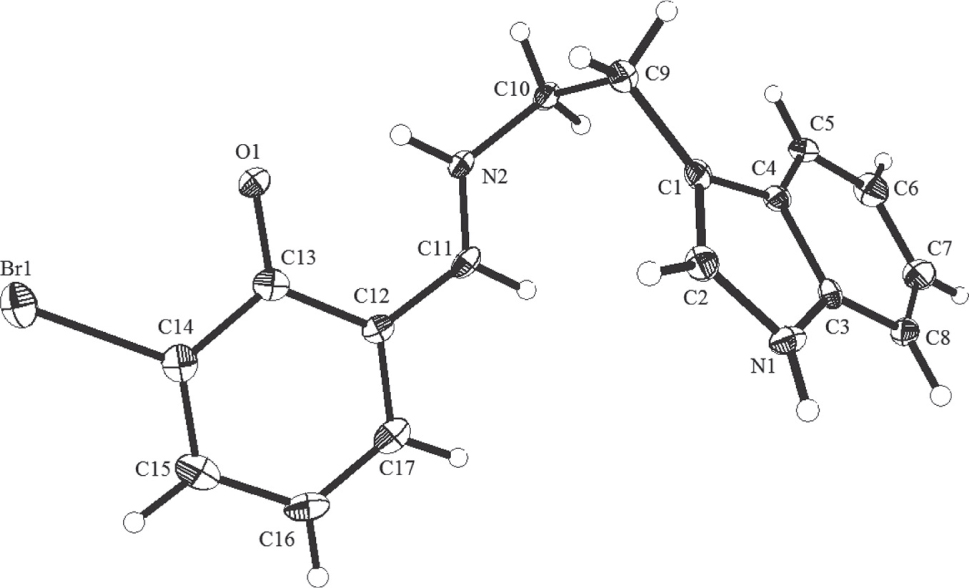

The crystal structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colorless block
Size:0.12 × 0.1 × 0.08 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:2.76 mm−1
Diffractometer, scan mode:SuperNova, ω-scans
θmax, completeness:25°, >99%
N(hkl)measured, N(hkl)unique, Rint:6287, 2621, 0.036
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 2215
N(param)refined:190
Programs:Bruker programs [1], OLEX2 [2], SHELX [3], DIAMOND [4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Br10.01093(3)0.71888(4)0.43099(2)0.02124(12)
O10.1602(2)0.7267(2)0.29932(10)0.0162(5)
N10.8847(3)0.6616(3)0.23417(12)0.0157(6)
H10.9479060.6589870.2674660.019*
N20.3544(3)0.6513(3)0.21366(12)0.0141(6)
H20.2767890.7050760.2241020.017*
C10.6801(3)0.7261(4)0.17092(15)0.0139(7)
C20.7550(3)0.7515(4)0.23043(16)0.0160(7)
H2A0.7230780.8197910.2637250.019*
C30.8961(3)0.5768(4)0.17582(15)0.0134(7)
C40.7677(3)0.6123(4)0.13503(15)0.0136(7)
C50.7512(3)0.5417(4)0.07184(15)0.0166(7)
H50.6684760.5648920.0441240.020*
C60.8598(4)0.4375(4)0.05173(16)0.0224(8)
H60.8498140.3894110.0100170.027*
C70.9858(3)0.4023(4)0.09310(16)0.0215(8)
H71.0572180.3308880.0781080.026*
C81.0064(3)0.4704(4)0.15503(16)0.0174(7)
H81.0901890.4468430.1820520.021*
C90.5341(3)0.7949(4)0.14547(15)0.0168(7)
H9A0.5440850.8320080.1002210.020*
H9B0.5099910.8887330.1721460.020*
C100.4053(3)0.6728(4)0.14673(15)0.0172(7)
H10A0.3233130.7112410.1179810.021*
H10B0.4378160.5688350.1297980.021*
C110.4157(3)0.5583(4)0.25873(15)0.0150(7)
H110.4977010.4964230.2478340.018*
C120.3639(3)0.5457(3)0.32437(15)0.0129(7)
C130.2326(3)0.6338(4)0.34117(15)0.0135(7)
C140.1885(3)0.6102(4)0.40787(15)0.0164(7)
C150.2665(3)0.5151(4)0.45276(16)0.0195(7)
H150.2339170.5050020.4956980.023*
C160.3954(3)0.4322(4)0.43483(16)0.0195(8)
H160.4481110.3674700.4655430.023*
C170.4424(3)0.4483(4)0.37139(16)0.0172(7)
H170.5276790.3937520.3592530.021*

Source of materials

0.201 g 3-Bromo-2-hydroxybenzaldehyde (1.0 mmol) and 0.160 g tryptamin (1.0 mmol) were dissolved into water-ethanol (v:v = 1:3) solution at room temperature. After the mixture was stirred for 0.5 h, 0.102 g magnesium chloride hexahydrate (0.5 mmol) was added to the above solution. The mixture was stirred for 5 h at 75 °C. Then the reactant was filtered. The colorless crystals of (E)-2-(((2-(1H-indol-3-yl)ethyl)iminio)methyl)-6-bromophenolate were obtained by slow evaporation in 120 days.

Experimental details

The hydrogen atoms were positioned geometrically (C—H = 0.93–0.97 Å and N—H = 0.86 Å). Their Uiso values were set to 1.2Ueq of the parent atoms.

Comment

Over the past decades, many ylide compounds have been received considerable attention, because they display widespread applications in organic chemistry [5], [6], [7], [8]. Our goal was to synthesize a new Schiff base ligand and its manganese(II) complex. However, the Mg(II) ion does not coordinate with the title compound. Only a new ylide compound, (E)-2-(((2-(1H-indol-3-yl)ethyl)iminio)methyl)-6-bromophenolate has been obtained.

In the title compound, the C11=N2 bond distance is 1.291(4) Å, which is shorter than those of C10—N2 (1.455(4) Å), C3—N1 (1.375(4) Å), C2—N1 (1.380(4) Å), indicating the C11=N2 bond is double bond which was expected. The dihedral angles of plane 1 (C1—C2—N1—C3—C4) and plane 2 (C3—C4—C5—C6—C7—C8), plane 1 (C1—C2—N1—C3—C4) and plane 3 (C12—C13—C14—C15—C16—C17), plane 2 (C3—C4—C5—C6—C7—C8) and plane 3 (C12—C13—C14—C15—C16—C17) are 0.5°, 40.2° and 40.0°, respectively, indicating that the whole (E)-2-(((2-(1H-indol-3-yl)ethyl)iminio)methyl)-6-bromophenolate molecule is not planar (see the figure). Geometric parameters are all in the expected ranges [9].

Acknowledgements

This project was supported by the National Natural Science Foundation of China (no. 21171132), the Natural Science Foundation of Shandong (ZR2014BL003), the project of Shandong Province Higher Educational Science and Technology Program (J14LC01) and Science Foundation of Weifang.

References

1. Bruker: SAINT and SADABS. Bruker AXS Inc., Madison, WI, USA (2000).Search in Google Scholar

2. Dolomanov, O. V.; Bourhis, L. J.; Gildea, R. J.; Howard, J. A. K.; Puschmann, H.: OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Cryst. 42 (2009) 339–341.10.1107/S0021889808042726Search in Google Scholar

3. Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Search in Google Scholar PubMed PubMed Central

4. Brandenburg, K.: DIAMOND. Visual Crystal Structure Information System. Ver. 4.0. Crystal Impact, Bonn, Germany (2015).Search in Google Scholar

5. Oost, R.; Neuhaus, J.-D.; Merad, J.; Maulide, N.: Sulfur ylides in organic synthesis and transition metal catalysis. Modern Ylide Chem. 177 (2018) 73–115.10.1007/430_2017_14Search in Google Scholar

6. Zarza, P.-M.; Gill, P.; Gonzalez, M. C. D.; Reyes, M. G. M.; Arrieta, J.-M.; Nastopoulos, V.; Germain, G.; Debaerdemaeker, T.: Structures of 1H-indole-3-ethylene-3′-methoxysalicylaldimine (3′-Meo-salTPA) and 3-[3′-azapentyl-3′-en-4′-(2′′-hydroxyphenyl)] indole (OHAPH-TPA). Acta Crystallogr. C44 (1988) 678–681.10.1107/S0108270187011739Search in Google Scholar

7. Ghichi, N.; Bensouici, C.; Benboudiaf, A.; DJebli, Y.; Merazig, H.: Crystal structures and anti-oxidant capacity of (E)-5-benz-yloxy-2-{[(4-chloro-phen-yl)imino]-meth-yl}phenol and (E)-5-benz-yloxy-2-({[2-(1H-indol-3-yl)eth-yl]iminium-yl}meth-yl)phenolate. Acta Crystallogr. E74 (2018) 478–482.10.1107/S2056989018003687Search in Google Scholar

8. Scherpf, T.; Schwarz, C.; Scharf, L.-T.; Zur, J.-A.; Helbig, A.; Gessner, V.-H.: Ylide-functionalized phosphines: strong donor ligands for homogeneous catalysis. Angew. Chem. 130 (2018) 13041–13046.10.1002/ange.201805372Search in Google Scholar

9. Zarza, P. M.; Gill, P.; Gonzalez, M. C. D.; Reyes, M. G. M.; Arrieta, J. M.; Nastopoulos, V.; Germain, G.; Debaerdemaeker, T.: Acta Crystallogr. C44 (1988) 678.Search in Google Scholar

Received: 2019-11-07
Accepted: 2019-12-31
Published Online: 2020-01-22
Published in Print: 2020-04-28
