The crystal structure of ethyl 5-(4-(diphenylamino)phenyl)thiophene-2-carboxylate, C25H21NO2S

  • Chang Wang , Tao Bai and Zhaod-Di Liu ORCID logo EMAIL logo
Published/Copyright: March 25, 2020
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 235 Issue 3

Abstract

C25H21NO2S, monoclinic, P21/n (no. 14), a = 8.21802(18) Å, b = 7.42687(17) Å, c = 34.2757(8) Å, β = 91.149(2)°, V = 2091.57(8) Å3, Z = 4, Rgt(F) = 0.0388, wRref(F2) = 0.1337, T = 293(2) K.

CCDC no.: 1971197

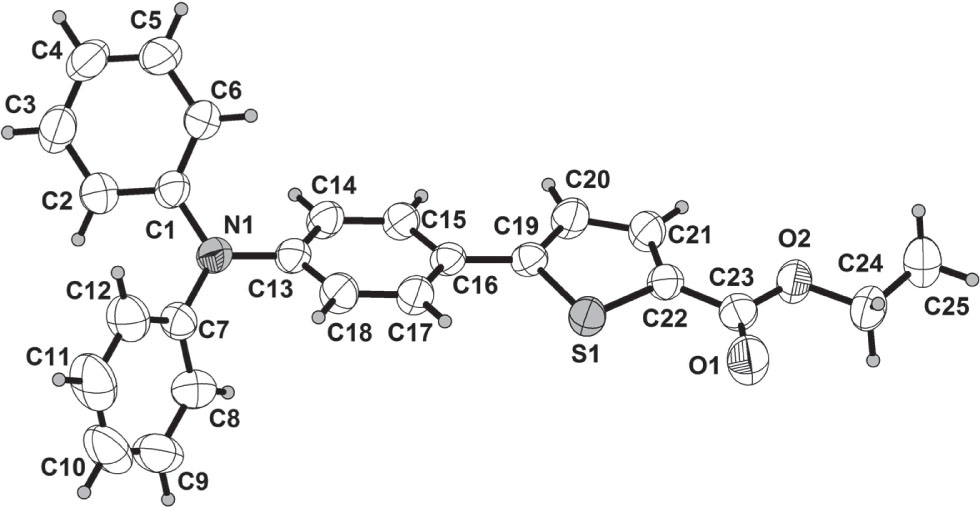

The molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Yellow block
Size:0.30 × 0.20 × 0.20 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.18 mm−1
Diffractometer:XtaLAB Synergy
θmax, completeness:25.0°, >99%
N(hkl)measured, N(hkl)unique, Rint:13285, 3681, 0.021
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 2942
N(param)refined:263
Programs:CrysAlisPRO [1], SHELX [2]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
C1−0.1191(2)0.8767(3)0.17529(5)0.0530(5)
C2−0.2218(3)1.0077(3)0.18991(6)0.0644(5)
H2−0.33360.99840.18560.077*
C3−0.1592(3)1.1518(3)0.21075(7)0.0757(6)
H3−0.22951.23700.22100.091*
C40.0053(3)1.1706(3)0.21655(7)0.0804(7)
H40.04681.26830.23050.096*
C50.1078(3)1.0442(4)0.20162(7)0.0789(7)
H50.21971.05780.20500.095*
C60.0471(2)0.8961(3)0.18151(6)0.0651(6)
H60.11810.80950.17220.078*
C7−0.3339(2)0.6493(3)0.16628(6)0.0544(5)
C8−0.4508(3)0.6040(3)0.13850(7)0.0692(6)
H8−0.43090.62210.11220.083*
C9−0.5983(3)0.5312(3)0.14989(10)0.0906(8)
H9−0.67700.50080.13110.109*
C10−0.6282(3)0.5043(4)0.18826(12)0.1029(10)
H10−0.72710.45580.19580.123*
C11−0.5128(4)0.5483(4)0.21580(10)0.1025(9)
H11−0.53370.52970.24210.123*
C12−0.3660(3)0.6201(4)0.20511(7)0.0769(7)
H12−0.28800.64890.22410.092*
C13−0.0960(2)0.6437(3)0.12436(5)0.0529(5)
C14−0.0161(2)0.7467(3)0.09673(5)0.0546(5)
H14−0.01920.87170.09830.066*
C150.0672(2)0.6656(3)0.06713(5)0.0519(5)
H150.12090.73690.04920.062*
C160.0731(2)0.4784(2)0.06346(5)0.0460(4)
C17−0.0079(2)0.3771(3)0.09095(6)0.0562(5)
H17−0.00700.25220.08910.067*
C18−0.0900(2)0.4578(3)0.12110(6)0.0602(5)
H18−0.14180.38660.13940.072*
C190.1638(2)0.3943(2)0.03167(5)0.0479(4)
C200.2671(3)0.4742(3)0.00616(6)0.0616(5)
H200.28930.59700.00630.074*
C210.3364(2)0.3536(3)−0.02015(6)0.0604(5)
H210.40910.3880−0.03920.072*
C220.2866(2)0.1812(2)−0.01493(5)0.0508(4)
C230.3263(2)0.0187(3)−0.03657(6)0.0554(5)
C240.4781(3)−0.1061(3)−0.08792(7)0.0725(6)
H24A0.3848−0.1501−0.10290.087*
H24B0.5174−0.2021−0.07100.087*
C250.6088(3)−0.0478(3)−0.11466(7)0.0784(7)
H25A0.56990.0501−0.13060.118*
H25B0.6386−0.1468−0.13110.118*
H25C0.7021−0.0093−0.09960.118*
N1−0.1834(2)0.7260(2)0.15492(5)0.0619(4)
O10.2691(2)−0.1271(2)−0.03041(6)0.0883(5)
O20.43238(17)0.04888(18)−0.06487(4)0.0643(4)
S10.14951(6)0.16688(6)0.022171(14)0.05573(19)

Source of material

The title compound was prepared by the reported method [3], using 5-[4-(diphenylamino)phenyl]thiophene-2-carbaldehyde (1.065 g, 3 mmol), KMnO4 (1.896 g, 12 mmol) and K2CO3 (0.275 g, 2 mmol) in 50 mL acetone/H2O (v:v = 2:1). The mixture was refluxed for 4 h. The solution was adjusted to pH = 1 with HCl, and then filtered. The crude intermediate 5-(4-(diphenylamino)phenyl)thiophene-2-carboxylic acid was recrystallized from anhydrous ethanol. The intermediate acid was dissolved in 20 mL miscible liquids (ethanol and H2SO4). The mixture was refluxed for 8 h. After the mixture was cooled to room temperature, the most ethanol was removed. The residue was dispersed into 20 mL of water. The solution was adjusted to pH = 8 with K2CO3 and extracted three times with CH2Cl2. The mixture was purified by silica gel chromatography column using petroleum/ethylacetate (10:1 v/v) as the eluent. A light yellow solid product was collected. The yellow crystals of the title compound were obtained on slow evaporation of the CH3CN solvent.

Experimental details

All H-atoms were placed in calculated positions and treated as riding: C—H = 0.93–0.97 Å, with Uiso(H) = 1.2 or 1.5 Ueq (parent C-atom).

Comment

Triphenylamine is a very popular building block for the construction of application in electroluminescent devices, solid-state lasers, and nonlinear optical devices, resulting from its propeller-shaped struture. This system has multiple advantages (such as electron donating ability, excellent hole transporting, tridimensional steric and good light harvesting properties) and there are several syntheses of its derivatives [3], [4], [5], [6].

There is one molecule in the asymmetric unit (see the Figure). The dihedral angles between the mean planes of the phenyl rings in triphenylamine are 64.1(2)°, 107.5(2)° and 151.1(1)°, respectively. The angles aroud N1 are 120.96(15)°, 119.96(15)° and 119.01(15)°. The dihedral angle between the mean plane of the thiophene and its connecting the phenyl ring is 10.1(1)°. Moreover, the ester group is only twisted by 2.4(3)° with respect to the thiophene unit (see the Figure). Geometric parameters are in the expected ranges [7].

Funding source: National Natural Science Foundation of China

Award Identifier / Grant number: 21701025

Funding statement: This work was supported by the National Natural Science Foundation of China (no. 21701025), and the Distinguished Young Scholars Program of Higher Education of Anhui Province (No. gxyq2017039) and the Innovation Training Program for the College students (201810371039 and S201910371043).

References

1. Rigaku Oxford Diffraction: CrysAlisPro. 1.171.40.54a. Rigaku Oxford Diffraction/Agilent Technologies UK Ltd, Yarnton, England (2019).Search in Google Scholar

2. Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

3. Hagberg, D. P.; Marinado, T.; Karlsson, K. M.; Nonomura, K.; Qin, P.; Boschloo, G.; Brinck, T.; Hagfeldt, A.; Sun, L.: Tuning the HOMO and LUMO energy levels of organic chromophores for dye sensitized solar cells. J. Org. Chem. 72 (2007) 9550–9556.10.1021/jo701592xSearch in Google Scholar PubMed

4. Parthasarathy, V.; Fery-Forgues, S.; Campioli, E.; Recher, G.; Terenziani, F. M.: Blanchard-desce, dipolar versus octupolar triphenylamine-based fluorescent organic nanoparticles as brilliant one- and two-photon emitters for (bio)imaging. Small 7 (2011) 3219–3229.10.1002/smll.201100726Search in Google Scholar PubMed

5. Chen, J.; Xia, J. X.; Yu, H. J.; Zhong, J. X.; Wu, X. K.; Qin, Y. S.; Jia, C. Y.; She, Z. G.; Kuang, D. B.; Shao, G.: Asymmetric 3D hole-transporting materials based on triphenylethylene for perovskite solar cells. Chem. Mater. 31 (2019) 5431–5441.10.1021/acs.chemmater.9b00702Search in Google Scholar

6. Jia, J. H.; Zhao, H. X.: Structure-dependent reversible mechanochromism of D-π-A triphenylamine derivatives. Tetrahedron Lett. 60 (2019) 252–259.10.1016/j.tetlet.2018.12.024Search in Google Scholar

7. Zhang, Z.; Edkins, R. M.; Nitsch, J.; Fucke, K.; Eichhorn, A.; Steffen, A.; Wang, Y.; Marder, R. B.: D–π–A Triarylboron compounds with tunable push–pull character achieved by modification of both the donor and acceptor moieties. Chem. Eur. J. 21 (2015) 177–190.10.1002/chem.201405621Search in Google Scholar PubMed

Received: 2019-09-27
Accepted: 2019-12-10
Published Online: 2020-03-25
Published in Print: 2020-04-28

©2020 Chang Wang et al., published by De Gruyter, Berlin/Boston
