Synthesis and crystal structure of poly[(μ3-2-(2-carboxylatophenyl)-1H-benzo[d]imidazole-5-carboxylato-κO,O′:O′;:O″, O″′)-(μ2-1-(4-(1Himidazol-1-yl)phenyl)-1H-imidazole-κ2N:N′)cadmium(II)], C27H18CdN6O4

  • Qing-Lin Yang , Peng-Kun Fu , Ding-Qi Xiong , Xiao-Yu Zhang , Mei-Mei Jia and Xiu-Yan Dong ORCID logo EMAIL logo
Published/Copyright: May 3, 2021
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 236 Issue 4

Abstract

C27H18CdN6O4, triclinic, P1‾ (no. 2), a = 10.2994(8) Å, b = 10.7795(7) Å, c = 11.0038(7) Å, α = 89.778(5)°, β = 78.046(6)°, γ = 83.049(6)°, Z = 2, V = 1186.11(14) Å3, Rgt(F) = 0.0402, wRref(F2) = 0.0809, T = 293 K.

CCDC no.: 2044129

Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colourless block
Size:0.15 × 0.05 × 0.03 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.97 mm−1
Diffractometer, scan mode:SuperNova, ω
θmax, completeness:26.0°, >99%
N(hkl)measured, N(hkl)unique, Rint:7660, 4667, 0.034
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 3885
N(param)refined:347
Programs:CrysAlisPRO [1], Olex2 [2], Superflip [3], [4], [5], SHELX [6], Diamond [7]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Cd10.07870 (3)0.08646 (2)1.11764 (2)0.02983 (10)
O10.0880 (3)0.2410 (2)0.9673 (2)0.0399 (7)
O20.0627 (3)0.0642 (2)0.8808 (3)0.0452 (7)
O3−0.1243 (3)0.9317 (2)0.6747 (2)0.0453 (7)
O4−0.2198 (3)0.7908 (2)0.7931 (2)0.0356 (6)
N1−0.1693 (3)0.4621 (3)0.5266 (3)0.0341 (7)
N2−0.1408 (3)0.5637 (3)0.6943 (3)0.0286 (7)
H2−0.153 (4)0.624 (3)0.748 (3)0.040 (12)*
N30.2619 (3)−0.0586 (2)1.0534 (3)0.0346 (8)
N40.4189 (3)−0.2162 (2)1.0534 (3)0.0319 (7)
N50.7133 (3)−0.6384 (2)1.2120 (3)0.0343 (8)
N60.8790 (3)−0.7905 (2)1.2025 (3)0.0370 (8)
C10.0573 (4)0.1818 (3)0.8807 (4)0.0327 (9)
C20.0084 (3)0.2535 (3)0.7789 (3)0.0289 (8)
C3−0.0069 (4)0.1912 (3)0.6727 (3)0.0340 (9)
H30.02170.10590.66290.041*
C4−0.0630 (4)0.2516 (3)0.5820 (3)0.0355 (9)
H4−0.07260.20860.51190.043*
C5−0.1048 (4)0.3796 (3)0.5987 (3)0.0295 (8)
C6−0.0869 (3)0.4415 (3)0.7042 (3)0.0273 (8)
C7−0.0302 (4)0.3819 (3)0.7955 (3)0.0313 (8)
H7−0.01830.42520.86450.038*
C8−0.1878 (4)0.5703 (3)0.5875 (3)0.0293 (8)
C9−0.2560 (4)0.6854 (3)0.5425 (3)0.0325 (9)
C10−0.2557 (4)0.8082 (3)0.5850 (3)0.0309 (8)
C11−0.3143 (4)0.9067 (3)0.5242 (4)0.0437 (11)
H11−0.31290.98830.55050.052*
C12−0.3740 (5)0.8866 (4)0.4266 (4)0.0550 (13)
H12−0.41350.95390.38840.066*
C13−0.3751 (5)0.7668 (4)0.3857 (4)0.0583 (13)
H13−0.41580.75260.31990.070*
C14−0.3158 (4)0.6673 (4)0.4423 (4)0.0444 (11)
H14−0.31560.58650.41290.053*
C15−0.1957 (4)0.8449 (3)0.6913 (3)0.0316 (9)
C160.3500 (4)−0.0651 (3)0.9421 (4)0.0406 (10)
H160.3432−0.01180.87640.049*
C170.3056 (4)−0.1513 (3)1.1187 (3)0.0356 (9)
H170.2642−0.16951.19900.043*
C180.4484 (4)−0.1598 (3)0.9407 (4)0.0409 (10)
H180.5217−0.18240.87630.049*
C190.4932 (4)−0.3246 (3)1.0944 (3)0.0293 (8)
C200.6305 (4)−0.3391 (3)1.0611 (3)0.0347 (9)
H200.6746−0.28061.01160.042*
C210.7026 (4)−0.4423 (3)1.1024 (3)0.0360 (9)
H210.7956−0.45231.08160.043*
C220.6369 (4)−0.5299 (3)1.1739 (3)0.0310 (9)
C230.5005 (4)−0.5141 (3)1.2070 (4)0.0453 (11)
H230.4564−0.57241.25680.054*
C240.4275 (4)−0.4110 (3)1.1665 (4)0.0457 (11)
H240.3345−0.40081.18810.055*
C250.8340 (4)−0.6901 (3)1.1485 (4)0.0403 (10)
H250.8798−0.65851.07540.048*
C260.7818 (4)−0.8046 (3)1.3043 (4)0.0425 (10)
H260.7857−0.86901.36050.051*
C270.6787 (4)−0.7123 (3)1.3127 (4)0.0445 (11)
H270.6007−0.70121.37380.053*

Source of material

All solvents and other reagents were of analytical grade. The method of synthesizing the title complex has been improved [8], [9], [10], [11], [12]. A mixture of cadmium nitrate, 2-(2-carboxyphenyl)-1H-benzo[d]imidazole-5-carboxylic acid, 1-(4-(1H-imidazol-1-yl)phenyl)-1H-imidazole, and water was introduced into a 25 mL Teflon reactor autoclave and heated to 145 °C for three days. After cooling down to room temperature, colorless block crystals were obtained. Elemental analysis-Anal. Calcd. for C27H18CdN6O4: C, 53.79%; H, 3.01%; N, 13.94%. Found: C, 53.80%; H, 3.02%; N, 13.96%.

Experimental details

Hydrogen atoms were placed in their geometrically idealized positions and constrained to ride on their parent atoms.

Comment

Coordination polymers (CPs) not only exhibit large specific surface area, high porosity, low density, and pore size adjustable but also possess a wide range of applications in the fields of catalysis, energy storage, and separation [13], [14], [15], [16], [17], [18], [19]. Benzimidazole carboxyl ligands, as rigid ligands, are relatively fixed during the coordination process, and the structure of their constructions are predictable. Secondly, the presence of nitrogen atoms enriches the diversity of the structure of complexes [20], [21].

In this work, we used 2-(2-carboxyphenyl)-1H-benzo[d]imidazole-5-carboxylic acid (H2L) as a rigid ligand, assembling with Cd(NO3)2 and 1-(4-(1H-imidazol-1-yl)phenyl)-1H-imidazole to obtain a 2D framework. The crystal structure shows that the title complex consists of one Cd(II) atom, one L2− ligand, and one 1-(4-(1H-imidazol-1-yl)phenyl)-1H-imidazole auxiliary ligand.

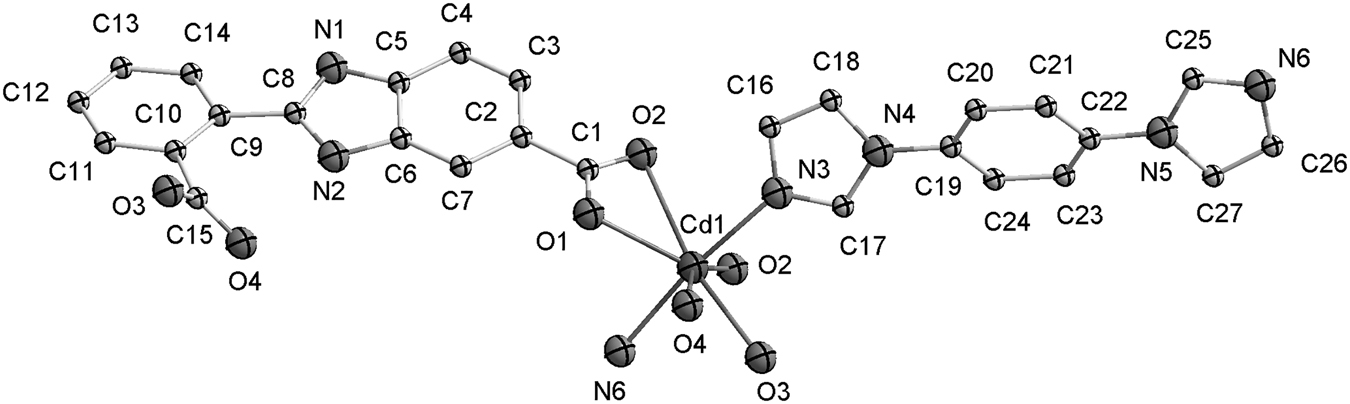

The Cd(II) is seven-coordinated by two N atoms (N3 and N6) from two 1-(4-(1H-imidazol-1-yl)phenyl)-1H-imidazole auxiliary ligands and five O atoms (O1, O2, O2, O3, and O4) from three different L2− ligands. In the structure, the Cd(II) are bridged by L2− ligands, forming a 1D chain. The chains are bridged by 1-(4-(1H-imidazol-1-yl)phenyl)-1H-imidazole auxiliary ligands, forming a 2D network structure.

Corresponding author: Xiu-Yan Dong, School of Chemical and Biological Engineering, Lanzhou Jiaotong University, Lanzhou730070, P. R. China, E-mail:

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: Research Projects of Colleges and Universities in Gansu Province (No. 2019A-032); Tianjin University-Lanzhou Jiaotong University Independent Innovation Fund Cooperation Project (grant No. 2020060); Natural Science Foundation of Gansu Province (No. 20JR5RA425); Innovation and Entrepreneurship Training Program for College Students in Lanzhou Jiaotong University (No. 2020033).

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Agilent Technologies. CRYSALISPRO; Agilent Technologies: Santa Clara, CA, USA, 2017.Search in Google Scholar

2. Dolomanov, O. V., Bourhis, L. J., Gildea, R. J., Howard, J. A. K., Puschmann, H. OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 2009, 42, 339–341; https://doi.org/10.1107/s0021889808042726.Search in Google Scholar

3. Palatinus, L., Chapuis, G. SUPERFLIP – a computer program for the solution of crystal structures by charge flipping in arbitrary dimensions. J. Appl. Crystallogr. 2007, 40, 786–790; https://doi.org/10.1107/s0021889807029238.Search in Google Scholar

4. Palatinus, L., van der Lee, A. Symmetry determination following structure solution in P1. J. Appl. Crystallogr. 2008, 41, 975–984; https://doi.org/10.1107/s0021889808028185.Search in Google Scholar

5. Palatinus, L., Prathapa, S. J., van Smaalen, S. EDMA: a computer program for topological analysis of descrete electron densities. J. Appl. Crystallogr. 2012, 45, 575–580; https://doi.org/10.1107/s0021889812016068.Search in Google Scholar

6. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Search in Google Scholar

7. Brandenburg, K. Diamond. Visual Crystal Structure Information System. (Ver. 4.0); Crystal Impact: Bonn, Germany, 2015.Search in Google Scholar

8. Ma, J. C., Dong, X. Y., Dong, W. K., Zhang, Y., Zhu, L. C., Zhang, J. T. An unexpected dinuclear Cu(II) complex with a bis(Salamo) chelating ligand synthesis, crystal structure, and photophysical properties. J. Coord. Chem. 2016, 69, 149–159; https://doi.org/10.1080/00958972.2015.1108410.Search in Google Scholar

9. Li, G., Zhou, W. M., Zhu, L. C., Wang, L. Crystal structure of (Z)-1- (((3-acetyl-2-hydroxyphenyl)amino)methylene)naphthalen-2(1H)-one, C19H15NO3. Z. Kristallogr. NCS 2016, 231, 315–317; https://doi.org/10.1515/ncrs-2015-0166.Search in Google Scholar

10. Zhang, S. Z., Guo, G., Ding, W. M., Li, J., Wu, Y., Zhang, H. J., Guo, J. Q., Sun, Y. X. Synthesis and spectroscopic properties of two different structural Schiff base Zn(II) complexes constructed with/without auxiliary ligands. J. Mol. Struct. 2021, 1230, 129627; https://doi.org/10.1016/j.molstruc.2020.129627.Search in Google Scholar

11. Wu, H. L., Bai, Y. C., Zhang, Y. H., Li, Z., Wu, M. C. Synthesis crystal structure, antioxidation and DNA-binding properties of a dinuclear copper(II) complex with bis(N-salicylidene)-3-oxapentane-1,5-diamine. J. Coord. Chem. 2014, 67, 3054–3066; https://doi.org/10.1080/00958972.2014.959507.Search in Google Scholar

12. Song, X. Q., Liu, P. P., Liu, Y. A., Zhou, J. J., Wang, X. L. Two dodecanuclear heterometallic [Zn6Ln6] clusters constructed by a multidentate salicylamide salen-like ligand: synthesis, structure, luminescence and magnetic properties. Dalton Trans. 2016, 45, 8154–8163; https://doi.org/10.1039/c6dt00212a.Search in Google Scholar

13. Dong, W. K., Ma, J. C., Dong, Y. J., Zhu, L. C., Zhang, Y. Di-and tetranuclear heterometallic 3d-4f cobalt(II)-lanthanide(III) complexes derived from a hexadentate bisoxime: syntheses, structures and magnetic properties. Polyhedron 2016, 115, 228–235; https://doi.org/10.1016/j.poly.2016.05.017.Search in Google Scholar

14. Dong, W. K., Ma, J. C., Zhu, L. C., Sun, Y. X., Akogun, S. F., Zhang, Y. A series of heteromultinuclear zinc(II)-lanthanide(III) complexes based on 3–MeOsalamo: syntheses, structural characterizations, and luminescent properties. Cryst. Growth Des. 2016, 16, 6903–6914; https://doi.org/10.1021/acs.cgd.6b01067.Search in Google Scholar

15. Sun, Y. X., Lu, R. E., Li, X. R., Zhao, Y. Y., Li, C. Y. A Schiff base ligand containing oxime group and its Cu(II) complex: syntheses and supramolecular structures. Chin. J. Inorg. Chem. 2015, 31, 1055–1062.Search in Google Scholar

16. Zheng, S. S., Dong, W. K., Zhang, Y., Chen, L., Ding, Y. J. Four salamo-type 3d-4f hetero-bimetallic [ZnIILnIII] complexes: syntheses, crystal structures, and luminescent and magnetic properties. New J. Chem. 2017, 41, 4966–4973; https://doi.org/10.1039/c6nj04090j.Search in Google Scholar

17. Zhang, H., Xu, Y. L., Wu, H. L., Aderinto, S. O., Fan, X. Y. Mono-, bi- and multi-nuclear silver complexes constructed from bis(benzimidazole)-2-oxapropane ligands and methacrylate: syntheses, crystal structures, DNA- binding properties and antioxidant activities. RSC Adv. 2016, 6, 83697–83708; https://doi.org/10.1039/c6ra09733b.Search in Google Scholar

18. Zhang, X. Y., Yang, Q. L., Yun, M., Si, C. D., An, N., Jia, M. M., Liu, J. C., Dong, X. Y. Seven novel metal-organic frameworks assembled from semi-rigid polycarboxylate and auxiliary N-donor ligands: syntheses, structures, and properties. Acta Crystallogr. 2020, B76, 1001–1017; https://doi.org/10.1107/s2052520620012834.Search in Google Scholar

19. Meng, C. C., He, J. X., Gou, H. Synthesis and crystal structure of catena-poly[aqua-bis(nitrato-κ2O:O′)-(μ2((1H-imidazole-1-yl)methyl)benzene-κ2N,N′)–H2O-κ1O]cadmium(II), C14H16N6O7Cd. Z. Kristallogr. NCS 2021, 236, 583–585. https://doi.org/10.1515/ncrs-2020-0619.10.1515/ncrs-2020-0619Search in Google Scholar

20. Li, Z. L., Zhao, Z. H., Fan, Sh. Y., Feng, R., Yu, Y. H., Zhao, F. H. A 3D Cd(II) MOF of tetracarboxylate and tris(benzimidazole) ligands: luminescence sensing properties. Inorg. Chim. Acta 2021, 518, 120242; https://doi.org/10.1016/j.ica.2020.120242.Search in Google Scholar

21. Chen, T. H., Popov, I., Miljanić, O. Š. Zirconium macrocyclic metal- organic framework with predesigned shape-persistent apertures. Chem. Eur J. 2017, 23, 286–290; https://doi.org/10.1002/chem.201605079.Search in Google Scholar

Received: 2021-03-19
Accepted: 2021-04-15
Published Online: 2021-05-03
Published in Print: 2021-07-27
