Crystal structure of catena-poly[aqua-(4-iodopyridine-2,6-dicarboxylato-κ3N,O,O′)-(μ2-4-amino-4H-1,2,4-triazole-κ2N:N′) copper(II)], C9H8N5O5CuI

  • Benlian Lv ORCID logo EMAIL logo
Published/Copyright: May 6, 2021
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 236 Issue 4

Abstract

C9H8N5O5CuI, orthorhombic, Pbca (no. 61), a = 11.0801(4) Å, b = 6.8489(3) Å, c = 35.3975(13) Å, Z = 8, V = 2686.20(18) Å3, Rgt(F) = 0.0325, wRref(F2) = 0.0707, T = 292 K.

CCDC no.: 2073610

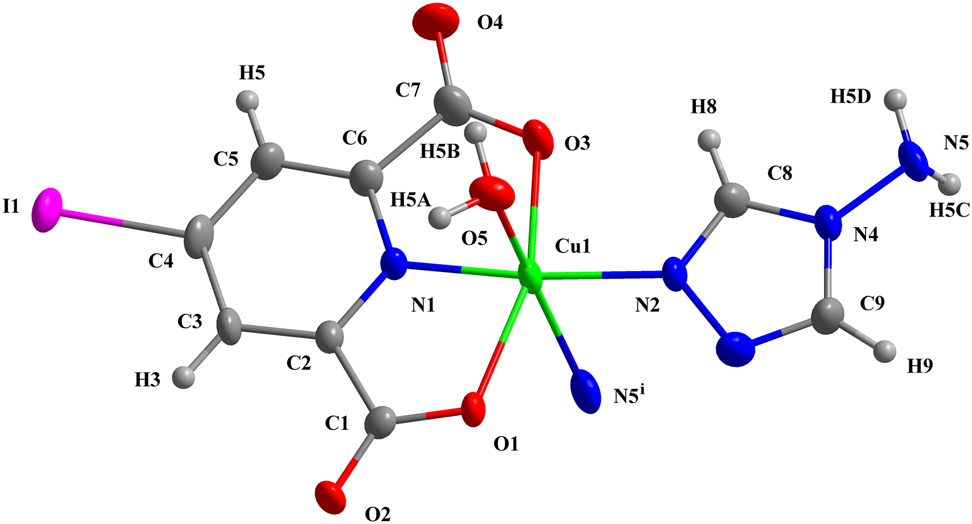

A part of the polymeric title structure is shown in the Figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Blue block
Size:0.32 × 0.28 × 0.21 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:3.96 mm−1
Diffractometer, scan mode:SuperNova, ω
θmax, completeness:25.0°, 99%
N(hkl)measured, N(hkl)unique, Rint:23,030, 2332, 0.043
Criterion for Iobs, N(hkl)gt:Iobs > 2σ(Iobs), 2218
N(param)refined:192
Programs:CrysAlisPRO [1], SHELX [2], [3], Olex2 [4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
I10.60511 (3)0.22740 (5)0.48729 (2)0.03420 (12)
Cu10.46387 (4)0.45082 (9)0.66587 (2)0.02476 (16)
O10.2926 (2)0.4176 (4)0.64443 (7)0.0231 (7)
O20.1976 (3)0.3258 (5)0.59169 (8)0.0293 (7)
O30.6498 (3)0.4454 (5)0.66933 (8)0.0334 (8)
O40.8101 (3)0.4289 (6)0.63146 (10)0.0435 (9)
O50.4725 (3)0.7739 (5)0.64672 (9)0.0336 (8)
H5A0.43200.79140.62660.050*
H5B0.54380.80500.64010.050*
N10.5017 (3)0.3674 (5)0.61579 (9)0.0203 (8)
N20.4495 (3)0.5222 (6)0.71922 (9)0.0241 (8)
N30.3489 (3)0.5271 (7)0.74187 (11)0.0364 (10)
N40.5097 (3)0.5676 (5)0.77657 (10)0.0243 (8)
N50.5828 (3)0.6107 (6)0.80829 (10)0.0297 (9)
H5C0.58420.51080.82340.036*
H5D0.65620.63610.80130.036*
C10.2897 (4)0.3597 (6)0.61026 (12)0.0208 (9)
C20.4122 (4)0.3307 (6)0.59181 (12)0.0195 (9)
C30.4377 (4)0.2834 (7)0.55476 (12)0.0249 (10)
H30.37630.25390.53780.030*
C40.5579 (4)0.2812 (7)0.54364 (12)0.0266 (10)
C50.6498 (4)0.3206 (7)0.56921 (12)0.0270 (10)
H50.73030.31830.56190.032*
C60.6174 (4)0.3630 (7)0.60573 (12)0.0242 (10)
C70.7015 (4)0.4156 (7)0.63782 (13)0.0305 (11)
C80.5438 (4)0.5452 (7)0.74076 (12)0.0287 (11)
H80.62340.54600.73230.034*
C90.3885 (4)0.5551 (9)0.77627 (14)0.0395 (13)
H90.33970.56500.79760.047*

Source of material

All chemicals were used without further purification. The title compound was prepared under hydrothermal conditions. A mixture of Cu(OAc)2·H2O (20.0 mg, 0.1 mmol), 4-iodopyridine-2,6-dicarboxylic acid (29.2 mg, 0.1 mmol), 4-amino-4H-1,2,4-triazole and 4 mL deionized water was sealed in a 20 mL screw capped vial and heated at 70 °C for three days. After cooling to room temperature naturally, blue crystals were collected by filtration and washed with distilled water in 53% yield. Elemental analysis calculated for C9H8N5O5CuI: C 23.65, H 1.75, O 17.52%; found C 23.68, H 1.82, O 17.56%.

Experimental details

Hydrogen atoms were placed in their geometrically idealized positions and constrained to ride on their parent atoms.

Comment

Recently, much effort has been devoted to the synthesis of coordination polymers (CPs) owing to their potential applications in catalysis, drug delivery, chromism, gas storage, and luminescent sensors [5], [6], [7], [8], [9], [10]. In the self-assembly of CPs, noncovalent interactions, such as hydrogen bonding, π⋯π stacking, van der Waals, halogen bonding, as well as electrostatic or dipole interaction are important as they not only help in understanding the essential nature of these interactions but also provide many clues to guide the synthesis of CPs [11], [12], [13]. On the other hand, aromatic polycarboxylates with various coordination modes have been used to synthesize target CPs. However, the multidentate ligands containing N and O atoms are very limited [14], [15], [16]. From the point of view of structural chemistry, 4-iodopyridine-2,6-dicarboxylate (ipydc) containing N and O coordination sites is a tridentate carboxylate derivative and provides various coordination modes to synthesize both discrete and consecutive CPs under appropriate conditions. Moreover, the I atom on the pyridyl ring can be involved in halogen bonding formation. In this work, we report a CP based on Cu(II) ions, ipydc ligand and 4-amino-4H-1,2,4-triazole (NH2trz).

In the asymmetric unit of the title structure, there are one crystallographically independent Cu(II) centre, one NH2trz molecule, one deprotonated ipydc ligand and one coordinated water molecule. The Cu(II) centre is in a distorted octahedral geometry with the CuO3N3 chromophore. The basal positions are occupied by three donor atoms from one tridentate ipydc ligand and one nitrogen atom from one NH2trz ligand. The axial position is occupied by an oxygen atom of the coordinated water molecule and one nitrogen atom from one NH2trz ligand. The Cu–O/N distances associated with central Cu atoms are in the range of 1.909(3)–2.556(4) Å and the bond angles about the Cu(II) centers range from 80.04(12)° to 171.34(15)°. These values match with previously reported Cu(II) compounds [17]. The NH2trz ligand link Cu(II) centers to generate a one-dimensional chain structure (see the figure).

It is worth mentioning that the compound contains water and NH2 groups of NH2trz molecules, which form abundant hydrogen bonds. A number of O–H⋯O, and N–H⋯O hydrogen bonds is present, involving the water molecule, the NH2 group of NH2trz and the carboxylate groups of ipydc. Besides the hydrogen-bonding interactions, the coordinated triazole rings are connected through π⋯π stacking interactions, with a centroid–centroid distance of 3.613(3) Å. Furthermore, there is a halogen bond as the distance between I atom and the carboxylate O atom of ipydc is 3.000(3) Å, which is shorter than the sum of the van der Waals radii of the two atoms (ca. 3.5 Å).

Corresponding author: Benlian Lv, School of Chemical Engineering and Pharmaceutics, Henan University of Science and Technology, Luoyang471023, China, E-mail:

Funding source: HAUST

Award Identifier / Grant number: 13480061

Acknowledgements

This work was supported by the grants from the PhD Startup Fund of HAUST (13480061).

  1. Author contributions: The author has accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: PhD Startup Fund of HAUST (13480061).

  3. Conflict of interest statement: The author declare no conflicts of interest regarding this article.

References

1. Agilent Technologies. CrysAlisPRO Software System, Version 1.171.38.41r; Agilent Technologies UK Ltd: Oxford, UK, 2015.Search in Google Scholar

2. Sheldrick, G. M. SHELXTL – integrated space-group and crystal-structure determination. Acta Crystallogr. 2015, A71, 3–8; https://doi.org/10.1107/s2053273314026370.Search in Google Scholar

3. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Search in Google Scholar

4. Dolomanov, O. V., Bourhis, L. J., Gildea, R. J., Howard, J. A. K., Puschmann, H. OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 2009, 42, 339–341; https://doi.org/10.1107/s0021889808042726.Search in Google Scholar

5. Kreno, L. E., Leong, K., Farha, O. K., Allendorf, M., Van Duyne, R. P., Hupp, J. T. Recent advances of discrete coordination complexes and coordination polymers in drug delivery. Chem. Rev. 2011, 255, 1623–1641.10.1016/j.ccr.2011.01.031Search in Google Scholar

6. Silva, P., Vilela, S. M., Tomé, J. P., Paz, F. A. A. Multifunctional metal-organic frameworks: from academia to industrial applications. Chem. Soc. Rev. 2015, 44, 6774–6803; https://doi.org/10.1039/c5cs00307e.Search in Google Scholar

7. Li, Z.-H., Xue, L.-P., Mu, Y.-J., Zhao, B.-T. Viologen-derived material showing photochromic, visually oxygen responsive, and photomodulated luminescence behaviors. CrystEngComm 2021, 23, 1019–1024; https://doi.org/10.1039/d0ce01630f.Search in Google Scholar

8. Zhang, X., Jin, Y., Wang, G., Liu, A., Zhang, D.-S., Zhang, Y.-Z., Hu, H., Li, T., Geng, L. Construction of Co/Ni-based coordination polymers with three-dimensional isostructural frameworks and multiple catalytic applications. J. Solid State Chem. 2021, 296, 121979; https://doi.org/10.1016/j.jssc.2021.121979.Search in Google Scholar

9. Arıcı, M., Dikilitaş, Y. C., Erer, H., Yeşilel, O. Z. Cobalt(II) and zinc(II)-coordination polymers constructed from ether-linked tetracarboxylic acid and isomeric bis(imidazole) linkers: luminescence based Fe(III) detection in aqueous media. CrystEngComm 2020, 22, 5776–5785.10.1039/D0CE00732CSearch in Google Scholar

10. Jiang, X., Li, Z., Zhai, Y., Yan, G., Xia, H., Li, Z. Porous coordination polymers based on azamacrocyclic complex: syntheses, solventinduced reversible crystal-to-crystal transformation and gas sorption properties. CrystEngComm 2014, 16, 805–813; https://doi.org/10.1039/c3ce42021c.Search in Google Scholar

11. Mahmudov, K. T., Kopylovich, M. N., Guedes da Silva, M. F. C., Pombeiro, A. J. L. Non-covalent interactions in the synthesis of coordination compounds: recent advances. Coord. Chem. Rev. 2017, 345, 54–72; https://doi.org/10.1016/j.ccr.2016.09.002.Search in Google Scholar

12. Reedijk, J. Coordination chemistry beyond Werner: interplay between hydrogen bonding and coordination. Chem. Soc. Rev. 2013, 42, 1776–1783; https://doi.org/10.1039/c2cs35239g.Search in Google Scholar

13. Mukherjee, A., Tothadiand, S., Desiraju, G. R. Halogen bonds in crystal engineering: like hydrogen bonds yet different. Acc. Chem. Res. 2014, 47, 2514–2524; https://doi.org/10.1021/ar5001555.Search in Google Scholar

14. Xu, J., Su, W., Hong, M. A series of lanthanide second building units based metal-organic frameworks constructed by organic pyridine-2,6-dicarboxylate and inorganic sulfate. Cryst. Growth Des. 2011, 11, 337–346; https://doi.org/10.1021/cg101343k.Search in Google Scholar

15. Du, X., Wang, C. Crystal structure of bis(6-aminopyridine-2-carboxylato-κ2O,N)-copper(II), C12H10O6N4Cu. Z. Kristallogr. NCS 2020, 235, 1007–1008; https://doi.org/10.1515/ncrs-2020-0041.Search in Google Scholar

16. Wang, L., Duan, L., Xiao, D., Wang, E., Hu, C. Synthesis of novel copper compounds containing isonicotinic acid and/or 2,6-pyridinedicarboxylic acid: third-order nonlinear optical properties. J. Coord. Chem. 2004, 57, 1079–1087; https://doi.org/10.1080/00958970412331281773.Search in Google Scholar

17. Tang, L., Gao, L., Fu, F., Cao, J., Chao, D. Two 1D coordination polymers constructed from copper(II) carboxylates and 4,4′-dipyridyl sulfide/4,4′-dipyridyl disulfide. Z. Anorg. Allg. Chem. 2014, 640, 1368–1373; https://doi.org/10.1002/zaac.201300602.Search in Google Scholar

Received: 2021-03-27
Accepted: 2021-04-22
Published Online: 2021-05-06
Published in Print: 2021-07-27
