Crystal structure of 2,2,4,4,6,6-hexakis(4-chlorophenyl)-1,3,5,2,4,6-trithiatristanninane, C36H24Cl6S3Sn3

  • Kong Mun Lo , See Mun Lee and Edward R.T. Tiekink ORCID logo EMAIL logo
Published/Copyright: July 11, 2020
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 235 Issue 5

Abstract

C36H24Cl6S3Sn3, monoclinic, P21/c (no. 14), a = 10.3180(1) Å, b = 18.1008(1) Å, c = 20.9015(2) Å, β = 94.536(10)°, V = 3891.42(6) Å3, Z = 4, Rgt(F) = 0.0177, wRref(F2) = 0.0448, T = 100(2) K.

CCDC no.: 2011919

The molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colourless prism
Size:0.10 × 0.06 × 0.04 mm
Wavelength:Cu Kα radiation (1.54184 Å)
μ:20.7 mm−1
Diffractometer, scan mode:XtaLAB Synergy, ω
θmax, completeness:67.1°, >99%
N(hkl)measured, N(hkl)unique, Rint:47327, 6937, 0.032
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 6635
N(param)refined:433
Programs:CrysAlisPRO [1], SHELX [2], [3], WinGX/ORTEP [4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Sn10.24491(2)0.57778(2)0.50844(2)0.01549(4)
Sn20.39887(2)0.75164(2)0.57769(2)0.01476(4)
Sn30.11603(2)0.76134(2)0.45669(2)0.01582(4)
S10.44349(5)0.64736(3)0.51161(2)0.01871(10)
S20.27003(5)0.84020(3)0.51547(3)0.02078(11)
S30.06039(5)0.65607(3)0.52062(2)0.01856(10)
Cl10.27701(6)0.32391(3)0.73857(3)0.03366(13)
Cl20.25307(6)0.38242(3)0.23951(3)0.03496(13)
Cl30.15921(7)0.59722(3)0.83106(3)0.03782(14)
Cl40.98627(5)0.90130(3)0.61796(3)0.03142(13)
Cl50.32369(6)0.59405(3)0.20036(3)0.03229(13)
Cl6−0.44251(6)0.94468(3)0.41901(3)0.03753(14)
C10.24760(19)0.49902(11)0.58427(10)0.0171(4)
C20.2009(2)0.51276(12)0.64398(11)0.0224(4)
H20.1628800.5593110.6520390.027*
C30.2091(2)0.45924(13)0.69186(11)0.0253(5)
H30.1755450.4684770.7321200.030*
C40.2673(2)0.39214(12)0.67979(11)0.0219(4)
C50.3158(2)0.37760(12)0.62154(11)0.0215(4)
H50.3567810.3317070.6142120.026*
C60.3040(2)0.43088(12)0.57374(11)0.0203(4)
H60.3350620.4205780.5330850.024*
C70.2455(2)0.51760(11)0.42087(10)0.0182(4)
C80.3559(2)0.51690(12)0.38639(11)0.0203(4)
H80.4298000.5452330.4012330.024*
C90.3593(2)0.47529(12)0.33059(11)0.0220(4)
H90.4347860.4749890.3073190.026*
C100.2513(2)0.43444(12)0.30961(11)0.0239(5)
C110.1408(2)0.43345(13)0.34316(12)0.0284(5)
H110.0675190.4045980.3284380.034*
C120.1391(2)0.47541(13)0.39873(11)0.0254(5)
H120.0635930.4751910.4219850.030*
C130.31780(19)0.70915(11)0.66075(10)0.0170(4)
C140.1899(2)0.72169(12)0.67542(10)0.0187(4)
H140.1354530.7533980.6489420.022*
C150.1417(2)0.68813(12)0.72850(11)0.0221(4)
H150.0549100.6969190.7385960.027*
C160.2219(2)0.64185(12)0.76630(11)0.0252(5)
C170.3506(2)0.63001(13)0.75447(11)0.0264(5)
H170.4052220.5994220.7819360.032*
C180.3977(2)0.66406(12)0.70139(11)0.0223(4)
H180.4856250.6565760.6925540.027*
C190.58702(19)0.79940(12)0.59291(10)0.0178(4)
C200.6968(2)0.75462(12)0.60179(11)0.0215(5)
H200.6872980.7024380.6028090.026*
C210.8204(2)0.78597(13)0.60918(11)0.0225(4)
H210.8954160.7555800.6151490.027*
C220.8320(2)0.86194(13)0.60768(10)0.0221(4)
C230.7246(2)0.90740(13)0.59840(12)0.0253(5)
H230.7345350.9595430.5971000.030*
C240.6019(2)0.87565(12)0.59101(11)0.0221(4)
H240.5273000.9063460.5845850.027*
C250.1865(2)0.71137(12)0.37349(10)0.0180(4)
C260.1034(2)0.66423(12)0.33656(11)0.0213(4)
H260.0171990.6568280.3481960.026*
C270.1444(2)0.62807(13)0.28329(11)0.0241(5)
H270.0871210.5964870.2581690.029*
C280.2710(2)0.63913(13)0.26755(10)0.0237(5)
C290.3559(2)0.68476(13)0.30317(11)0.0232(5)
H290.4423170.6913140.2915430.028*
C300.3136(2)0.72109(12)0.35633(11)0.0200(4)
H300.3713760.7526910.3811190.024*
C31−0.06041(19)0.82310(12)0.44495(10)0.0185(4)
C32−0.0630(2)0.89982(12)0.44359(11)0.0215(4)
H320.0164780.9265350.4483210.026*
C33−0.1793(2)0.93794(13)0.43547(12)0.0250(5)
H33−0.1802980.9904010.4341570.030*
C34−0.2947(2)0.89801(13)0.42925(11)0.0249(5)
C35−0.2952(2)0.82229(13)0.43206(13)0.0291(5)
H35−0.3750800.7959050.4287750.035*
C36−0.1778(2)0.78463(13)0.43976(13)0.0276(5)
H36−0.1773930.7321890.4415110.033*

Source of material

Tetra(4-chlorophenyl)tin was synthesized from the reaction of stannic chloride (Fluka) with 4-chlorophenylmagnesium bromide (Fluka) in a 1:4 molar ratio. Subsequently, di(4-chlorophenyl)tin dichloride was synthesized from the comproportionation reaction of tetra(4-chlorophenyl)tin with stannic chloride (Fluka) in a 1:1 molar ratio to obtain a white precipitate. The dithiocarbamate ligand was prepared in situ (methanol) from the reaction of carbon disulfide (Merck, 0.02 mL, 0.25 mmol) with di-n-butylamine (Merck, 0.04 mL, 0.25 mmol) and NaOH (0.02 mL; 50% w/v); carbon disulfide was added dropwise into the methanol solution (10 mL). The resulting mixture solution was kept at 273 K for 0.5 h. Di(4-chlorophenyl)tin dichloride in methanol (10 mL) was added in the solution and the resulting mixture was stirred for 3 h. The filtrate was evaporated until a white precipitate was obtained. The precipitate was washed with n-hexane and recrystallized from dimethyl sulfoxide. The title compound was the side-product from the recrystallization of the precipitate.

Yield: 0.10 g (9%). M.pt (Mel-temp II digital melting point apparatus): 339–401 K. IR (Bruker Vertex 70v FTIR Spectrophotometer; cm−1): 1471 (m) ν(C—C); 782 (m) ν (C—Cl); 604 (w) ν(Sn—C); 450 w ν(Sn—S). 1H NMR (Bruker Ascend 400 MHz NMR spectrometer, chemical shifts relative to Me4Si, CDCl3 solution at 40 °C; ppm): 6.94–7.08 (m, Phenyl-H). 13C{1H} NMR (as for 1H NMR): 121.4, 122.4, 124.3, 124.8, 127.4, 133.0 (Ph–C).

Experimental details

The hydrogen atoms were geometrically placed (C—H = 0.95 Å) and refined as riding with Uiso(H) = 1.2Ueq(C).

Comment

Crystal structure determinations of cyclic, trinuclear molecules of the general formula [R2SnS]3 are comparatively rare. With the exception of the R = CH2CH2C(=O)OEt derivative [5], the only other crystallographically characterised species is that with R = Me but, in four polymorphic forms. Thus, tetragonal P41, Z = 1 [6] and P41212, Z = 0.5 [7] are known as well as two monoclinic forms P21/c, Z = 1 [8] and P21/n, Z = 2 [9]. The common feature of the structures is the presence of a twisted-boat conformation of the six-membered Sn3S3 ring. The title compound, with R = 4-ClC6H4, (I), was isolated as a side-product during a course of studies of organotin dithiocarbamates [10], [11]. Herein the crystal structure of (I) is described along with an analysis of the calculated Hirshfeld surfaces.

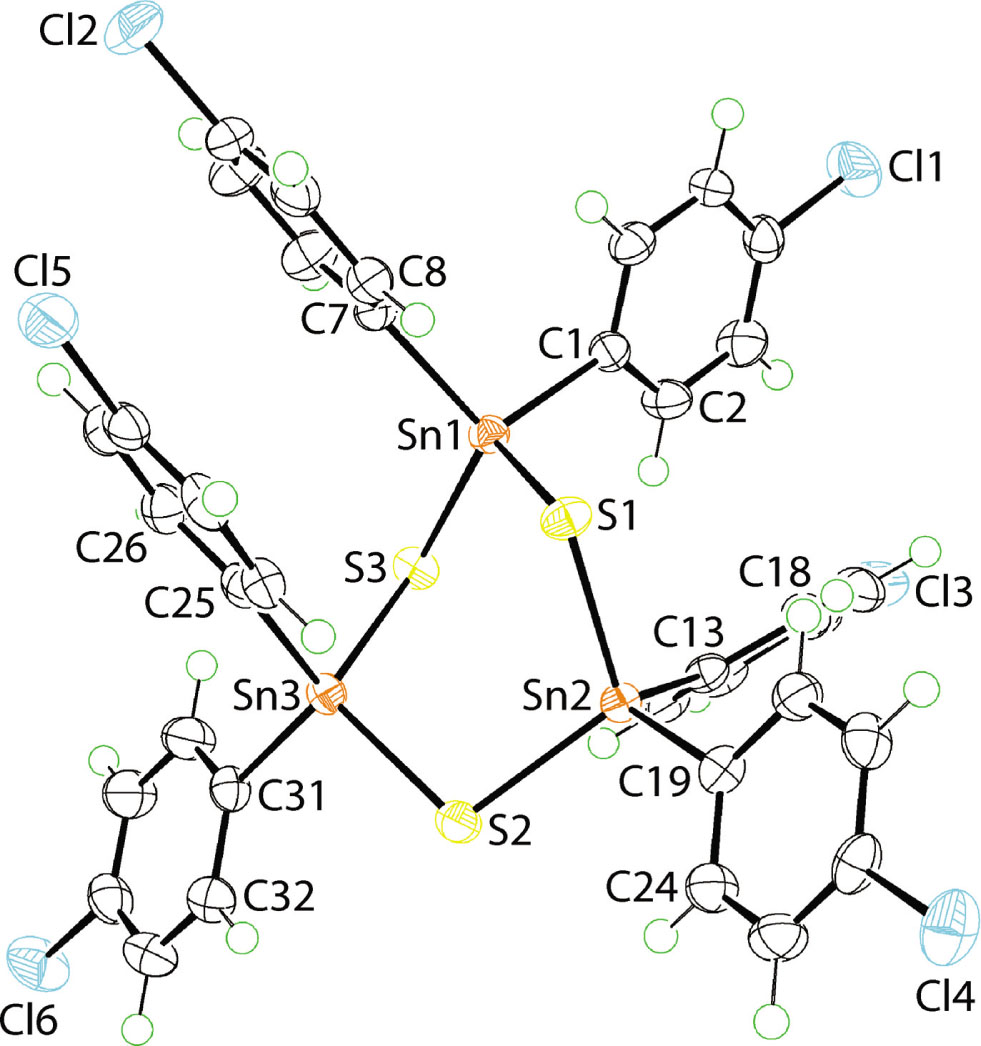

The molecular structure of (I) is shown in the figure (70% displacement ellipsoids) and lacks symmetry. The Sn3S3 ring adopts a twisted-boat conformation as is usually observed for molecules of this type [5], [6], [7], [8], [9]. In this description, S2 atom is to a first approximation co-planar with the plane through the three Sn atoms, lying 0.1425(6) Å out of the plane. The S1 and S3 atoms lie to either side of the Sn3 plane by 1.3639(5) Å, in the same direction as the S2 atom, and 1.4709(5) Å, respectively. Within the ring, the angles subtended at the Sn atoms range from 109.644(18)°, for S1—Sn2—S2, to 111.667(18)°, for S1—Sn3—S3. The angles at the S atoms are narrower, ranging from 100.435(18)°, for Sn1—S3—Sn3, to 103.050(18)°, for Sn1—S1—Sn2. The Sn—S bond lengths span a relatively narrow range, i.e. 2.3989(5) Å, for Sn2—S2, to 2.4221(5) Å, for Sn3—S3. The Sn-atom geometries are approximately tetrahedral based on C2S2 donor sets. The widest range of tetrahedral angles of 15.5° is found for the Sn2 atom, i.e. 101.02(6)°, for S1—Sn2—C19, to 116.54(6)°, for S2—Sn2—C13.

In the molecular packing of (I), Sn⋯Cl [Sn3⋯Cl3i = 3.7193(7) Å for symmetry operation (i): x, 3/2 − y, −1/2 + z] secondary bonding interactions [12], [13] are apparent. These lead to supramolecular, zig-zag chains, being propagated by glide plane symmetry. Stacking interactions contribute to stability of the chains [Cg(C13–C18)⋯Cg(C25–C30)ii: 3.5368(13) Å, angle of inclination = 1.37(11)° and off-set = 1.45 Å for (ii): x, 3/2 − y, 1/2 + z]. The chains are linked by phenyl-C—H⋯S contacts [C6—H6⋯S1iii: H6⋯S1iii = 2.82 Å, C6⋯S1iii = 3.565(2) Å with angle at H6 = 136° for (iii) 1 − x, 1 − y, 1 − z] into a supramolecular layer in the bc-plane. Additional links between chains are of the type Cl⋯π(phenyl) [C4—Cl1⋯Cg(C19–C24)iv: Cl1⋯Cg(C19–C24)iv = 3.3654(11) Å with angle at Cl1 = 132.58(8)° for (iv): 1 − x, −1/2 + y, 3/2 − z]. The connections between layers to consolidate the three-dimensional architecture are of the type π⋯π [Cg(C19–C24)⋯Cg(C31–C35)v: 3.7131(13) Å, angle of inclination = 1.32(11)° and off-set = 1.16 Å for (v): 1 + x, y, z] and Cl⋯π [C10—Cl2⋯Cg(C31–C36)vi: Cl2⋯Cg(C31–C36)vi = 3.7394(12) Å with angle at Cl2 = 150.79(8)° for (vi): −x, −1/2 + y, 1/2 − z].

To analyse the molecular packing, the Hirshfeld surface was calculated as were full- and delineated two-dimensional Fingerprint plots with the aid of Crystal Explorer 17 [14] and standard protocols [15]. This analysis shows the Sn⋯Cl secondary bonding interactions only make a very minor contribution to the overall surface contacts, i.e. 0.6%. More significant contacts involving Cl are Cl⋯H/H⋯Cl, Cl⋯C/C⋯Cl, Cl⋯S/S⋯Cl and Cl⋯Cl contacts, making contributions of 28.3, 8.7, 1.6 and 3.8%, respectively. The S atoms also contribute to other surface contacts: S⋯H/H⋯S [6.2%] and S⋯C/C⋯S [0.5%]. More significant contributions are made by C⋯H/H⋯C [15.4%], C⋯C [4.9%] and, especially, H⋯H [30.0%] contacts.

Acknowledgements

Sunway University Sdn Bhd is thanked for financial support of this work through Grant No. STR-RCTR-RCCM-001-2019.

References

1. Rigaku Oxford Diffraction: CrysAlisPRO. Rigaku Corporation, Oxford, UK (2018).Search in Google Scholar

2. Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar

3. Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Search in Google Scholar

4. Farrugia, L. J.: WinGX and ORTEP for Windows: an update. J. Appl. Crystallogr. 45 (2012) 849–854.10.1107/S0021889812029111Search in Google Scholar

5. Jung, O.-S.; Jeong, J. H.; Sohn, Y. S.: Preparation, properties and structures of estertin(IV) sulphides. Polyhedron 8 (1989) 2557–2563.10.1016/S0277-5387(00)81156-0Search in Google Scholar

6. Menzebach, B.; Bleckmann, P.: Die kristallstruktur von hexamethylcyclotristannathian. J. Organomet. Chem. 91 (1975) 291–294.10.1016/S0022-328X(00)88995-0Search in Google Scholar

7. Tiekink, E. R. T.: Crystal structure of trimeric dimethyltin sulphide: tetragonal modification. Main Group Met. Chem. 16 (1993) 65–69.Search in Google Scholar

8. Jacobsen, H.-J.; Krebs, B.: Die kristallstruktur des monoklinen hexamethylcyclotristannathians. J. Organomet. Chem. 136 (1977) 333–338.10.1016/S0022-328X(00)93740-9Search in Google Scholar

9. Singh, N.; Kumar, A.; Molloy, K. C.; Kociok-Köhn, G.: Monoclinic modification of 1,1,3,3,5,5-hexamethyl-cyclo-1,3,5-tristannathiane. Acta Crystallogr. E64 (2008) m115.10.1107/S1600536807063829Search in Google Scholar

10. Lee, S. M.; Lo, K. M.; Tiekink, E. R. T.: Crystal structure of chlorido-diphenyl-(isopropyl(propyl)carbamodithioato-κ2S,S′)-tin(IV), C19H24ClNS2Sn. Z. Kristallogr. NCS 235 (2020) 211–214.10.1515/ncrs-2019-0578Search in Google Scholar

11. Lee, S. M.; Lo, K. M.; Tiekink, E. R. T.: Crystal structure of (4-fluorobenzyl-κC)(bis(2-hydroxyethyl) carbamodithioato -κ2S,S′)(2,2′-imino-diethanolato-κ3N,O,O′)tin(IV), C16H25FN2O4S2Sn. Z. Kristallogr. NCS 235 (2020) 403–405.10.1515/ncrs-2019-0711Search in Google Scholar

12. Alcock, N. W.: Secondary bonding to nonmetallic elements. Adv. Inorg. Chem. Radiochem. 15 (1972) 1–58.10.1016/S0065-2792(08)60016-3Search in Google Scholar

13. Tiekink, E. R. T.: Supramolecular assembly based on “emerging” intermolecular interactions of particular interest to coordination chemists. Coord. Chem. Rev. 345 (2017) 209–228.10.1016/j.ccr.2017.01.009Search in Google Scholar

14. Turner, M. J.; McKinnon, J. J.; Wolff, S. K.; Grimwood, D. J.; Spackman, P. R.; Jayatilaka, D.; Spackman, M. A.: Crystal Explorer v17. The University of Western Australia, Australia (2017).Search in Google Scholar

15. Tan, S. L.; Jotani, M. M.; Tiekink, E. R. T.: Utilizing Hirshfeld surface calculations, non-covalent interaction (NCI) plots and the calculation of interaction energies in the analysis of molecular packing. Acta Crystallogr. E75 (2019) 308–318.10.1107/S2056989019001129Search in Google Scholar PubMed PubMed Central
