Crystal structure of ethyl 3-(trifluoromethyl)-1H-pyrazole-4-carboxylate, C7H7F3N2O2

  • Željko. K. Jaćimović ORCID logo EMAIL logo , Sladjana B. Novaković , Goran A. Bogdanović , Milica Kosović , Eugen Libowitzky and Gerald Giester
Published/Copyright: June 20, 2020
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 235 Issue 5

Abstract

C7H7F3N2O2, monoclinic, P21/m (no. 11), a = 6.8088(8) Å, b = 6.7699(9) Å, c = 9.9351(12) Å, β = 105.416(3)°, V = 441.48(9) Å3, Z = 2, Rgt(F) = 0.0398, wRref(F2) = 0.1192, T = 200(2) K.

CCDC no.: 2007110

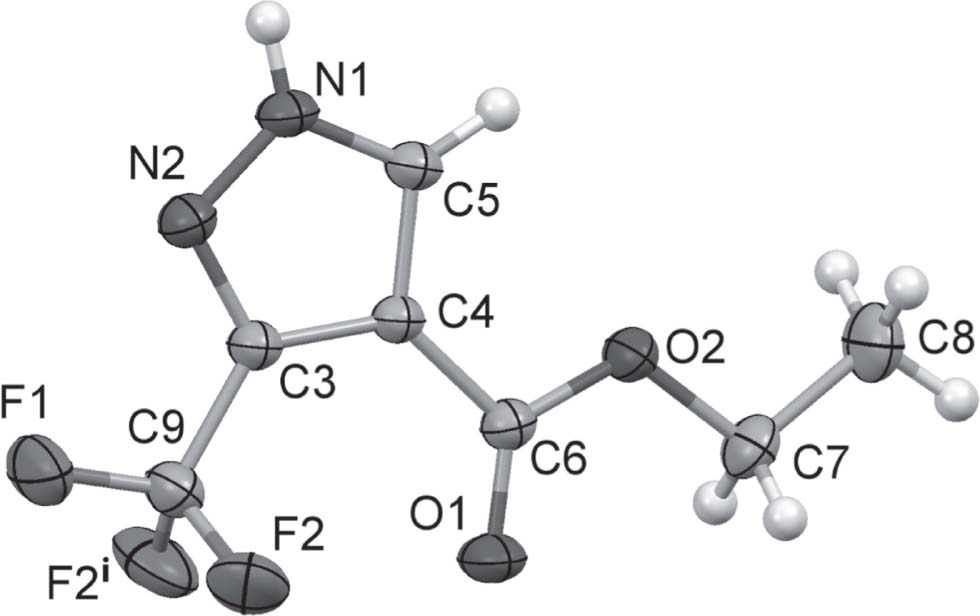

The molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colorless prism
Size:0.32 × 0.19 × 0.08 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.16 mm−1
Diffractometer, scan mode:Bruker Apex-II, φ and ω
θmax, completeness:33.2°, >99%
N(hkl)measured, N(hkl)unique, Rint:17052, 1819, 0.025
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 1466
N(param)refined:86
Programs:Bruker [1], SHELX [2], [3], Platon [4], Mercury [5]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
F10.43896(17)0.25000.08691(10)0.0588(4)
F20.67754(12)0.40673(15)0.23115(9)0.0573(3)
O10.85926(15)0.25000.52269(12)0.0416(3)
O20.70241(15)0.25000.69374(10)0.0336(2)
N10.16706(17)0.25000.39173(13)0.0314(3)
N20.23079(17)0.25000.27439(13)0.0319(3)
C30.43220(19)0.25000.32107(13)0.0263(2)
C40.49813(18)0.25000.46784(13)0.0235(2)
C50.31902(19)0.25000.50850(14)0.0272(3)
H50.30660.25000.60150.033*
C60.70491(19)0.25000.56073(14)0.0265(3)
C70.8989(2)0.25000.79805(16)0.0369(3)
H7A0.97830.36880.78750.044*
C80.8546(3)0.25000.93749(18)0.0520(5)
H8A0.98290.25001.01120.078*
H8B0.77580.13180.94630.078*
C90.5551(2)0.25000.21712(15)0.0363(3)
H1N0.041(3)0.25000.387(2)0.042(5)*

Source of material

The 4 cm3 of warm ethanolic solution of ethyl 3-(trifluoromethyl)-1H-pyrazole-4-carboxylate (Sigma-Aldrich) and 3 cm3 of warm ethanolic solution of Zn(OAc)2 ⋅ 2H2O was mixed in ratio 1:2. The resulting unicolor solution was allowed to concentrate at ambient conditions for 3 days and the investigated sample material was filtered off and washed with ethanol. Colorless crystals of ethyl 3-(trifluoromethyl)-1H-pyrazole-4-carboxylate were obtained.

Experimental details

H atoms bonded to C atoms were placed at geometrically idealized positions and refined as riding atoms [C—H = 0.95–0.99 Å and Uiso(H) = 1.2Ueq(C) or 1.5Ueq(C)]. H atom attached to N atom was located in difference Fourier maps and refined isotropically.

Comment

Pyrazole derived compounds possess a wide range of biological activities including antimicrobial, antiviral, anti-inflammatory, anticancer, analgesic, antipyretic [6], [7], [8]; accordingly, the pyrazole fragment represents an important component of a number of therapeutic drugs [8 and references therein]. The presence of fluoroalkyl substituents on the pyrazole ring, as is the case with the pyrazole based drug Celebrex, can improve the lipophilicity and solubility of a molecule and thus influence its biological activity [9]. Also, the incorporation of carboxylic acid groups and carboxylic ester functionality facilitates further modification and improvement of bioactivity of the pyrazole based molecules [10]. As a part of our continuous research interest in the pyrazole derived compounds [11], [12], [13] we report here the crystal structure of ethyl 3-(trifluoromethyl)-1H-pyrazole-4-carboxylate.

In the title pyrazole derivative the pyrazole ring attaches the fluoroalkyl and carboxylic ester substituents. The molecule lies on a crystallographic mirror plane thus the constituent atoms are coplanar, with the exception of F and H atoms attached to sp3 carbon atoms (see the figure). Bond lengths and angles are in the expected ranges [13], [14], [15]. In the crystal the molecules interact by N1—H1⋯O1ii hydrogen bonds [H⋯O 2.06(3) Å; N—H⋯O 137(2)°; symmetry code: (ii) x − 1, y, z] to form a chain along the crystallographic a axis. The pyrazole hydrogen bonding acceptor N2 involves only in a long contact with the terminal ester carbon, C8—H8a⋯N2ii [H⋯N 2.71 Å; C—H⋯O 158°; symmetry code: (iii) x + 1, +y, +z + 1]. The planar molecules form the layered structure parallel to (010) plane. The mutual distance between the neighboring layers is 3.385 Å [symmetry code (i) = x, −y + 1/2, z].

Acknowledgements

M. K. and Ž.K.J. thank to the Ministry of Science of the Republic of Montenegro for financial support (Innovative Project-Bioextra); G.A.B and S.B.N thank to the Ministry of Education, Science and Technological Development of the Republic of Serbia for financial support.

References

1. Bruker. APEXII, SAINT-Plus, SADABS. Bruker AXS Inc., Madison, WI, USA (2008).Search in Google Scholar

2. Sheldrick, G. M.: SHELXT – Integrated space-group and crystal-structure determination. Acta Crystallogr. A71 (2015) 3–8.10.1107/S2053273314026370Search in Google Scholar PubMed PubMed Central

3. Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Search in Google Scholar PubMed PubMed Central

4. Spek, A. L.: Single-crystal structure validation with the program PLATON. J. Appl. Crystallogr. 36 (2003) 7–1310.1107/S0021889802022112Search in Google Scholar

5. Macrae, C. F.; Sovago, I.; Cottrell, S. J.; Galek, P. T. A.; McCabe, P.; Pidcock, E.; Platings, M.; Shields, G. P.; Stevens, J. S.; Towler, M.; Wood, P. A.: Mercury 4.0: from visualization to analysis, design and prediction. J. Appl. Crystallogr. 53 (2020) 226–235.10.1107/S1600576719014092Search in Google Scholar PubMed PubMed Central

6. Faraz Khan, M.; Mumtaz Alam, M.; Verma, G.; Akhtar, W.; Akhter, M.; Shaquiquzzaman, M.: The therapeutic voyage of pyrazole and its analogs: a review. Eur. J. Med. Chem. 120 (2016) 170–201.10.1016/j.ejmech.2016.04.077Search in Google Scholar PubMed

7. Alam, J.; Alam, O.; Alam, P.; Naim, M. J.: A review on pyrazole chemical entity and biological activity. Int. J. Pharm. Sci. Res. 6 (2015) 1433–1442.Search in Google Scholar

8. Naim, M. J.; Alam, O.; Nawaz, F.; Alam, J.; Alam, P.: Current status of pyrazole and its biological activities. J. Pharm. Bioallied Sci. 8 (2016) 2–17.10.4103/0975-7406.171694Search in Google Scholar PubMed PubMed Central

9. Bazhin, D. N.; Kudyakova, Y. S.; Onoprienko, A. Ya.; Slepukhin, P. A.; Burgart, Y. V.; Saloutin, V. I.: Synthesis and tuberculostatic activity of functionalized pyrazoles derived from (trifluoromethyl)pyrazole containing a hydrazone group. Chem. Heterocycl. Compd. 53 (2017) 1324–1329.10.1007/s10593-018-2214-1Search in Google Scholar

10. Bruno, O.; Brullo, C.; Bondavalli, F.; Schenone, S.; Spisani, S.; Falzarano, M. S.; Varani, K.; Barocelli, V.; Ballabeni, V.; Giorgio, V.; Tognolini, M.: 1-Methyl and 1-(2-hydroxyalkyl)-5-(3-alkyl/cycloalkyl/phenyl/naphthylureido)-1H-pyrazole-4-carboxylic acid ethyl esters as potent human neutrophil chemotaxis inhibitors. Bioorg. Med. Chem. 17 (2009) 3379–3387.10.1016/j.bmc.2009.03.035Search in Google Scholar PubMed

11. Jaćimović, Ž. K.; Novaković, S. B.; Bogdanović, G. A.; Giester, G.; Kosović, M.; Libowitzky, E.: First crystal structures of metal complexes with a 4-nitro-pyrazole-3-carboxylic acid ligand and the third crystal form of the ligand. Acta Crystallogr. C75 (2019) 255–264.10.1107/S2053229619001244Search in Google Scholar

12. Latinoviić, N.; Novakoviić, S. B.; Bogdanoviić, G. A.; Kastratoviić, V.; Giester, G.; Jacimoviić, Ž. K.: Crystal structure of dihydrazinium 1H-pyrazole-3,5-dicarboxylate, C5H12N6O4. Z. Kristallogr. NCS 234 (2019) 957–958.10.1515/ncrs-2019-0168Search in Google Scholar

13. Jaćimović, Z. K.; Kosović, M.; Bogdanović, G.; Novaković, S. B.; Giester, G.; Bigović, M.: The crystal structure of ethyl 1-(4-nitrophenyl)-5-(trifluoromethyl)-1H-pyrazole-4-carboxylate, C13H10F3N3O4. Z. Kristallogr. NCS 232 (2017) 651–653.10.1515/ncrs-2016-0393Search in Google Scholar

14. Foces-Foces, C.; Echevarría A.; Jagerovic, N.; Alkorta, I.; Elguero, J.; Langer, U.; Klein, O.; Minguet-Bonvehi, M.; Limbach, H.-H.: A solid-state NMR, X-ray diffraction, and ab initio computational study of hydrogen-bond structure and dynamics of pyrazole-4-carboxylic acid chains. J. Am. Chem. Soc. 123 (2001) 7898–7906.10.1021/ja002688lSearch in Google Scholar PubMed

15. Rashid, F. N. A. A.; Mohammat, M. F.; Arshad, S.; Shaameri, Z.; Hamzah, A. S.: Crystal structure of ethyl 3-(4-methoxyphenyl)-5-methylcarbamoyl-1H-pyrazole-4-carboxylate, C15H17N3O4. Z. Kristallogr. NCS 234 (2019) 1137–1139.10.1515/ncrs-2019-0203Search in Google Scholar

Received: 2020-05-19
Accepted: 2020-06-02
Published Online: 2020-06-20
Published in Print: 2020-08-26
