Crystal structure of N,N-dimethyl-4-((7-nitrobenzo[c][1,2,5]thiadiazol-4-yl)ethynyl)aniline, C16H12N4O2S

  • Chen Songhua ORCID logo EMAIL logo , Zhang Bin , Chen Xin and Liu Yongqi
Published/Copyright: June 1, 2020
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 235 Issue 5

Abstract

C16H12N4O2S, triclinic, P1̄ (no. 2), a = 7.249(2) Å, b = 8.265(3) Å, c = 12.786(4) Å, α = 82.449(11)°, β = 75.210(10)°, γ = 83.977(11)°, V = 732.3(4) Å3, Z = 2, Rgt(F) = 0.0669, wRref(F2) = 0.1726, T = 173.15 K.

CCDC no.: 1977025

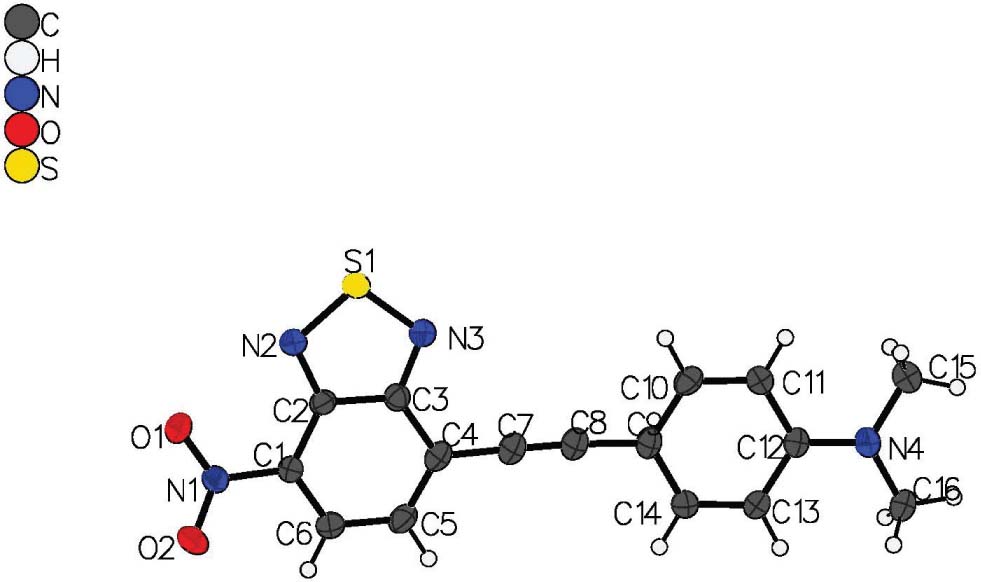

The molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Black plate
Size:0.21 × 0.13 × 0.05 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.24 mm−1
Diffractometer, scan mode:Saturn724+, φ and ω
θmax, completeness:26.4°, 99%
N(hkl)measured, N(hkl)unique, Rint:5799, 2934, 0.042
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 2472
N(param)refined:210
Programs:CrystalClear [1], Olex2 [2], SHELX [3], [4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
S10.93964(14)0.23550(11)0.50555(7)0.0384(3)
O11.0952(4)−0.1625(3)0.7334(2)0.0425(7)
O20.9728(4)−0.1677(3)0.9057(2)0.0466(7)
N11.0055(4)−0.0977(3)0.8120(2)0.0297(6)
N20.9868(4)0.0910(3)0.5953(2)0.0323(7)
N30.8498(4)0.3801(3)0.5814(2)0.0337(7)
N40.3081(4)1.3577(3)0.7563(2)0.0366(7)
C20.9299(4)0.1519(4)0.6911(2)0.0257(7)
C120.3868(5)1.1996(4)0.7561(3)0.0281(7)
C10.9328(4)0.0725(4)0.7967(3)0.0266(7)
C40.7824(5)0.4054(4)0.7773(3)0.0294(7)
C30.8515(5)0.3181(4)0.6832(3)0.0272(7)
C70.7072(5)0.5716(4)0.7659(3)0.0326(8)
C60.8642(5)0.1558(4)0.8860(3)0.0309(7)
H60.8648310.1011750.9561230.037*
C90.5523(5)0.8731(4)0.7562(3)0.0303(7)
C110.4621(5)1.1277(4)0.6580(3)0.0316(7)
H110.4572941.1898340.5906610.038*
C140.4757(5)0.9428(4)0.8531(3)0.0305(7)
H140.4799790.8796110.9202670.037*
C130.3938(5)1.1014(4)0.8539(3)0.0320(7)
H130.3414721.1447650.9213440.038*
C160.2487(5)1.4337(4)0.8575(3)0.0354(8)
H16A0.1556791.3678050.9108150.053*
H16B0.1899911.5441230.8436450.053*
H16C0.3605921.4401240.8861490.053*
C50.7925(5)0.3207(4)0.8763(3)0.0324(8)
H50.7496200.3753930.9400440.039*
C100.5420(5)0.9693(4)0.6586(3)0.0317(8)
H100.5912280.9240740.5915660.038*
C80.6377(5)0.7094(4)0.7583(3)0.0334(8)
C150.3180(6)1.4627(4)0.6552(3)0.0408(9)
H15A0.4522111.4768640.6179180.061*
H15B0.2515111.5696070.6707510.061*
H15C0.2569221.4126200.6085910.061*

Source of material

The title compound was obtained by the Sonogashira cross-coupling reaction of 4-ethynyl-N,N-dimethylbenzenamine and 4-bromo-7-nitrobenzo[c][1,2,5]thiadiazole with PdCl2(PPh3)2 and CuI under an argon flow at room temperature. The compound was purified by SiO2 chromatography with CH2Cl2/petroleum ether (1/2, v/v).

Single crystals suitable for X-ray diffraction were obtained by crystallization of the title compound from dichloromethane and n-hexane.

Experimental details

The hydrogen atoms were placed with common isotropic displacement factors Uiso(H) = 1.2 times Ueq(C, aromatic ring). The final refinement succeeded using geometrical restraints, with C—H = 0.95 Å.

Comment

Push-pull chromophores with strong electron donors connected by π-conjugated spacers to strong electron acceptors have been studied due to their high optoelectronic susceptibility and architectural flexibility and structural feature [5], [6], [7], [8], [9]. 2,1,3-Benzothiadiazole is an important building block of optoelectronic devices due to its large reduction potential and electron affinity [9], [10], [11], [12], [13]. A mount of molecular materials containing this unit as electron-accepting moiety are widely exploited for their applications in nonlinear optics [14], [15], [16]. This molecule is linked through phenylethynyl conjugated bridges with N,N-dimethylbenzenamine as the donor and nitrobenzothiadiazole as the acceptor and has great potential for developing controlled nonlinear optical materials. A view on the structure of the title molecule is shown in the figure. The unit cell contains one molecule of the title compound, which is synthesized under controlled conditions with Sonogashira cross-coupling reaction.

Acknowledgements

This work was supported by the research funds of longyan university (LB2018016), Youth Talented Scholars Plan in Universities of Fujian Province, Young and Middle-aged Teacher in Science Research of Fujian Province (No. JAT190732) and Science and Technology Program of Longyan (No. LY2018LYF8007).

References

1. Rigaku. CrystalClear. Rigaku Corporation, Tokyo, Japan (2007).Search in Google Scholar

2. Dolomanov, O. V.; Bourhis, L. J.; Gildea, R. J.; Howard, J. A. K.; Puschmann, H.: OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 42 (2009) 339–341.10.1107/S0021889808042726Search in Google Scholar

3. Sheldrick, G. M.: SHELXT – Integrated space-group and crystal-structure determination. Acta Crystallogr. A71 (2015) 3–8.10.1107/S2053273314026370Search in Google Scholar PubMed PubMed Central

4. Sheldrick, G. M.: Crystal structure refinement with SHELX. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Search in Google Scholar PubMed PubMed Central

5. Chen, S. H.; Chen, N.; Yan, Y. L.; Liu, T. F.; Yu, Y. W.; Li, Y. J.; Liu, H. B.; Zhao, Y. S.; Li, Y. L.: Controlling growth of molecular crystal aggregates for efficient optical waveguides. Chem. Commun. 48 (2012) 9011–9013.10.1039/c2cc32501bSearch in Google Scholar PubMed

6. Qian, H.; Cousins, M. E.; Horak, E. H.; Wakefield, A.; Liptak, M. D.; Aprahamian, I.: Suppression of Kasha’s rule as a mechanism for fluorescent molecular rotors and aggregation-induced emission. Nat. Chem. 9 (2017) 83–87.10.1038/nchem.2612Search in Google Scholar PubMed

7. Xu, J.; Zheng, H.; Liu, H.; Zhou, C.; Zhao, Y.; Li, Y.; Li, Y.: Crystal hierarchical supramolecular architectures from 1-D precursor single-crystal seeds. J. Phys. Chem. C 114 (2010) 2925–2931.10.1021/jp911595mSearch in Google Scholar

8. Chen, S. H.; Qin, Z. H.; Liu, T. F.; Wu, X. Z.; Li, Y. J.; Liu, H. B.; Song, Y. L.; Li, Y. L.: Aggregation-induced emission on benzothiadiazole dyads with large third-order optical nonlinearity. Phys. Chem. Chem. Phys. 15 (2013) 12660–12666.10.1039/c3cp51273hSearch in Google Scholar PubMed

9. Yang, J.; Chen, S.: Crystal structure of 2-(4-(dimethylamino)phenyl)-10-methylacridin-9(10H)-one, C22H20N2O. Z. Kristallogr. NCS 234 (2019) 187–188.10.1515/ncrs-2018-0310Search in Google Scholar

10. Xu, J.; Liu, X.; Lv, J.; Zhu, M.; Huang, C.; Zhou, W.; Yin, X.; Liu, H.; Li, Y.; Ye, H.: Morphology transition and aggregation-induced emission of an intramolecular charge-transfer compound. Langmuir 24 (2008) 4231–4237.10.1021/la703662wSearch in Google Scholar PubMed

11. Xiong, J.; Wang, K.; Yao, Z.; Zou, B.; Xu, J.; Bu, X.-H.: Multi-stimuli-responsive fluorescence switching from a pyridine-functionalized tetraphenylethene AIEgen. ACS Appl. Mater. Interfaces 10 (2018) 5819–5827.10.1021/acsami.7b18718Search in Google Scholar PubMed

12. Chen, S.; Yang, J.: Crystal structure of 2-bromo-7-(4-(dimethylamino)phenyl)-10-methylacridin-9(10H)-one, C22H19BrN2O. Z. Kristallogr. NCS 234 (2019) 71–72.10.1515/ncrs-2018-0180Search in Google Scholar

13. Xu, J.; Semin, S.; Cremers, J.; Wang, L.; Savoini, M.; Fron, E.; Coutino, E.; Chervy, T.; Wang, C.; Li, Y.: Controlling microsized polymorphic architectures with distinct linear and nonlinear optical properties. Adv. Opt. Mater. 3 (2015) 948–956.10.1002/adom.201400637Search in Google Scholar

14. Chen, Y. C.; Lam, J. W. Y.; Kwok, R. T. K.; Liu, B.; Tang, B. Z.: Aggregation-induced emission: fundamental understanding and future developments. Mater. Horiz. 6 (2019) 428–433.10.1039/C8MH01331DSearch in Google Scholar

15. Chen, S.; Qin, Z.; Liu, T.; Wu, X.; Li, Y.; Liu, H.; Song, Y.; Li, Y.: Aggregation-induced emission on benzothiadiazole dyads with large third-order optical nonlinearity. Phys. Chem. Chem. Phys. 15 (2013) 12660–12666.10.1039/c3cp51273hSearch in Google Scholar PubMed

16. Ju, C.; Zhou, Y.; Semin, S.; Yang, G.; Tinnemans, P.; Duan, Y.; Feng, Y.; Rasing, T.; Xu, J.: Solvent dependent linear and nonlinear optical properties of triphenylamine unit incorporated difluoroboron β-diketonate complexes. Dyes Pigm. 162 (2019) 776–785.10.1016/j.dyepig.2018.11.002Search in Google Scholar
