Crystal structure of poly[dibromido-bis(μ2-1,6-di(1H-imidazol-1-yl)hexane-κ2N:N′)cadmium(II)], C24H36Br2N8Cd

  • Jin-Bo Guo ORCID logo EMAIL logo and Guan-Feng Li
Published/Copyright: June 20, 2020
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 235 Issue 5

Abstract

C24H36Br2N8Cd, monoclinic, P21/c (no. 14), a = 9.6915(4) Å, b = 7.6614(2) Å, c = 19.0851(8) Å, β = 100.529(4)°, V = 1393.21(9) Å3, Z = 2, Rgt(F) = 0.0744, wRref(F2) = 0.1823, T = 293(2) K.

CCDC no.: 2009038

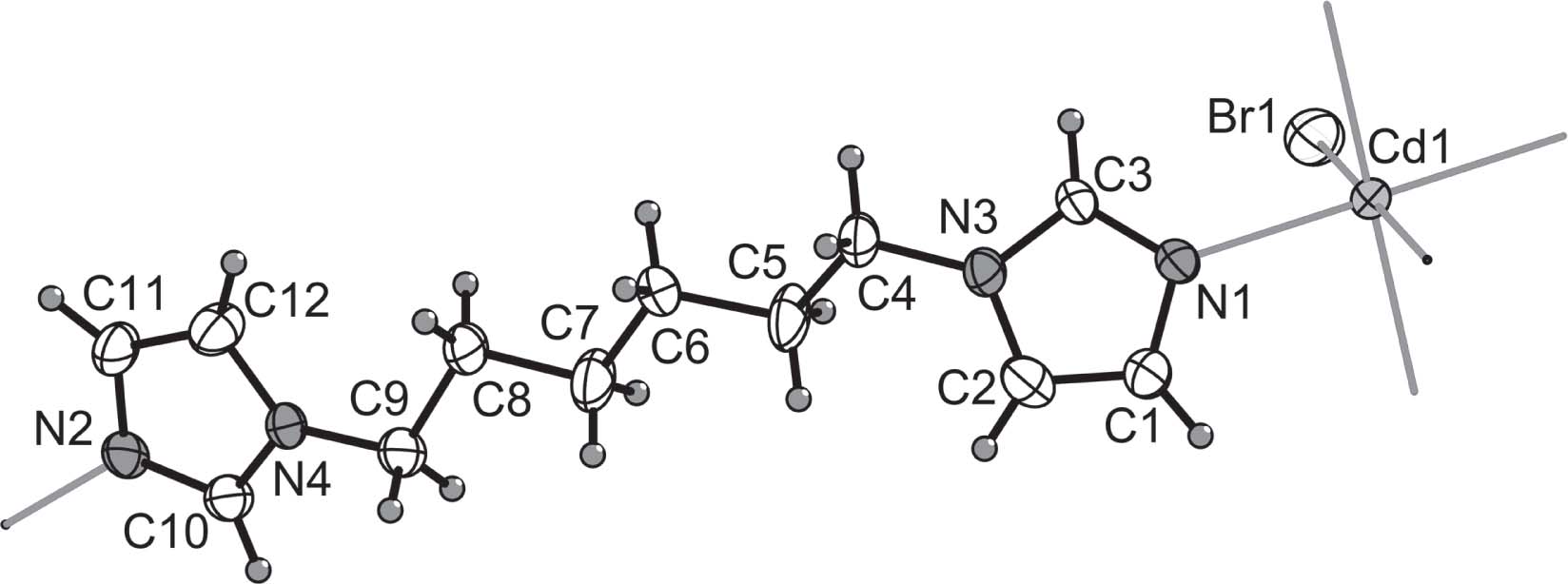

The asymmetric unit of the polymeric title structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colourless block
Size:0.42 × 0.38 × 0.26 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:3.68 mm−1
Diffractometer, scan mode:EosS2, ω
θmax, completeness:25.5°, >99%
N(hkl)measured, N(hkl)unique, Rint:29900, 2585, 0.084
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 2356
N(param)refined:160
Programs:CrysAlisPRO [1], SHELX [2], [3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Cd11.00001.00000.50000.0342(3)
N10.9210(7)0.8669(9)0.3905(3)0.0282(15)
N20.2051(7)−0.3326(9)0.0207(4)0.0305(16)
N30.8798(7)0.6851(9)0.3003(4)0.0287(15)
N40.3487(7)−0.1193(9)0.0619(4)0.0280(15)
Br10.86144(11)0.73774(13)0.57319(6)0.0473(3)
C10.8350(10)0.9451(12)0.3351(5)0.036(2)
H10.79971.05780.33560.043*
C20.8086(9)0.8336(12)0.2787(5)0.036(2)
H20.75310.85500.23430.044*
C30.9464(9)0.7094(11)0.3678(4)0.0285(18)
H31.00280.62650.39480.034*
C40.8764(9)0.5245(12)0.2582(5)0.037(2)
H4A0.92930.43430.28700.044*
H4B0.92080.54580.21740.044*
C50.7289(10)0.4622(13)0.2328(6)0.046(3)
H5A0.67700.55410.20450.055*
H5B0.68530.44340.27400.055*
C60.7149(9)0.2971(12)0.1890(5)0.036(2)
H6A0.76650.31020.15030.043*
H6B0.75630.20090.21860.043*
C70.5651(10)0.2547(13)0.1588(6)0.047(3)
H7A0.52980.34120.12290.057*
H7B0.51090.26520.19660.057*
C80.5391(9)0.0740(12)0.1255(5)0.037(2)
H8A0.60510.05310.09380.044*
H8B0.5546−0.01390.16260.044*
C90.3931(9)0.0587(11)0.0847(5)0.035(2)
H9A0.32920.10380.11400.041*
H9B0.38440.13220.04270.041*
C100.2153(9)−0.1685(11)0.0406(5)0.0307(18)
H100.1387−0.09510.04000.037*
C110.3402(10)−0.3922(12)0.0294(5)0.039(2)
H110.3665−0.50450.01890.047*
C120.4306(9)−0.2609(12)0.0561(5)0.039(2)
H120.5279−0.26720.06790.047*

Source of material

A mixture of Cd(NO3)2 ⋅ 2H2O (0.1 mmol, 0.0272 g), 1,6-di(1H-imidazol-1-yl)hexane (1,6-dih) (0.2 mmol, 0.0612 g), HBr (0.1 mmol/mL, 2 mL), was dissolved in 9 mL H2O. Then the solution was heated in a 23 mL Teflon-lined autoclave under autogenous pressure at 373 K for 4 days. After cooling to room temperature crystals formed. The colourless crystals suitable for X-ray diffraction analysis were collected.

Experimental details

Coordinates of hydrogen atoms were included using riding models (AFIX 23 and AFIX 43 [3]). Their Uiso values were set to 1.2Ueq of the parent atoms.

Comment

The design and construction of metal-organic frameworks (MOFs) is the hottest research in the last decade. The organic ligands, which have their differences in the size, the exibility, the coordination ability, the number of the N-donor ligands, such as 1,6-bis(1,2,4-triazol-1-yl)hexane, have significant influence on structure of final product [4]. The flexibility of N-donor ligands can result not only in gauche and anti conformations in coordination, but also in free rotation to meet the requirements of the coordination geometry of the metal ions in the assembly process. The organic ligand 1,6-di(1H-imidazol-1-yl)hexane serves as bridging ligand [5], [6], [7], [8].

In the title complex, there are one half of a Cd(II), one (1,6-dih) ligand, and one bromide in the asymmetric unit. The cadmium atom Cd1 is six-coordinated with a distorted octahedral geometry by four N atoms from the 1,6-dih ligands from the axial positions (see the figure). The Cd—Br bond length is 2.9121(11) Å; and the Cd—N ones are in the range of 2.325(6) to 2.338(7) Å, respectively. The bond angles of N—Cd—N are in the range of 87.6(2)° to 180°.

Acknowledgements

The authors thank the Key Scientific Research Project for Universities of Henan Province (No. 18B150015; No. 20A150028) and Science and Technology Research Project of Henan Province (no. 182102310909) for financial support.

References

1. Agilent Technologies: CrysAlisPRO Software system, version 1.171.35.15. Agilent Technologies UK Ltd, Oxford, UK (2011).Search in Google Scholar

2. Sheldrick, G. M.: SHELXT – Integrated space-group and crystal-structure determination. Acta Crystallogr. A71 (2015) 3–8.10.1107/S2053273314026370Search in Google Scholar PubMed PubMed Central

3. Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Search in Google Scholar PubMed PubMed Central

4. Li, S. H.; Wu, H. X.; Chai, N.: A cobalt(II) complex based on 5-methoxyisophthalic acid and 1,6-bis(1,2,4-triazol-1-yl)hexane: synthesis, crystal structure and magnetic properties. Synth. React. Inorg. Met.-Org. Nano-Met. Chem. 43 (2013) 1487–1491.10.1080/15533174.2012.757750Search in Google Scholar

5. Song, W.; Li, S. H.; Xu, X. L.: Crystal structure of catena-poly[triaqua-(isophthalato-κO)-(μ2-1,6-di(1H-imidazol-1-yl) hexane-κ2N:N′)]nickel(II). Z. Kristallogr. NCS 233 (2018) 173–175.10.1515/ncrs-2017-0132Search in Google Scholar

6. Zhao, Y.; Wang, K. Q.: Crystal structure of poly[2-1,4-di(1H-imidazol-1-yl)butan-κ2N:N′-2- thiophene-2,3-dicarboxylato-κ4O,O′:O′′,O′′′nickel(II)]. Z. Kristallogr. NCS 228 (2013) 363–364.Search in Google Scholar

7. Li, S. H.; Li, X. L.: A cadmium complex based on 5-methylisophthalic acid and 1,6-bis(imidazol-1-yl)hexane: synthesis, crystal structure, and photoluminescence properties. Synth. React. Inorg. Met.-Org. Nano-Met. Chem. 43 (2013) 710–713.10.1080/15533174.2012.753630Search in Google Scholar

8. Bao, W.-L.: catena-poly[[dichloridozinc(II)]-μ-1,1′-(hexane-1,6-di-yl)di-imidazole-κ2N3:N3′]. Acta Crystallogr. E65 (2009) m1239.10.1107/S1600536809037696Search in Google Scholar PubMed PubMed Central
