The crystal structure of 4-(3-chloro-4-fluorophenylamino)-7-methoxyquinazolin-6-ol, C15H11ClFN3O2

  • Yong Li EMAIL logo , Yun-Deng Wu and Jingjing Wang
Published/Copyright: January 24, 2019
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 234 Issue 3

Abstract

C15H11ClFN3O2, monoclinic, P21/c (no. 14), a = 12.9430(8) Å, b = 9.3196(5) Å, c = 12.5959(8) Å, β = 115.861(8)° V = 1367.21(16) Å3, Z = 4, Rgt(F) = 0.0512, wRref(F2) = 0.1359, T = 296(2) K.

CCDC no.: 1885511

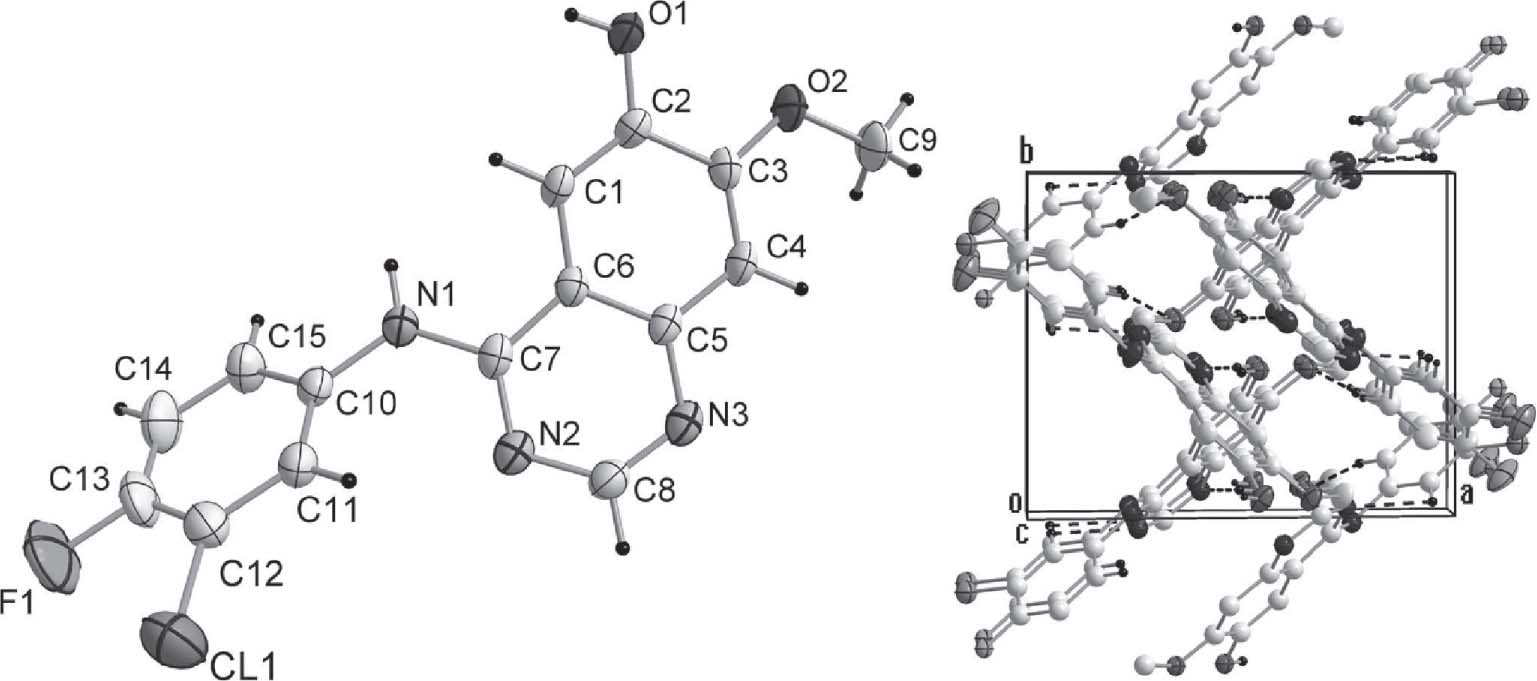

The crystal structure is shown in the figure. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colourless block
Size:0.23 × 0.20 × 0.18 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.30 mm−1
Diffractometer, scan mode:Xcalibur, ω
θmax, completeness:25.4°, >99%
N(hkl)measured, N(hkl)unique, Rint:5456, 2497, 0.027
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 1838
N(param)refined:201
Programs:Olex2 [1], SHELX [2], [3] , CrysAlisPRO [4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Cl1−0.14134(8)0.71513(12)0.27001(8)0.0732(3)
F1−0.10006(19)0.8728(2)0.4855(2)0.0848(7)
O10.53829(16)0.0694(2)0.72281(15)0.0408(5)
H10.4960950.0751280.7558420.061*
O20.65394(15)0.0681(2)0.59872(15)0.0393(5)
N10.24197(18)0.4831(2)0.54733(18)0.0363(5)
H1A0.2663630.4342630.6116140.044*
N20.25849(18)0.5312(2)0.37509(18)0.0341(5)
N30.40419(18)0.4236(2)0.33419(17)0.0326(5)
C10.4136(2)0.2574(3)0.6049(2)0.0320(6)
H1B0.3749110.2608700.6520990.038*
C20.5028(2)0.1633(3)0.6317(2)0.0300(6)
C30.5634(2)0.1599(3)0.5606(2)0.0297(6)
C40.5297(2)0.2450(3)0.4629(2)0.0317(6)
H40.5682960.2403840.4156010.038*
C50.4365(2)0.3396(3)0.4339(2)0.0278(6)
C60.3798(2)0.3492(3)0.5061(2)0.0276(6)
C70.2917(2)0.4551(3)0.4738(2)0.0296(6)
C80.3174(2)0.5091(3)0.3114(2)0.0355(6)
H80.2929910.5615530.2418280.043*
C90.7270(2)0.0731(3)0.5407(3)0.0473(8)
H9A0.6849790.0426430.4602520.071*
H9B0.7914790.0105460.5802950.071*
H9C0.7538460.1695150.5423370.071*
C100.1544(2)0.5843(3)0.5284(2)0.0319(6)
C110.0613(2)0.5999(3)0.4194(2)0.0358(6)
H110.0560400.5447250.3557540.043*
C12−0.0235(2)0.6971(3)0.4056(3)0.0438(7)
C13−0.0164(3)0.7770(3)0.5003(3)0.0510(8)
C140.0740(3)0.7611(3)0.6092(3)0.0545(8)
H140.0777370.8151980.6728370.065*
C150.1599(2)0.6636(3)0.6236(2)0.0434(7)
H150.2213450.6513790.6973830.052*

Source of material

The title compound is commercially available. The crystal suitable for X-ray diffraction was obtained by slow evaporation from DMF:MeOH (1:2) at room temperature.

Experimental details

The structure was solved by direct methods and refined with the SHELX crystallographic software package [2], [3] . The hydrogen atoms were placed at calculated positions with isotropic displacement parameters. The Uiso values were fixed at 1.2 times of the parent atoms for all C(H) groups and all N(H) groups, and 1.5 times for all C(H,H,H) groups, all O(H) groups.

Comment

The title compound has been paid much attention because it is an analog of anti-cancer pharmaceutical Gefitinib. The crystal structures of some other derivatives of the title compound have been reported [5], [6] .

There is one molecule in the asymmetric unit of the title structure (cf. left part of the figure).

The angle between the 6-membered aromatic plane and 10-membered aromatic heterocyclic plane is 47.38(12)°. This angle is similar to the structure of the related derivative (CCDC 873811) [5], but differs from the derivative (CCDC 259805) [6], in which the two rings are almost coplanar.

In the crystal, intermolecular O1—H1⋯N3′ [′ = x, 1/2−y, 1/2 + z] hydrogen bonds link the molecules into a chain along the c axis. Intermolecular C15—H15⋯O2′′ [′′ = 1−x, 1/2 + y, 3/2−z] non-classical hydrogen bonds link the molecules into a chain along the b axis. These two hydrogen bonding interactions construct a network parallel to the bc plane (cf. right part of the figure). Intramolecular hydrogen bonds C—H⋯N also exist in the crystal.

Acknowledgements

We gratefully acknowledge support by Ningbo Polytechnic, P.R. China for financial support.

References

1. Dolomanov, O. V.; Bourhis, L. J.; Gildea, R. J.; Howard, J. A. K.; Puschmann, H.: OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 42 (2009) 339–341.10.1107/S0021889808042726Search in Google Scholar

2. Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Search in Google Scholar PubMed PubMed Central

3. Sheldrick, G. M.: SHELXT – Integrated space-group and crystal-structure determination. Acta Crystallogr. A71 (2015) 3–8.10.1107/S2053273314026370Search in Google Scholar PubMed PubMed Central

4. Agilent Technologies. CrysAlisPRO Software system, version 1.171.35.15. Agilent Technologies UK Ltd, Oxford, UK (2011).Search in Google Scholar

5. Lü, S.; Zheng, W.; Ji, L.; Luo, Q.; Hao, X.; Li, X.; Wang, F.: Synthesis, characterization, screening and docking analysis of 4-anilinoquinazoline derivatives as tyrosine kinase inhibitors. Eur. J. Med. Chem. 61 (2013) 84–94.10.1016/j.ejmech.2012.07.036Search in Google Scholar PubMed

6. Tanaka, R.; Haramura, M.; Tanaka, A.; Hirayama, N.: Structure of Gefitinib. Anal. Sci. 20 (2004) x173–x174.10.2116/analscix.20.x173Search in Google Scholar

Received: 2018-10-21
Accepted: 2018-12-17
Published Online: 2019-01-24
Published in Print: 2019-03-26

©2019 Yong Li et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 Public License.
