Crystal structure of poly[aqua-μ2-4,4′-bis(pyrid-4-yl)biphenyl-κ2N:N′)-μ4-4′-methyl-[1,1′-biphenyl]-3,5-dicarboxylato-κ4O:O′:O′′:O′′′)manganese(II)], C52H40N2O10Mn2

  • Shi-Jun Chen , Shi-Hui Li EMAIL logo , Wei-Hua Wang , Yong-Fu Long , Wen-Lai Zhang , Tao Wang and Yan-Li Xu
Published/Copyright: January 29, 2019
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 234 Issue 3

Abstract

C52H40N2O10Mn2, monoclinic, I2/a (no. 15), a = 8.6162(4) Å, b = 11.0217(5) Å, c = 45.266(2) Å, β = 92.828(4)°, V = 4293.5(3) Å3, Z = 4, Rgt(F) = 0.0476, wRref(F2) = 0.0988, T = 293(2) K.

CCDC no.: 1881072

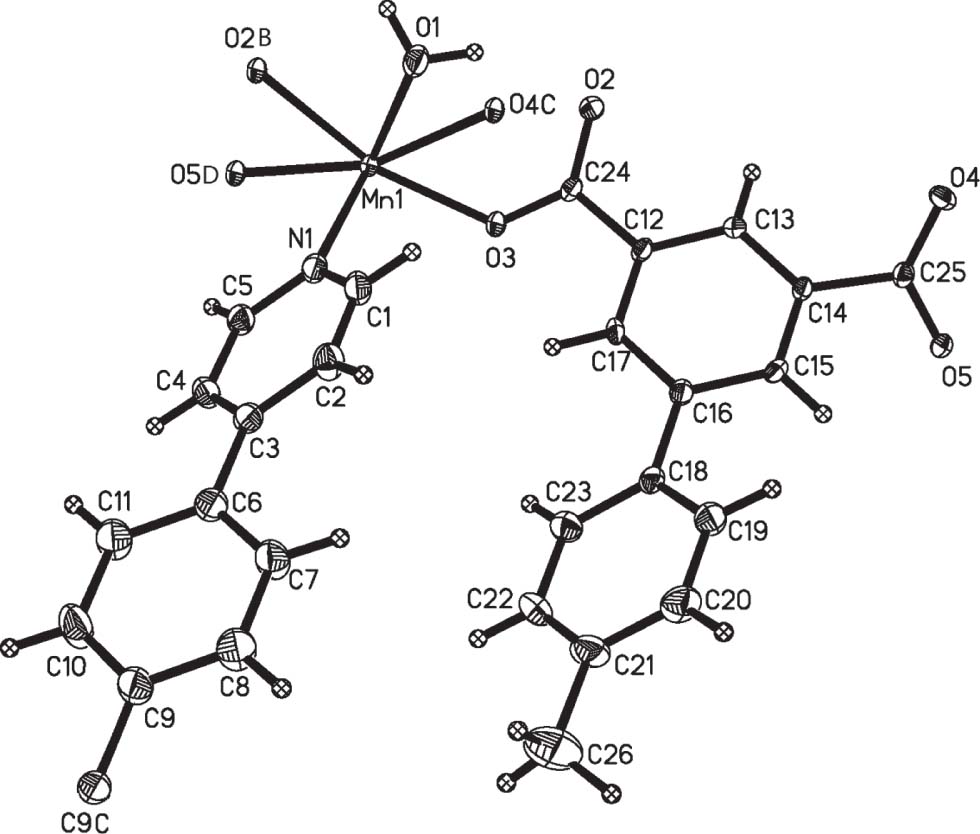

A part of the title crystal structure is shown in the figure (B = 0.5 − x, 0.5 − y, 0.5 − z; C = 1.5 − x, y, 1 − z; D = x, −1 + y, z). Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colorless block
Size:0.45 × 0.35 × 0.26 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.66 mm−1
Diffractometer, scan mode:SuperNova, ω-scans
θmax, completeness:25.5°, >99%
N(hkl)measured, N(hkl)unique, Rint:11721, 3974, 0.048
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 2974
N(param)refined:300
Programs:CrysAlisPRO [1], SHELX [2], OLEX2 [3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Mn10.35544(4)0.13369(4)0.282625(9)0.01968(14)
N10.4165(3)0.1270(2)0.33493(5)0.0291(6)
O10.1123(2)0.1707(2)0.28738(5)0.0402(6)
H1A0.05450.11370.27930.060*
H1B0.08740.23900.27870.060*
O20.1679(2)0.40299(17)0.26388(4)0.0256(5)
O30.3716(2)0.32517(18)0.28970(4)0.0298(5)
O40.0980(2)0.88168(18)0.27749(4)0.0288(5)
O50.3342(2)0.94278(17)0.29192(4)0.0282(5)
C10.3590(4)0.2021(3)0.35456(7)0.0335(8)
H10.28130.25580.34810.040*
C20.4084(4)0.2049(3)0.38413(7)0.0369(8)
H20.36360.25910.39690.044*
C30.5252(3)0.1267(3)0.39470(6)0.0307(8)
C40.5842(4)0.0488(3)0.37411(7)0.0347(8)
H40.6625−0.00540.37990.042*
C50.5282(3)0.0508(3)0.34509(6)0.0316(8)
H50.5699−0.00340.33190.038*
C60.5873(4)0.1273(3)0.42589(7)0.0365(8)
C70.5761(4)0.2283(3)0.44386(7)0.0475(10)
H70.52570.29730.43650.057*
C80.6388(4)0.2284(3)0.47265(7)0.0527(10)
H80.62900.29760.48420.063*
C90.7155(4)0.1286(3)0.48465(7)0.0449(10)
C100.7261(5)0.0276(3)0.46666(8)0.0582(11)
H100.7771−0.04120.47400.070*
C110.6629(4)0.0268(3)0.43817(7)0.0550(11)
H110.6710−0.04300.42680.066*
C120.3026(3)0.5268(2)0.29955(6)0.0208(6)
C130.2393(3)0.6347(3)0.28854(6)0.0200(6)
H130.17650.63450.27120.024*
C140.2700(3)0.7427(2)0.30347(6)0.0196(6)
C150.3528(3)0.7400(3)0.33064(6)0.0233(7)
H150.37260.81240.34070.028*
C160.4067(3)0.6321(3)0.34317(6)0.0218(7)
C170.3865(3)0.5267(3)0.32662(6)0.0233(7)
H170.42990.45460.33380.028*
C180.4817(3)0.6297(3)0.37360(6)0.0254(7)
C190.4377(4)0.7117(3)0.39493(7)0.0356(8)
H190.36480.77120.38980.043*
C200.5003(4)0.7066(3)0.42368(7)0.0450(9)
H200.46790.76220.43750.054*
C210.6099(4)0.6204(3)0.43217(7)0.0451(9)
C220.6555(4)0.5401(3)0.41094(7)0.0434(9)
H220.73010.48180.41610.052*
C230.5931(3)0.5441(3)0.38215(7)0.0358(8)
H230.62640.48850.36840.043*
C240.2795(3)0.4101(3)0.28281(6)0.0210(6)
C250.2274(3)0.8640(3)0.28984(6)0.0203(6)
C260.6765(5)0.6131(4)0.46368(8)0.0840(16)
H26A0.60620.56920.47550.126*
H26B0.69090.69360.47150.126*
H26C0.77480.57200.46400.126*

Source of material

A mixture of Mn(OAc)2 ⋅ 4H2O (0.024 g, 0.1 mmol), 4′-methyl-[1,1′-biphenyl]-3,5-dicarboxylic acid (0.1 mmol, 0.0256 g), 4,4′-bis(pyrid-4-yl)biphenyl (0.1 mmol, 0.0308 g) and distilled water (10 mL) was heated in a 25 mL stainless steel reactor with a Teflon liner at 423 K for 30 h, followed by slow cooling to room temperature. Colourless crystals of the compound formed.

Experimental details

Hydrogen atoms were placed in their geometrically idealized positions and constrained to ride on their parent atoms.

Discussion

The synthetic development of coordination polymers (CPs) continues to attract much attention because of their intriguing structural topologies and potential applications in gas storage, separation, sensing and heterogeneous catalysis [4], [5], [6], [7], [8], [9]. The organic carboxylate ligands have been proven to be good candidates for the construction of CPs [10], [11], [12]. For example, polycarboxylates present versatile coordination modes to construct coordination polymers [13], [14]. Mixed multicarboxylate and nitrogen donor linkers have been widely utilized to construct CPs.

The asymmetric unit of the title structure contains one Mn(II) metal center, one 4′-methyl-[1,1′-biphenyl]-3,5-dicarboxylato ligand, and one 4,4′-bis(pyrid-4-yl)biphenyl ligand to construct a 3D-coordination polymer. The manganese atom is six-coordinated by one water ligand, by four oxygen atoms and one nitrogen atom. The Mn-O bond lengths range from 2.1211(18) to 2.1556(19) Å. The bond angles of O-Mn-O are in the range of 81.64(8)° to 173.65(8)°. All moieties are connected by hydrogen bonds d(O(1)⋯O(2)) = 2.822(3) Å, d(O(1)⋯O(4)A) = 3.218(3) Å, d(O(1)⋯O(5)B) = 2.719(3) Å. Symmetry codes: A x, y − 1, z; B x − 1/2, − y + 1, z.

Funding source: Natural Science Foundation of Henan Province

Award Identifier / Grant number: 182102310909

Funding statement: This work was supported by the Institutions of higher learning key scientific research project of Henan Province (18B150015) and the Natural Science Foundation of Henan Province (182102310909)

References

1. Agilent Technologies: CrysAlisPRO Software system, version 1.171.38.41r, Agilent Technologies UK Ltd, Oxford, UK (2015).Search in Google Scholar

2. Sheldrick, G. M.: SHELXT-Integrated space-group and crystal-structure determination. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053273314026370Search in Google Scholar PubMed PubMed Central

3. Dolomanov, O. V.; Bourhis, L. J.; Gildea, R. J.; Howard, J. A. K.; Puschmann, H.: A complete structure solution, refinement and analysis program. J. Appl. Cryst. 42 (2009) 339–341.10.1107/S0021889808042726Search in Google Scholar

4. Zhao, Y.; Li, S. H.: Synthesis and crystal structure of a new three-dimensional complex constructed from thiophene-2,5-dicarboxylic acid. Synth. React. Inorg. Met. Org. Chem. 45 (2015) 921–925.10.1080/15533174.2013.843565Search in Google Scholar

5. Li, S. H.; Zhao, Y.: Synthesis and crystal structure of a new three-dimensional Co(II) coordination polymer based on 3,3′,4,5′-biphenyl tetracarboxylic acid and 4,4′-bipyridine. Inorg. Nano-Met. Chem. 47 (2017) 256–259.10.1080/15533174.2016.1186044Search in Google Scholar

6. Muhammad, N.; Ikram, M.; Rehman, S.; Viola, M. I.; Schulzke, C.: Guest-induced single-crystal-to-single-crystal transformations of a new 4-connected 3D cadmium(II) metal-organic framework. J. Therm. Anal. Calorim. 1 (2016) 1–11.Search in Google Scholar

7. Li, S. H.; Han, M. L.; Liu, G. Z.; Ma, L. F.; Wang, L. Y.: Guest-induced single-crystal-to-single-crystal transformations of a new 4-connected 3D cadmium(II) metal-organic framework. RSC Advances. 5 (2015) 17588–17591.10.1039/C5RA00621JSearch in Google Scholar

8. Ali, H. A.; Jabali, B.: Synthesis, characterization and biological activity of novel complexes of zinc(II) diclofenac with nitrogen based ligands. Polyhedron 107 (2016) 97–106.10.1016/j.poly.2016.01.010Search in Google Scholar

9. Li, S. H.; Wu, H. X.; Chai, N.: A cobalt(II) complex based on 5-methoxyisophthalic Aaid and 1,6-bis(1,2,4-triazol-1-yl)hexane: synthesis, crystal structure and magnetic properties. Synth. React. Inorg. Met. Org. Chem. 43 (2013) 1487–1491.10.1080/15533174.2012.757750Search in Google Scholar

10. Fountoulaki, S.; Perdih, F.; Turel, I.; Kessissoglou, D. P.; Psomas, G.: Non-steroidal anti-inflammatory drug diflunisal interacting with Cu(II). Structure and biological features. J. Inorg. Biochem. 105 (2011) 1645–1655.10.1016/j.jinorgbio.2011.09.004Search in Google Scholar PubMed

11. Li, S. H.; Zang, J.; Guo, J. B.: Synthesis and crystal structure of a new three-dimensional Ho(II) coordination polymer based on 5′-(4-Carboxyphenyl)-[1,1′:3′,1′′-terphenyl]-4,4′′-dicarboxylic acid. Inorg. Nano-Met. Chem. 12 (2017) 1746–1749.10.1080/24701556.2017.1357627Search in Google Scholar

12. Banerjee, A.; Singh, R.; Colacio, E.; Razak, K. K.: Binuclear copper(II) chelates with heptadentate ligands: synthesis, structure, magnetic properties, DFT studies, and catecholase and hydrolytic DNA cleavage activity. Eur. J. Inorg. Chem. 2 (2009) 277–284.10.1002/ejic.200800937Search in Google Scholar

13. Li, S. H.; Li, X. L.: A cadmium complex based on 5-methylisophthalic acid and 1,6-bis(imidazol-1-yl)hexane: synthesis, crystal structure, and photoluminescence properties. Synth. React. Inorg. Met. Org. Chem. 43 (2013) 710–713.10.1080/15533174.2012.753630Search in Google Scholar

14. Pachfule, P.; Panda, T.; Dey, C.; Banerjee, R.: Structural diversity in a series of metal-organic frameworks (MOFs) composed of divalent transition metals, 4,4′-bipyridine and a flexible carboxylic acid. CrystEngComm 12 (2010) 2381–2389.10.1039/c000723dSearch in Google Scholar

Received: 2018-07-17
Accepted: 2018-11-25
Published Online: 2019-01-29
Published in Print: 2019-03-26

©2019 Shi-Jun Chen et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 Public License.
