Crystal structure of tris(1-phenyl-1,2-propanedione-2-oximato-κ2N,O)cobalt(III), C27H24N3O6Co

  • Zhang Cuihong , Ge Yuan , Huo Xiaoping , Yang Liguo , Li Xin and Miao Zongcheng EMAIL logo
Published/Copyright: January 30, 2019
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 234 Issue 3

Abstract

C27H24N3O6Co, monoclinic, P21/c (no. 14), a = 11.309(3) Å, b = 19.477(5) Å, c = 11.615(3) Å, β = 109.071(9)°, V = 2418.0(11) Å3, Z = 4, Rgt(F) = 0.0296, wRref(F2) = 0.0845, T = 293(2) K [1–3].

CCDC no.: 1885223

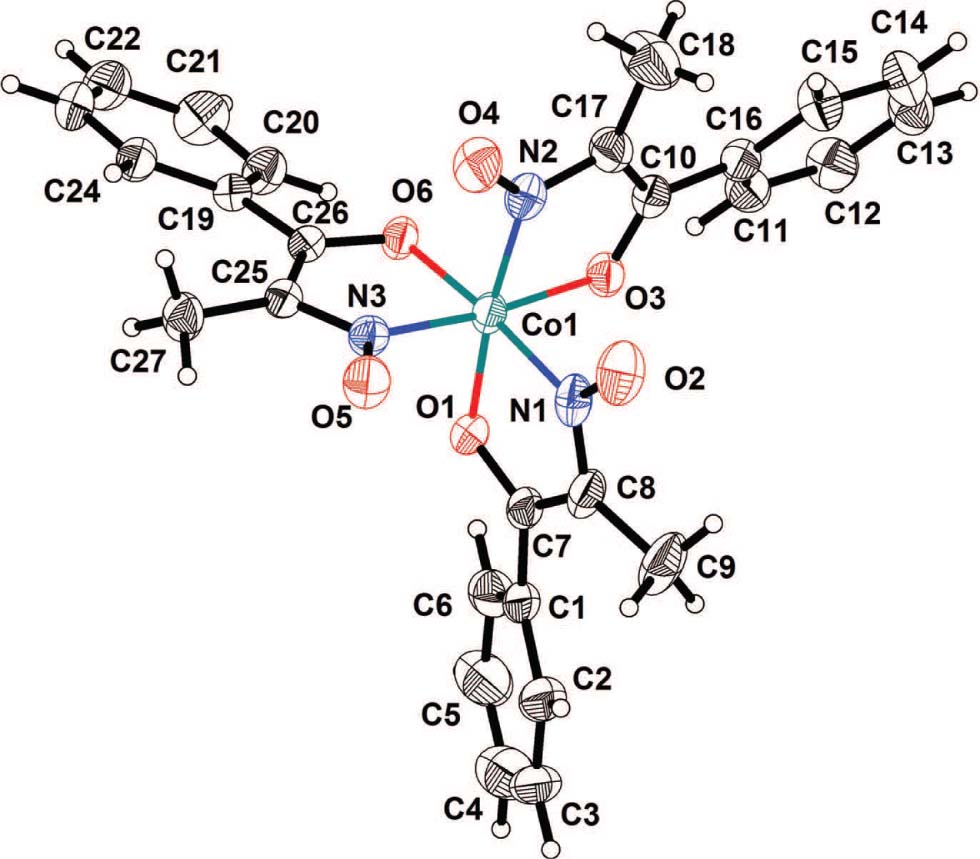

The asymmetric unit of the title crystal structure is shown in the figure. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Red block
Size:0.10 × 0.08 × 0.06 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.76 mm−1
Diffractometer, scan mode:Bruker APEX-II CCD, φ and ω
θmax, completeness:25.0°, >99%
N(hkl)measured, N(hkl)unique, Rint:38447, 4240, 0.021
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 3919
N(param)refined:337
Programs:Bruker [1], SHELX [2], [3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Co10.85316(2)0.11780(2)0.35469(2)0.03228(10)
O11.00135(12)0.13107(6)0.49349(11)0.0361(3)
O20.88545(15)0.20474(8)0.17625(13)0.0599(4)
O30.93222(11)0.04504(6)0.29438(10)0.0357(3)
O40.61910(13)0.13382(8)0.17691(14)0.0532(4)
O50.75114(14)0.24365(6)0.38475(13)0.0488(3)
O60.78811(11)0.05412(6)0.44362(11)0.0344(3)
N10.93226(15)0.18253(8)0.28302(14)0.0410(4)
N20.72124(14)0.10204(8)0.20801(14)0.0393(3)
N30.76138(13)0.18163(7)0.41373(13)0.0350(3)
C11.20322(17)0.17829(10)0.56864(19)0.0450(5)
C21.2794(2)0.23622(13)0.5796(3)0.0648(7)
H21.25600.27180.52340.078*
C31.3935(2)0.23941(17)0.6788(3)0.0840(10)
H31.44630.27700.68600.101*
C41.4269(2)0.18808(19)0.7635(3)0.0853(10)
H41.50150.19100.82810.102*
C51.3511(2)0.13291(15)0.7533(3)0.0721(7)
H51.37370.09850.81190.087*
C61.2405(2)0.12706(12)0.6567(2)0.0519(5)
H61.19050.08840.65060.062*
C71.08132(16)0.17002(9)0.47006(17)0.0374(4)
C81.04865(18)0.20016(9)0.35243(19)0.0428(4)
C91.1254(2)0.24358(12)0.2975(3)0.0658(7)
H9A1.09620.23780.21070.099*
H9B1.21160.22990.32970.099*
H9C1.11780.29090.31700.099*
C100.91793(16)−0.03330(9)0.13723(16)0.0367(4)
C111.01071(17)−0.07356(10)0.21723(17)0.0424(4)
H111.0332−0.06590.30070.051*
C121.0695(2)−0.12468(10)0.1740(2)0.0507(5)
H121.1314−0.15110.22840.061*
C131.0370(2)−0.13691(11)0.0503(2)0.0512(5)
H131.0770−0.17130.02140.061*
C140.9452(2)−0.09795(11)−0.02947(19)0.0532(5)
H140.9232−0.1061−0.11270.064*
C150.8849(2)−0.04661(11)0.01251(18)0.0482(5)
H150.8222−0.0209−0.04250.058*
C160.86540(16)0.02350(9)0.18961(15)0.0353(4)
C170.74568(17)0.05470(10)0.13459(17)0.0423(4)
C180.6506(2)0.04153(16)0.0124(2)0.0760(8)
H18A0.67360.0660−0.04890.114*
H18B0.57000.05690.01250.114*
H18C0.6472−0.0068−0.00490.114*
C190.67859(15)0.03677(8)0.58067(14)0.0318(3)
C200.73713(18)−0.02688(10)0.61056(17)0.0424(4)
H200.8055−0.03750.58610.051*
C210.6945(2)−0.07406(11)0.6761(2)0.0531(5)
H210.7345−0.11630.69580.064*
C220.5929(2)−0.05927(11)0.71275(18)0.0508(5)
H220.5641−0.09140.75660.061*
C230.53463(19)0.00304(11)0.68405(18)0.0470(5)
H230.46620.01310.70880.056*
C240.57629(17)0.05134(10)0.61857(16)0.0389(4)
H240.53600.09350.59990.047*
C250.72486(14)0.08301(8)0.50316(14)0.0308(3)
C260.70598(15)0.15528(9)0.49066(15)0.0331(4)
C270.63657(19)0.20187(10)0.54813(19)0.0449(4)
H27A0.66680.24800.54870.067*
H27B0.64930.18720.63020.067*
H27C0.54890.20040.50240.067*

Source of material

The educt 1-phenyl-1,2-propanedione-2-oxime was synthesized according to the literature [4], the other reagents were commercially available and used as purchased.

A mixture of bissalicylhydrazide (163.16 mg, 0.3 mmol), CoCl2(129.84 mg, 0.1 mmol) and methanol (10 mL) heated at 60 °C for 10 h, and then cooled to room temperature. Red block crystals of the title complex were obtained. The yield is ca. 26%. IR(KBr): 3216(s), 1518(s), 1514(s), 1412(s), 1401(s), 1312(s), 1211(s), 1113(s), 1101(s), 1010(s), 1000(s), 914(s), 817(s), 801(m), 731(m), 711(m), 600(m), 444(m) cm−1.

Experimental details

H atomes were added using the standard riding options of the SHELX system [3].

Comment

Most carbonyl compounds, including carbonyloximes, readily react with primary amines to yield Schiff bases and, in the presence of metal ions, and chelates complexes of imine-oxime type can be isolated. In the present case preservation of the carbonyl function of the ligand was assured by preparing first the Co(en)3 complex from Co(ClO4)2 and ethylenediamine in methanol and the replacing of one of the en ligands by 1-phenyl-1,2-propanedione 2-oximate. During the process the Co ion is oxidized to the trivalent state. A similar structure has been reported [5]. The complex containing (1-phenyl-1,2-propanedione-2- oxime) ligand is rare. Now we synthesized the new complex directly.

The compound crystallizes in the monoclinic space group P21/c with four formula units in the unit cell. As shown in the figure, one formula unit consists of three oxime ligands and one Co atom. The Co ion is in a slightly distorted octahedredral coordination environment, with one nitrogen atom and one oxygen atom from each ligand. The average bond length of Co—N is 1.887 Å, while the average bond length of Co—O is 1.920 Å.

Funding source: National Natural Science Foundation of China

Award Identifier / Grant number: 51602007

Award Identifier / Grant number: 51673157

Funding statement: This work was supported by the National Natural Science Foundation of China (Grant No. 51602007, Grant No. 51673157), the Natural Science Basic Research Plan in Shaanxi Province of China (Grant No. 2017JM5134, Grant No. 2018JM5047). Scientific Research Program Funded by Shaanxi Provincial Education Department (Grant No. 18JK1206), the Science Research Foundation of Xijing University (Grant No. XJ17B07), the National Students’ Platform for Innovation and Entrepreneurship Training Program (Grant No. 201812715003).

References

1. BRUKER. SMART and SAINT. Version 5.0, Bruker Analytical X-Ray Systems, Madison, WI (1997).Search in Google Scholar

2. Sheldrick, G. M.: SADABS, a software for empirical absorption correction. University of Göttingen, Göttingen, Germany (1997).Search in Google Scholar

3. SHELXL Reference Manual. Version 5.1, Bruker Analytical X-Ray Systems, Madison, WI (1997).Search in Google Scholar

4. Girija, C. R.; Begum, N. S.; Nagendrappa, G.: 1-(4-Chlorophenyl)propane-1,2-dione-2-oxime. Acta Crystallogr. E59 (2003) o1666–o1667.10.1107/S1600536803021664Search in Google Scholar

5. Saarinen, H.; Korvenranta, J.; Nasakkala, E.: The crystal structure of tris(1-phenyl-1,2-propanedione-2-oximato)cobalt(III)-benzene(1/1), [Co(C9H8NO2)3]C6H6. Acta. Chem. Scand. A. 32 (1978) 303–308.10.3891/acta.chem.scand.32a-0303Search in Google Scholar

Received: 2018-11-05
Accepted: 2018-12-14
Published Online: 2019-01-30
Published in Print: 2019-03-26
