Crystal structure of diaqua-dichlorido-bis(μ3-6,6′-(hydrazine-1,2-diylidenebis(methanylylidene))bis(2-methoxyphenolato)κ6O,N:N′,O′,O′:O′′)trizinc(II) - ethanol (1/2), C36H44Cl2N4O12Zn3

  • Yuye Tan , Junjie Huang , Hui Lu and Jianhua Sun EMAIL logo
Published/Copyright: January 24, 2019
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 234 Issue 3

Abstract

C36H44Cl2N4O12Zn3, orthorhombic, Pbca (no. 61), a = 8.3378(8) Å, b = 21.188(2) Å, c = 22.802(2) Å, Z = 4, V = 4028.3(7) Å3, Rgt(F) = 0.0513, wRref(F2) = 0.1193, T = 296(2) K.

CCDC no.: 1885249

Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Yellow prism
Size:0.19 × 0.15 × 0.12 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:1.97 mm−1
Diffractometer, scan mode:Bruker SMART, φ and ω-scans
θmax, completeness:26.1°, >99%
N(hkl)measured, N(hkl)unique, Rint:21203, 3979, 0.064
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 2941
N(param)refined:263
Programs:Bruker programs [1], SHELX [2]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Zn10.27058(6)0.05640(2)0.60046(2)0.03807(17)
Zn20.00000.00000.50000.0376(2)
Cl10.45353(16)−0.01952(6)0.59165(6)0.0550(3)
N10.2095(4)0.11003(17)0.52642(15)0.0377(9)
N20.1410(4)0.07756(16)0.47835(15)0.0367(9)
O10.4726(4)0.21293(15)0.70957(15)0.0539(9)
O20.3775(4)0.13172(14)0.63142(14)0.0464(8)
O3−0.0610(4)−0.00776(14)0.41380(12)0.0381(7)
O4−0.1516(4)−0.04626(15)0.31222(13)0.0470(8)
O5−0.2066(4)0.06240(15)0.51371(14)0.0504(9)
H5A−0.28870.04240.50170.061*
H5B−0.19390.09360.49070.061*
O60.7174(5)0.1108(2)0.6196(2)0.0768(12)
H60.63730.12530.60360.115*
C10.5366(7)0.2558(2)0.7509(2)0.0673(17)
H1A0.61240.28310.73190.101*
H1B0.58950.23280.78160.101*
H1C0.45150.28060.76740.101*
C20.3937(6)0.2375(2)0.6623(2)0.0404(11)
C30.3644(6)0.3003(2)0.6531(2)0.0487(12)
H30.40310.32980.67990.058*
C40.2779(7)0.3210(2)0.6046(2)0.0590(15)
H40.25700.36380.59930.071*
C50.2239(7)0.2777(2)0.5647(2)0.0570(14)
H50.16600.29150.53230.068*
C60.2542(6)0.2122(2)0.5717(2)0.0421(11)
C70.3410(6)0.1908(2)0.6211(2)0.0385(10)
C80.1961(6)0.1710(2)0.5266(2)0.0413(11)
H80.14440.18950.49490.050*
C90.1901(5)0.0929(2)0.42688(19)0.0369(10)
H90.26950.12360.42430.044*
C100.1308(5)0.0660(2)0.37258(18)0.0346(10)
C110.1973(6)0.0910(2)0.3207(2)0.0437(11)
H110.27810.12110.32330.052*
C120.1458(6)0.0720(2)0.2664(2)0.0462(12)
H120.18940.08990.23270.055*
C130.0280(6)0.0259(2)0.2620(2)0.0457(12)
H13−0.00800.01300.22530.055*
C14−0.0345(5)−0.0003(2)0.31131(18)0.0363(10)
C150.0112(5)0.0196(2)0.36839(18)0.0335(10)
C16−0.1745(7)−0.0829(2)0.2597(2)0.0548(14)
H16A−0.2161−0.05620.22920.082*
H16B−0.2491−0.11640.26730.082*
H16C−0.0737−0.10040.24740.082*
C170.8195(8)0.1607(3)0.6369(3)0.0743(18)
H17A0.92960.14600.63530.089*
H17B0.79590.17150.67730.089*
C180.8058(9)0.2182(4)0.6007(3)0.097(2)
H18A0.83320.20850.56090.145*
H18B0.87760.24990.61550.145*
H18C0.69770.23370.60240.145*

Source of materials

A solution of ZnCl2 (13.6 mg, 0.10 mmol) in 4 mL ethanol was slowly added to a solution of 1,2-bis(2-hydroxy-3-methoxybenzylidene)hydrazine (H2L) (15.0 mg, 0.05 mmol) and triethylamine (20 μL) in 4 mL dichloromethane with general stirring for 10 mins. The resulting mixture was then filtered and left undisturbed. Well shaped crystals of the title compound were obtained by slow evaporation within 1 week.

Experimental details

H atoms were included in the refinement at calculated positions [C—H aromatic = 0.93 Å] and treated as riding models with Uiso(H) = 1.2 Ueq(C) [2].

Comment

Zinc(II) compounds attracted attention in the field of molecular materials owing to their potential applications [3], [4]. Schiff bases are an important and popular kind of ligands due to their simple synthesis, versatility, and diverse range of applications [5], [6]. Therefore, a large number of Schiff bases complexes have been synthesized and characterized [7].

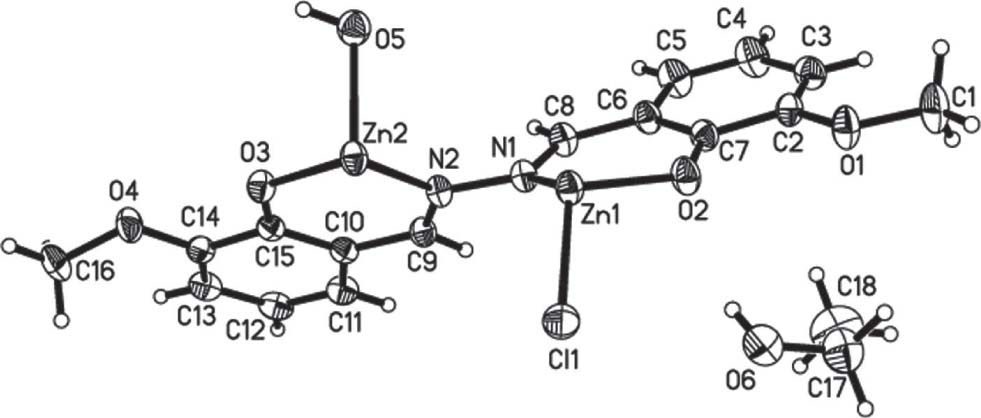

The molecular structure of the title structure contains a discrete neutral [Zn3(L)2(H2O)2Cl2] (H2L = 1,2-bis(2-hydroxy-3-methoxybenzylidene)hydrazine) and two enthanol molecules. As shown in the figure, the asymmetric unit of the title structure consists of one and a half Zn(II) ions, one dianionic ligand, one chloride anion, one coordinated water molecule and one enthanol. Zn1 exhibits a distorted square-pyramidal geometry, coordinated by three oxygens, one nitrogen atom, and one chloride anion. While Zn2 is located on an inversion center, and an octahedral sphere surrounded by two nitrogen atoms, two oxygen atoms from two ligands, and two water molecules. Bond lengths of Zn—O are in the range of 1.959(3) Å to 2.235(3) Å, and the Zn—N bond distances are 2.080(4) and 2.098(4) Å, which are normal [8]. Ethanol molecules stay in the lattices of the supramolecular structure.

Acknowledgements

This work was supported by the Postgraduate Research and Practice Innovation Program of Jiangsu Province (SJCX17–0777).

References

1. Bruker. APEX3, SAINT-Plus, XPREP. Bruker AXS Inc., Madison, WI, USA (2016).Search in Google Scholar

2. Sheldrick, G. M.: SHELXT – Integrated space-group and crystal-structure determination. Acta Crystallogr. A71 (2015) 3–8.10.1107/S2053273314026370Search in Google Scholar PubMed PubMed Central

3. He, H.; Zhang, D.-Y.; Guo, F.; Sun, F.: A versatile microporous zinc(II) metal–organic framework for selective gas adsorption, cooperative catalysis, and luminescent sensing. Inorg. Chem. 57 (2018) 7314–7320.10.1021/acs.inorgchem.8b00938Search in Google Scholar PubMed

4. Sohail, M.; Altaf, M.; Baig, N.; Jamil, R.; Sher, M.; Fazal, A.: A new water stable zinc metal organic framework as an electrode material for hydrazine sensing. New J. Chem. 42 (2018) 12486–12491.10.1039/C8NJ01507DSearch in Google Scholar

5. Rabie, U. M.; Assran, A. S. A.; Abou-El-Wafa, M. H. M.: Unsymmetrical Schiff bases functionalize as bibasic tetradentate (ONNO) and monobasic tridentate (NNO) ligands on complexation with some transition metal ions. J. Mol. Struc. 872 (2008) 113–122.10.1016/j.molstruc.2007.02.023Search in Google Scholar

6. El-Sonbati, A.-Z.; El-Bindary, A.-A.: Synthesis and physico-chemical studies on transition metal complexes of symmetric bis-Schiff base ligands. Transition Met. Chem. 17 (1992) 66–70.10.1007/BF03325419Search in Google Scholar

7. Hou, X.-K.; Wu, L.-F.; Xiao, H.-P.; Li, M.-X.; Zhu, S.-R.; Wang, Z.-X.: Synthesis, structures and magnetic properties of two tetranuclear copper complexes with doubly end-on azido and phenoxo bridges containing chiral Schiff base ligands. Z. Anorg. Allg. Chem. 639 (2013) 633–636.10.1002/zaac.201200442Search in Google Scholar

8. Wang, Z.-X.; Wu, L.-F.; Xiao, H.-P.; Luo, X.-H.; Li, M.-X.: Structural diversity and magnetic properties of seven coordination polymers based on the 2,2′-phosphinico-dibenzoate ligand. Cryst. Growth Des. 16 (2016) 5184–5193.10.1021/acs.cgd.6b00747Search in Google Scholar

Received: 2018-10-18
Accepted: 2018-12-14
Published Online: 2019-01-24
Published in Print: 2019-03-26

©2019 Yuye Tan et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 Public License.
