The crystal structure of 1,4-dinitro-2,3,5,6-tetraacetoxy-piperazine, C12H16N4O12

  • Li Yunlu , Xue Mei , Wang Jianlong EMAIL logo , Zhang Luyao and Ning Jie
Published/Copyright: January 15, 2019
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 234 Issue 3

Abstract

C12H16N4O12, orthorhombic, Pbam (no. 55), a = 16.0836(17) Å, b = 8.0165(7) Å, c = 14.7754(15) Å, V = 1905.1(3) Å3, Z = 4, Rgt(F) = 0.0499, wRref(F2) = 0.1606, T = 173 K.

CCDC no.: 1885247

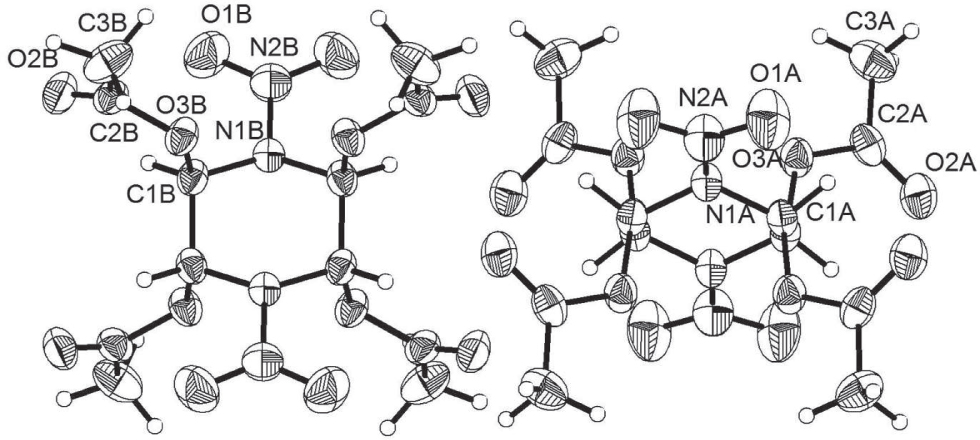

The crystal structure is shown in the figure. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colourless block
Size:0.25 × 0.17 × 0.14 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.13 mm−1
Diffractometer, scan mode:SMART, φ and ω
θmax, completeness:25.3°, >99%
N(hkl)measured, N(hkl)unique, Rint:6208, 1808, 0.064
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 1064
N(param)refined:136
Programs:Bruker programs [1], SHELX [2], [3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
C1A0.45236(18)0.5000(4)0.08493(18)0.0344(7)
H1A0.43100.43080.13620.041*
C2A0.3870(2)0.7102(4)0.1742(2)0.0410(8)
C3A0.3712(2)0.8914(4)0.1779(2)0.0564(10)
H3AA0.40870.94290.22220.085*
H3AB0.31340.91140.19590.085*
H3AC0.38120.94040.11810.085*
C1B0.49881(19)0.5944(3)0.41559(17)0.0334(7)
H1B0.46430.63540.36390.040*
C2B0.6037(2)0.7272(4)0.3263(2)0.0379(8)
C3B0.6931(2)0.7720(4)0.3263(3)0.0562(10)
H3BA0.70240.86450.36850.084*
H3BB0.70980.80590.26530.084*
H3BC0.72600.67530.34530.084*
N1A0.4226(2)0.4344(4)0.00000.0349(8)
N2A0.3420(3)0.3688(5)0.00000.0518(11)
O3A0.42633(13)0.6693(2)0.09543(12)0.0394(6)
N1B0.4649(2)0.6537(4)0.50000.0325(8)
N2B0.4336(3)0.8168(5)0.50000.0465(10)
O3B0.58290(12)0.6524(2)0.40608(12)0.0370(6)
O1A0.31051(17)0.3396(4)0.07333(17)0.0748(9)
O2A0.36960(14)0.6085(3)0.23149(15)0.0514(7)
O1B0.42011(18)0.8797(3)0.42660(16)0.0659(8)
O2B0.55467(15)0.7516(3)0.26650(14)0.0472(6)

Source of material

A glyoxal solution (6.00 mL; 40%) was added to the aqueous solution (15.00 mL) of ammonium sulfamate (12.50 g). The mixture was stirred at low temperatures about 1 day. After filtering and drying, 1.60 g white solid named ammonium hexasulfonate hexaazaisowurtzitane (HSIW) was obtained.

A mixture of HSIW, 98% nitric acid, acetic anhydride, acetic acid and ammonium nitrate was heated at 323 K for 4 h. The mixture was poured into deionized water and filtered at room temperature. The product was dried under vacuum drying oven and a white solid (1,4-dinitro-2,3,5,6-tetraacetoxy- piperazine) was obtained. The colorless transparent crystals were obtained by slow evaporation from a dichloromethane solution in a quiet environment at room temperature.

Experimental details

Hydrogen atoms were placed in their geometrically idealized positions and constrained to ride on their parent atoms, with Uiso(H) = 1.5 Ueq(C) for methyl H atoms and 1.2 Ueq(C) for all other H atoms. All the non-hydrogen atoms were refined anisotropically.

Comment

Piperazine is a typical heterocyclic compound, and its derivatives have important applications in the fields of medicines and materials [4], [5], [6], [7], [8], [9].

The molecular structure of the title compound (cf. the figure) has two nitro groups and four acetoxy groups, which are bonded to two nitrogen atoms and four carbon atoms on the piperazine ring, respectively. All bond lengths and angles are in normal ranges.

From the crystallographic data, it can be found that the molecule of the title structure are centrosymmetric and mirror-symmetric (located around a 2/m site for both crystallographically independent molecules (0.5, 0.5, 0; 0.5, 0.5, 0.5; cf. the figure)). The molecules are connected via non-classical hydrogen bonds and generally by van-der-Waals interactions.

Acknowledgements

We are grateful to the support of the Chinese Academy of Sciences Shanghai Institute of Materia Medica.

References

1. BRUKER. SAINT, APEX2 and SADABS. Bruker AXS Inc., Madison, WI, USA (2014).Search in Google Scholar

2. Sheldrick, G. M.: SHELXT – integrated space-group and crystal-structure determination. Acta Crystallogr. A71 (2015) 3–8.10.1107/S2053273314026370Search in Google Scholar PubMed PubMed Central

3. Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Search in Google Scholar PubMed PubMed Central

4. Solomon, V. R.; Hu, C.; Lee, H.: Design and synthesis of anti-breast cancer agents from 4-piperazinylquinoline: a hybrid pharmacophore approach. Bioorg. Med. Chem. 18 (2010) 1563–1572.10.1016/j.bmc.2010.01.001Search in Google Scholar PubMed

5. Gao, L. H.; Li, M.; Meng, T.; Peng, H. L.; Xie, X.; Zhang, Y. L.; Jin, Y.; Wang, X.; Zou, L. B.; Shen, J. K.: Asymmetric synthesis and biological evaluation of N-cyclohexyl-4-[1-(2,4-dichlorophenyl)-1-(p-tolyl)methyl]piperazine-1-carboxamide as hCB1 receptor antagonists. Eur. J. Med. Chem. 43 (2012) 5310–5316.10.1002/chin.201211153Search in Google Scholar

6. Nong, J.; Nong, K. L.; Zheng, G. J.: Research progress of piperazium ammonium. Technol. Develop. Chemi. Ind. 41 (2012) 24–27.Search in Google Scholar

7. Mao, Z. W.; Zheng, X.; Lin, Y. P.; Hu, C. Y.; Wang, X. L.; Wan, C. P.; Rao, G. X.: Design, synthesis and anticancer activity of novel hybrid compounds between benzofuran and N-aryl piperazine. Bioorg. Med. Chem. Lett. 26 (2016) 3421–3424.10.1016/j.bmcl.2016.06.055Search in Google Scholar PubMed

8. Liu, Y. Z.; Yu, Z. Y.; Yu, J. Y.: Piperazine chemistry part I. developments on synthesis of high energy density compound of piperazine series[J]. Chin. J. Energ. Mater. 16 (2008) 356–360.Search in Google Scholar

9. Huo, H.; Wang, B. Z.; Lian, P.; Lai, W. P.; Li, H.; Ge, Z. X.: Synthesis of 6-dinitroethylene-4,5,8-trinitro-5,6,7,8-tetrahydro-4H-imidazo[4,5-e]furazano[3,4-b]piperazine. Chin. J. Energ. Mater. 22 (2014) 274–275.Search in Google Scholar
