Polyimide/mica hybrid films with low coefficient of thermal expansion and low dielectric constant

2.1 Materials

Mica particles were obtained from Shanghai Botong Chemical Co., Ltd, and were dried at 100°C for 12 h prior to use. 4,4’-oxybisbenzenamine (99%, ODA), pyromellitic dianhydride (99%, PMDA) and dimethylacetamide (99%, DMAc) were purchased from Sigma-Aldrich Company. PMDA was dried at 150°C for 6 h, and ODA was dried at 80°C for 5 h prior to use. γ-Aminopropyltriethoxy silane (99%, APTS) was purchased from Shanghai Aladdin Biological Technology Co., Ltd.

2.2 Preparation of mica/DMAc suspension

The prescribed amount of mica particles and DMAc was added to the flask and the calculated coupling agent APTS was added to the solution. The mixture was stirred under ultrasonic for 3 h and then the ultrasonic was removed. Sequentially, the mixture was stirred for 12 h until the suspension became homogeneous. The recipes for preparation of pure PI and PI/mica hybrid films were shown in Table 1.

2.3 Preparation of PAA and PAA/mica solution

The calculated amount of ODA and DMAc were added into a 250 ml three-neck round-bottom flask equipped with a mechanical stirrer, and the mixture was stirred at 25°C for 1 h until ODA was dissolved completely. PMDA and the rest of DMAc were subsequently added through three times at 12°C every once in 1 h. Afterwards, the mixture was thoroughly stirred for 12 h at 8°C. Finally, the high viscosity PAA solution was obtained with a 15 wt% of solid content.

Based on PAA solution, PAA/mica solution was obtained by mixing with mica/ DMAc suspension. The mass fraction of mica was set to 0%, 1%, 3%, 5% and 10% respectively. The mixture was stirred for 24 h with a mechanical stirrer to obtain an even dispersion.

2.4 Preparation of PI and PI/mica hybrid films

The PAA and PAA/mica solution was coated on clean and dry glass substrate, and thermally treated at 130°C for 3 h under vacuum condition to release the solvent. The obtained semidried films were then dried and imidized at 180/1 h, 200/1 h, 230/1 h, 260/1 h, 290/1 h, 310/1 h, and 330°C/1 h, sequentially. Finally, a series of pure PI films and hybrid films were obtained with the thickness of 25-28 μm. The preparation procedure of PI/mica hybrid films is shown in Figure 1.

Figure 1

The flowchart of the preparation of PI/mica hybrid films.

4.1 FTIR of PI/mica hybrid films

The FTIR spectra of pure PI and PI/mica hybrid films are investigated in Figure 2. It can be seen for all samples that the characteristic absorption peaks of the imide groups were observed at 1782 cm^-1 and 1722 cm^-1 due to the asymmetrical and symmetrical carbonyl stretching vibrations (C=O). Meanwhile, the absorption peaks appeared around at 1376 cm^-1 belong to the C-N stretching vibration and the absorption peaks appeared at 725 cm^-1 belong to the bending vibration of C=O. Moreover, there were no obvious absorption peaks around at 1660 cm^-1 and 1560 cm^-1, indicating that the PAA precursors were converted into polyimides completely. Differing from pure PI, the characteristic absorption peaks of hybrid films were observed at 1028 cm^-1 and 750 cm^-1 due to the stretching vibrations of Si-O-Si groups and Al-O-Al groups. Besides, the absorption peak located at 3620 cm^-1 for the stretching vibration of Si-OH groups. With the increase of mica in hybrid films, the intensity peak of Si-OH decreased and the intensity peak of Si-O-Si increased. Because the Si-OH groups of mica reacted with the Si-OH groups of APTS. What’s more, the shifting of absorption peak at 1376 cm^-1 (C-N stretching) indicated that mica particles had an interaction with polymer chains and the existence of this interaction may bring about good dispersion of mica in polyimide matrix.

Figure 2

FTIR spectra of pure PI and PI/mica hybrid films.

4.2 Morphology of PI/mica hybrid films

Figure 3 illustrates the SEM images of mica particles and hybrid films with various mica contents. As shown in Figure 3a, the mica particles exhibited cuboid shape with a length of about 1 μm and a thickness of about 200 nm, which could agglomerate with other mica particles and became bigger blocky structure. Figure 3b shows the morphology of pure PI film. The surface of PI matrix, which was not added with mica, was glossy. As shown in Figures 3c and 3d, mica particles were well wrapped by PI matrix with 1 wt% and 3 wt% mica content. This phenomenon benefited from the coupling agent APTS, which makes the mica amino and grafted into polymer chains. Although a slight agglomeration appeared with 5 wt% and 10 wt% mica content, the consistency between mica and polymer matrix was still at a good level. Mica particles were diffused homogeneously into PI matrix and there were no distinct phase separation for PI/mica hybrids, which is shown in Figures 3e and 3f. However, the existence of agglomeration reduced the mechanical and thermal stability properties of the PI/ mica films when the mica content was 5 wt% and 10 wt%.

Figure 3

SEM images of mica particles (a) and PI/mica hybrid films with different mica content: pure PI (b), 1 wt% (c), 3 wt% (d), 5 wt% (e), and 10 wt% (f).

4.3 Thermal stability of PI/mica hybrid films

The TGA curves of pure PI films and PI/mica hybrid films are shown in Figure 4. The temperature at a mass loss of 5% was defined as T₅, and temperature at a mass loss of 10% was defined as T₁₀. The residual rate at 800°C was defined as R₈₀₀ in this study. The samples of T₅, T₁₀ and R₈₀₀ are listed in Table 2. As can be seen, the thermal stability of hybrid films was inferior to pure PI. The T₅ of pure PI was 572.2°C. With the mica contents increasing, the value decreased. When the mica content increased to 1 wt%, 3 wt% and 5 wt%, the T₅ of hybrid film was 547.2°C, 510.2°C and 504.7°C respectively. When the mass fraction of mica reached 10 wt%, this value declined to 486.1°C. The T₁₀ of all samples were above 538°C, and the R₈₀₀ values of all samples were over 50%. The addition of mica destroyed the regularity of macromolecular chains and weakened the stability of polyimide. In general, the PI/mica hybrid films had good thermal stability, and they were expected to be used as high-temperature materials.

Figure 4

TGA curves of pure PI and PI/mica hybrid films.

4.4 Mechanical properties of PI/mica hybrid films

The tensile strength and the elongation at the break of the PI/mica hybrid films are summarized in Figure 5a and Table 2. For pure PI film, the tensile strength and elongation at break were only 97.9 MPa and 19.8%. When fraction of mica increased from 1 wt% to 3 wt%, the tensile strength was enhanced by 6% and 12% and the elongation at break was improved by 22% and 28% respectively. However, with continuous increasing fraction of mica (5 wt% and 10 wt%), the tensile strength dramatically decreased by 5% and 7%, and the elongation at break was brought down by 4% and 18% respectively. The improvement of mechanical property with low mass fraction of mica (1 wt% and 3 wt%) may be caused by the strong adhesive between mica and PI matrix, which was brought by the coupling agent APTS. When the mica content raised, the mica particles did not disperse homogeneously in the PI matrix. Moreover, agglomeration appeared in PI/mica hybrids and the compatibility between mica and PI matrix became worse. Therefore, the tensile strength and the elongation at break reduced. Even so, the mechanical properties of pure PI and PI/mica film were still excellent and they could meet the industrial requirements.

Figure 5

(a) The tensile strength and elongation at break of the hybrid films, (b) effects of APTS on the tensile strength of the hybrid films.

By contrast, PI/mica films without surface modification of APTS were also prepared in this study and the tensile strength of those two kinds of hybrid films were studied. The effects of APTS on the tensile strength of the two kinds of hybrid films are shown in Figure 5b. It is clear that the tensile strength of PI/mica films with surface modification by APTS were better, compared with the PI/mica film without any surface modification. When the mica content was 10 wt%, the tensile strength of hybrid film without modification was only 40.0 MPa. But the value of the hybrid film reached as high as 90.6 MPa with surface modification of APTS, which increased by 126.5% than the former one. It means that the coupling agent APTS strengthened the interaction between mica and the PI matrix so that enhanced mechanical properties.

4.5 The TMA and CTEs of pure PI and PI/mica hybrid films

Figure 6a presents the TMA curves of the prepared films and the effect of mica content on the calculated CTE values is described in Figure 6b. In addition, the CTE values of samples are shown in Table 2. The CTE of the prepared films declined obviously as the mica content increased. The CTE was 37.87 ppm/k for pure PI film and dropped to 33.15 ppm/ k for the PI/mica hybrid film (1 wt%). When the mica content gradually increased to 3 wt% and 5 wt%, the CTE value of PI/mica hybrid film linearly decreased. When the fraction of mica was 10 wt%, the CTE value of PI/mica film reached 25.63 ppm/k, which was close to the CTE value of aluminum foil (23 ppm/k) or copper foil (18 ppm/k). The match of CTE of polyimide and copper can prevent the delamination in layered PI-Cu composites for microelectronic applications. For inorganic/polymer hybrid materials, the CTE values depended on this value of inorganic fillers, polymers and interface layers. As we all know, the CTE value of mica is extremely low. Meanwhile, the coupling agent APTS provides strong interaction between mica and PI matrix, and the mica particles are bonded into the polymer chains. At the same time, the expansion of polymer chains are held back by mica particles through heating, thus the CTE values decline. The mechanism was also suitable for silica and PI hybrid films. In that paper, the CTE values also decreased evidently with the mass fraction of silica increasing (25).

Figure 6

(a) Thermal expansion of polyimide/mica hybrid films with various mica contents, (b) the effect of mica content on the coefficient of thermal expansion (CTE).

4.6 Dielectric properties of PI/mica hybrid films

Figure 7a displays the trend of the dielectric constants of pure PI and PI/ mica hybrid films at room temperature with the frequencies varying from 1 KHz to 1 MHz. It indicated that with the frequency increasing, the dielectric constants of samples tend to decrease. The dielectric constant was related to polarization. At higher frequencies, some dipolar polarizable units could not keep up with the speed of the applied alternating current electric field, so the dynamic polarization was low. As a result, the dielectric constant decreased. To summarize, the dielectric constant changed slightly at a higher frequency. The dielectric constants and the dielectric losses of samples at 1MHz are summarized in Table 2 and Figure 7b. The dielectric constant of PI/mica hybrid films were lower than that of pure PI film. Moreover, with the mica content increasing, the dielectric constant dramatically declined. When the mica content reached 10 wt%, the dielectric constant of PI/mica film was only 2.42, which was 29.4% lower than that of pure PI film (3.43) at 1MHz. When the mass fraction of mica was 1 wt%, 3 wt% and 5 wt%, the dielectric constant of hybrid films dropped sharply, valued at 3.02, 2.87 and 2.79 respectively at 1 MHz. Although the dielectric constant of mica material used in this study was higher than that value of polyimide material, the dielectric constant of PI/mica hybrid films decreased as the mica content increased. The abnormal phenomenon may be attributed to a complex polarization which was caused by the specific microscopic structure of the PI/mica hybrid films prepared in this study. It is well known that the dielectric constant of materials were associated with polarization. The microscopic structure of the PI/mica hybrid films may have an effect on the polarization behavior. For the mica particles used in this study had a multi-layer structure, and the multilayer mica would disturb the polarization of the hybrid. So the dielectric constant of PI/mica hybrid films decreased with increasing fraction of mica particle. Furthermore, the dielectric losses of PI/mica hybrid films were in the range of 0.023-0.054 at 1 MHz, which were also extremely low. The addition of mica particles interdicted the dipole polarization between molecular chains. As a result, the dielectric loss decreased.

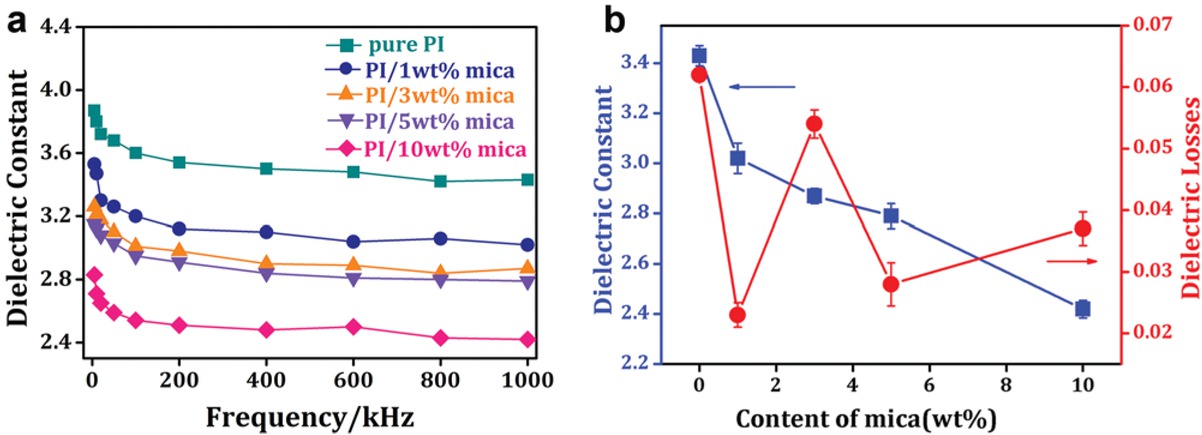

Figure 7

(a) Dielectric constants of the pure PI film and PI/mica hybrid films at room temperature (from 1KHz to 1MHz), (b) dielectric properties of pure PI film and PI/mica hybrid films (at 1 MHz).
