Continuous fabrication of near-infrared light responsive bilayer hydrogel fibers based on microfluidic spinning

2.1 Materials

N-Isopropylacrylamide (NIPAM, TCI Co., Ltd.) was purified by recrystallization from toluene/cyclohexane (6/4, v/v) to remove inhibitor before use. Potassium persulfate (KPS, Shanghai Chemical Co., Ltd.) was purified by recrystallization in deionized water. N,N,N’,N’-tetramethylethylenediamine (TEMED) and sodium alginate (SA) were purchased from Aladdin Reagent Co., Ltd. Calcium chloride (CaCl₂) was obtained from Shanghai Chemical Co., Ltd. Graphene oxide (GO) was obtained from Nanjing XFNANO Materials Technology Co., Ltd. Poly(dimethylsiloxane) (PDMS) prepolymer and curing agent were obtained from Dow Corning.

2.2 Microfluidic device

In this paper, the microfluidic spinning device was designed and assembled based on the report of Shunsuke et al. (8). As is shown in Figure 1, the microfluidic spinning device consists of Y-shaped channel, conical tube, collection channel and winding device. The Y-shaped channel ensures that two fluids can form a stable parallel laminar flow after their meeting. The conical tube and the outer fluidic channel make it easier to control the diameter of hydrogel fiber. The function of winding device is to collect the continuous hydrogel fiber. The sizes of each part are shown in Figure 1.

Figure 1

Schematic diagram of microfluidic spinning device. scale bar of SEM images is 500 μm.

2.3 Preparation and characterization of PNIPAM

NIPAM (5 g) monomer and deionized water (50 mL) were mixed and stirred in 100 mL flask till complete dissolution. The flask was placed into ice-water bath and the NIPAM solution was purged with nitrogen for 30 min to remove oxygen. Then KPS solution (0.2 g/mL, 0.5 mL) and TEMED (50 μL) were added to initiate thepolymerization reaction. After 2 h, the reaction solution was taken out and heated to 80°C. Then the precipitate was collected and dried at 50°C.

Dry polymers were characterized by FTIR spectroscopy (Nicolet 6700) and its molecular mass was analyzed by GPC (PL-GPC 50 Agilent, LS) in dimethylacetamide at 20°C.

2.4 Preparation of bilayer hydrogel fiber

Three kinds of solution were used in the preparation of bilayer hydrogel fibers. A fluid was an aqueous solution composed of linear PNIPAM, SA and GO, in which the concentrations of PNIPAM and SA were 15 mg mL^-1 and 10 mg mL^-1, respectively. GO was ultrasonically dispersed in deionized water, and then NaOH was added to adjust the pH value of the solution to 7.0. The concentrations of GO in A fluid were designed as n (n=0, 1, 2 and 4 mg mL^-1). B fluid is SA aqueous solution with concentration of 20 mg mL^-1. The outer fluid is CaCl₂ aqueous solution with concentration of 1 m. A fluid, B fluid and CaCl₂ solution were introduced into microfluidic spinning device by syringe pumps (PHD ULTRA, Harvard Apparatus) as shown in Figure 1. The hydrogel fiber out of the channel was collected by the winding device. The hydrogel fiber has bilayer structure, one is calcium alginate hydrogel layer, and the other is PNIPAM/calcium alginate/GO semi-IPN hydrogel layer. Therefore, the bilayer hydrogel fibers are named as C/CPG_n hydrogel fibers, in which n represents the concentrations of GO in A fluid.

2.5 Morphology observation

The swollen hydrogel fibers were quickly frozen in liquid nitrogen and then freeze-dried at -48°C for 24 h. Then the hydrogel fibers was broken in liquid nitrogen. The microstructure of the cross section was observed with scanning electron microscope (SEM, SU8010, Hitachi). The optical microscope photograph of the surface and cross section of hydrogel fibers was observed with optical microscope (XSP-17C, Shanghai Gauangmi Instrument Co., Ltd.).

2.6 Mechanical property

The mechanical property of hydrogel fibers was evaluated by tensile stress measurement using an Instron 5900 testing machine at room temperature. The diameter of hydrogel fibers is 500 μm. The distance between the two clamps is 20 mm and the tensile speed is 20 mm min^-1.

2.7 Equilibrium swelling ratio

The hydrogel fibers with the same diameter and length were immersed into deionized water to approach the swelling equilibrium at room temperature. After wiping away the excess water on the surface with filter paper, the mass of the swollen hydrogel was measured at a time interval. The swelling ratio (SR) of the hydrogel was calculated as the follows:

where W_s and W_d represent the weights of hydrogel fibers in the swollen state and dry state, respectively.

2.8 Temperature/NIR light responsive behavior

The hydrogel fibers were immersed into deionized water to reach the swelling equilibrium at room temperature and cut into 1 cm in length for the actuation test. The temperature responsive behavior was observed in 50°C of deionized water. The NIR light responsive behavior was observed in the atmosphere. The NIR light laser (808 nm) was used as the light source located at a distance of 20 cm from the fibers. The power density delivered to the sample was 3 W cm^-2. The temperature/NIR light responsive behaviors of the hydrogel fibers were recorded by a camera.

2.9 The characterization of single layer hydrogel fiber

For further study of the effect of GO content on the property of PNIPAM/calcium alginate/GO hydrogel, the single layer hydrogel fibers (named as CPG_n) were prepared and their chemical composition are the same with the layer A of the C/CPG_n hydrogel fibers, respectively. Its volume-phase transition temperature (VPTT) of the hydrogel fibers was tested using a differential scanning calorimeter (DSC, 204F1, Nicolet) from 20°C to 45°C at a constant heating rate of 1°C min^-1 under a nitrogen atmosphere with a flow rate of 50 mL min^-1. The temperature of CPG_n single layer hydrogel fibers under the irradiation of NIR light (808 nm, 3 W cm^-2) were measured using a infrared thermal imager.

3.1 Preparation and characterization of PNIPAM

Linear PNIPAM polymer was synthesized by free radical polymerization initiated by KPS in water (23, 24, 25). In the polymerization process, the reaction solution became very viscous after 1 h. In order to confirm the phase transition characteristic of the synthetic product, the reaction solution was heated to 50°C (>LCST) and cooled to 0°C (<LCST) in succession. It was found that the solution turned to turbid at 50°C and became clear and transparent at 0°C. In addition, the FTIR spectrum (Figure 2a) exhibits characteristic peaks at 1645 and 1540 cm⁻¹ corresponding to amide I and amide II, respectively. The characteristic peaks at 2877, 2931 and 2972 cm^-1 corresponding to stretching vibration of C-H confirm that the synthetic polymer is linear PNIPAM (26). GPC result shows that the weight-average molar mass of PNIPAM is 3.0×10⁵ g mol⁻¹ and its polydispersity index (PDI) is 2.0, which is consistent with the report on PNIPAM synthesized by one-step radical polymerization (1,27).

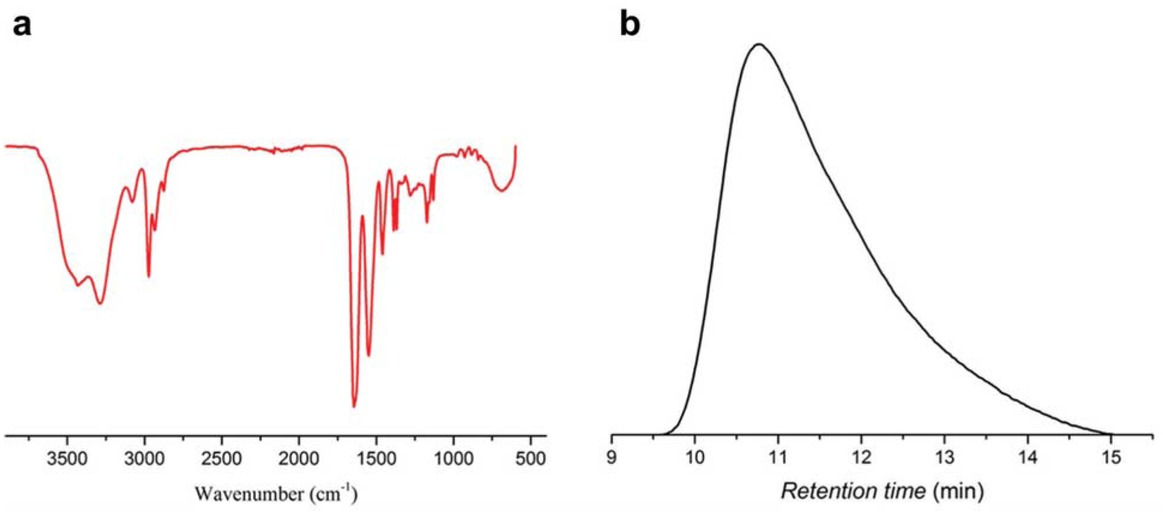

Figure 2

FTIR spectrum (a) and GPC trace (b) of linear PNIPAM.

3.2 Preparation and characterization of hydrogel fiber

The bilayer hydrogel fibers were prepared by using a microfluidic spinning device with Y-shaped channel. As is shown in Figure 1, the spinning solutions (A fluid and B fluid) and the CaCl₂ solution were introduced into the inner and outer fluidic channels at a certain flow by syringe pumps, respectively. A fluid and B fluid met in the Y-shaped channel and formed a laminar flow in the conical tube because of their low Reynolds number. When they flowed into the collection channel and formed a stable coaxial flow with CaCl₂ solution, Ca²⁺ ions diffused into both inner A and B fluids quickly. Because the guluronate units in the different free SA chains can form coordinate structure called as the “egg-box” junction, the A and B fluids were solidified by an ionic crosslinking stably and rapidly in the stable coaxial flow of inner fluids and CaCl₂ solution (28). Based on this feature, the spinning fluids can form straight fiber immediately because of the fast ionic crosslinking of alginate and Ca²⁺.

Because of the different composition for A and B fluid, two parallel layers were formed in the hydrogel fiber. One is calcium alginate hydrogel layer, and the other is PNIPAM/calcium alginate/GO semi-IPN hydrogel layer. Only the PNIPAM/calcium alginate/GO semi-IPN hydrogel layer has temperature and NIR light responsive property. The anisotropic swelling/shrinking in respective to the external stimulus makes the bilayer hydrogel fibers achieve more complex motions such as bending, twisting and folding.

Optical microscope photograph of the bilayer hydrogel fiber is shown in Figure 3a. It can be found that two different layers are aligned along the axial direction of the hydrogel fiber. Layer A is PNIPAM/calcium alginate/GO semi-IPN hydrogel layer, and layer B is calcium alginate hydrogel layer. The layer A is black and non-transparent because of the existence of GO. Corresponding to the microscope photograph, SEM images of the cross section for layers A and B of hydrogel fiber (Figures 3b-i) show thedifference in the morphology and pore size between layer A and layer B. As shown in Figures 3f-i, the morphology and size of the pores in layer B hydrogel are uniform because all composition of the spinning solution for layer B are the same, which leads to the identical hydrogel network formed during the microfluidic spinning.

Figure 3

(a) Optical microscope photograph of the surface and (b-i) SEM images of cross section of hydrogel fibers. Scale bar of microscope photograph is 100 μm, scale bar of SEM images is 2 μm. B-E and F-I are the layer A and layer B for C/CPG₀, C/CPG₁, C/CPG₂ and C/CPG₄ hydrogel fiber, respectively.

The SEM images of the cross section for layer A hydrogel with different GO contents are shown in Figures 3b-e. Compared with layer B, the pore density is lower and the pore size is nonuniform. As mention above, SA chains were crosslinked by Ca²⁺ ions to form hydrogel network with linear PNIPAM interpenetrated in it. The concentration of SA in layer A is smaller than that in layer B, resulting to the lower crosslinking density, and linear PNIPAM has influence on the pore uniformity. In addition, with increasing the GO content, pore size becomes smaller, implying that a denser network structure has been formed in the layer A of hydrogel. The dense network can be attributed to the hydrogen bonding interaction between the N-H bond of PNIPAM and the O-H bond of GO nanosheet (29).

3.3 Mechanical property

The research of Shen et al. showed the GO sheets in the Polyacrylamide/GO hydrogel can strengthen the tensile properties of hydrogel because it can form the physical crosslinking structure in the polymer matrix (30). Figure 4 is the stress-strain curve for the bilayer hydrogel fiber with

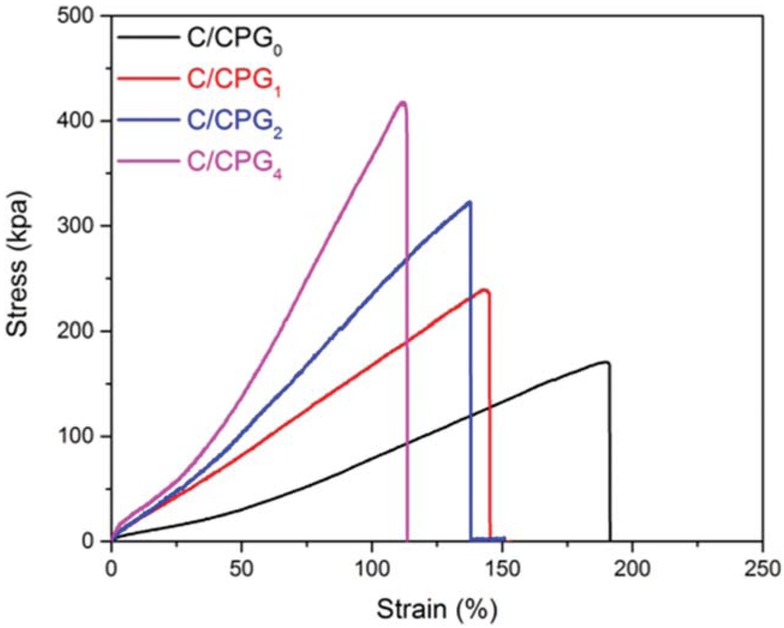

Figure 4

The tensile stress-strain curve of the bilayer hydrogel fibers.

425 μm in diameter. It can be seen that with the increase of GO contents, the strength and modulus of the hydrogel fibers improve significantly, while the elongation at break decreases. The C/CPG₄ hydrogel fiber has good mechanical strength and its breaking strength reaches 400 kPa, which is due to the increase of the crosslink density of the hydrogel by embedding GO into the hydrogel matrix.

3.4 Swelling behavior

Figure 5 is the swelling curve of the bilayer hydrogel fibers in deionized water at 20°C. The swelling ratios of the hydrogel fibers increase rapidly at the early stage, and then reach their equilibrium states. In the progress of hydrogel swelling, the GO sheets in the hydrogel have complicated influence on the equilibrium swelling ratios. On the one hand, the GO sheets increase the crosslink density of polymer matrix and impede the swelling of hydrogel fiber. On the other hand, they improve the hydrophilicity of hydrogel fiber because the GO sheets contain some hydrophilic groups (31,32). It can be found from the comparison of C/CPG₁, C/CPG₂ and C/CPG₄ hydrogel fibers that the equilibrium swelling ratios reduce with the increase of GO content. The phenomenon is attributed to the fact that the polymer network structure of hydrogel fiber is more compact with the increase of the GO content. However, all of them are larger than that of C/CPG₀ sample, because GO sheets in the hydrogel matrix contain some hydrophilic groups, resulting that more water can be held in the polymer network.

Figure 5

The swelling curve of the hydrogel fiber in deionized water at 20°C.

3.5 Temperature responsive bending behavior

Figure 6a is the schematic of the temperature or NIR light responsive bending of the bilayer hydrogel fiber. The bilayer hydrogel fiber with length in 1.0 cm was fixed at one end and put in deionized water at 50°C to observe temperature responsive bending behavior. As shown in Figure 6b, the C/CPG₀ fiber bent toward layer A and the bending angle increased gradually with prolonging the response time. Because thermo-sensitive polymer PNIPAM is only distributed in layer A of the hydrogel fiber, layer A will shrinkage at the temperature above VPTT, while layer B does not response to temperature. As a result, the hydrogel fiber will bend toward layer A (Figure 6b).

Figure 6

(a) Schematic of the temperature/NIR light responsive bending of the bilayer hydrogel fiber. (b) The photographs of temperature responsive bending of the C/CPG₀ fiber in deionized water at 50°C. (c) The photographs of NIR light responsive bending of the C/CPG2 fiber after irradiated by NIR light.

The VPTT of hydrogel fibers was measured by DSC (Figure 7). The result shows that the incorporation of GO has limited influence on the VPTT of the hydrogel fibers because of no chemical bond formed between PNIPAM network and GO nanosheet.

Figure 7

DSC curves of the hydrogel fibers.

Figure 8 shows the bending angle of hydrogel fibers within 60 s in deionized water at 50°C. With increasing the GO content, both the bending angle and response rate of hydrogel fibers tend to decrease. The phenomenon is related to the mechanical properties and hydrophilicity of hydrogel fibers. As shown in Figure 4, the increase of GO content enhances the strength and modulus of the hydrogel fiber, making it more difficult to deform (33,34). In addition, the hydrophilic groups on GO sheets and the compact polymer network structure lead to a decrease in the water lose rate of the hydrogel fiber.

Figure 8

The bending angle of the hydrogel fibers in deionized water at 50°C.

3.6 NIR light responsive bending behavior

Figure 6c is the photographs of NIR light responsive bending of the C/CPG₂ fiber. The bilayer hydrogel fiber

with length in 1.0 cm was fixed at one end and hung in the air. After applying NIR light, the bending angle of the bilayer hydrogel fiber was recorded. It can be seen that the hydrogel fiber also bent toward layer A, implying the shrinkage ability of layer A is higher than that of layer B. As well known, GO has a strong ability to absorb near infrared light and transform it into thermal energy. We measured the temperature of the hydrogels fiber after irradiated by NIR light. As shown in Figure 9, the irradiation of NIR light caused the increase in the temperature for bilayer hydrogel fibers with GO in layer A. For example, when the NIR light irradiation time was 5 s, the temperature of C/CPG₄ fiber reached 38°C which was higher than its VPTT.

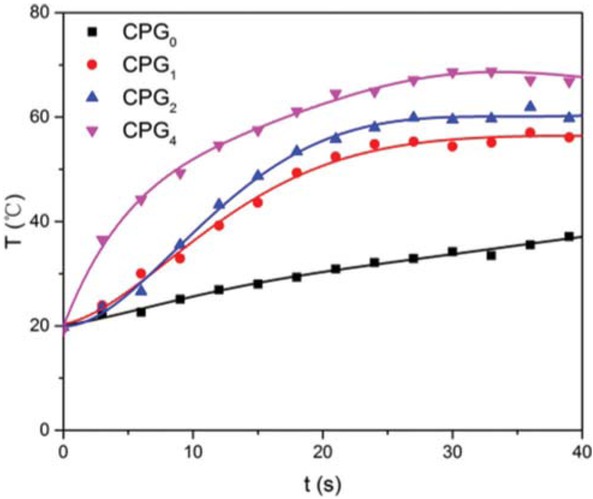

Figure 9

Temperature of the hydrogels fiber after irradiated by NIR light.

Such a phenomenon is caused by the efficient absorption and transformation of the NIR light energy to thermal energy by GO, which causes the temperature of layer A above its VPTT faster than the layer B as shown in Figure 9. Therefore, layer A shrank quickly and caused the bending of the bilayer hydrogel fiber. It can be concluded that GO in the hydrogel fibers can transfer energy and serve as a nanoheater to increase the temperature of the gel matrix uniformly and rapidly.

Figure 10 shows the bending angle of hydrogel fibers within 40 s after irradiated by NIR light. The bilayer hydrogel fibers show fast bending rate, the bending angle of C/CPG₄ fiber reaches 120° within 30 s. Moreover, the bending angle and response rate increase with increasing the GO content.

Figure 10

The bending angle of the hydrogel fibers after irradiated by NIR light.

3.7 Influence of the spinning parameters on NIR light responsive bending behaviors

In the progress of microfluidic spinning, the major factors for controlling the fiber diameter are the flow rates of the spinning solutions and the take-up velocity of winding device (35). As shown in Figure 11, under a fixed flow rate of outer fluid, the diameter of the hydrogel fiber increases almost linearly with increasing the flow rate of the inner fluids (A fluid and B fluid with the same flow rate). Similarly, the decrease in the flow rate can of outer fluid also increase the diameter of the hydrogel fiber, because the outer flow causes a shearing force on the inner flow during gel formation. In addition, Figure 11 show that under a fixed flow rate of inner and outer fluids, the increase in take-up velocity of winding device can also decrease the diameter of the hydrogel fiber. In summary, different diameters of hydrogel fibers can be obtained conveniently by changing the spinning parameters.

Figure 11

Influence of the flow rates of the A, B and outer fluids (Q_A, Q_B and Qoutter) and the take-up velocity of winding device (v) on the hydrogel fiber diameter. The A fluid and B fluid have the same flow rates.

We also examined the effect of the diameter of the hydrogel fiber on the NIR light responsible and bending behavior. After being irradiated by NIR light, the hydrogel fibers with smaller diameters bend faster than those with larger diameters (Figure 12). For example, the bending angle of the hydrogel fiber with diameter of 320 μm reaches 120° at 20 s. The result is consistent with a literature report in which the shrinking/swelling rate of a stimuli-responsive hydrogel depends on its size because the H₂O was expelled faster from the gel network (36).

Figure 12

Effect of the diameter of C/CPG₄ fiber on the NIR light responsive bending behavior.
