The crystal structure of 1,2-bis(2,4-dinitro-1H-imidazol-1-yl)ethane ─ acetone (1/1), C11H12N8O9

  • Yong Wang ORCID logo , Bingheng Wu , Jun Yuan ORCID logo EMAIL logo , Duanlin Cao , Jianlong Wang and Lizhen Chen
Published/Copyright: January 28, 2022
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 237 Issue 2

Abstract

C11H12N8O9, monoclinic, P21/c (no. 14), a = 9.2565(11) Å, b = 16.629(2) Å, c = 11.2944(13) Å, β = 108.945(4)°, V = 1644.3(4) Å3, Z = 4, R gt (F) = 0.0528, wR ref (F 2) = 0.1427, T = 170.0 K.

CCDC no.: 2142303

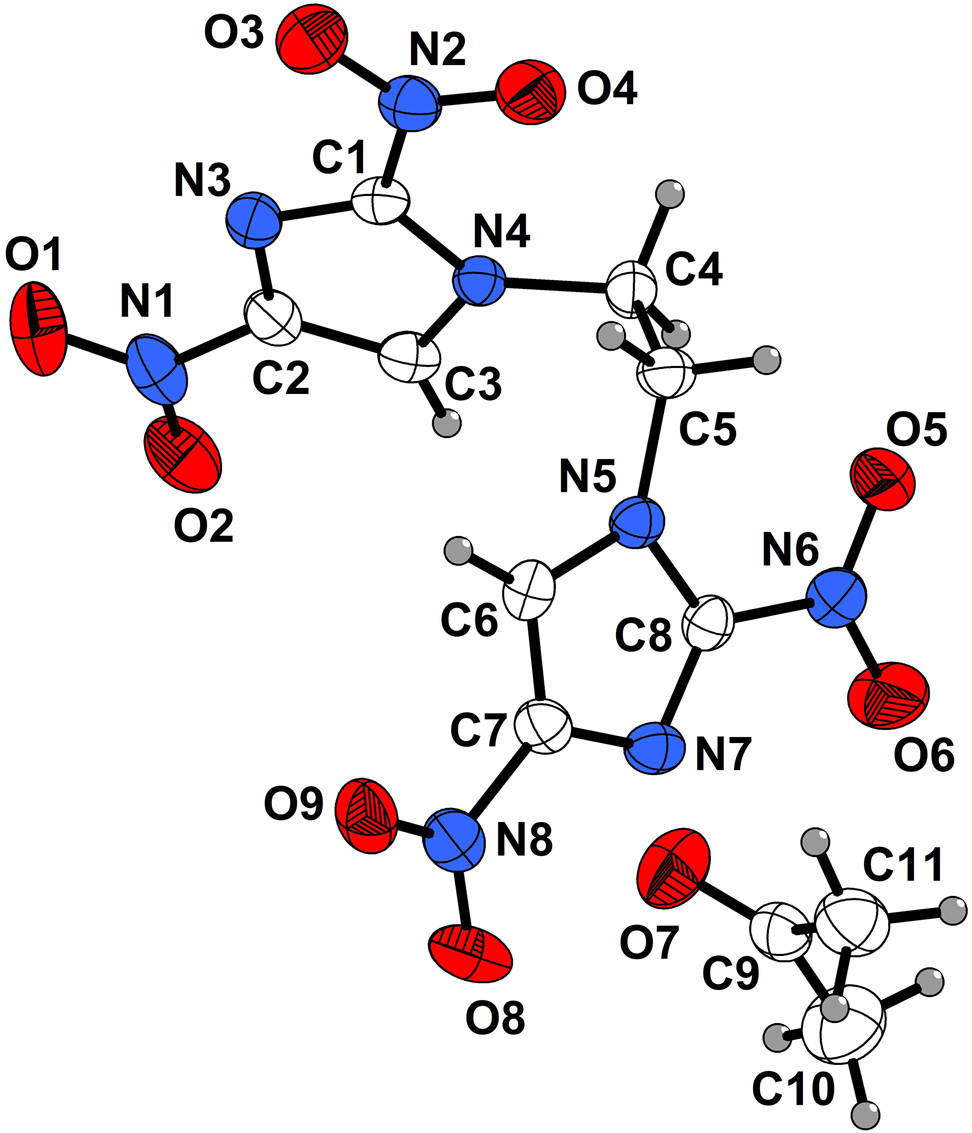

The asymmetric unit of the title crystal structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Colourless block
Size: 0.11 × 0.04 × 0.03 mm
Wavelength: Mo Kα radiation (0.71073 Å)
μ: 0.14 mm−1
Diffractometer, scan mode: Bruker D8 VENTURE, φ and ω
θ max, completeness: 26.4°, 99%
N(hkl)measured, N(hkl)unique, R int: 12,479, 3330, 0.066
Criterion for I obs, N(hkl)gt: I obs > 2 σ(I obs), 2134
N(param)refined: 255
Programs: Bruker [1], Olex2 [2], SHELX [3, 4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z U iso*/U eq
C1 0.6983 (3) 0.51372 (15) 0.1016 (2) 0.0268 (6)
C2 0.6512 (3) 0.39977 (15) 0.1544 (3) 0.0314 (6)
C3 0.6840 (3) 0.44500 (15) 0.2605 (3) 0.0308 (6)
H3 0.685495 0.428009 0.341154 0.037*
C4 0.7554 (3) 0.58932 (15) 0.3110 (2) 0.0296 (6)
H4A 0.842547 0.618021 0.297623 0.036*
H4B 0.788247 0.570005 0.398605 0.036*
C5 0.6225 (3) 0.64739 (15) 0.2904 (3) 0.0301 (6)
H5A 0.660298 0.697807 0.336694 0.036*
H5B 0.580586 0.660766 0.200238 0.036*
C6 0.3621 (3) 0.58913 (15) 0.2531 (2) 0.0297 (6)
H6 0.328995 0.587998 0.164169 0.036*
C7 0.2819 (3) 0.56608 (15) 0.3291 (2) 0.0299 (6)
C8 0.4914 (3) 0.60475 (15) 0.4487 (2) 0.0271 (6)
C9 0.0429 (3) 0.75246 (18) 0.3969 (3) 0.0373 (7)
C10 0.0600 (4) 0.7258 (2) 0.5256 (3) 0.0636 (10)
H10A 0.069499 0.667106 0.530546 0.095*
H10B −0.029871 0.742354 0.547345 0.095*
H10C 0.151706 0.750290 0.584312 0.095*
C11 −0.0051 (4) 0.83722 (18) 0.3633 (3) 0.0497 (8)
H11A 0.012380 0.851308 0.284810 0.074*
H11B 0.054610 0.873112 0.430117 0.074*
H11C −0.113905 0.842997 0.352914 0.074*
N1 0.6090 (3) 0.31669 (14) 0.1414 (3) 0.0405 (6)
N2 0.7204 (3) 0.57971 (14) 0.0268 (2) 0.0337 (5)
N3 0.6591 (2) 0.44216 (13) 0.0546 (2) 0.0305 (5)
N4 0.7142 (2) 0.51976 (12) 0.22563 (19) 0.0258 (5)
N5 0.5000 (2) 0.61423 (12) 0.33179 (19) 0.0270 (5)
N6 0.6114 (3) 0.62834 (14) 0.5612 (2) 0.0340 (5)
N7 0.3620 (2) 0.57491 (12) 0.4522 (2) 0.0304 (5)
N8 0.1288 (3) 0.53470 (13) 0.2905 (2) 0.0375 (6)
O1 0.5749 (3) 0.28543 (12) 0.0376 (2) 0.0582 (7)
O2 0.6091 (3) 0.28152 (12) 0.2373 (2) 0.0530 (6)
O3 0.7026 (3) 0.56552 (13) −0.08231 (18) 0.0535 (6)
O4 0.7541 (2) 0.64538 (12) 0.07616 (19) 0.0455 (5)
O5 0.7266 (2) 0.65834 (13) 0.55052 (19) 0.0477 (6)
O6 0.5908 (3) 0.61556 (16) 0.65989 (19) 0.0592 (7)
O7 0.0634 (3) 0.70678 (14) 0.3203 (2) 0.0568 (6)
O8 0.0801 (2) 0.50680 (12) 0.3710 (2) 0.0497 (6)
O9 0.0565 (2) 0.53832 (12) 0.1785 (2) 0.0467 (6)

Source of material

All the reagents were purchased with analysis grade. In representative experiments, 5 ml HNO3 and 15 ml H2SO4 were dissolved in the solvent, then 14 g (50 mmol) bis (2-nitroimidazole-1-yl)ethidene were added at 293 K. The target compound was obtained by reaction at 348 K for 9 h. The raw product was dissolved in acetone and crystals of the title compound were obtained by slow evaporation at 293 K.

Experimental details

A suitable crystal was selected and mounted on a ‘Bruker APEX-II CCD’ diffractometer. Using Olex2 [2], the structure was solved with the XT [3] structure solution program and refined with the ShelXL [4] refinement package. All H atoms were positioned geometrically and treated as riding, with C–H bond 0.95 Å, and U iso(H) = 1.2U eq(C).

Comment

Ethan-1,2-diyl bridged nitrogen-containing ligands are semi-rigid which means that they behave between rigidity and flexibility. Chemists have drawed great attention to the synthesis of bridged diimidazoles, such as methane-bridged ones [5], [6], [7], [8].

The asymmetric unit of the title structure contains one target molecule and one acetone molecule (see the Figure). The nitroimidazole rings are almost flat, and the dihedral angle of the two nitroimidazole rings is 46.18°. In general, all bond lengths and angles are in the expected ranges in both molecules [9].

Corresponding author: Jun Yuan, Shanxi College of Technology, Shuozhou 036000, Shanxi Province, P. R. China, E-mail:

Acknowledgements

We thank the Center of Testing and Analysis, Shanghai Institute, for support.

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: None declared.

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. BRUKER. SAINT, APEX2 and SADABS; Bruker AXS Inc.: Madison, Wisconsin, USA, 2009.Search in Google Scholar

2. Dolomanov, O. V., Bourhis, L. J., Gildea, R. J., Howard, J. A. K., Puschmann, H. OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 2009, 42, 339–341; https://doi.org/10.1107/s0021889808042726.Search in Google Scholar

3. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Search in Google Scholar

4. Sheldrick, G. M. A short history of SHELX. Acta Crystallogr. 2008, A64, 112–122; https://doi.org/10.1107/s0108767307043930.Search in Google Scholar PubMed

5. Jin, S., Chen, W., Qiu, H. Syntheses and structural characterization of a one-dimensional chain, two-dimensional noninterpenetrated grid, and three-dimensional polycatenane coordination polymers assembled from flexible bidentate imidazolyl ligands. Cryst. Growth Des. 2007, 7, 2071–2079; https://doi.org/10.1021/cg060666q.Search in Google Scholar

6. Min, P., Tao, W., Jin, C. M. Assembly of two coordination polymers [Cu(BIM)(suc)]n and [Cd(BIM)(ox)(H2O)]n constructed from bis(imidazol-1-yl)methane. J. Coord. Chem. 2011, 64, 600–609.10.1080/00958972.2011.552109Search in Google Scholar

7. Wang, Y., Yuan, J., Cao, D. L., Wang, J. L., Chen, L. Z. The crystal structure of bis(4-nitroimidazole-1-1yl)methane, C7H6N6O4. Z. Kristallogr. N. Cryst. Struct. 2020, 235, 217–218.10.1515/ncrs-2019-0582Search in Google Scholar

8. Wang, Y., Yuan, J., Cao, D. L., Wang, J. L., Chen, L. Z. The crystal structure of bis(imidazole-1-yl) methane monohydrate, C7H10N4O. Z. Kristallogr. N. Cryst. Struct. 2020, 235, 215–216.10.1515/ncrs-2019-0581Search in Google Scholar

9. Kubicki, M. Crystal packing modes of two 1-CH2R-2-methyl-4-nitroimidazoles: packing with Z′=2. J. Mol. Struct. 2005, 743, 209–215; https://doi.org/10.1016/j.molstruc.2005.03.012.Search in Google Scholar
