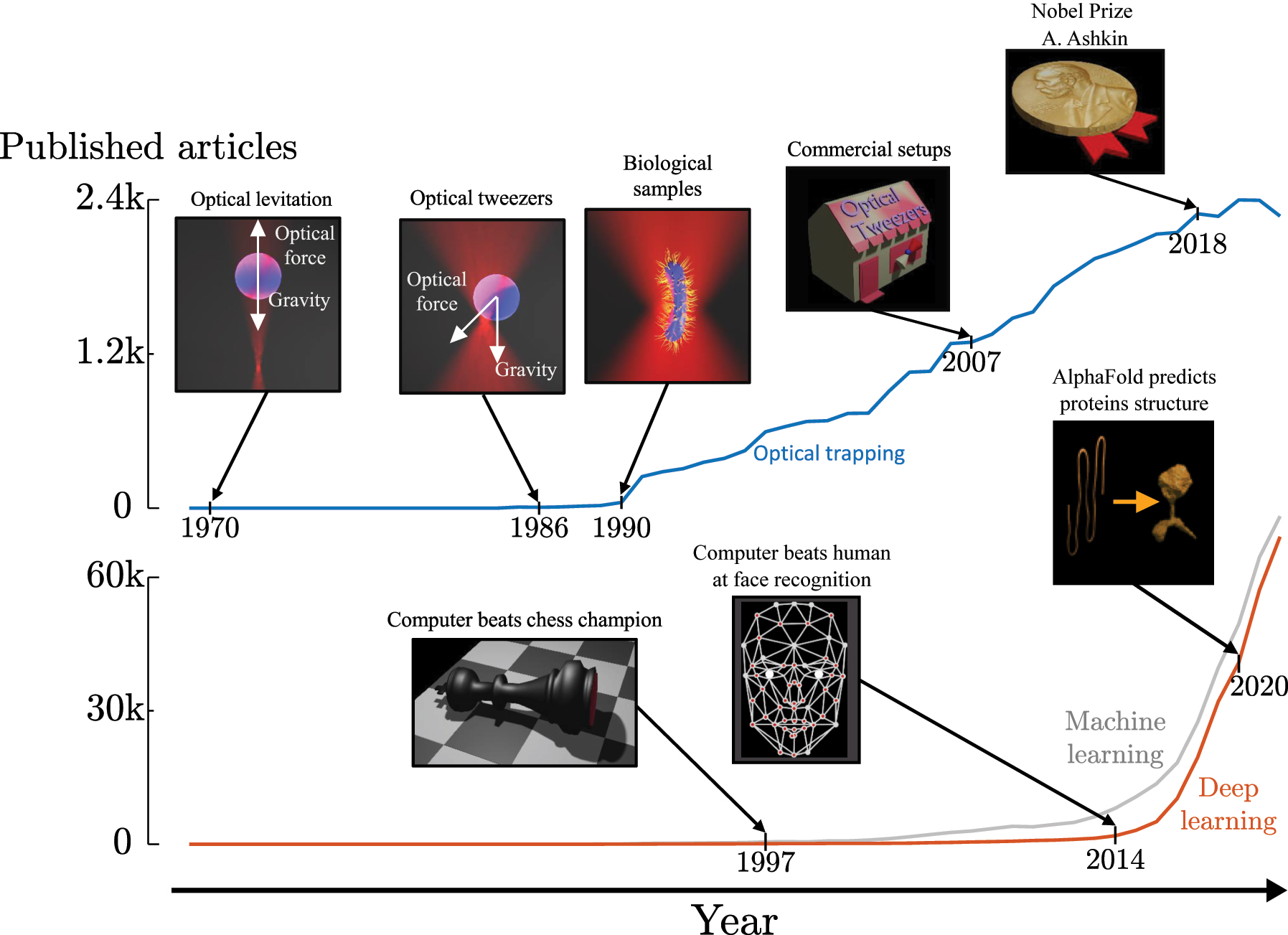

Optical tweezers exploit light–matter interactions to trap particles ranging from single atoms to micrometer-sized eukaryotic cells. For this reason, optical tweezers are a ubiquitous tool in physics, biology, and nanotechnology. Recently, the use of deep learning has started to enhance optical tweezers by improving their design, calibration, and real-time control as well as the tracking and analysis of the trapped objects, often outperforming classical methods thanks to the higher computational speed and versatility of deep learning. In this perspective, we show how cutting-edge deep learning approaches can remarkably improve optical tweezers, and explore the exciting, new future possibilities enabled by this dynamic synergy. Furthermore, we offer guidelines on integrating deep learning with optical trapping and optical manipulation in a reliable and trustworthy way.

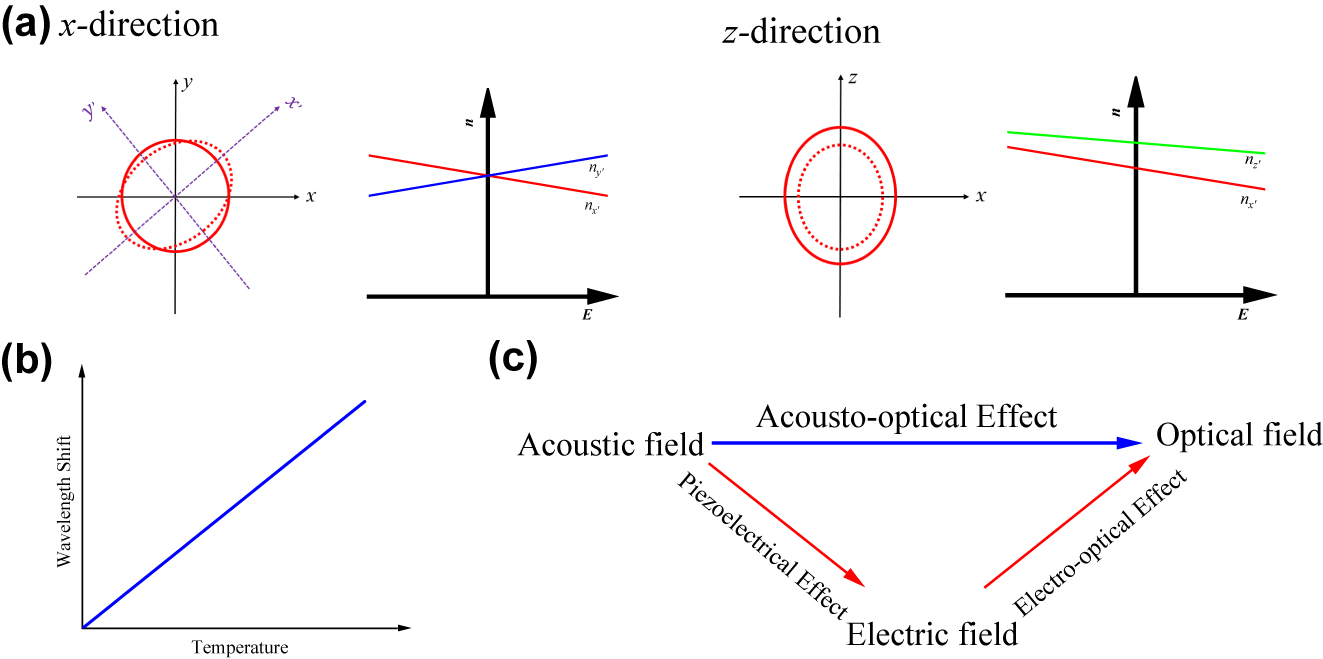

Lithium niobate on insulator (LNOI) combines a variety of optoelectronic properties and can meet practical performance requirements that are uncommon in optoelectronic materials. This review introduces the fundamentals and the photonic device concepts that arise from the LNOI materials platform. Firstly, the nonlinear optical response of LNOI is presented, including birefringent phase matching (BPM), modal phase matching (MPM), and quasi-phase matching (QPM). The tunable properties are also introduced, including electro-optical (EO), thermo-optical (TO), and acousto-optical (AO) effects. The structures of nonlinear optical devices, such as ridge waveguides (including periodically polarized inversion waveguides), Mach–Zehnder interferometer (MZI) modulators and micro-resonators (such as disks and rings) are demonstrated. Finally, the future of LNOI devices is discussed. In the already mature and developed optoelectronic material systems, it is rare to find one particular material system supporting so many basic optical components, photonic devices and optoelectronic devices as LNOI does in the field of integrated photonic chips.

Wide-angle metalenses in the longwave infrared have shown great advantages over the traditional refractive doublets or triplets, due to light weight, CMOS compatibility, and low cost. However, previous endeavors have been plagued by challenges including a narrow waveband, large F-number, distortion, and spherical aberration. To address these problems, this study introduces two dispersive metasurfaces, placed near the front focal plane and upon the rear plane of a plano-convex lens, to correct optical aberrations. Utilizing this methodology, we propose and experimentally demonstrate an aberration-corrected hybrid metalens for thermal imaging in the 8–12 μm waveband, featuring an FOV of 24°, F-number of 1.2, and diameter of 12.2 mm. The developed hybrid metalens rigorously evaluated, exhibits Modulation Transfer Function (MTF) values exceeding 0.2 at 20 Lp/mm across the full FOV, and features an average transmission of 48.7 %, a relative focusing efficiencies of up to 42.1 %, polarization insensitivity and broadband imaging capacity. These results emphasize the potential applications of our system in diverse fields, such as camera lenses, autonomous driving, healthcare, and environmental monitoring.

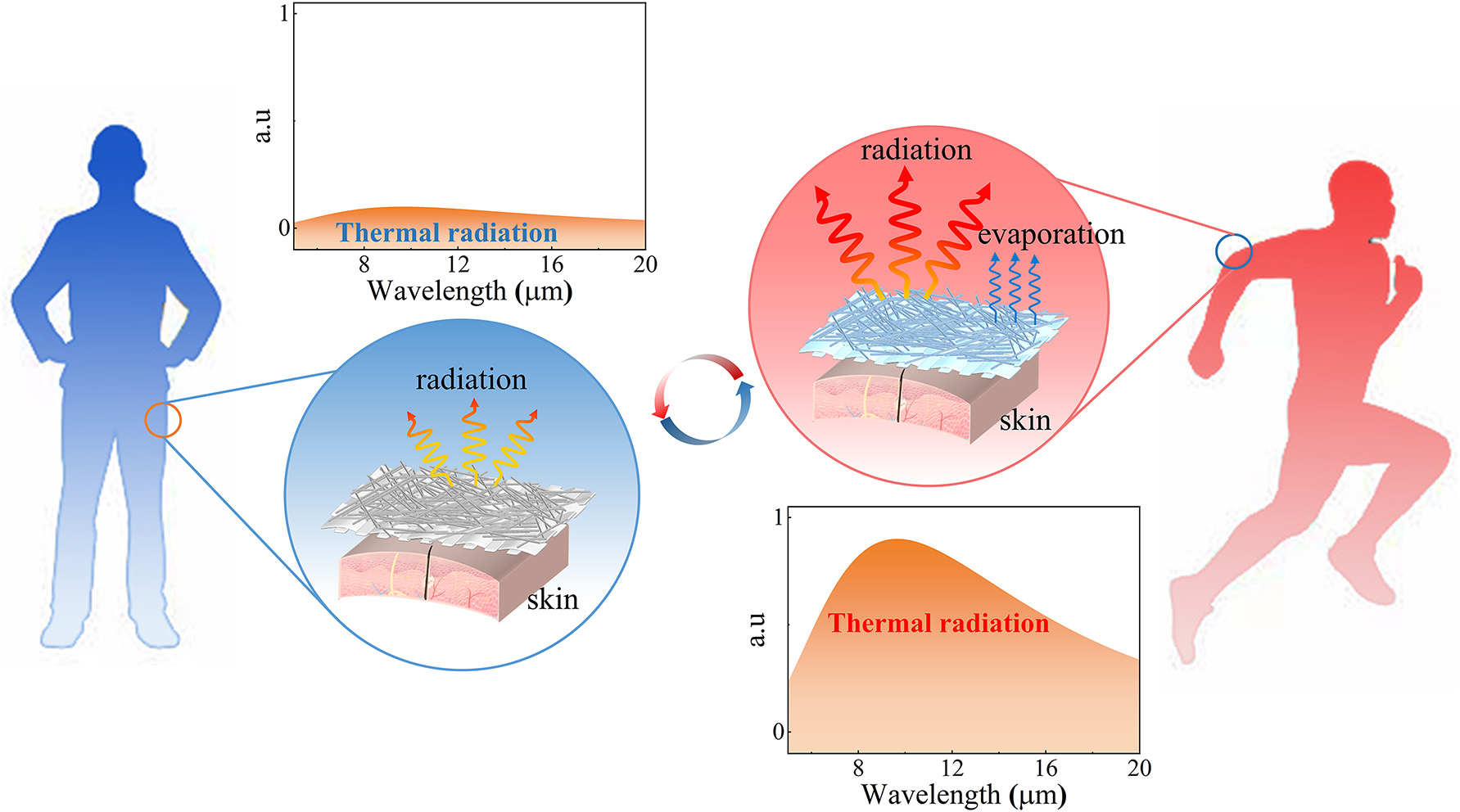

The heat generation of the human body dramatically varies between resting and active status, so dynamic heat dissipation is required to ensure optimal thermal comfort. Herein, we propose a spectrally self-adaptive smart fabric (SSSF) by covering polyester fabric with silver nanowires, which autonomously adjusts its emissivity in response to the body’s movement status from dry to wet states. During periods of inactivity, the SSSF maintains radiative heat insulation with a low emissivity state of 0.39. Conversely, during vigorous physical activity, its emissivity is improved to 0.83 when the sweat penetrates the SSSF, facilitating greater heat dissipation. Comparative experiments demonstrate the superior thermal management capabilities of the SSSF, with a 19.5 % reduction in heat dissipation power relative to traditional fabrics when in the low emissivity mode, and an impressive 67.6 % enhancement in heat dissipation power as it changes from low to high emissivity mode. This work provides an adaptive approach to emissivity modulation, offering an effective solution for dynamic heat dissipation of humans across various states of activity, thereby enhancing personal thermal comfort.

In this study, the frequency down-conversion of terahertz waves is analytically and experimentally demonstrated at the temporal boundaries within a GaAs waveguide. The temporal boundary is established by photoexciting the top surface of the waveguide, thereby instantaneously increasing its electrical conductivity. This photoexcited waveguide supports a transverse electromagnetic (TEM) mode with a frequency lower than those of the transverse magnetic (TM) modes present in the original waveguide. At the temporal boundary, the incident TM mode couples with the TEM mode, resulting in frequency down-conversion. Subtracting the propagation loss from the frequency-converted components indicates that the frequency conversion occurs with an efficiency consistent with the analytical predictions. The propagation loss is primarily due to ohmic loss, caused by the finite electrical conductivity of the photoexcited region. Given that the frequency of transverse electric modes is up-converted at the temporal boundary, our findings suggest that the direction of frequency conversion (upward or downward) can be controlled by manipulating the incident polarization. The polarization-dependent frequency conversion in waveguides holds significant potential for applications in devices designed for the interconversion of terahertz signals across various frequency channels. This capability is instrumental in the development of frequency-division-multiplexed terahertz wave communication systems, thereby enabling high data transfer rates.

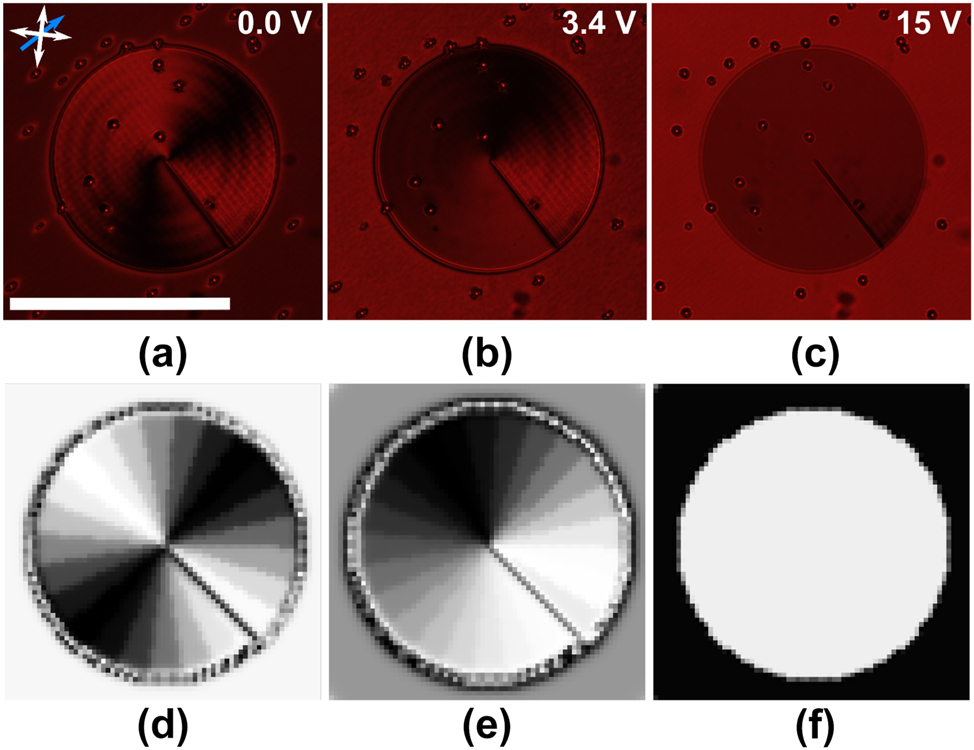

In this work, we demonstrate the use of two-photon polymerization direct laser writing in the production of continuously tuneable optical vortex beam (OV) generators in a liquid crystal (LC) layer sandwiched between glass substrates. Results are presented that show how an OV generator can be inscribed into a 20 μm-thick LC layer and how the order of the OV beam can be tuned with the application of a voltage. Importantly, only a single pair of electrodes is needed to tune the order of the vortex as the required phase profile is generated through the 3D structuring of the polymer network using the laser writing process. Following the design and fabrication of the LC-OV generator, a Mach–Zehnder interferometer is subsequently employed, in conjunction with polarizing optical microscopy, to characterize the devices to confirm the generation of OVs of different orders and to determine the corresponding chirality. The paper concludes by considering whether these LC-OV generators can function at a range of different operation wavelengths. Such devices would be of potential importance in applications ranging from optical communications to quantum physics.

Two-dimensional materials give access to the ultimate physical limits of photonics with appealing properties for ultracompact optical components such as waveguides and modulators. Specifically, in monolayer semiconductors, a strong excitonic resonance leads to a sharp oscillation in permittivity from positive to even negative values. This extreme optical response enables surface exciton–polaritons to guide visible light bound to an atomically thin layer. However, such ultrathin waveguides support a transverse electric (TE) mode with low confinement and a transverse magnetic (TM) mode with short propagation. Here, we propose that realistic semiconductor–insulator–semiconductor superlattices comprising monolayer WS 2 and hexagonal boron nitride (hBN) can improve the properties of both TE and TM modes. Compared to a single monolayer, a heterostructure with a 1-nm hBN spacer separating two monolayers enhances the confinement of the TE mode from 1.2 to around 0.5 μm, while the out-of-plane extension of the TM mode increases from 25 to 50 nm. We propose two simple additivity rules for mode confinement valid in the ultrathin film approximation for heterostructures with increasing spacer thickness. Stacking additional WS 2 monolayers into superlattices further enhances the waveguiding properties. Our results underscore the potential of monolayer-based superlattices as a platform for visible-range nanophotonics with promising optical, electrical, and magnetic tunability.

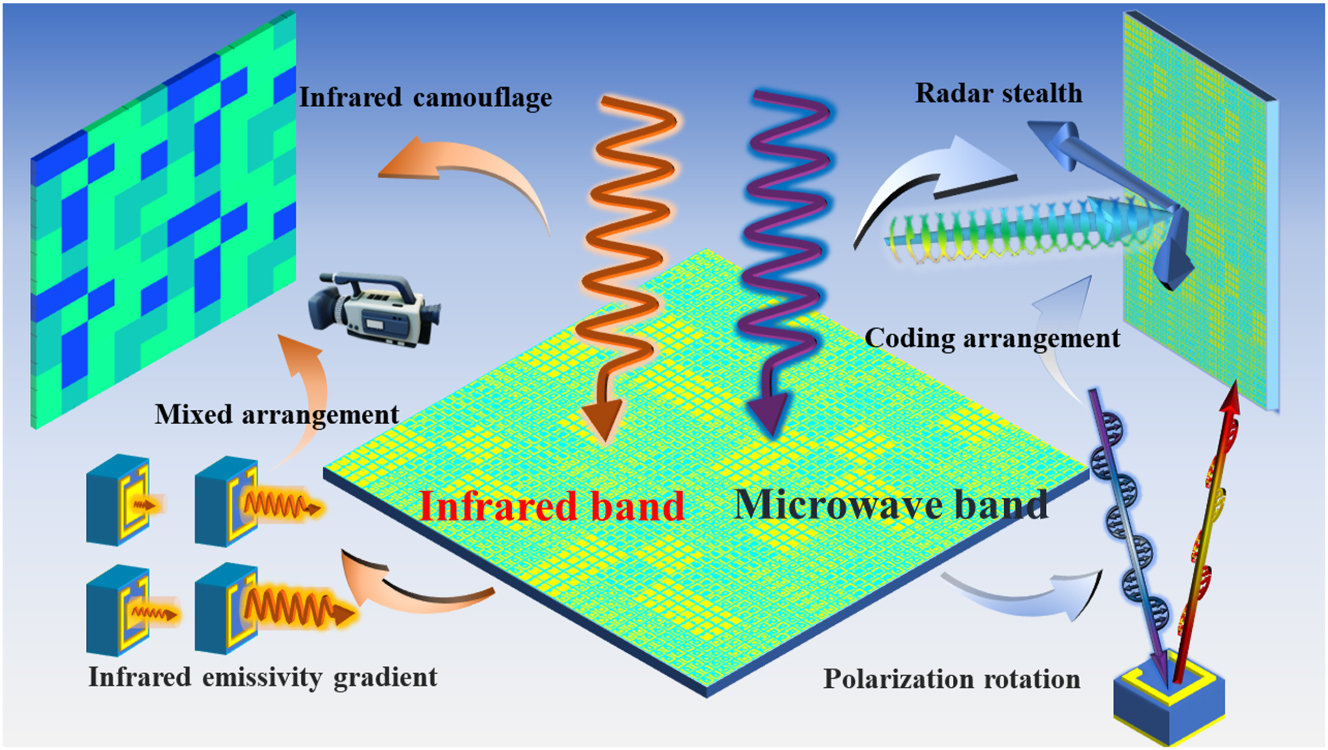

With the rapid improvement of equipment integration technology, multi-spectrum detectors are integrated into compact volumes and widely used for object detection. Confront with this challenge, it is essential to propose a strategy to design a single-layer metasurface with multi-spectrum responses in microwave and infrared ranges. In this work, we proposed a method of designing meta-atoms, which is capable of achieving functional electromagnetic response at microwave and infrared individually. As a demonstration, a metasurface with four different occupation ratios and coding permutation features is designed, fabricated, and tested. In the microwave band, the pixel meta-atom is designed to realize highly efficient cross-polarization conversion between 5.0 and 10.0 GHz, which shows the metasurface can behave as ultra-low Radar Cross Section (RCS) reflectors in the working band; In the infrared band, different occupation ratio of meta-atoms are designed to realize the infrared emissivity from 0.60 to 0.80 in 3–14 μm, which can be used to exhibit digital infrared camouflage pattern. This work promotes the ability to use single-layer design to achieve digital infrared camouflage and microwave RCS reduction simultaneously. The one-layer design is simple in geometry, simplified in process, low cost in economy, and large scale in fabrication, which can promote practical use in compatible microwave stealth and infrared camouflage.

With the rapid development and wide application of visible (VIS) and infrared (IR) detections, it is necessary to explore visible-infrared (VIS-IR) compatible camouflage. Here, we report a VIS-IR compatible and independent camouflage device which is composed of the upper IR-transparent VIS-color-patterned layer and the lower electrochromic IR layer. The upper layer has amorphous photonic structure of polystyrene nanospheres (PSNSs). By customizing the PSNS size, various colors can be realized for VIS camouflage. The lower electrochromic IR layer takes advantage of multiwall carbon nanotubes (MWCNTs) as the electrode as well as the IR active material. Experimental results reveal that different colors (including blue, green, and purple) have been obtained, and the IR emissivity can be electrically regulated from 0.43 to 0.9. Moreover, the prototype also exhibits good electrical stability as well as hydrophobic characteristic (the water contact angle of the outmost surface exceeds 120°). These output performances demonstrate the success of our design strategy for promoting the finding applied in camouflage fields as well as energy conservation fields.

Here, we present the concept of flat-field capillary-assisted nanoparticle tracking analysis for the characterization of fast diffusing nano-objects. By combining diffusion confinement and spatially invariant illumination, i.e., flat-fields, within a fiber-interfaced on-chip environment, ultra-long trajectories of fast diffusing objects within large microchannels have been measured via diffraction-limited imaging. Our study discusses the design procedure, explains potential limitations, and experimentally confirms flat-field formation by tracking gold nanospheres. The presented concept enables generating flat-fields in a novel on-chip optofluidic platform for the characterization of individual nano-objects for fundamental light/matter investigations or applications in bioanalytics and nanoscale material science.

The metasurfaces have shown great potential for miniaturizing conventional optics while offering extended flexibility. Recently, there has been considerable interest in using algorithms to generate meta-atom shapes for these metasurfaces, as they offer vast design freedom and not biased by the human intuition. However, these complex designs significantly increase the difficulty of fabrication. To address this, we introduce a design process that rigorously enforces the fabricability of both the material-filled (fill) and empty (void) regions in a metasurface design. This process takes into account specific constraints regarding the minimum feature size for each region. Additionally, it corrects any violations of these constraints across the entire device, ensuring only minimal impact on performance. Our method provides a practical way to create metasurface designs that are easy to fabricate, even with complex shapes, hence improving the overall production yield of these advanced meta-optical components.

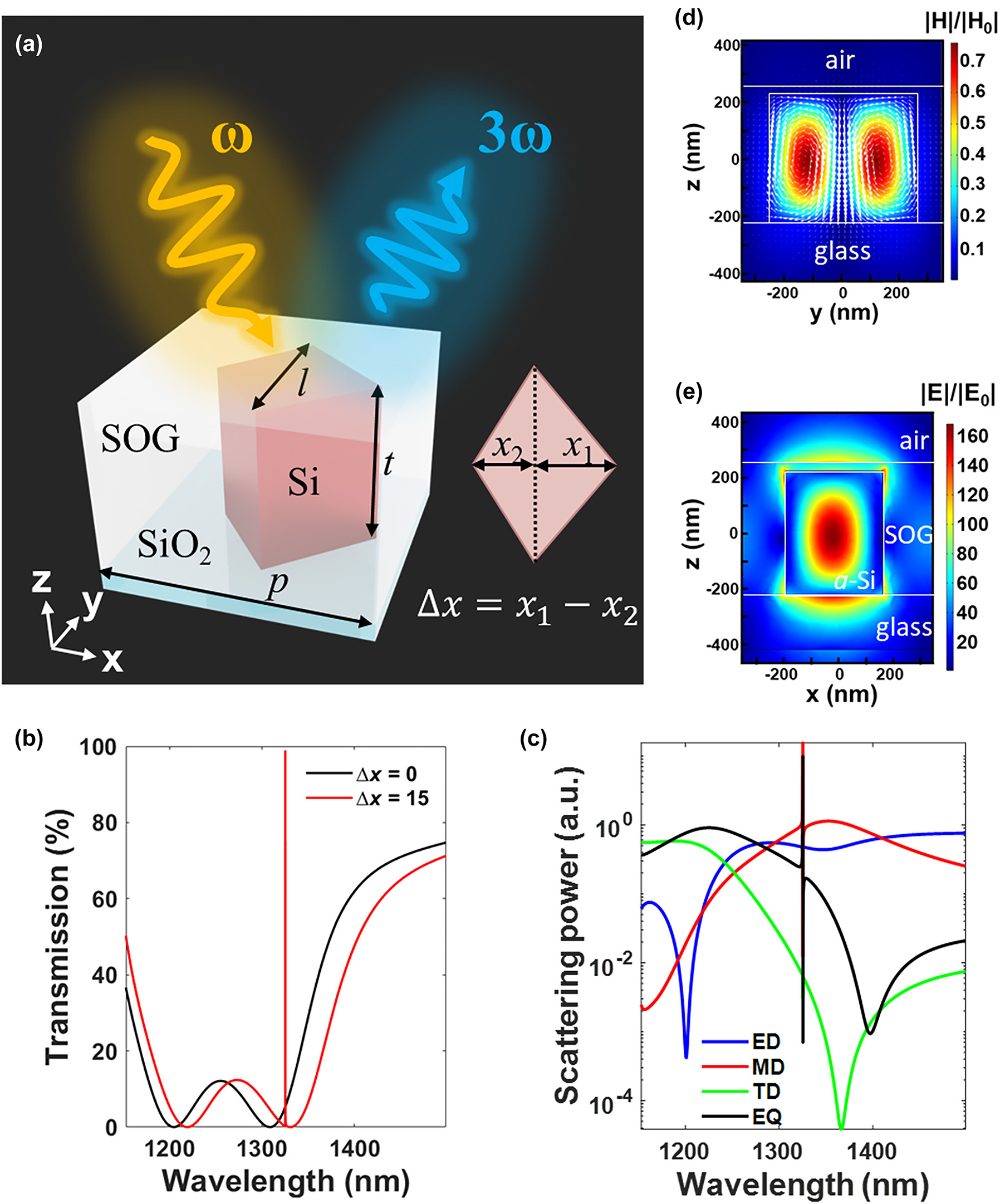

We develop a new all-dielectric metasurface for designing high quality-factor ( Q -factor) quasi-bound states in the continuum (quasi-BICs) using asymmetry kite-shaped nanopillar arrays. The Q -factors of quasi-BICs follow the quadratic dependence on the geometry asymmetry, and meanwhile their resonant spectral profiles can be readily tuned between Fano and Lorentzian lineshapes through the interplay with the broadband magnetic dipole mode. The third-harmonic signals of quasi-BIC modes exhibit a gain from 43.4- to 634-fold enhancement between samples with an axial-length difference of 15 nm and 75 nm when reducing the numerical aperture of the illuminating objective lenses in nonlinear measurement, which is attributed to the increasing illumination spot size and the less contribution from the large oblique incident light for establishing quasi-BIC modes with high- Q spectral profile and strong near-field intensity. The silicon-based metasurfaces with their simple geometry are facile for large-area fabrication and open new possibilities for the optimization of upconversion processes to achieve efficient nonlinear devices.

The demand for advanced camouflage technology is increasing in modern military warfare. Multispectral compatibility and adaptive capabilities are increasingly desired features in camouflage materials. However, due to the strong wavelength dependence and limited tunability of electromagnetic wave responses, achieving simultaneous multispectral compatibility and adaptive capability in a single structure or device remains a challenge. By integrating coding metamaterials with infrared (IR) electrochromic devices, we demonstrate a highly integrated multispectral metal-based electro-optical metadevice. The fabricated metadevices enable the reversible tunability of IR emissivity (0.58 at 3–5 µm, 0.50 at 7.5–13 µm) and wideband microwave scattering reduction (>10 dB at 10–20 GHz). The excellent integration performance is attributed to the remarkable electromagnetic control capabilities of the coding metamaterials in a chessboard-like configuration and the IR electrochromic devices based on metal reversible electrodeposition. Furthermore, the monolithic integrated design with shared barium fluoride substrate and electrodes allows the metadevices to have a simple architecture, and the careful design avoids coupling between functions. Our approach is general enough for the design of various electrochromic devices and metamaterials for multispectral camouflage, offering valuable insights for the development of advanced adaptive multispectral camouflage systems.
