The crystal structure of (E)-2-((5-bromo-2-hydroxybenzylidene)amino)-3′,6′-bis(ethylamino)-2′, 7′-dimethylspiro[isoindoline-1,9′-xanthen]-3-one, C33H31BrN4O3

  • Zhenxiu Xiao , Li Wu , Yizi Su und Wujiu Jiang ORCID logo EMAIL logo
Veröffentlicht/Copyright: 20. Oktober 2022
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 237 Heft 6

Abstract

C33H31BrN4O3, monoclinic, P21/c (no. 14), a = 9.3451(7) Å, b = 17.3057(13) Å, c = 18.4402(13) Å, β = 98.4470(10)°, V = 2949.9(4) Å3, Z = 4, R gt (F) = 0.0409, wR ref (F 2) = 0.1106, T = 296(2) K.

CCDC no.: 2203806

The molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Yellow acicular
Size: 0.20 × 0.13 × 0.12 mm
Wavelength: Mo Kα radiation (0.71073 Å)
μ: 1.43 mm−1
Diffractometer, scan mode: Bruker APEX-II, φ and ω
θ max, completeness: 26.0°, >99%
N(hkl)measured, N(hkl)unique, R int: 15988, 5797, 0.026
Criterion for I obs, N(hkl)gt: I obs > 2 σ(I obs), 3968
N(param)refined: 399
Programs: Bruker [1], SHELX [2, 3], WinGX/ORTEP [4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z U iso*/U eq
Br1 0.31205 (4) 0.91976 (2) 1.11742 (2) 0.07085 (14)
O1 0.5752 (2) 0.69126 (10) 0.81706 (10) 0.0547 (5)
O2 0.2741 (2) 1.06985 (10) 0.82071 (10) 0.0577 (5)
H2 0.313358 1.043836 0.792112 0.087*
O3 0.3878 (3) 1.00532 (11) 0.63994 (11) 0.0787 (6)
N1 0.0904 (3) 0.60231 (16) 0.79538 (16) 0.0815 (8)
H1 0.002097 0.605472 0.774351 0.098*
N3 0.4413 (2) 0.90494 (10) 0.72138 (10) 0.0389 (5)
N4 0.3947 (2) 0.94480 (11) 0.77698 (11) 0.0407 (5)
C1 0.4998 (2) 0.82461 (12) 0.72406 (12) 0.0345 (5)
C2 0.6392 (2) 0.81804 (13) 0.77737 (11) 0.0361 (5)
C3 0.7439 (2) 0.87569 (14) 0.78466 (12) 0.0429 (6)
H3 0.724964 0.920649 0.757307 0.051*
C4 0.8738 (3) 0.86982 (16) 0.83013 (14) 0.0517 (7)
C5 0.9007 (3) 0.80160 (19) 0.87181 (14) 0.0583 (7)
C6 0.7977 (3) 0.74366 (17) 0.86594 (13) 0.0562 (7)
H6 0.814932 0.698861 0.893707 0.067*
C7 0.6691 (3) 0.75223 (14) 0.81886 (12) 0.0421 (6)
C8 0.4325 (3) 0.70393 (14) 0.78684 (13) 0.0448 (6)
C9 0.3348 (3) 0.64854 (15) 0.80387 (15) 0.0565 (7)
H9 0.367504 0.606577 0.833215 0.068*
C10 0.1895 (3) 0.65577 (16) 0.77727 (15) 0.0582 (8)
C11 0.1418 (3) 0.71854 (16) 0.73117 (15) 0.0538 (7)
C12 0.2432 (3) 0.77179 (15) 0.71618 (13) 0.0458 (6)
H12 0.211785 0.813561 0.686287 0.055*
C13 0.3896 (2) 0.76651 (13) 0.74323 (12) 0.0375 (5)
C14 0.5273 (2) 0.81718 (13) 0.64492 (12) 0.0391 (5)
C15 0.5844 (3) 0.75520 (15) 0.61209 (13) 0.0504 (6)
H15 0.610054 0.709890 0.637875 0.060*
C16 0.6022 (3) 0.76300 (19) 0.53896 (15) 0.0666 (8)
H16 0.641110 0.722053 0.515635 0.080*
C17 0.5642 (4) 0.8293 (2) 0.50021 (16) 0.0827 (10)
H17 0.576815 0.832538 0.451205 0.099*
C18 0.5077 (4) 0.89073 (19) 0.53323 (16) 0.0787 (10)
H18 0.482456 0.936016 0.507322 0.094*
C19 0.4888 (3) 0.88390 (15) 0.60630 (13) 0.0516 (6)
C20 0.4322 (3) 0.94026 (15) 0.65365 (14) 0.0513 (6)
C21 0.4037 (3) 0.91669 (15) 0.84127 (14) 0.0397 (5)
C22 0.3505 (2) 0.96055 (13) 0.89921 (12) 0.0385 (5)
C23 0.3570 (3) 0.92774 (14) 0.96815 (13) 0.0428 (6)
H23 0.398708 0.879237 0.977062 0.051*
C24 0.3024 (3) 0.96589 (15) 1.02368 (13) 0.0484 (6)
C25 0.2414 (3) 1.03789 (16) 1.01127 (15) 0.0560 (7)
H25 0.205221 1.063915 1.048795 0.067*
C26 0.2342 (3) 1.07128 (15) 0.94304 (15) 0.0557 (7)
H26 0.192793 1.119962 0.934924 0.067*
C27 0.2872 (3) 1.03384 (14) 0.88648 (13) 0.0438 (6)
C28 0.1292 (4) 0.5416 (2) 0.8480 (2) 0.0981 (13)
H28A 0.179139 0.563645 0.893144 0.118*
H28B 0.194453 0.505782 0.829151 0.118*
C29 −0.0053 (6) 0.4983 (3) 0.8640 (3) 0.154 (2)
H29A −0.068668 0.533502 0.883987 0.232*
H29B 0.022915 0.457717 0.898631 0.232*
H29C −0.054715 0.476473 0.819345 0.232*
C32 −0.0150 (3) 0.7267 (2) 0.69822 (18) 0.0793 (10)
H32A −0.028001 0.773915 0.670666 0.119*
H32B −0.073949 0.727756 0.736674 0.119*
H32C −0.042777 0.683737 0.666354 0.119*
C33 0.9831 (3) 0.9336 (2) 0.83504 (19) 0.0775 (10)
H33A 0.943300 0.976617 0.806015 0.116*
H33B 1.068440 0.915505 0.817057 0.116*
H33C 1.007599 0.949429 0.885216 0.116*
N2Aa 1.0306 (3) 0.79465 (19) 0.91838 (15) 0.0913 (9)
H2Aa 1.097608 0.828959 0.920167 0.110*
C30Aa 1.0480 (9) 0.7206 (7) 0.9675 (6) 0.085 (3)
H30Aa 0.978192 0.721099 1.001571 0.102*
H30Ba 1.032084 0.674635 0.937313 0.102*
C31Aa 1.1983 (9) 0.7210 (5) 1.0082 (5) 0.128 (4)
H31Aa 1.265446 0.731678 0.974808 0.192*
H31Ba 1.219639 0.671497 1.030645 0.192*
H31Ca 1.206410 0.760222 1.045473 0.192*
N2Bb 1.0306 (3) 0.79465 (19) 0.91838 (15) 0.0913 (9)
H2Bb 1.070804 0.838165 0.931429 0.110*
C30Bb 1.1076 (12) 0.7314 (9) 0.9478 (7) 0.078 (4)
H30Cb 1.211026 0.739507 0.950629 0.094*
H30Db 1.080284 0.685019 0.919596 0.094*
C31Bb 1.0634 (15) 0.7274 (8) 1.0219 (6) 0.117 (5)
H31Db 1.086359 0.775278 1.047168 0.176*
H31Eb 1.114067 0.685908 1.049093 0.176*
H31Fb 0.961069 0.718321 1.017210 0.176*
H21 0.437 (2) 0.8715 (14) 0.8549 (12) 0.035 (6)*

  1. aOccupancy: 0.580 (10), bOccupancy: 0.420 (10).

Source of material

All chemicals were purchased from commercial sources and used as received. A mixture of rhodamine 6G hydrazide (1 mmol), 5-bromo-2-hydroxybenzaldehyde (1 mmol), and CH3OH (50 mL) was added in a round-bottomed flask (100 mL), and refluxed for 5.0 h. The solution was cooled and filtered. Finally, the title compound was precipitated by controlling solvent volatilization.

Experimental details

All H-atoms bonded to C atoms were placed geometrically and refined using a riding model with common isotropic displacement factors U iso(H) = 1.2 or 1.5 U eq(parent C-atom).

Comment

Rhodamine derivatives have attracted much attention in the design of chemosensors or chemodosimeters for metal ions [5]. Particularly, rhodamine hydrazones bearing a 2-hydroxybenzaldehyde unit may act as fluorescent probes for Cu2+ or Hg2+ [6, 7].

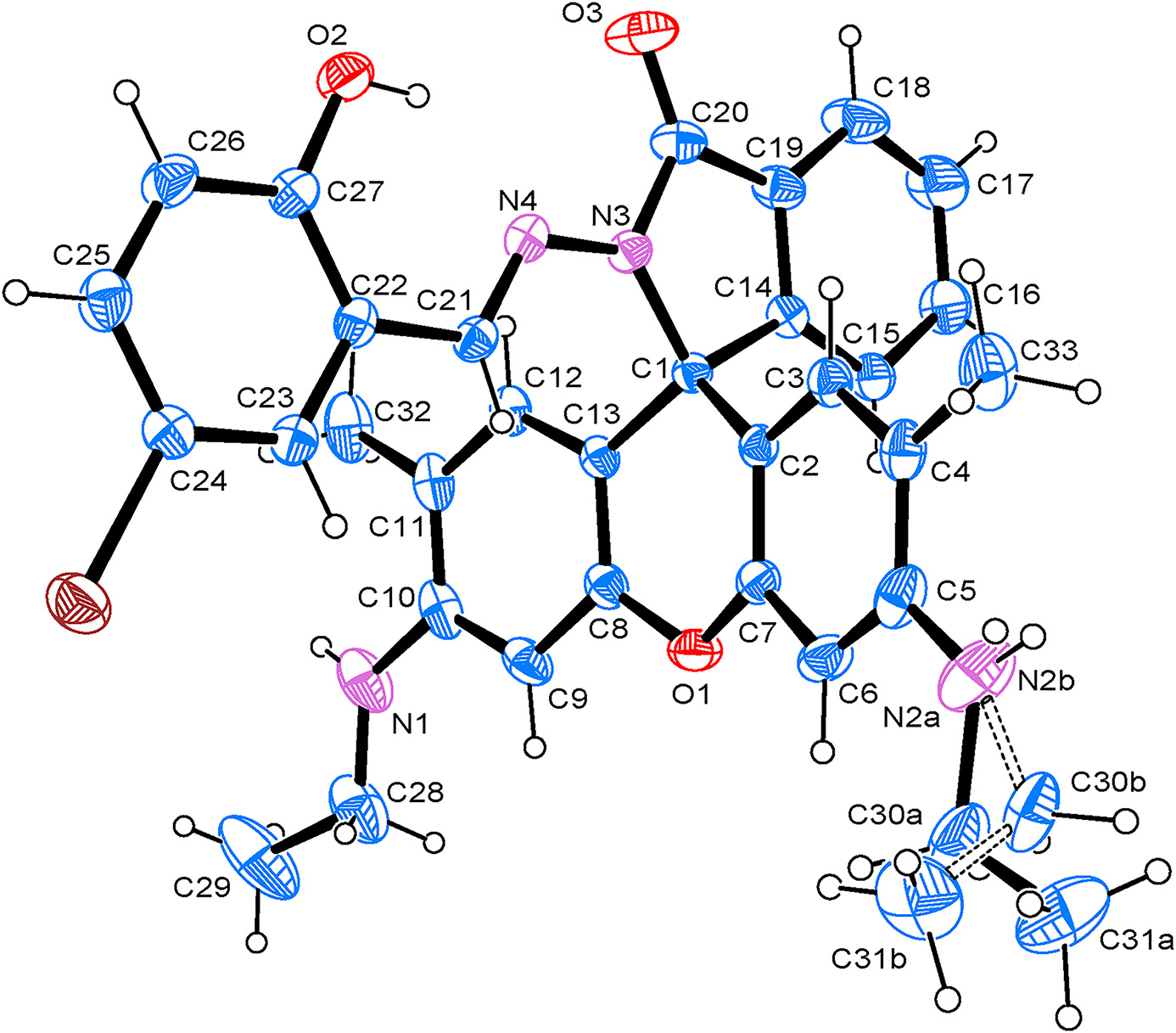

The ORTEP diagram is presented in the figure. Bond lengths and angles are all in the expected ranges [8]. It can be seen from Figure 1 that C1, C4, C19, C20, and N4 atoms form a five-membered heterocyclic ring, indicating that the title compound exists in the form of a closed spiro ring. The C=N of the title molecule exhibits an E configuration. The bond length of C21=N4 is 1.269(3) Å, which is similar to those reported in the literature [8, 9]. The oxygen atom O2 provides one intramolecular hydrogen bond to N4 (O2⋯N4 = 2.637(3) Å).

Corresponding author: Wujiu Jiang, College of Chemistry and Materials Science, Hengyang Normal University, Hengyang, Hunan 421008, P. R. China, E-mail:

Funding source: Hunan Provincial Natural Science Foundation of China

Award Identifier / Grant number: 2022JJ30096

Funding source: College Students Innovation and Entrepreneurship Training Program

Award Identifier / Grant number: NYD202211

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: This work was supported by the Hunan Provincial Natural Science Foundation of China (No. 2022JJ30096), and College Students Innovation and Entrepreneurship Training Program (No. NYD202211).

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Bruker. SAINT, APEX2 and SADABS; Bruker AXS Inc.: Madison, WI, USA, 2012.Suche in Google Scholar

2. Sheldrick, G. M. SHELXTL – integrated space-group and crystal-structure determination. Acta Crystallogr. 2015, A71, 3–8; https://doi.org/10.1107/s2053273314026370.Suche in Google Scholar PubMed PubMed Central

3. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Suche in Google Scholar

4. Farrugia, L. J. WinGX and ORTEP for Windows: an update. J. Appl. Crystallogr. 2012, 45, 849–854; https://doi.org/10.1107/s0021889812029111.Suche in Google Scholar

5. Chen, X., Pradhan, T., Wang, F., Kim, J. S., Yoon, J. Fluorescent chemosensors based on spiroring-opening of xanthenes and related derivatives. Chem. Rev. 2012, 112, 1910–1956; https://doi.org/10.1021/cr200201z.Suche in Google Scholar PubMed

6. Yang, Y., Gao, C.-Y., Li, T., Chen, J. A tetraphenylethene-based rhodamine hydrazone chemosensor for colorimetric and reversible detection of Cu2+. ChemistrySelect 2016, 1, 4577–4581; https://doi.org/10.1002/slct.201600883.Suche in Google Scholar

7. Dong, M., Tang, J., Lv, Y., Liu, Y., Wang, J., Wang, T., Bian, J., Li, C. A dual-function fluorescent probe for Hg (II) and Cu (II) ions with two mutually independent sensing pathways and its logic gate behavior. Spectrochim. Acta A 2020, 226, 117645; https://doi.org/10.1016/j.saa.2019.117645.Suche in Google Scholar PubMed

8. Jiang, D., Xue, X., Zhang, G., Wang, Y., Zhang, H., Feng, C., Wang, Z., Zhao, H. Simple and efficient rhodamine-derived VO2+ and Cu2+-responsive colorimetric and reversible fluorescent chemosensors toward the design of multifunctional materials. J. Mater. Chem. C 2019, 7, 3576–3589; https://doi.org/10.1039/c8tc06296j.Suche in Google Scholar

9. Yuan, J. Crystal structure of (E)-2-(3,6-bis(ethylamino)-2,7-dimethyl-9H-xanthen-9-yl)-N′-((6-methylpyridin-2-yl)methylene)benzohydrazide – methanol (1/1), C34H37N5O3. Z. Kristallogr. N. Cryst. Struct. 2019, 234, 1091–1093; https://doi.org/10.1515/ncrs-2019-0285.Suche in Google Scholar
